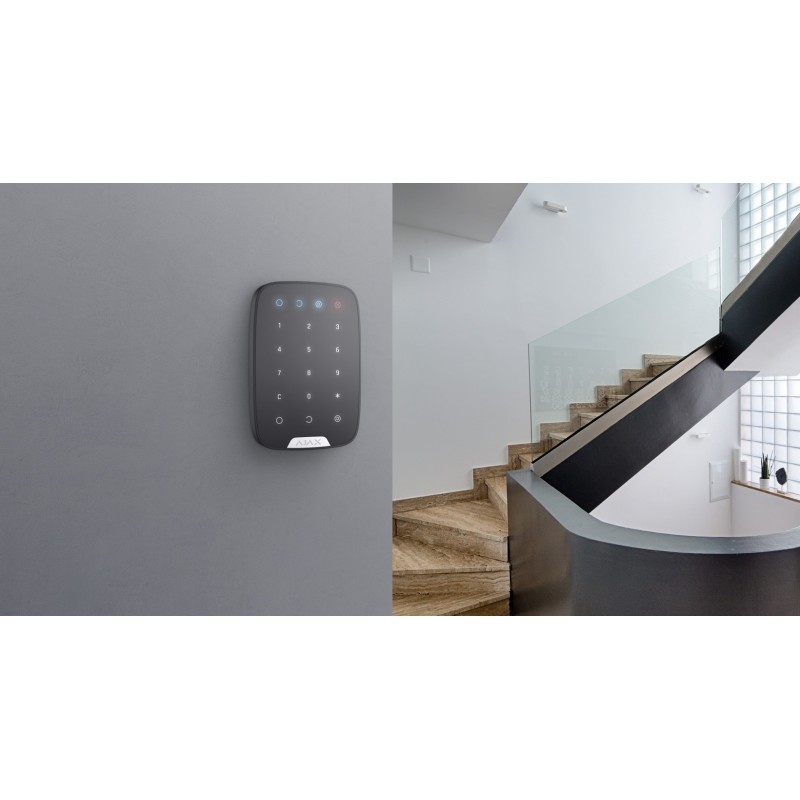

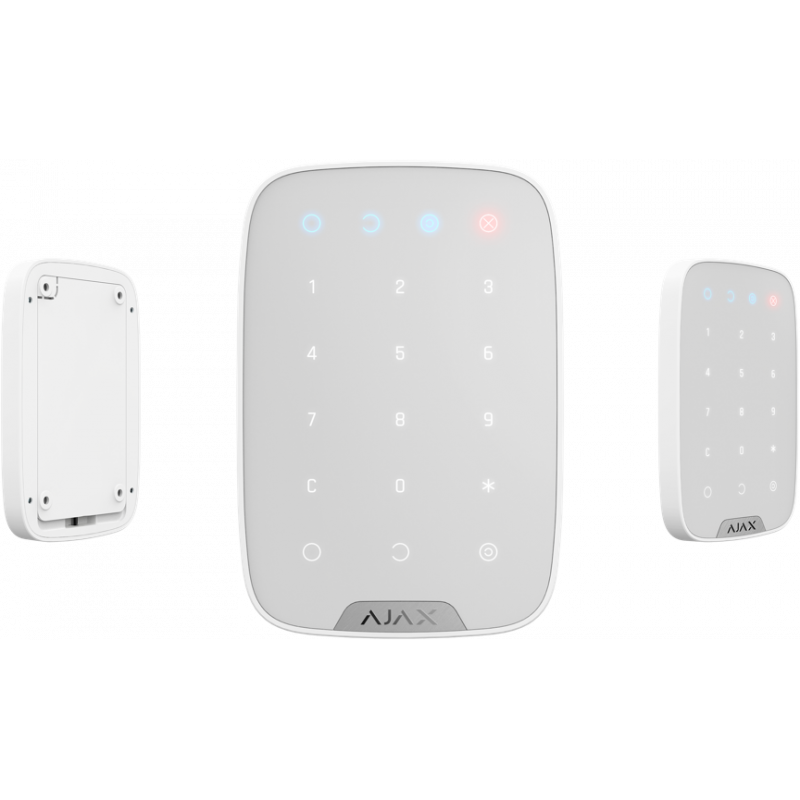

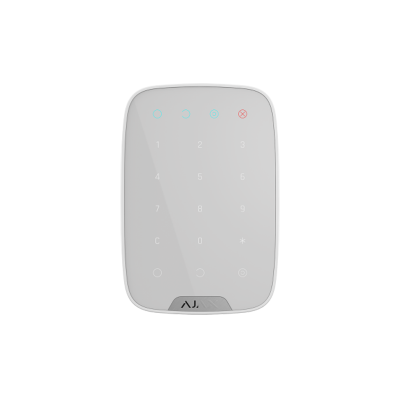

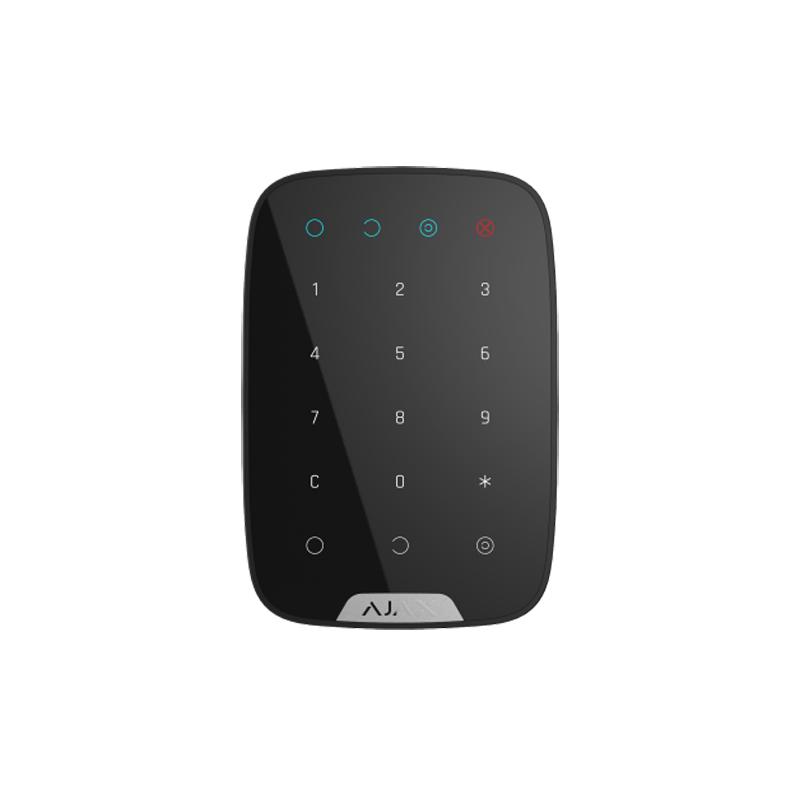

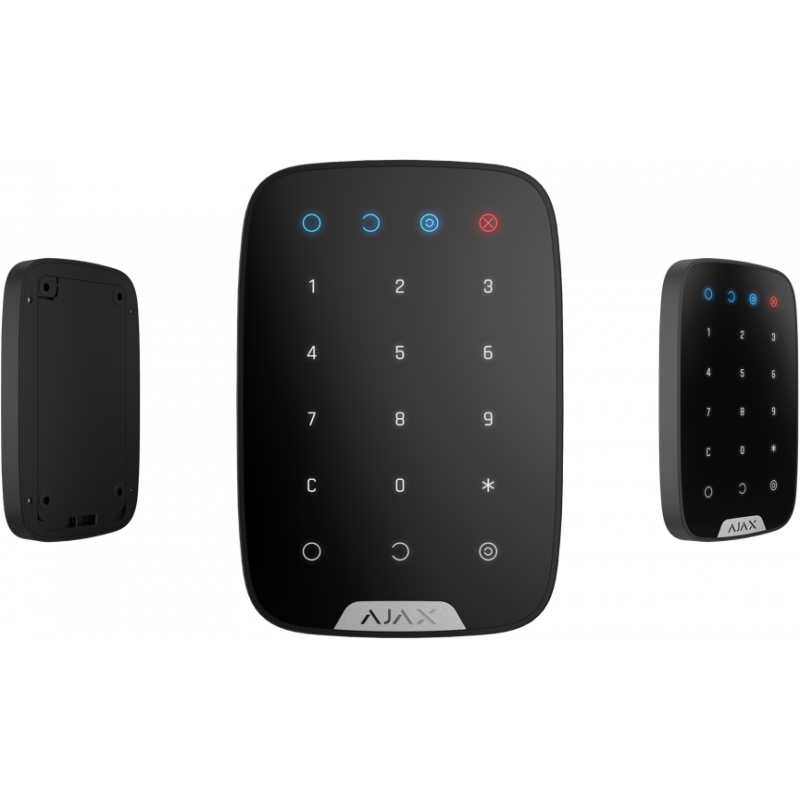

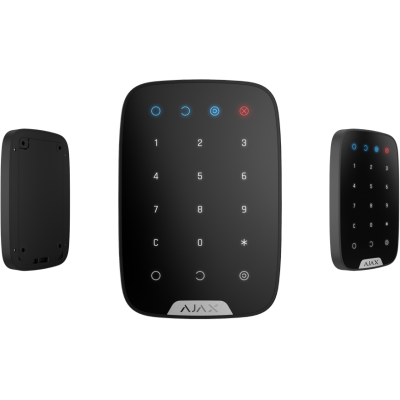

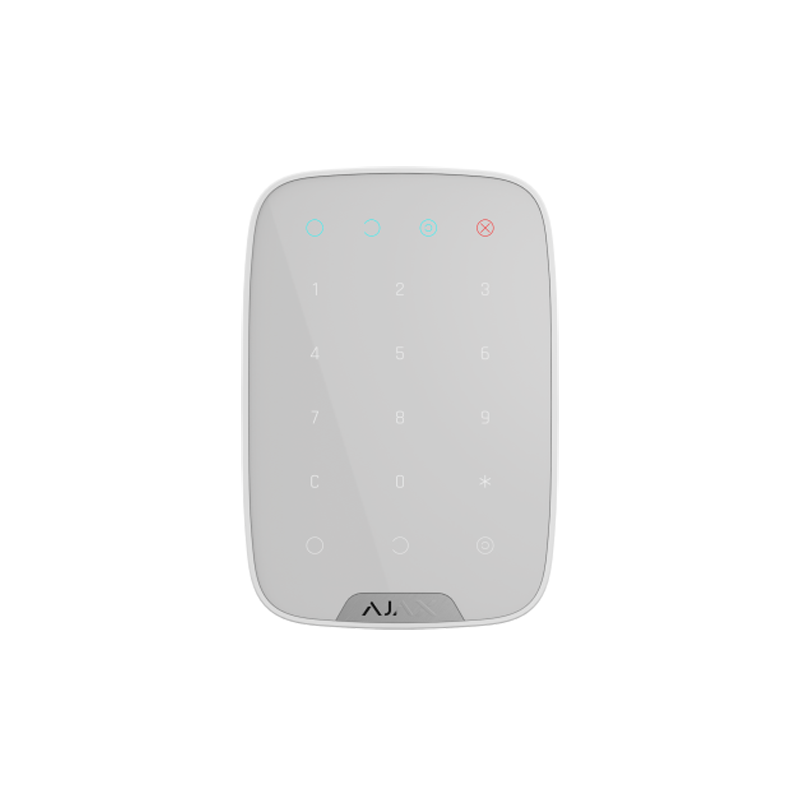

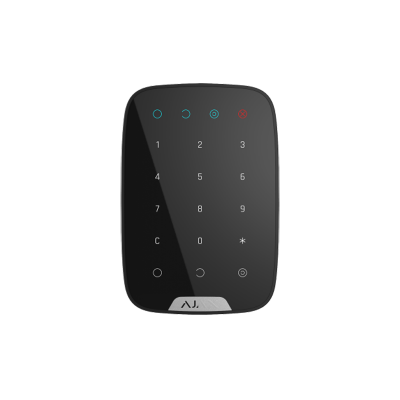

AJAX KeyPad - Wireless keyboard for Ajax control panel

• Authentication to avoid forgery
• Detection of inhibition and encryption of communication channels
• Tamper tamper
• Grade 2 security
• Device activates full security mode at the push of a button
• If the thief tries to enter the code, a hidden alarm signal can be sent to the Alarm Receiving Center (CRA)
• The keypad locks automatically if the wrong code is entered too many times

Operating principle

The device controls the security modes when the digital code is entered on the keypad. Indicates current security status, detectors problems or communication failure with the central unit (hub).
characteristics
Alarm button available. Notifies every attempt to guess the password and locks automatically if the allowed number of attempts is exceeded.
Installation and configuration
Ready to go straight out of the box - The battery is already installed, so there is no need to disassemble the keyboard. With just one click, you can connect to the central unit (hub) in the application of your mobile device. It can be installed on the SmartBracket in a few minutes.

Technical specifications:

Classification: Radio Channel Touch Keypad
Keyboard Type: Wireless, Touch
Installation method: Indoor
Compatibility: Only works with Hub, Hub Plus and ReX
Number of buttons: 15
Duress code: Yes
Protection against password attacks: Yes
Password force protection: Yes
Indication to arm / disarm: Yes
Power: Battery: AAA batteries
Power supply voltage: 3V
Battery life: up to 2 years

Jeweler radio technology
Communication range with the central unit: up to 1700 m in open spaces
Two-way communication between devices
Operating Frequencies: 868.0-868.6 MHz
Self-adjusting radio frequency output power: up to 20mW
Block encryption based on AES algorithm
Keyboard scan period: 12-300s

Read more about Jeweler>

Temperature sensor: Available
Operating temperature range: -10ºC to 40ºC
Allowable humidity: Up to 75%
Tamper: Tamper Protection
Inhibition detection: Tamper resistant

Remote setup and testing: +
Dimensions: 150E103E14 mm
Weight: 197g
Certification: Grade 2, CE
Warranty: Repair and replacement up to 24 months after the date of purchase. Batteries are not covered by warranty

Material included in packaging:

KeyPad touch keyboard
SmartBracket fixing panel
4 AAA batteries (pre-installed)
Installation kit
User's guide
