NET-BACKBOX DL BUILT-IN mechanism box dimensions: 83x83x48mm

Recessed mechanism box in "PLADUR" 83x83 for Wi-Fi access points, thermostats and electronic devices of special size... among other devices that can benefit from the peculiarities of this box.

1-way dry lining installation box with adjustable connectors 47mm inner depth.

NETBACKBOX-DL

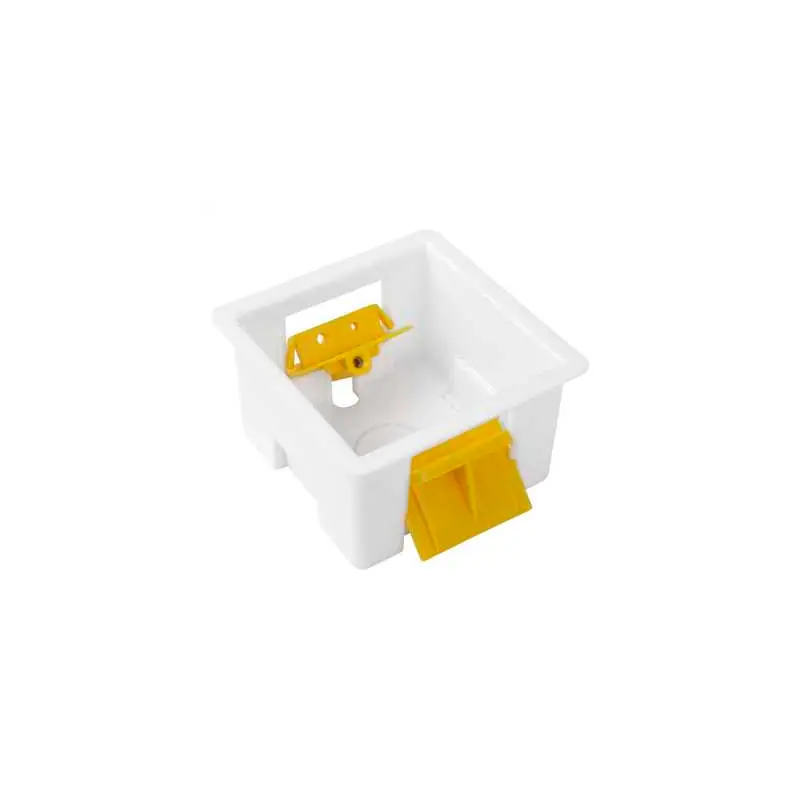

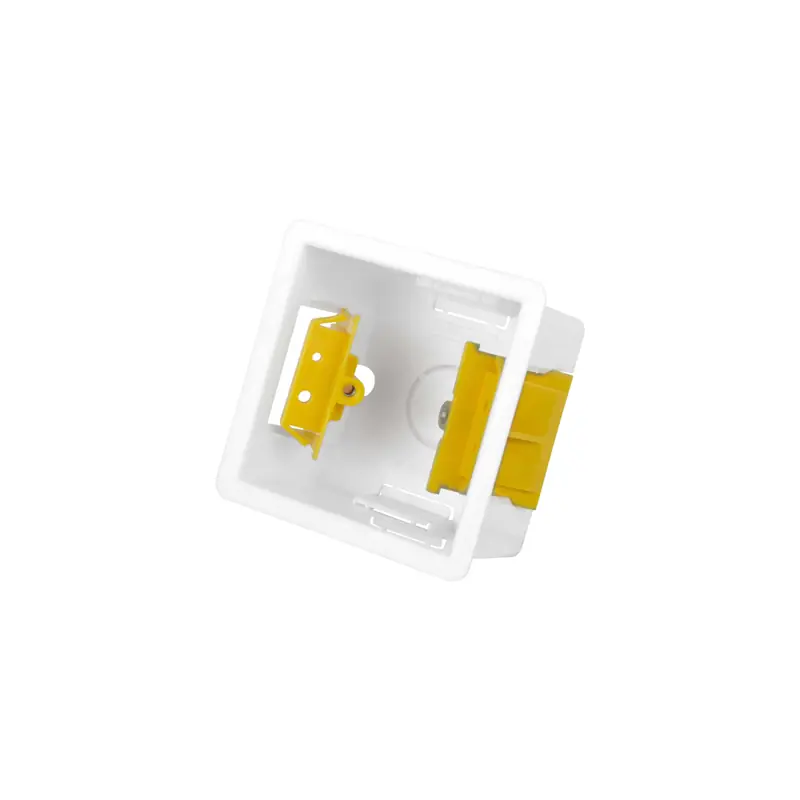

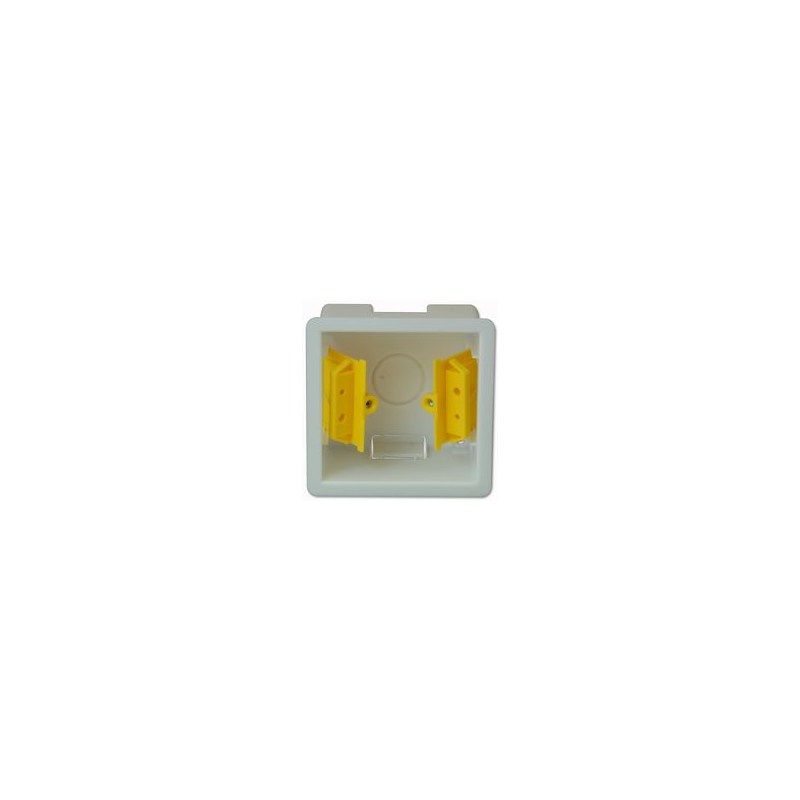

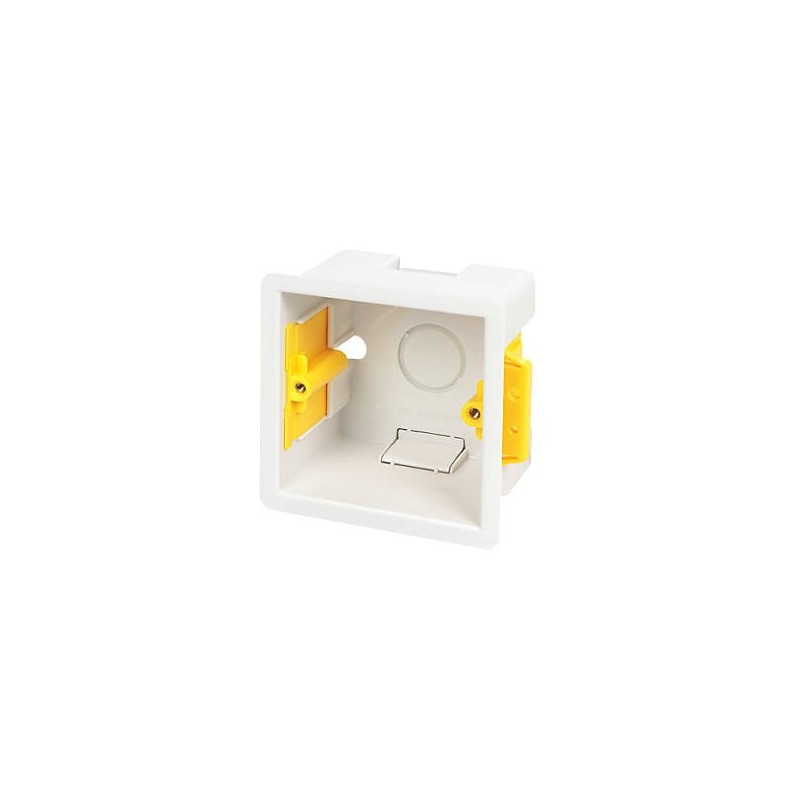

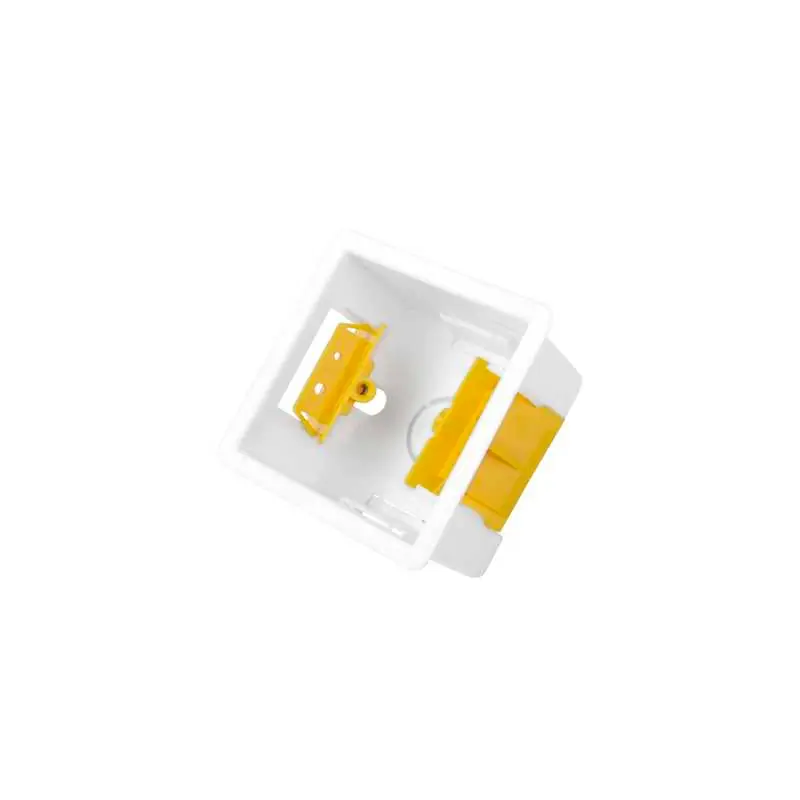

It is a box for "plasterboard" (plasterboard) 47 mm deep. It has strong adjustable yellow nylon lugs that have superior strength thanks to their guides and a large tab around the front that prevents it from sliding or seeping into the walls of the cavity, in addition to matching the profile of the accessory faceplate that will be installed with it. It has two pre-cut 20 mm side cable entries and one pre-cut 25 mm at the base. It is suitable for use with plasterboard/plasterboard with a thickness of between 6.35-15mm.

- Made of fireproof thermoplastic
- Sturdy yellow nylon tabs have large support faces for added strength
- Large lip around the front of the accessories faceplates and prevents cavities
- 25 mm blind hole in the base and 2 side entry points.
- Suitable for plates with a thickness of 6.35-15 mm

A: 73 mm B: 73 mm C: 48 mm D: 60 mm E: 6,7 mm F min.: 6,35 mm F max.: 15 mm G: 83 mm Distancia entre tornillos: 61 mm

Technical specifications

CE conformity: Yes
UKCA Compliance: Yes
Mounting method: Flush mounting (plaster/plasterboard)
Shape: Square
Construction type Junction box (round/square)
Simple Model
Length 83mm
Width 83mm
Depth 48mm
Inner depth 47mm
For number of electrical mechanisms 1
Mounting the switchgear Screwing
Plastic material
Halogen free No
Surface protection Untreated
White color
Protection class (IP) n/a
Cover model n/a
Possible cover fixing: Screwed
