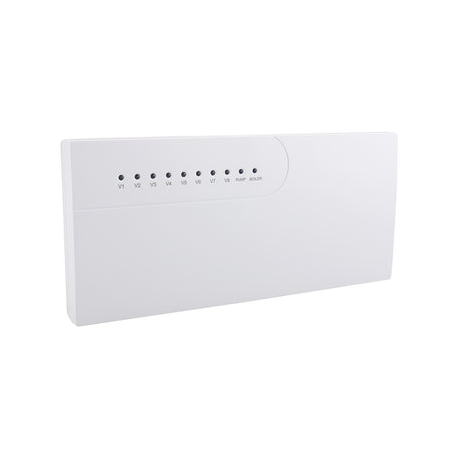

Underfloor Heating Wiring Centre 230V for Thermostat and Actuators, Linked Gas Boiler and Water Pump

underfloor heating hub controller provides a temperature control system for room heating with up to 8 zones. It controls the actuator output according to the output signal of the room thermostat, linking the output of the water pump and gas boiler to achieve a comfortable temperature control and reduce energy consumption. Indicator lights show the status of the zones for easy understanding of the current heating status, suitable for underfloor heating and wall mounted radiator manifold systems
Specification:
Power Supply: AC200-240V 50/60Hz
Max load :3A
Power Consumption: 10W
Operation temperature:-20℃～60℃
Storage temperature: -20℃～70℃

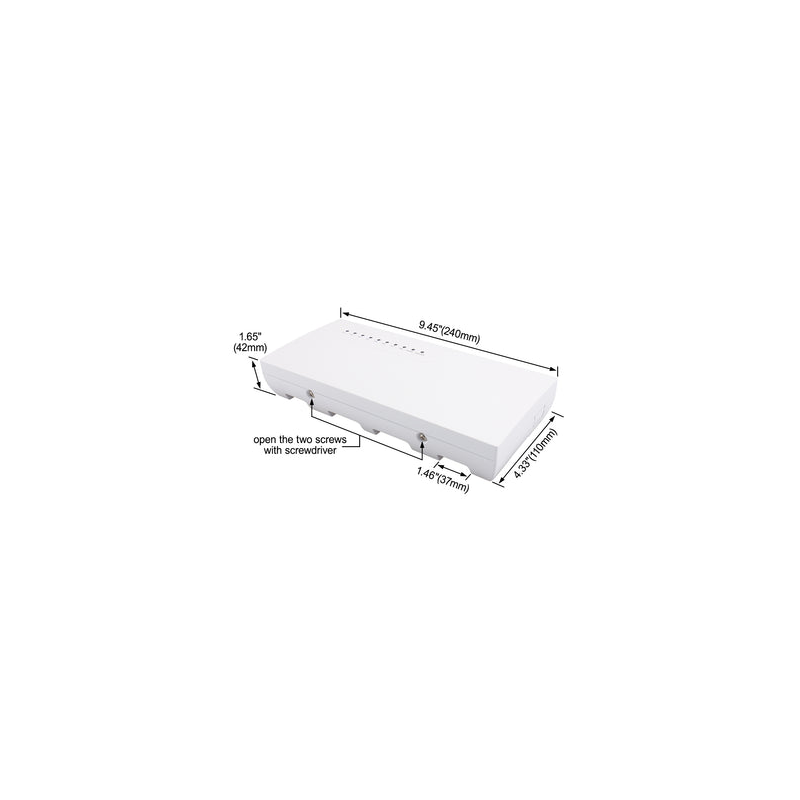

Dimensions:240mm X 110mm X 42mm
•Color: White
•Material: Anti-flammable PC +ABS
•Application: Hotel, Home,Hotel Room,Office Central Air Conditioner Thermostat
•Certificate: RoHS,CE
•Delay time: 60s

Features:

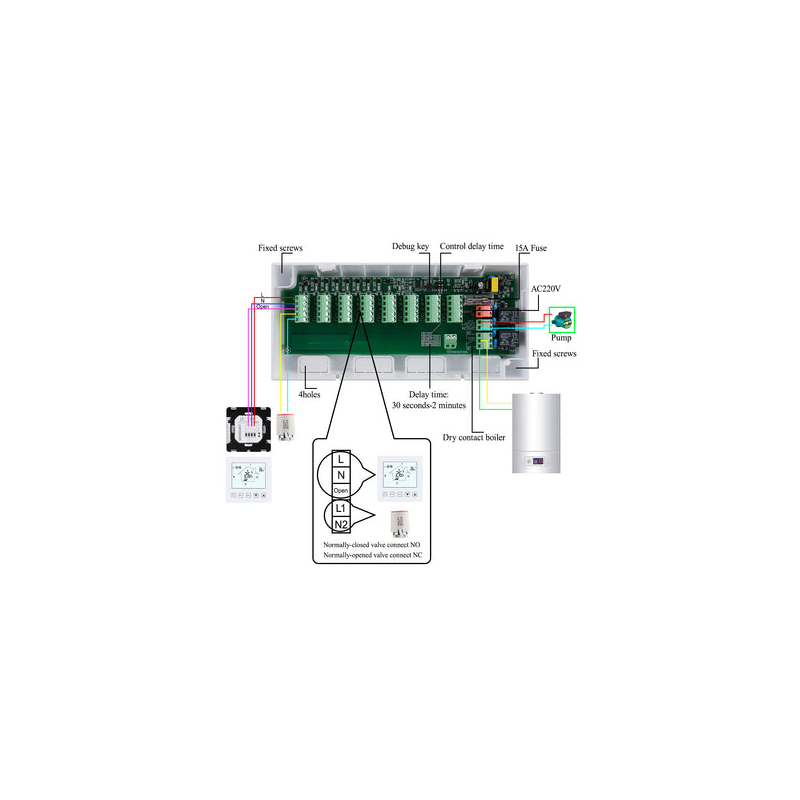

•Easy wiring: AC 230V power supply, can directly power the heating thermostat and external water pump, the user only needs to reserve the mains power at the manifold before installation and connect a three-wire cable directly to the room thermostat
•Centralised control: up to 8 channels of underfloor heating thermostats are supported to control the output of the electric heating actuators in 8 zones

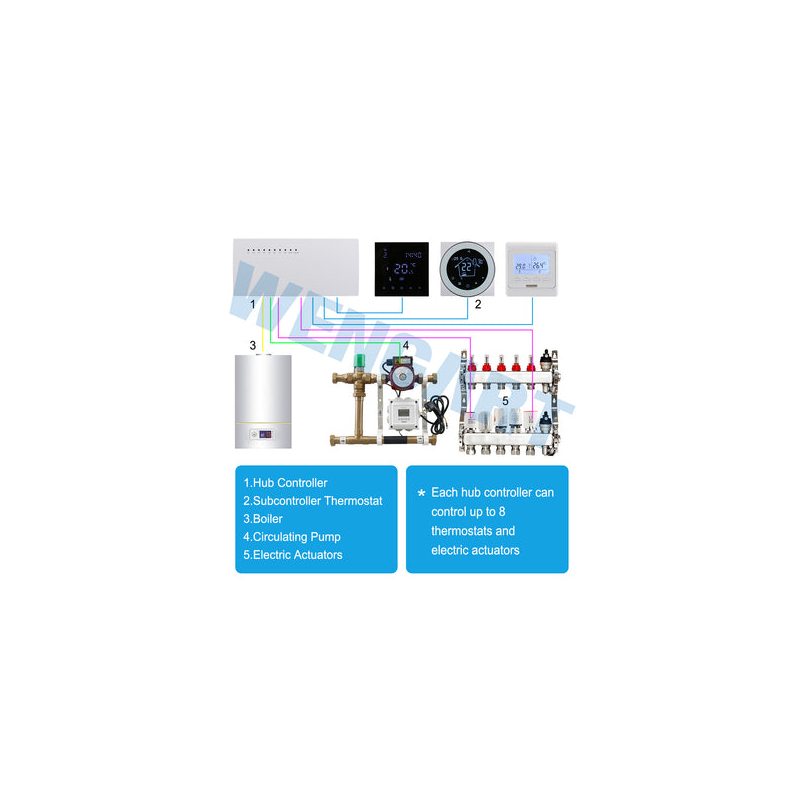

•Linked boilers and pumps: boilers and pumps are only switched on when there is a heating demand in any zone and switched off when there is no heating demand, effectively reducing energy consumption

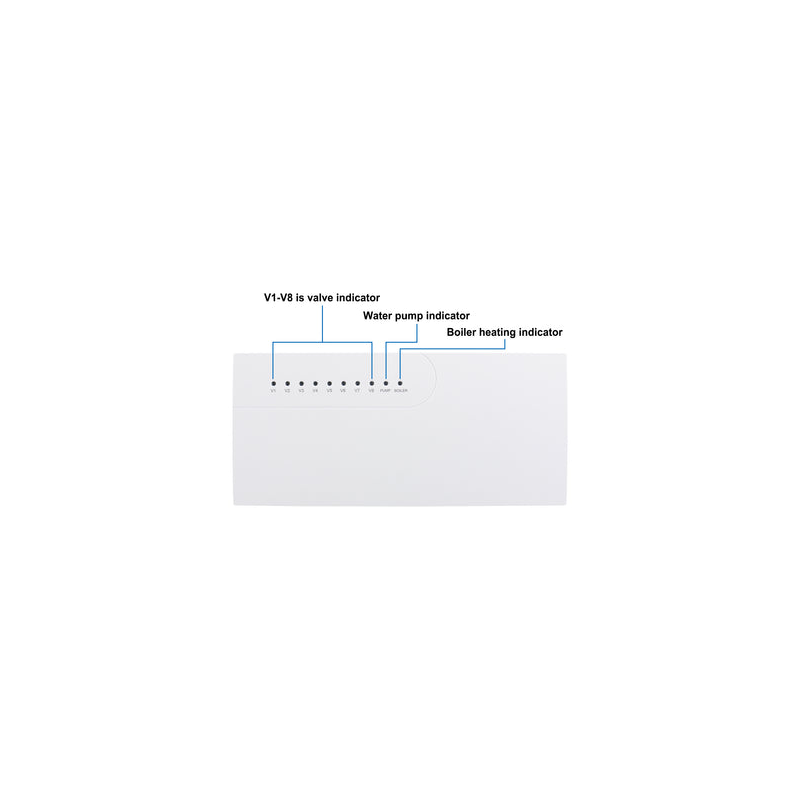

•Output indication: each actuator output status, water pump and boiler are equipped with indicator lights, the heating status is clear at a glance

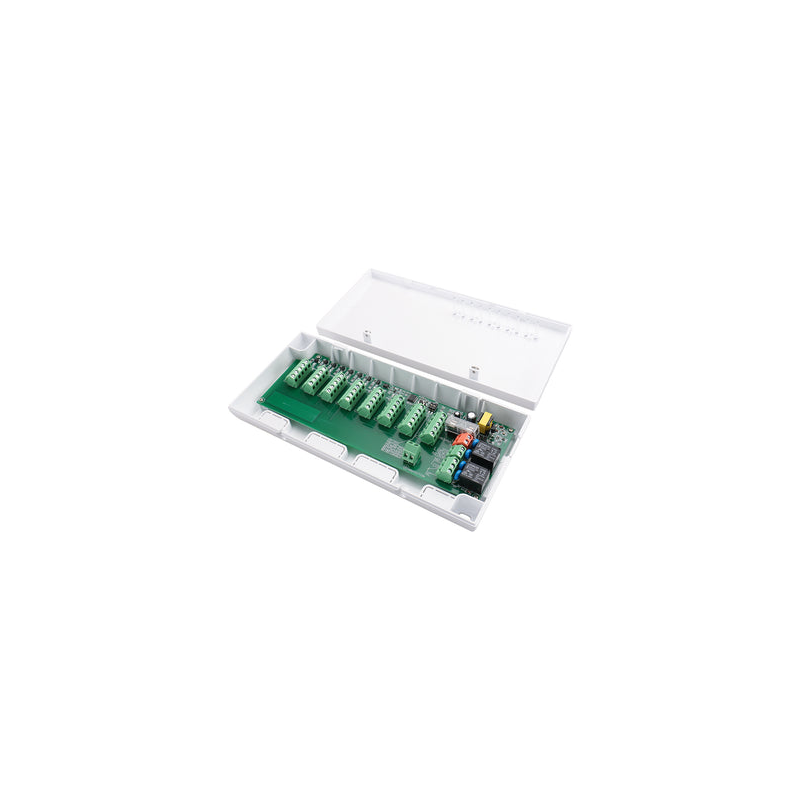

•Easy maintenance: all wiring is summarised in the wiring centre for easy inspection and maintenance
