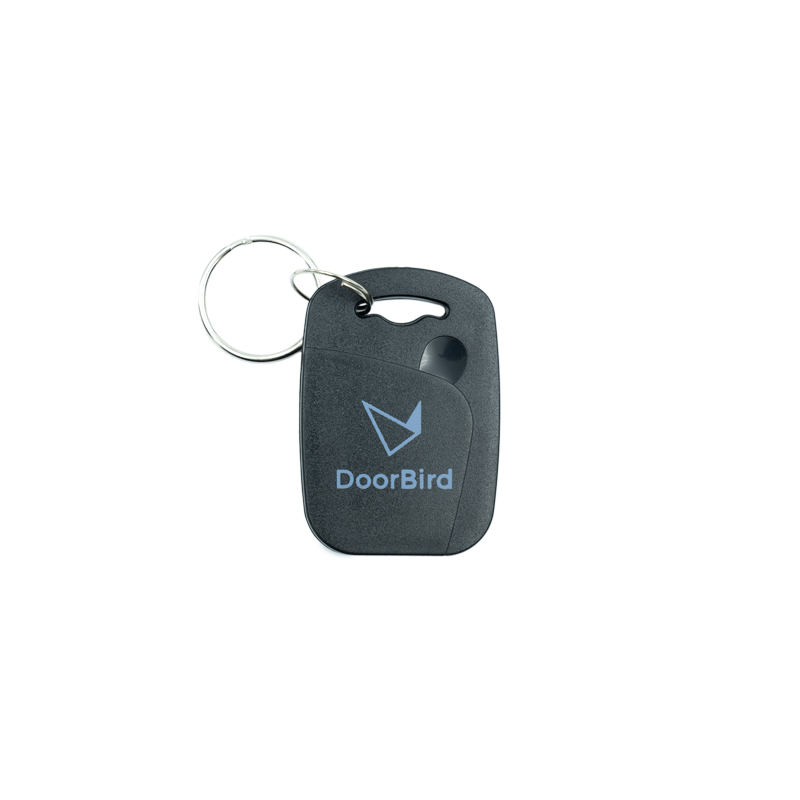

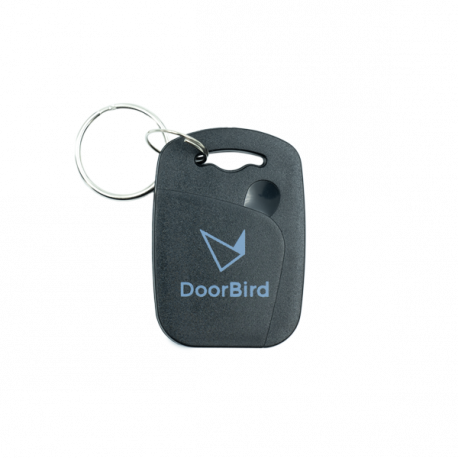

DoorBird A8005 - Dual Frequency RFID Transponder Keyfob

DoorBird's stylish A8005 Dual Frequency RFID Transponder Keychain is compatible with the world's most widely used RFID frequencies of 125KHz and 13.56MHz. For the 125KHz range, the keychain features an integrated antenna and EM4100 chip. . For the 13.56 MHz range, the key fob has an integrated antenna and a MIFARE DESFire EV2 chip with a large rewritable memory (8 kB).

TECHNICAL SPECIFICATIONS

GENERAL CHARACTERISTICS

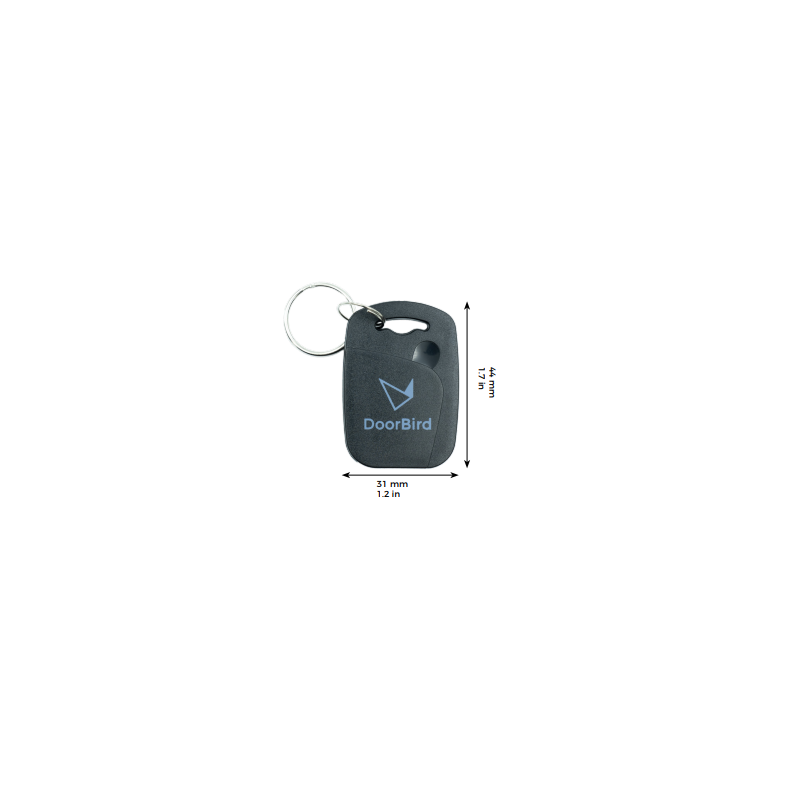

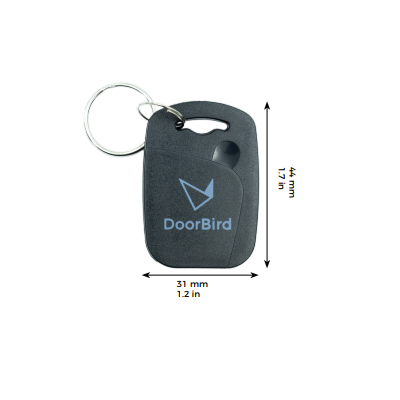

Dimensions 44 x 31 x 5 mm (H x W x D) 1.7 x 1.2 x 0.2 in (H x W x D)

Weight 5.4 g per unit

Material ABS, black

Compatible Frequencies 125 KHz, 13.56 MHz

Compatible RFID standards EM4100, MIFARE DESFire EV2

8 kB onboard memory (MIFARE DESFire EV2)

Climate protection Yes

IP54 compliance

Contents A8005 Dual Frequency RFID Keyfobs

EAN 4260423868960

CURRENT SYSTEM REQUIREMENTS

Compatible Door Stations D21x Series, D1812 Series
