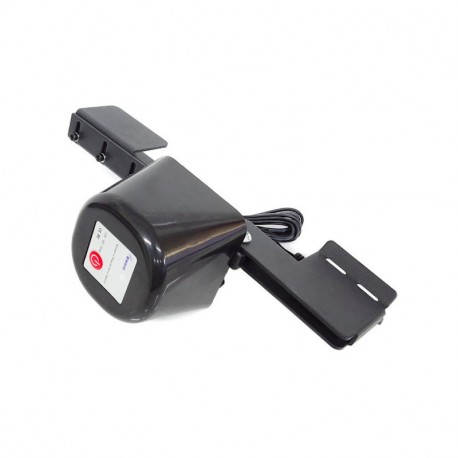

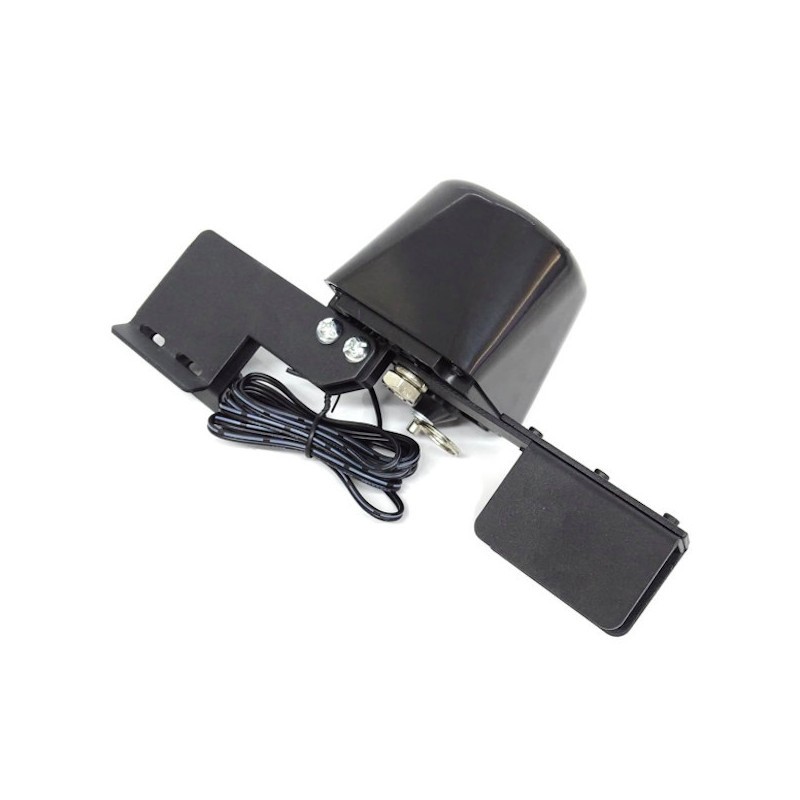

GR-SMARTHOME - Z-Wave + Motor (Chip 700) for 1/4 turn valves

The motorization controlled by Z-Wave GR-105-ZW7 (Chip 700) for 1/4 turn ball valves allows to domotise a standard valve and control it remotely using Z-Wave wireless technology.

This application of home automation using this Z-Wave controlled motor is ideal to react autonomously and unattended in the event of flooding or in the event of water or gas leaks. Associated with a flood detector or a gas detector, you will be able to avoid accidents and unfortunate situations.

It can also be opened by the Z-Wave home automation controller, this motor can also be used for irrigation. It can be configured through a home automation control unit or Z-Wave controller to open at a predefined time and thus water the garden. The GR-105-ZW7 Z-Wave controlled valve motorization for 1/4 turn ball valves also has the Z-Wave repeater node function.

A Z-Wave home automation controller (also called a gateway, control unit ..) is necessary for the motor to function properly within a Z-Wave network.

FUNCTIONS:

• Z-Wave motorization for 1/4 turn ball type valves
• Shut off the water supply automatically if a leak or flood is detected (if associated with a flood detector)
• Can be used as an irrigation device
• Opening and closing function via Z-Wave
• Z-Wave repeater function
• Manual activation in case of power failure
• 1 button to manually activate the valve and the inclusion / exclusion of the Z-Wave network
• 1 Led indicator
• Installs in standard diameter pipe for valves up to 3/4 "

TECHNICAL CHARACTERISTICS :

• Module Type: Z-Wave Slave
• Alimentation: 12VDC 1A (adapter supplied)
• Frequency: 868.42 Mhz
• Transmission distance: 100m in open field, 30m indoors
• Torque: 30 ~ 60 kg.cm
• Closing time: 5 ~ 10 seconds
• Opening temps: 5 ~ 10 seconds
• Max valve pressure: 1.6 Mpa
• Valves size allowed 1/2, 3/4, 1, 1.25, 1.5
  Closing time 5 ~ 10 seconds
  Opening time 5 ~ 10 seconds
  Tightening torque 30 ~ 60 kg.cm
