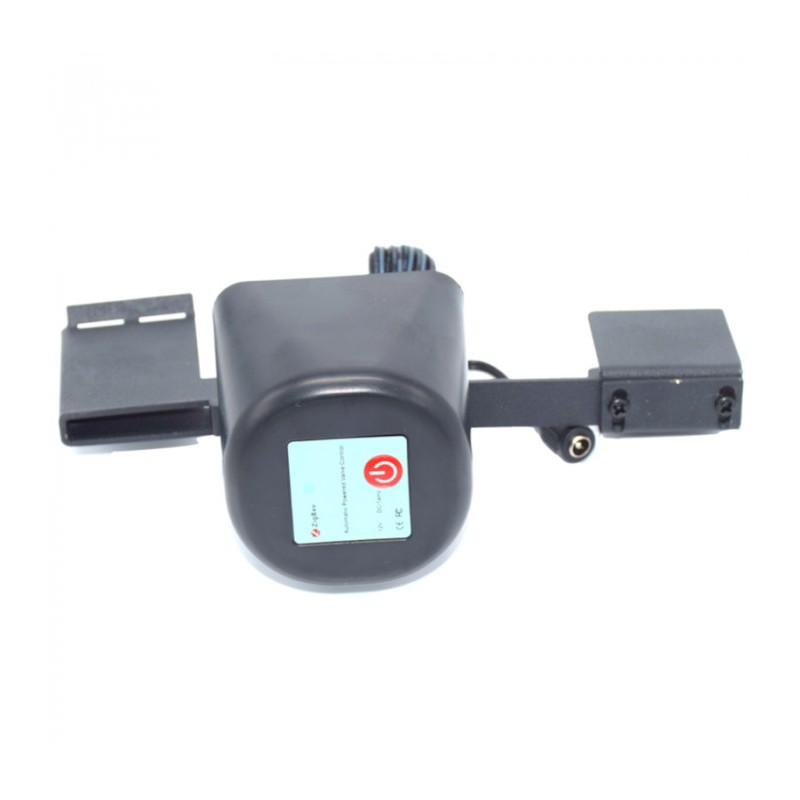

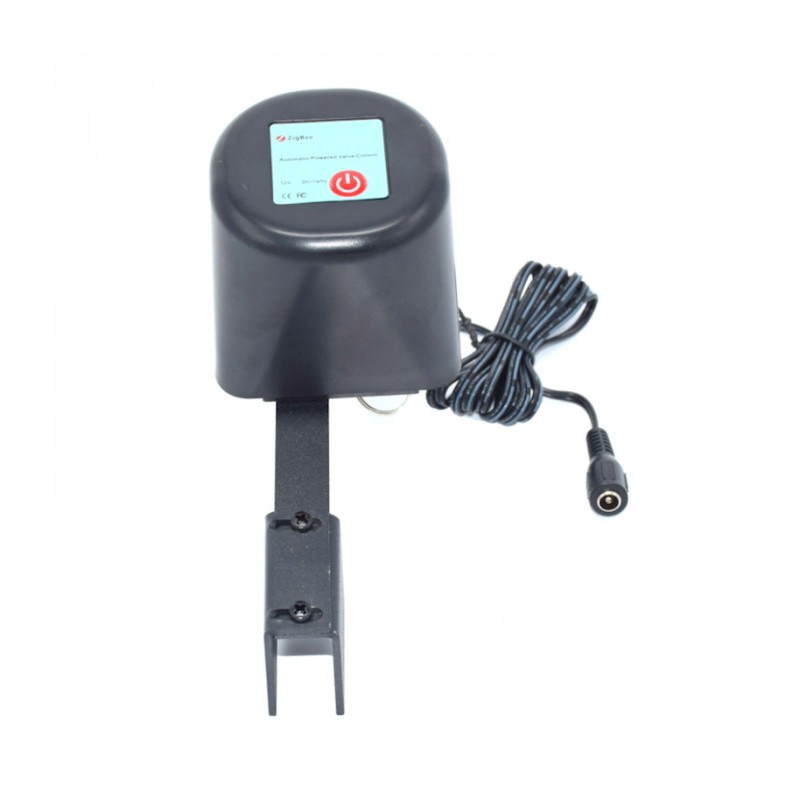

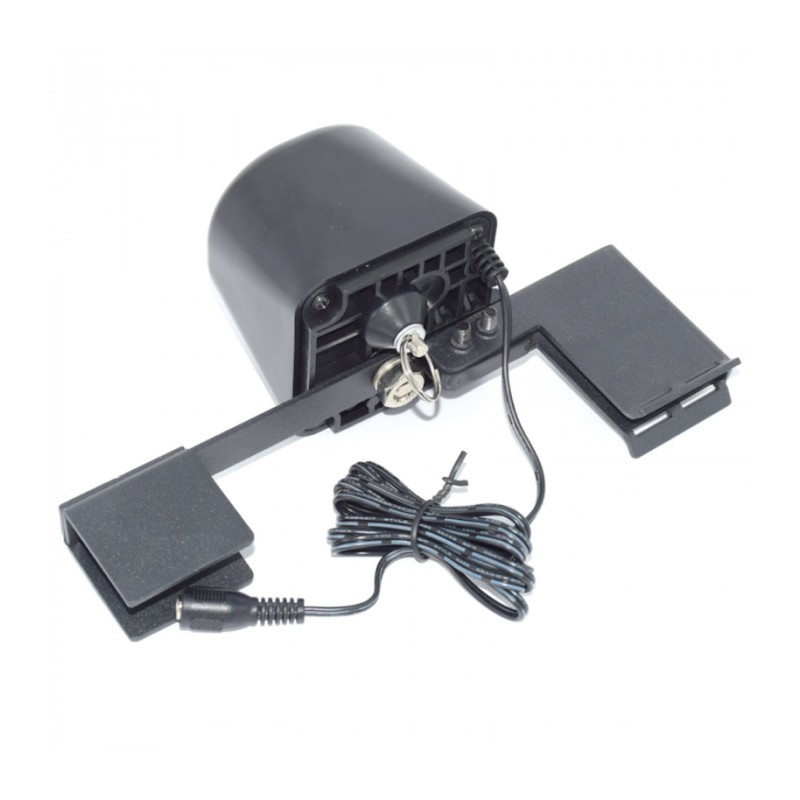

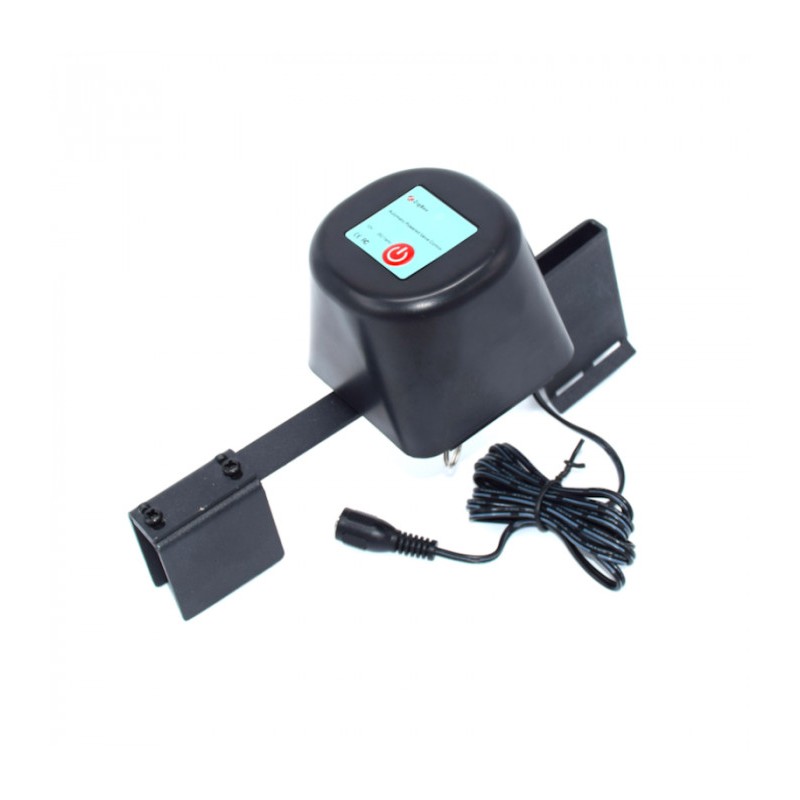

GR-SMARTHOME - Zigbee 3.0 motor for 1/4 turn valves

The Zigbee 3.0 GR- ZG-V01 controlled motorization for 1/4 turn ball valves allows a standard valve to be domotized and remotely controlled using Z-Wave wireless technology.

This application of home automation through this motor controlled by Zigbee is ideal to react autonomously and unattended in the event of flooding or in the event of water or gas leaks. Associated with a flood detector or a gas detector, you will be able to avoid accidents and unfortunate situations.

It can also be opened by the Zigbee home automation controller, this motor can also be used for irrigation. It can be configured through a home automation control unit or Z-Wave controller to open at a predefined time and thus water the garden. The Zigbee controlled valve motor for 1/4-turn ball valves also has the Z-Wave repeater node function.

A Z-Wave home automation controller (also called a gateway, control unit ..) is necessary for the motor to function properly within a Z-Wave network.

FUNCTIONS:

• Z-Wave motorization for 1/4 turn ball type valves
• Shut off the water supply automatically if a leak or flood is detected (if associated with a flood detector)
• Can be used as an irrigation device
• Opening and closing function via Z-Wave
• Z-Wave repeater function
• Manual activation in case of power failure
• 1 button to manually activate the valve and the inclusion / exclusion of the Z-Wave network
• 1 Led indicator
• Installs in standard diameter pipe for valves up to 3/4 "

TECHNICAL CHARACTERISTICS :

• Module Type: Z-Wave Slave
• Alimentation: 12VDC 1A (adapter supplied)
• Frequency: 2.4 Ghz
• Transmission distance: 80m in open field, 40m indoors
• Torque: 30 ~ 60 kg.cm
• Closing time: 5 ~ 8 seconds
• Opening temps: 5 ~ 8 seconds
• Max valve pressure: 1.6 Mpa
• Valves size allowed 1/2, 3/4, 1, 1.25, 1.5
  Closing time 5 ~ 10 seconds
  Opening time 5 ~ 10 seconds
  Tightening torque 30 ~ 60 kg.cm
