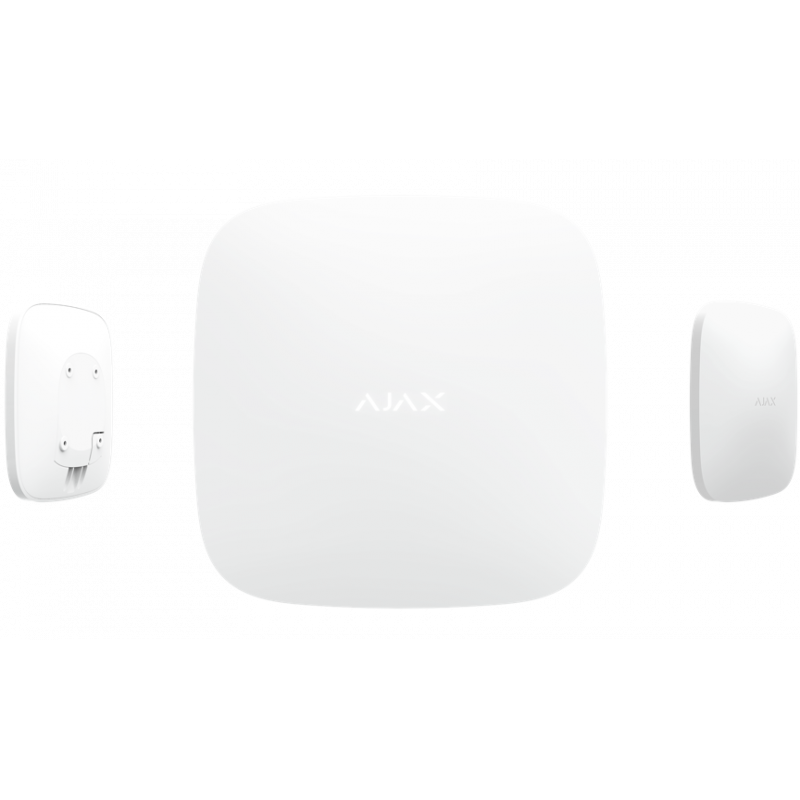

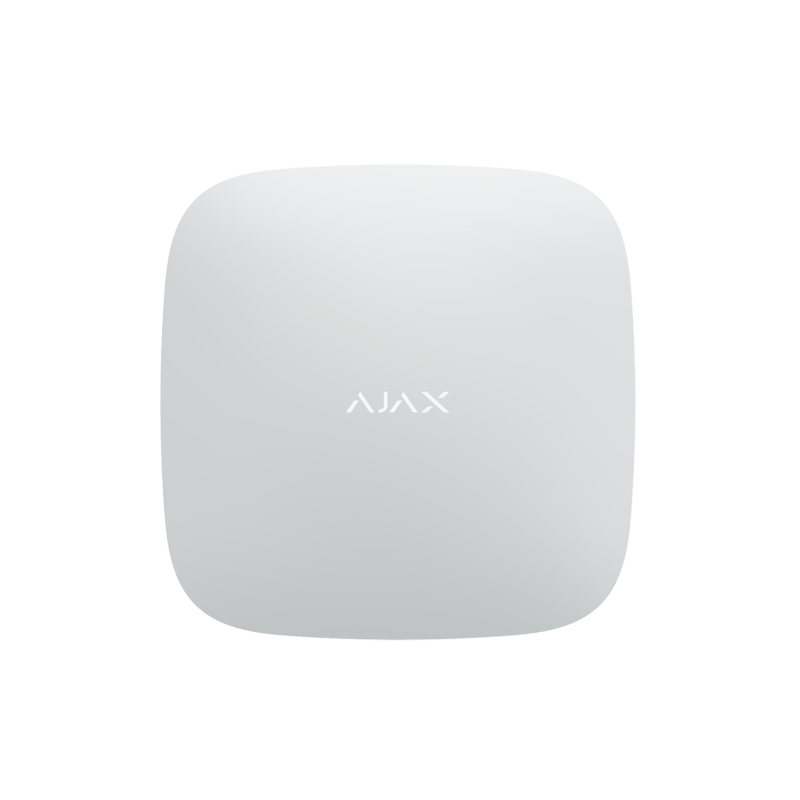

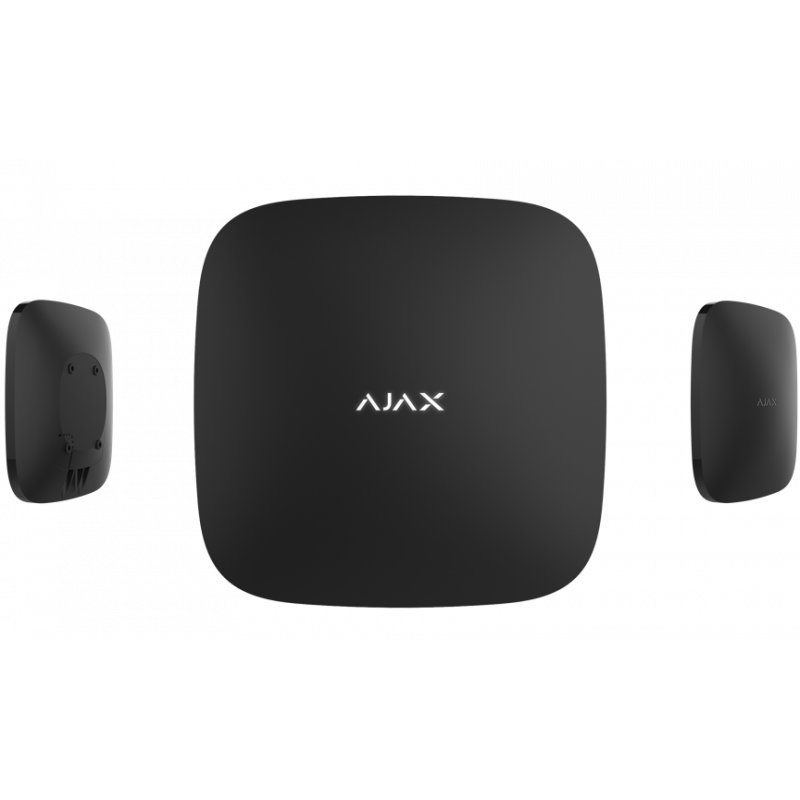

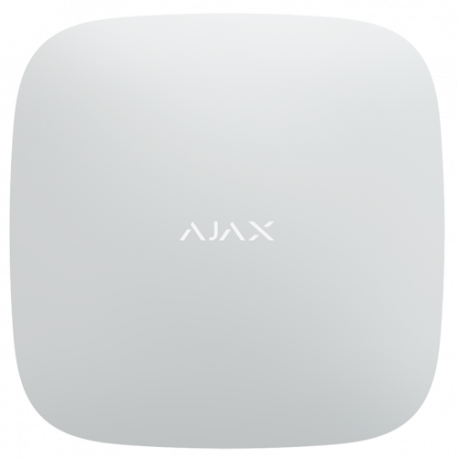

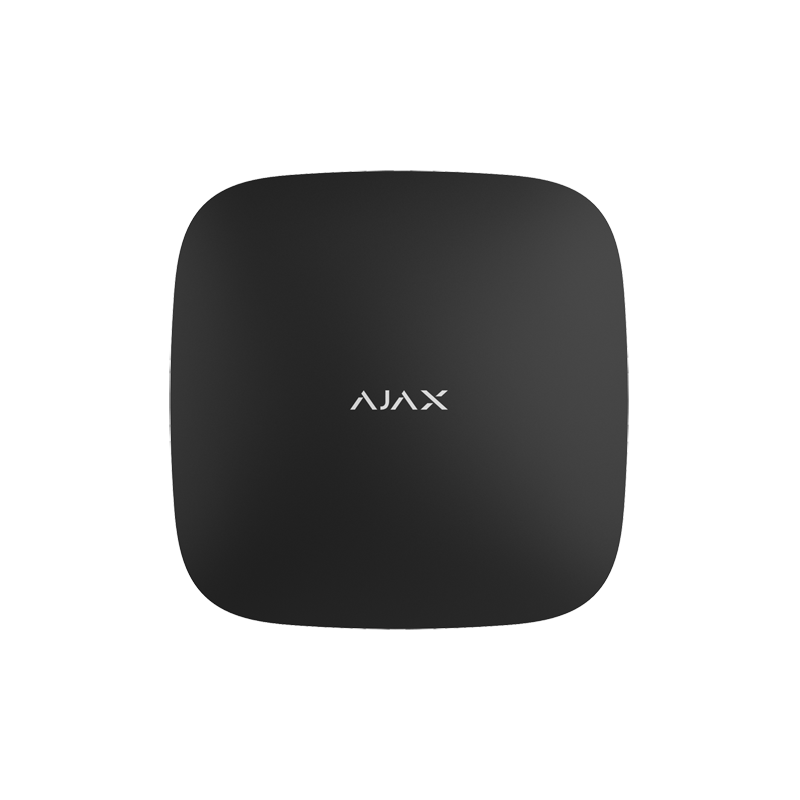

AJAX Hub - Professional alarm center with Ethernet and GPRS communication

The intelligent central hub hub is a key element in the Ajax security system. The device monitors the operation of all Ajax detectors and immediately sends an alarm signal to the owner and to the Alarm Receiving Center (ARC).

Authentication to avoid forgery

Detection of inhibition and encryption of communication channels

Tamper tamper

Grade 2 security

Uses 2G or Ethernet to send alarms to the Alarm Receiving Center (ARC) and the owner

The device sends a notification in the event of a power failure and operates for up to 15 hours on battery backup

Checks the operation of the detectors every 12 seconds

Operating principle

The device collects information on the operation of the detector in encrypted format, analyzes it and, in the event of an alarm, alerts the owner of the system and the Alarm Receiving Center (ARC) in just milliseconds.

characteristics

The device uses Jeweler radio technology to monitor detectors and ensure rapid response to danger. Changes the system completely to free frequencies in case of inhibition. The device software is protected against viruses.

Installation and configuration

Ready to go straight out of the box. It is configured through the mobile application and the detectors are connected with a single click. It can be installed in a few minutes using the SmartBracket bracket.

Technical specifications

Classification: Central unit with radio channel and 2G and Ethernet modules
Maximum number of devices connected to the Hub: 100
Maximum number of cameras connected to the Hub: 10
Maximum number of users: 50
Maximum number of rooms: 50
Maximum number of groups: 9
Mobile apps: iOS 9.1 or later / Android 4.1 or later
Communication channels: Ethernet, 2G (850/900/1800/1900 MHz)
Alarm signal: Receive time: 0.15 s
Notification types: SMS, call, push notification

Communication with the Alarm Receiving Center (CRA)
Contact ID, SIA

Processor: ARM
Operating system: OS Malevich

Learn more about firmware updates>

Power supply: Main power: 110-240V
Backup battery: Li-ion 2 Åh: Up to 15 hours of offline operation if Ethernet cable is disconnected

SIM card compatible: Micro SIM 2G
Operating temperature range: 5ºC to 40ºC
Tamper: Tamper Protection / Inhibition Detection / Tamper Resistant
Video surveillance: Up to 10 cameras or DVRs

Learn more>

Remote configuration: +
Dimensions: 162.7 × 162.7 × 35.9 mm
Weight: 350g
Certification: Grade 2, CE
Warranty: Repair and replacement up to 24 months after the date of purchase. Batteries are not covered by warranty.

Material included:
Ajax Hub smart dashboard
SmartBracket fixing panel
Power cord
Ethernet cable
Installation kit
SIM card (depending on the region)
User's guide
