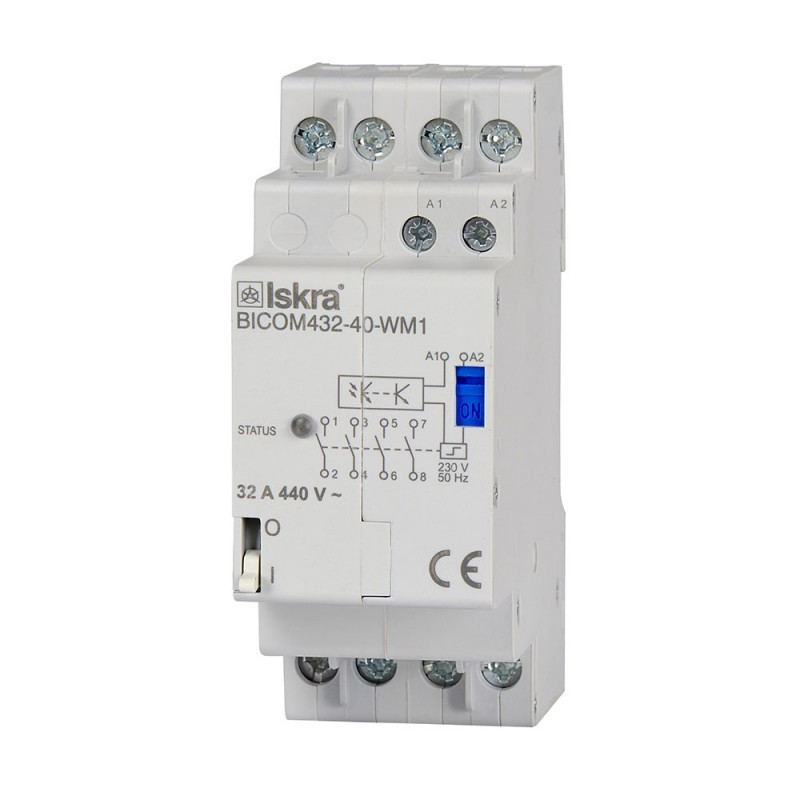

QUBINO 32A flip-flop switch for Smart Meter

This module is a Qubino Smart Meter thermal energy meter accessory (ZMNHTD1). It is used to activate or deactivate an electrical load of up to 32A.
The communication with the Smart Meter is through the optical communications (IR) port.

CHARACTERISTICS:
Maximum load 32A
4 independent outputs
The communication through the optical port (IR)
Works in conjunction with the Qubino Smart Meter energy meter (ZMNHTD1)

TECHNICAL CHARACTERISTICS :
Power supply: 230 V ± 10%, 50-60 Hz
Current regime: 32 A, 4 positions
Consumption: 0.5 W
Operating temperature: -25 ... 55 ° C
Storage temperature: -30 ... 80 ° C
Protection against water and dust: IP20
Weight: 250 g
Installation: 35 mm DIN rail
Dimensions (W x H x D): 35.2 x 90 x 60 mm
