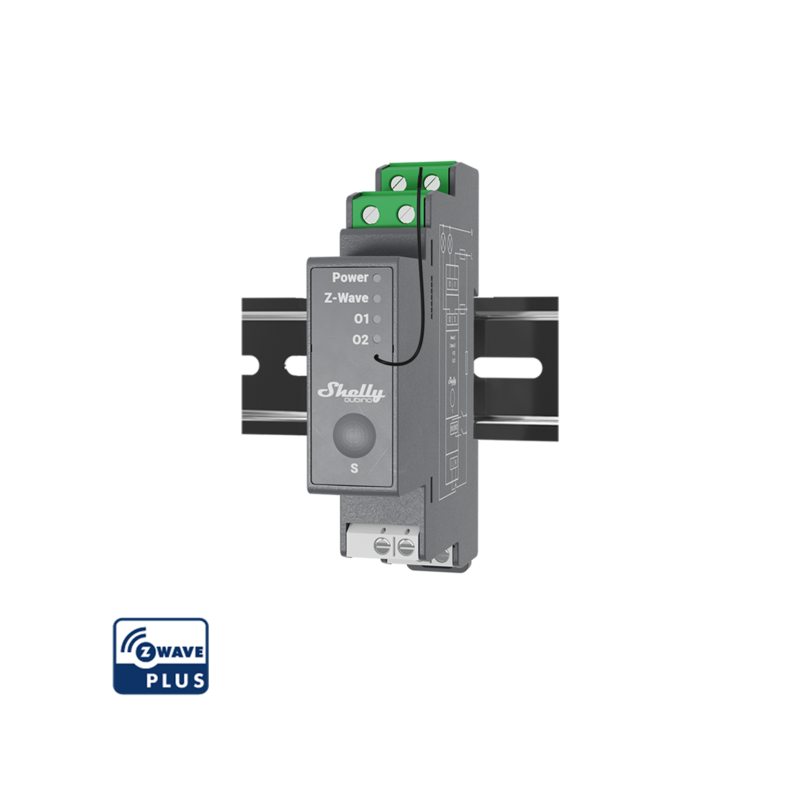

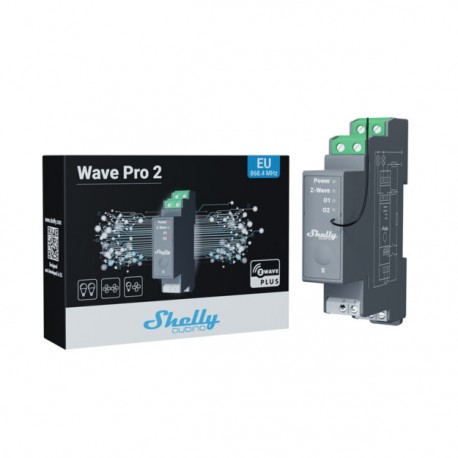

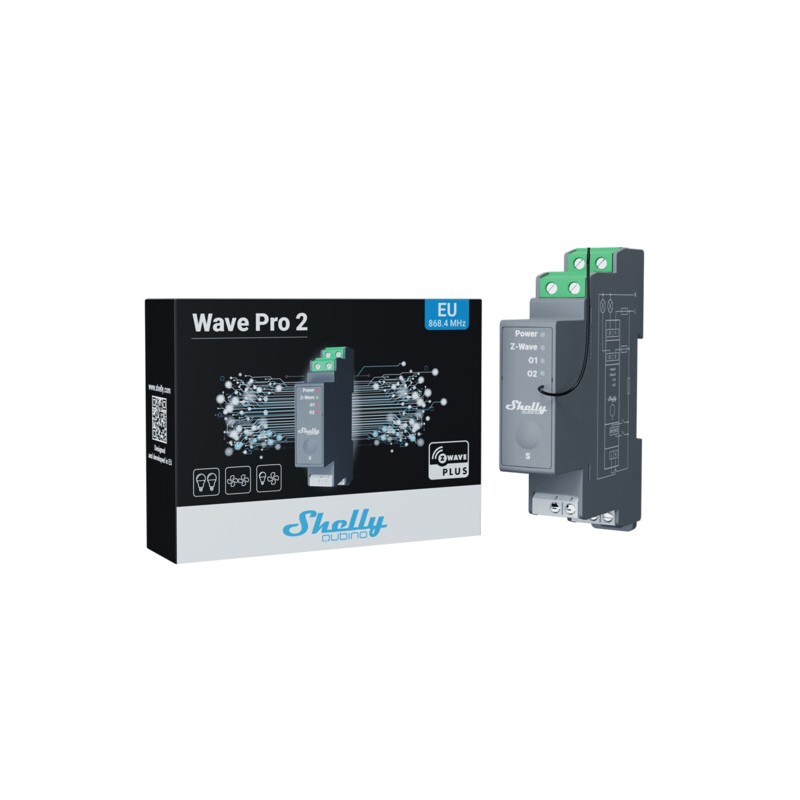

Shelly Qubino Wave Pro 2 - Professional 2-channel DIN rail Z-Wave® smart switch with dry contacts

Wave Pro 2 is a 2-channel relay supporting up to 25 A for professional automation of lights and appliances for residential or commercial use. It is equipped with potential-free outputs (dry contacts), offering great flexibility of voltage support and applications. Different types of actions, scenarios and schedules can be defined to synchronise your environment with your daily activities or business needs.

Shelly Qubino works with Z-Wave

Using Z-Wave, home automation products can communicate seamlessly with each other, regardless of brand or platform, thanks to a centralised intelligent hub! Shelly Qubino devices work with the latest generation of Z-Wave chips (S800), one of the most popular standardised technologies for smart homes in the world.

Works with any Z-Wave gateway

Wave Pro 2 is backwards compatible and designed to fit behind switches/pushbuttons. Once installed, include the device in your Z-Wave network (a Z-Wave gateway is required) and control it using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.

2 outputs, 16 A each

It has a total output of 25 A.

Dry contacts

Supports both low and high voltages, allowing you to control a wide range of AC devices and appliances.

DIN rail mounting

Intended for installation inside the circuit-breaker enclosure and designed to meet worldwide DIN rail standardisation.

Associations

Establish direct communication between devices on your local Z-Wave network and define actions without a hub!

The highest level of security

Include the device as Security 2 Authenticated for encrypted communication and maximum security of your Z-Wave network.

FUNCTIONS of the Shelly Wave Pro 2

• 2 outputs, 16 A each. Maximum device output of 25 A.
• Potential-free dry contacts
• DIN rail mounting
• Two-phase control
• Extremely low power consumption: < 0.3 W
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Latest technology: Z-Wave 800 series
• Automatic configuration with SmartStart
• Security 2 Authenticated for the highest level of security
• Firmware updates via OTA
• Works with certified Z-Wave gateways and over 4,000 Z-Wave devices

Shelly Wave Pro 2 TECHNICAL SPECIFICATIONS

• Power supply: 110-240 V AC, 50/60 Hz
• Power consumption: < 0.3 W
• Max. AC switching voltage: 240 V
• Max. AC switching current: 16 A per channel, 25 A total
• Overheating protection: Yes
• Distance: up to 40 m indoors (depending on local conditions)
• Z-Wave repeater: Yes
• Processor: Z-Wave S800
• Z-Wave frequency bands: 868.4 MHz
• Maximum radio frequency power transmitted in frequency bends: < 25 mW
• Size (H x W x D): 94x19x69 ±0.5 mm
• Weight: 73g
• Mounting: DIN rail
• Screw terminals max. torque: 0.4 Nm
• Conductor cross-section: 0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
• Stripped conductor length: 6 to 7 mm (green connector) 5 to 6 mm (white connectors)
• Shell material: plastic
• Colour: Grey
• Ambient temperature : -20°C to 40°C
• Humidity: 30% to 70% RH
