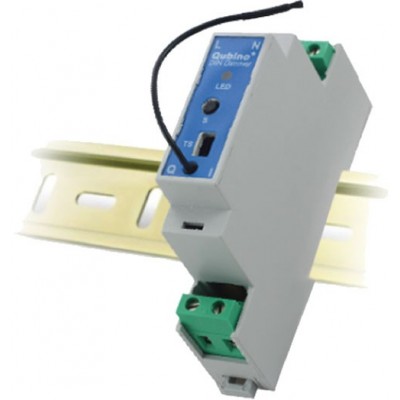

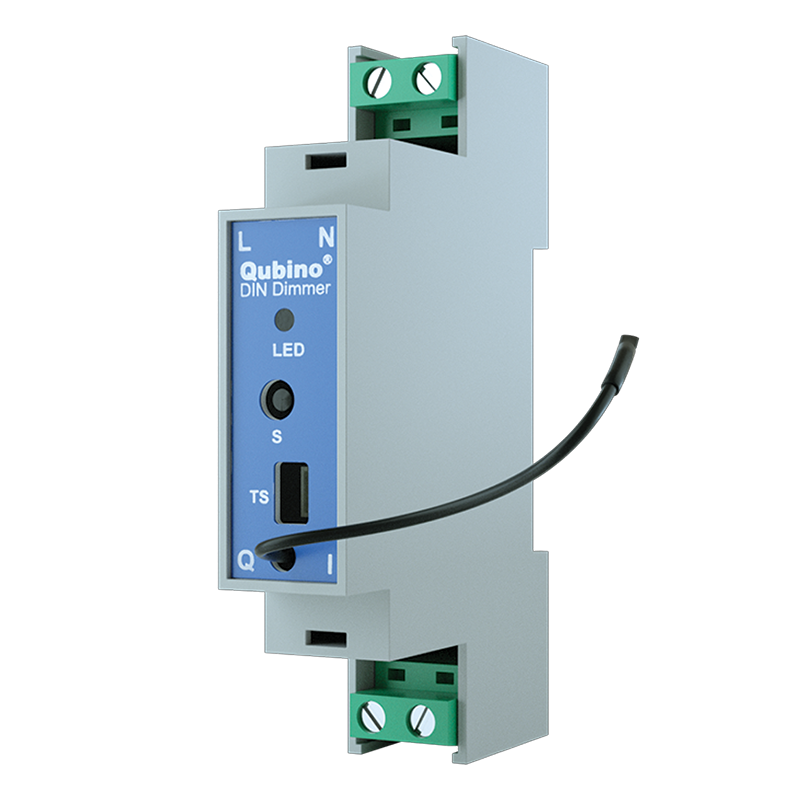

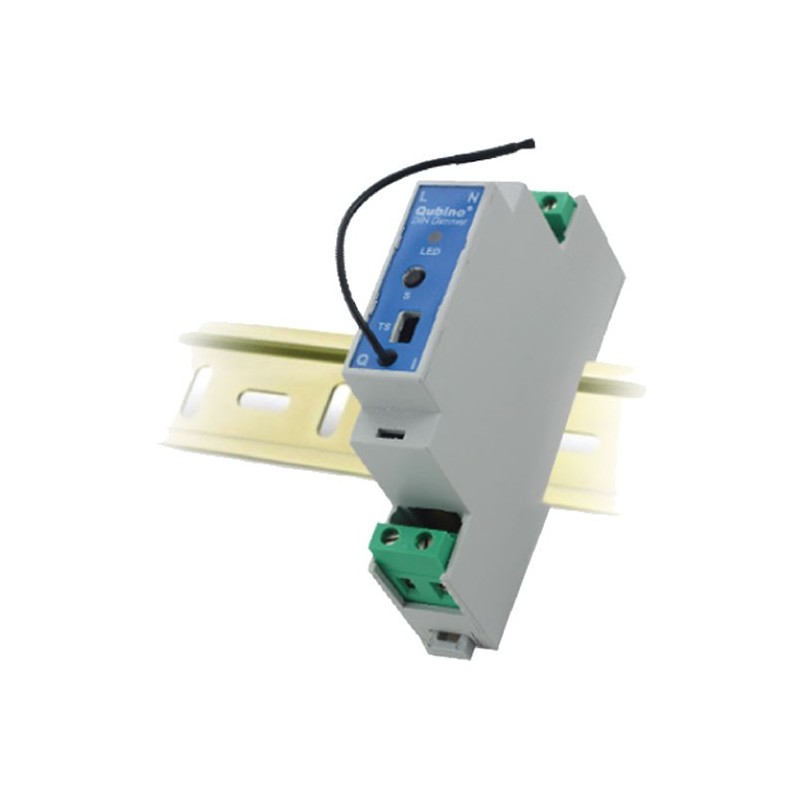

QUBINO DIN RAIL Dimmer Z-Wave Plus
ZMNHSD1
New
Regulator module or dimmer Z-Wave + QUBINO DIN Dimmer for mounting in electrical panel by DIN rail with consumption measurement.
In Stock
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Technical characteristics
| Home Automation Technology | Z-Wave Plus |
| Characteristic | Dimmer |
More info

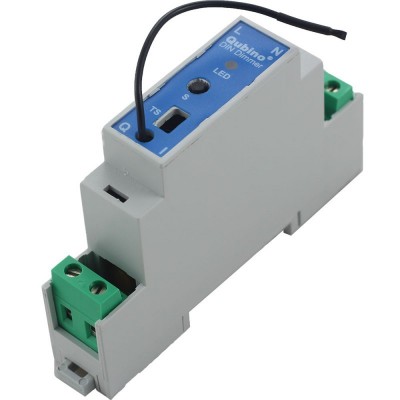

Qubino DIN Dimmer: First Z-Wave regulator for rail, truly universal
The Z-Wave controller, Qubino DIN Dimmer is a dimmer for DIN rail installation for light bulbs or fans. You can control it remotely through the Z-Wave network or through wall switches.
What is it for?
The Qubino DIN Dimmer is a dimmer mounted on DIN rail, ideal for remotely controlling and measuring the energy consumption of bulbs or fans. It also supports the connection of a digital temperature sensor.
The smallest Z-Wave DIN rail dimmer
The dimmer Z-Wave Qubino DIN Dimmer is a module for DIN rail that occupies less space than any other module for box with which it is compared to any other competitor and fit easily in less space than it seems in an electrical box with DIN rail .
Energy control
The dimmer Z-Wave Qubino DIN Dimmer , makes measurement of electrical consumption of the connected electrical device and of itself, when it is in "standby" it only consumes 0.7 W.
Very versatile
The Qubino DIN Dimmer , can operate through a wide range of temperatures from cold -10ÚC to suffocating 40ÚC (14Ú 104ÚF). It supports the connection of a digital temperature sensor, which is also useful for creating complex scenarios. Each module also acts as a repeater in order to improve the range and stability of the Z-Wave network.

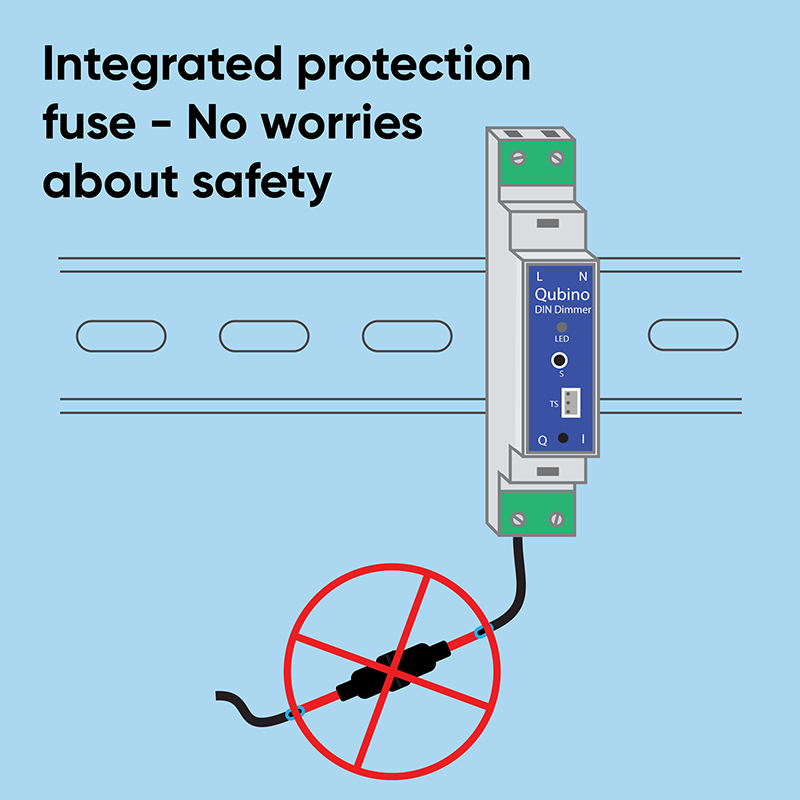

The simplest installation
The Qubino DIN Dimmer module occupies a smaller volume than comparable modules of any other brand and fits easily on any DIN rail. The installation process, tested and approved by professional electricians , is as easy and convenient as any other rail module.
The most proven and reliable Z-Wave modules
Qubino's Z-Wave modules are install-and-forget products. The Qubino products that we offer, are manufactured to last, so they only use electronic components that meet the most demanding levels of quality. Our modules are also the most tested Z-Wave micromodules on the market. The Slovenian Institute of Quality and Measurement (SIQ), an independent European entity, checks the quality of the actual parameters of our products, including temperature increases, manufacturing, insulation resistance, electrical consumption and overloads according to European standards of the highest quality according to the specification of standard EN 60669-2-1.
Additional parameters for professionals
The Qubino DIN Dimmer module It has 17 additional parameters for its use by experts. Some of the most useful are:
- Automatic on / off output after set time
- Change between the type of input normally open and normally closed
- Save the state of the device after a power cut
This Z-Wave module is used to control and regulate lamps or to control the speed of a fan. It can be controlled either wirelessly (without wires) through the Z-Wave network or through a wall switch connected to it.
The module is designed to be mounted inside a cabinet or electrical rack on a DIN rail. It also measures the energy consumption of the connected loads. It also has an input for the connection of a temperature sensor that can be purchased separately.
The Qubino DIN Dimmer is also designed to act as a repeater to improve the range and stability of the Z-Wave network.
Finally, it should be noted that the brand QUBINO has established strong commitments in quality and sustainability: the high performance components have been carefully selected. Multiple quality control tests were also carried out on the module to ensure maximum durability (tough enough to operate at temperatures from -10 ° C to +40 ° C).
Schematic of connection to 220AC and 24V DC
FUNCTIONS:
Control and regulate remote lighting or other devices susceptible to regulation
It is placed towards the electrical panel, installed on DIN rail
Enables ON / OFF / DIM
Uses MOSFET technology: compatible with low voltage halogen lamps with electronic transformer, dimmable compact fluorescent lamps and dimmable LED
Integrates the 500 chip series (Z-Wave +)
Communication 250% faster compared to standard Z-Wave devices
The world's first Z-Wave DIN rail unit
Very low power consumption of up to 0.7W
Operating temperature -10 to 40 ° C
Analog temperature sensor connector
Integrates energy consumption measurement
TECHNICAL CHARACTERISTICS:
| Feeding: | 110 230 VAC ± 10% 50/60 Hz, (24 30 VDC) |
|
Maximum AC output load (resistive load) * |
0.85 A / 230 VAC |
| Maximum DC output load (resistive load) * | 0.85 A / 30 VDC |
| Output circuit power of AC output (resistive load): | 200 W (230 VAC) |
| Output circuit power of DC output (resistive load): | 21 W (24 VDC) |
| Accuracy of the power measurement: | +/- 2 W |
| Digital temperature sensor range: | -50 ° ~ + 125 ° C, resolution 0.1 ° C |
| Cable length of the digital temperature sensor: | 1000 mm |
| Operating Temperature: | -10 ° ~ + 40 ° C |
| Distance | up to 30 m indoors (depending on materials) |
| Dimensions (WxHxD) | 18 x 93 x 58 mm |
| (packaging) | (21 x 95 x 64 mm) |
| Weight (including packaging) | 50 g (56 g) |
| Electric consumption on standby | 0.7 W |
| Mounting | DIN rail |
| Switching by: | MOSFET (trailing edge) |
Download
Extended Z-Wave info
Manual download HERE.
• bring module within maximum 1 meter (3 feet) of the main controller,
• enable add/remove mode on main controller,
• press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or
• press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second.
By this function all parameters of the module are set to default values and own ID is deleted.
If push button I1 is pressed three times within 3s (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values.
NOTE 1: If the module is included with parameter 1 value 3, 4 or 5 and module reset is done, wait at least 30s before next inclusion.
NOTE 2: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
temperature sensor connected - if purchased),
• enable add/remove mode on main controller
• auto-inclusion (works for about 5 seconds after connected to power supply) or
• press service button S for more than 2 second or
• press push button I1 three times within 3s (3 times change switch state within 3 seconds).
NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply.
NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
• press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second.
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
