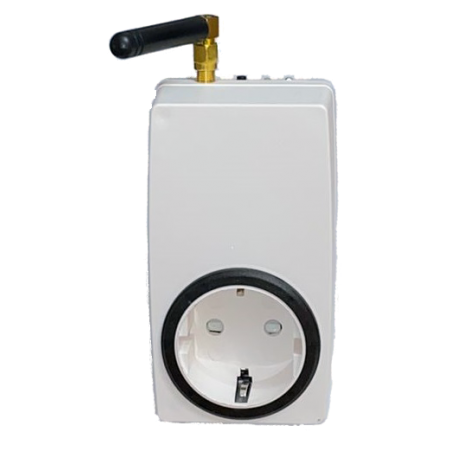

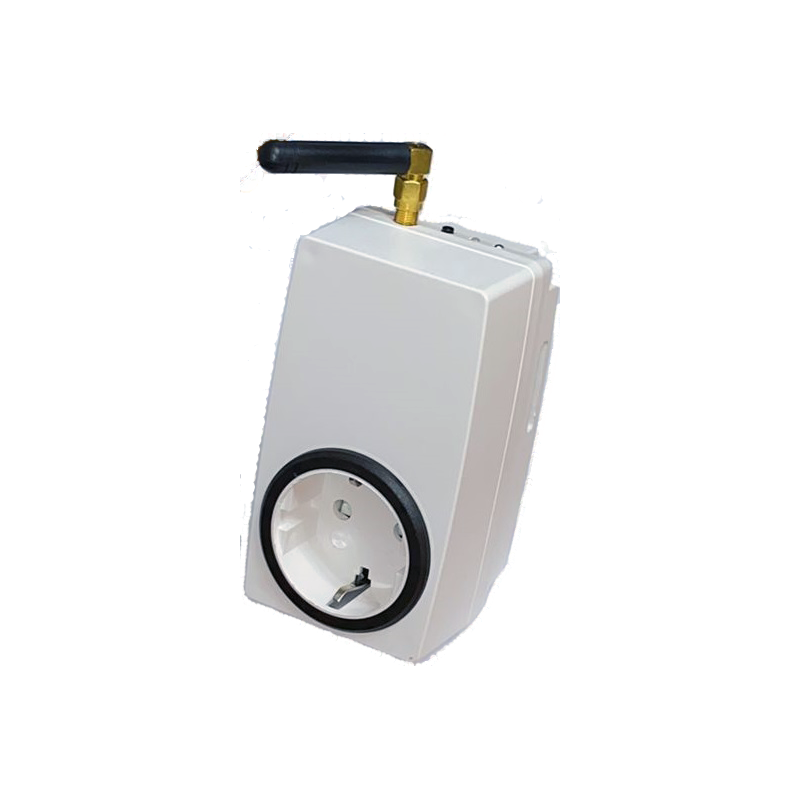

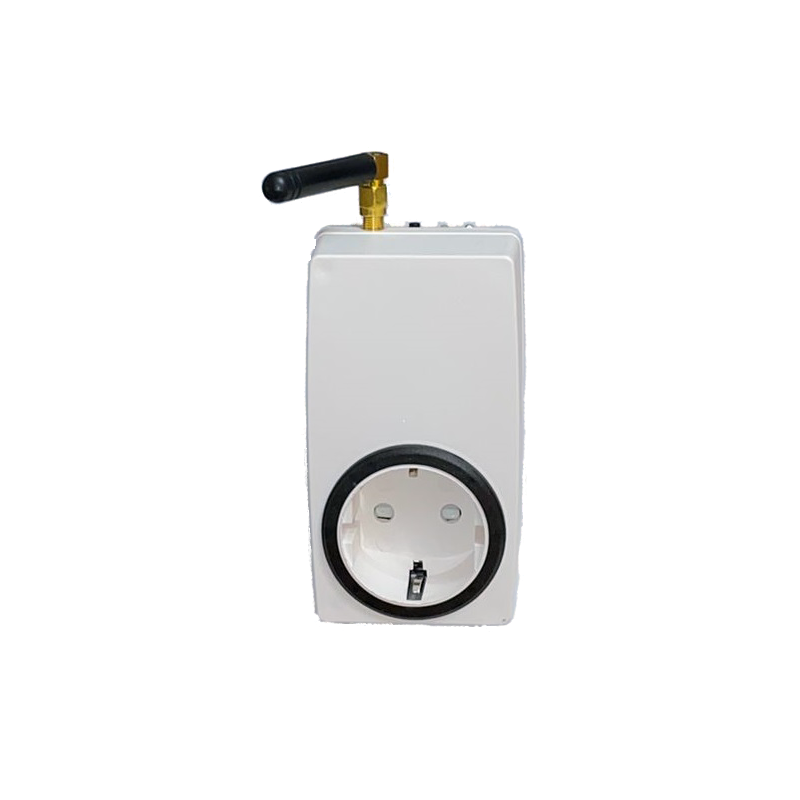

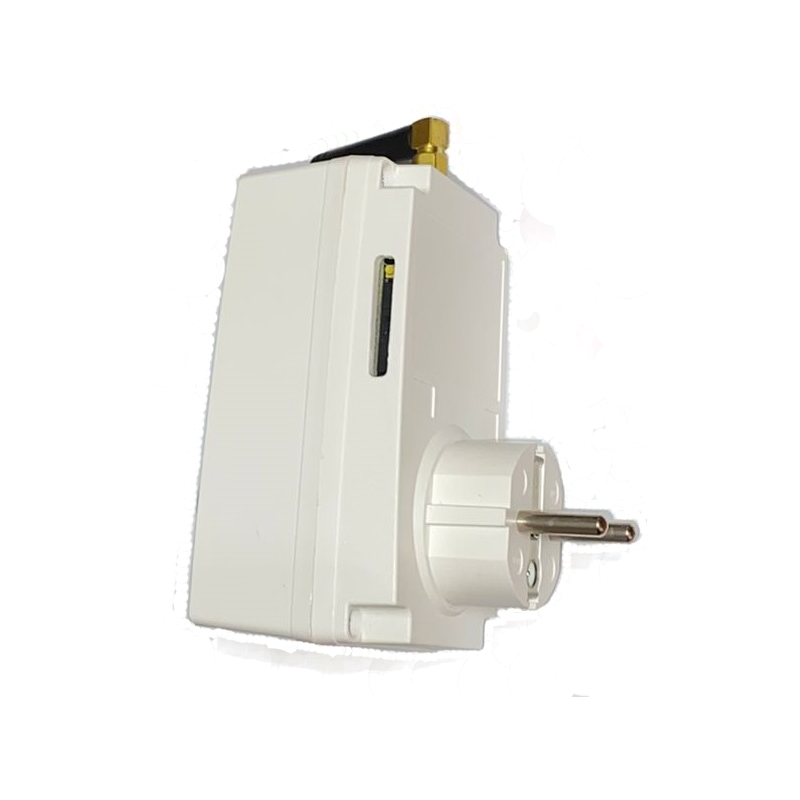

GSM plug to control heating with mobile phone via SMS (GSM teleswitch)

Heating control by mobile phone with a simple SMS!
Control your heating with your mobile phone, either by directly controlling your boiler with your mobile phone, whether it is a gas or oil boiler, electric radiators, household appliances (fridges, refrigeration equipment...)... Turn your boiler or other system on and off with a simple SMS. Allows control of boilers and electrical appliances that consume less than 3600W. For indoor installation, compatible with standard Schucko and European sockets. Remote heating control by SMS from any mobile phone.

The GSM socket is a remote-controllable socket (teleswitch) that incorporates a GSM 2G module. It allows remote control not only of a single device, but also of strips and parallel equipment.
If desired, you can use a 12-hour limit switch-on scheduling function. The 12-hour power-on limit is very useful for controlling equipment such as heaters to avoid leaving the system on inadvertently.

Tele-controlled socket connected for remote control via mobile phone by sending SMS messages. It is a very simple and practical remote switch. Simply plug the device into a schuko socket (the normal ones with earth) and connect the appliance, boiler or electrical appliance that you wish to control remotely. We will interact with this remote socket by controlling it via SMS messages. The socket sends any change of status to the previously configured telephones. Authorised users can send on/off commands via SMS messages from the mobile phone.

The GSM remote control of heating boilers is simple to use: just plug it into a power socket and plug the appliance to be controlled into the device.

Valid for remote control of electrical appliances that consume less than approx. 3600W (16 Amp AC resistive).
Equipment for indoor installation, compatible with standard CEE7/4 Schucko sockets and European variants.
Allows programmed 12-hour shutdown to prevent the boiler from being left on too long. SIM card required, not included. We recommend prepaid SIM cards. It is not necessary to contract data tariffs.

It is not essential to have a latest generation Smartphone to use it, but if you have a smartphone, there are FREE APPLICATIONS available in your marketplace for ANDROID or iPhone to control SMS mobile messages, to make it easier to use by managing predefined SMS messages.

Features

The Chuco GSM Caldera controller is a system for mobile phone line, which allows to control a device remotely by means of an electrical contact. Its most outstanding features are:

Plug-in format. Just plug it to 220V and connect the equipment to be controlled.
Internal 16A contact.
Local control by push button.
SMS control. Allows 12-hour limit switch-on, permanent switch-on, switch-off. Switching on with a 12-hour limit is very useful for controlling equipment such as heating systems to avoid leaving the system on by mistake.
Always returns a status SMS message to the sender.
The SMS control message has a password to prevent third parties from controlling it.
No initial configuration required.
Incorporates internal GSM antenna.
Allows to know the operator's signal level remotely.
The status is memorised after 10 seconds, so that even if the light goes out, when it returns it remains in the selected status.

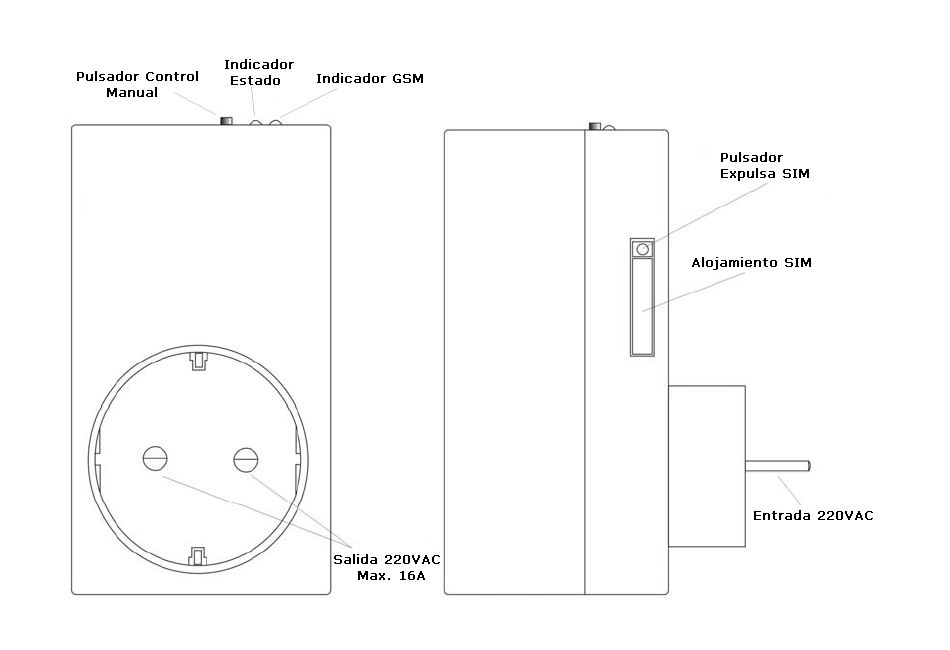

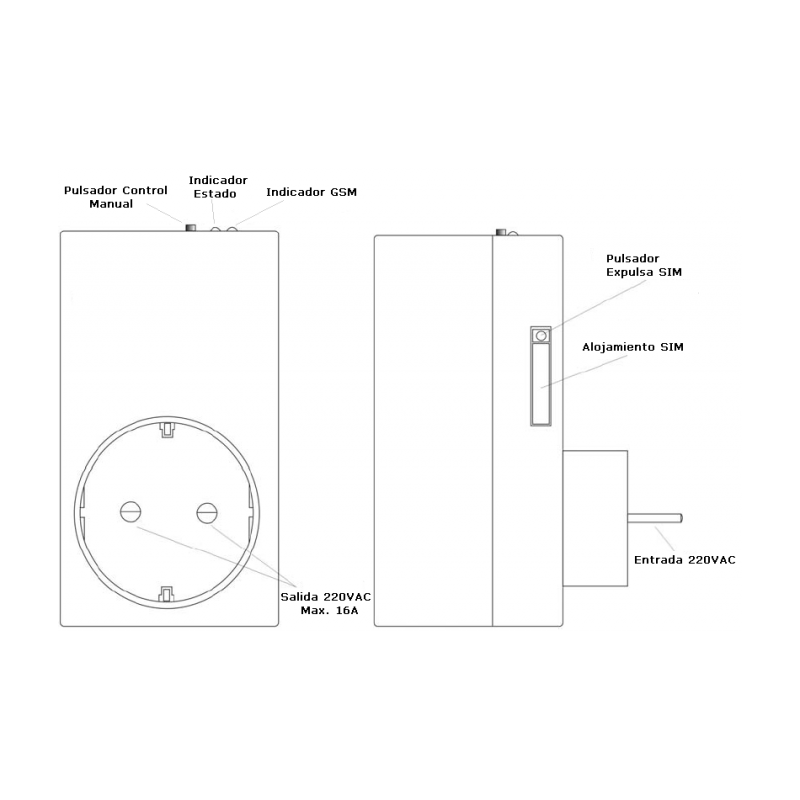

Descripción Funcionamiento

The status indicator can be in three possible colours: Green indicating permanent power on, red indicating permanent power off and yellow indicating power on with a 12 hour limit.
The GSM indicator has the following behaviour: A fast blink indicates that it is not connected to GSM and if it is a fast blink like a flash, it indicates that it is connected to the GSM network.
The push button allows manual status control and password reset.

Technical characteristics
Power supply: 230V~50Hz
Maximum current: 16A
Operating temperature: -5ºC to 50ºC (Non-condensing)

Maximum humidity: 60% (Avoid condensation)
GSM band: EGSM900, DCS1800

FEATURES:
GSM socket for remote on/off controllable by SMS messages (those of traditional mobile telephony).

With external temperature sensor operational - 10°C to +50°C
SMS notification in case of power failure
Automation based on temperature or calendar possible
Up to 5 registered users
Can link up to 4 slave sockets model T20

Allows, among other applications, heating control by mobile phone

Switches heating on/off remotely in second homes
Receive a power failure alert from your fridge or freezer
Turn on the sprinkler according to the temperature or the calendar
Restart a server, a transmitter, a router, etc ...
iOS and Android applications available

CARACTERÍSTICAS TÉCNICAS:

Entrada de energía: 240VAC
Voltaje de salida: 240 V CA regulada
Salida de corriente: 16A max
Potencia máxima conectada: 3500 W
Comunicación: 4 bandas GSM
conexión de la tarjeta SIM: 1 puerto/slot: dispone de zócalo para insertar una tarjeta SIM estándar
Configuración / Control: SMS - Aplicación para Android y iOS
Control ON / OFF: SMS, llamada y automática como la temperatura y calendario
Planificación: SÍ
reserva de la batería: un condensador para alertar por SMS en caso de fallo de alimentación - Capacidad de 2 a 3 minutos, dependiendo de la intensidad de la señal requerida para enviar SMS
Antena GSM: Integrada
Seguridad: La limitación de la lista de números autorizados por el usuario principal
Número de usuarios: 5 Máximo
sensor de temperatura previsto
Números de enchufes esclavos vinculados (toma principal): máximo 4
formato SIM requerido: Estándar / Mini SIM
Compatible con cualquier operador de telefonía móvil

Dispone de un operativa automática de actuación por temperatura, que nos permite el control de determinados aparatos eléctricos, como pueden ser sistemas de calefacción o de refrigeración. Puede ser programada para actuar en unos rangos de temperatura.

Dispone de una operativa de ahorro de llamada que va a cambiar el estado ON/OFF del enchufe, al recibir la llamada desde un usuario autorizado. El enchufe lo identifica, cambia el estado y cuelga la llamada para no incurrir en gastos: cambios de estado mediante llamadas perdidas

Sincroniza automáticamente la hora

Envía alarmas vía SMS al producirse un cambio brusco de temperatura, o se alcanza una temperatura predefinida, ante cortes de electricidad, etc.

Especificaciones
Tamaño: 125×60×80mm
GSM frecuencia 850/900/1800/1900Mhz
Alimentación AC110~230V
Potencia máxima de carga 16A o 3600W
Temperatura: rango -10°C ~ +50°C
Indicador Red y alimentación LED en color azul

Tipo de SIM necesaria: MINI SIM
