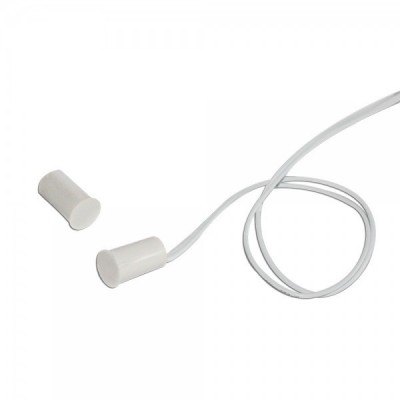

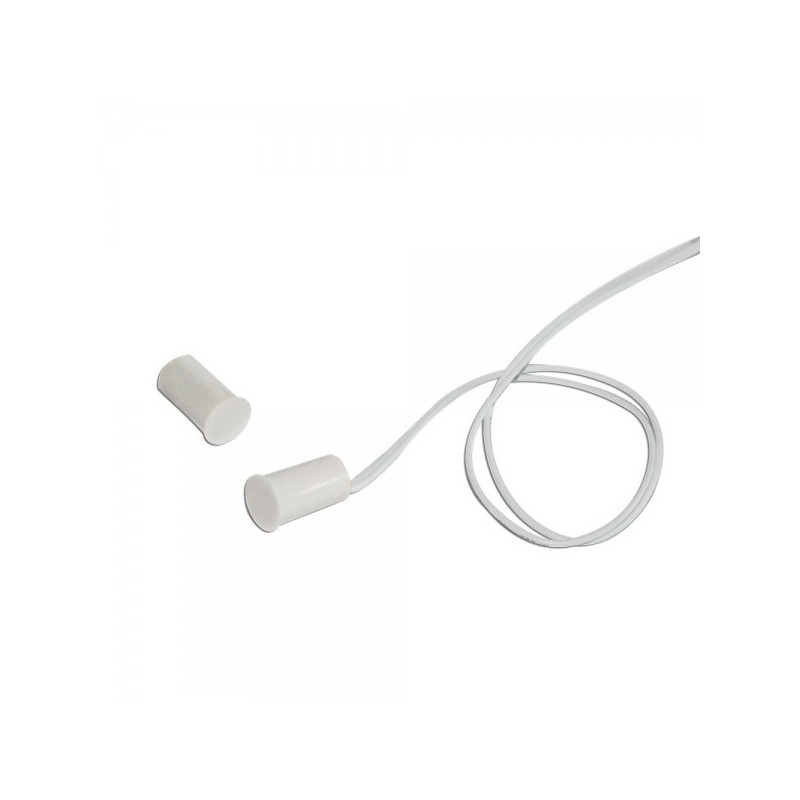

QUBINO wired recessed opening sensor NEDJAA2

This sensor is presented in two parts. The moving part is installed inside the door, the fixed part provided with two wires is installed in the door.
When the door is closed, the two parts must be aligned. When the door opens, the sensor detects the opening, opening an NC contact.
This sensor can be used in a wired alarm system or by connecting to one of the Qubino or compatible micromodule inputs.

CHARACTERISTICS:
Built with opening sensor cable
invisible installation
Compatible with Qubino micromodules

TECHNICAL CHARACTERISTICS :
White color
Mounting: PCB
Material: ABS
Type of contact: NC (Normally Closed)
Distance between the two parts: between 15 and 25 mm
