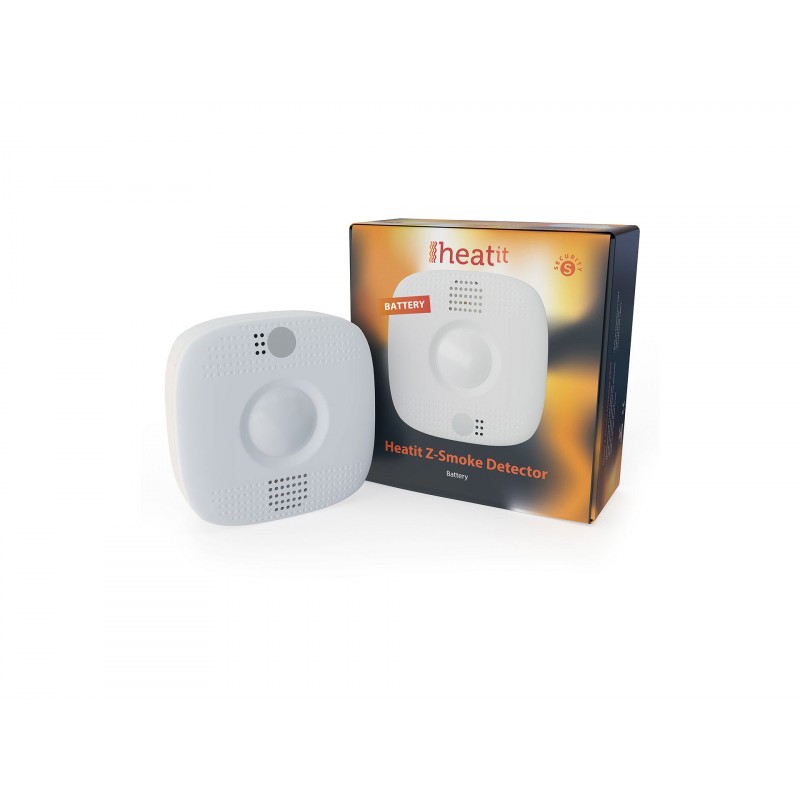

Heatit Z-Smoke Detector - battery powered Z-Wave smoke sensor

Reference HEATIT-4512688

Condition: New

The Heatit Z-Smoke is a multifunctional wireless smoke sensor for smart home systems. Battery version.

More details

Out of stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Technical characteristics

Technology	Z-Wave Plus

More info

Heatit's Z-Smoke smoke detector is a multifunctional smoke sensor for Z-Wave based smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Smoke Detector blends effortlessly into your home décor and offers you additional security.

The Heatit Z-Smoke smoke detector is designed to provide the sensor with more functions and capabilities. Therefore, you can use optional additional features like a built-in PIR motion sensor and a temperature sensor. Heatit Z-Smoke Detector has a built-in PIR motion sensor. You can choose to use it to create custom scenes to illuminate the hallway in the middle of the night or help users save energy. The built-in emergency light provides you with an alarm and visual alerts.

The Heatit Z-Smoke Smoke Detector uses a state-of-the-art reflective photoelectric sensor in conjunction with an advanced microprocessor to deliver optimal performance when detecting developing fires and heat generation. When it comes to safety, there is no room for compromise.

Extended Z-Wave info

Name: Heatit Z-Smoke Battery

Manufacturer:Heatit controls

Identifier:4512688

Z-Wave Certification Number:ZC10-20127003

Hardware Plattform:ZM5202

FLiRS:YES

Role Type:Listening Sleeping Slave

Short Description:The Heatit Z-Smoke Detector is a multifunctional wireless smoke sensor for smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Detector blends effortlessly with your home decor and gives you extra security.

Description:The Heatit Z-Smoke Detector is a multifunctional wireless smoke sensor for smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Detector blends effortlessly with your home decor and gives you extra security. The Heatit Z-Smoke Detector is designed to provide the sensor with more features and capabilities. Therefore, you can use optional additional features such as a built-in PIR motion sensor, heat sensor and/or emergency lighting. Heatit Z-Smoke Detector has a built-in PIR motion sensor. You can choose to use it to create custom scenes to light up the hallway in the middle of the night or help users save energy. The built-in emergency light can also be set up to provide visual alarms and alerts. The Heatit Z-Smoke Detector uses a cutting-edge reflective photoelectric sensor in conjunction with an advanced microprocessor to deliver optimum performance by detecting developing fires and heat generation. When it comes to security, there is no room for compromise.

Manual download HERE.

Group

Max Nodes

Description

(Lifeline) Battery CC (COMMAND_CLASS_BATTERY) Notification CC,V4 (COMMAND_CLASS_NOTIFICATION) SensorMutilevel CC, V4 (COMMAND_CLASS_SENSOR_MULTILEVEL) Device Reset Locally CC (COMMAND_CLASS_DEVICE_RESET_LOCALLY)

1.When the Smoke Detector is active, it will send Basic Set (0xFF) in Group 2. 2.When the Smoke Detector is restored, it will send Basic Set (0x00) in Group 2.

Number

Size (Bytes)

Default Value

Name

Description

Basic V2

COMMAND_CLASS_BASIC_V2

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V11

COMMAND_CLASS_SENSOR_MULTILEVEL_V11

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Classic Inclusion

1. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual).

2. Within 1.5 seconds, press the Function button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process.

Classic Exclusion

1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual).

2. Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-Wave network.

Factory Reset Procedure

(Only use factory reset when network Control Panel/Gateway is missing or inoperable).

Press and hold the button of the smoke detector for 20 seconds. Release the button when you hear 3 beeps to perform factory reset.

Wake-Up Procedure

Role Type : Slave Sleeping Listening

S2 Unauthenticated

S2_UNAUTHENTICATED

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
