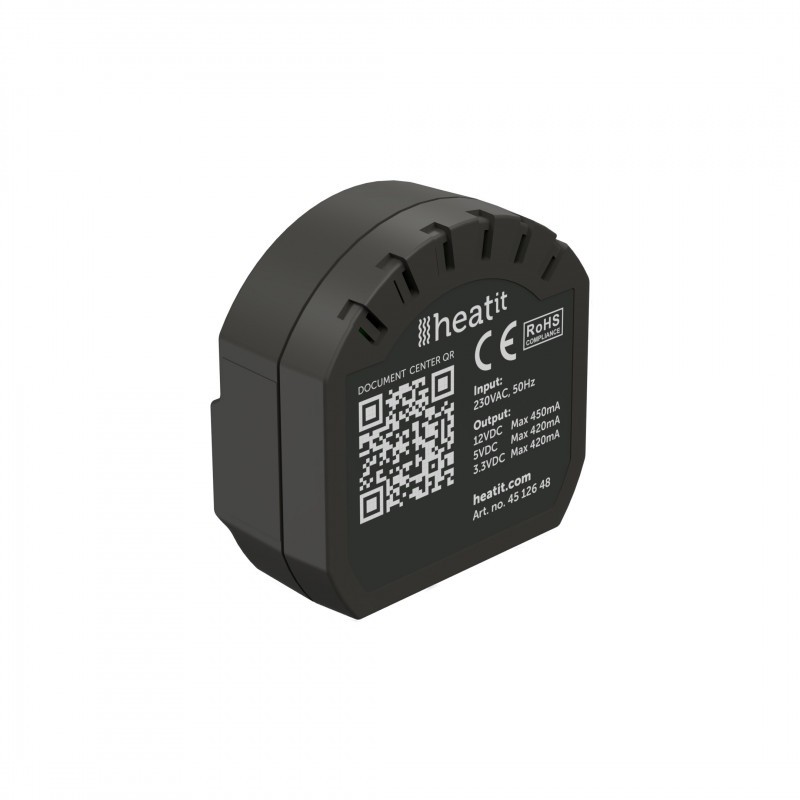

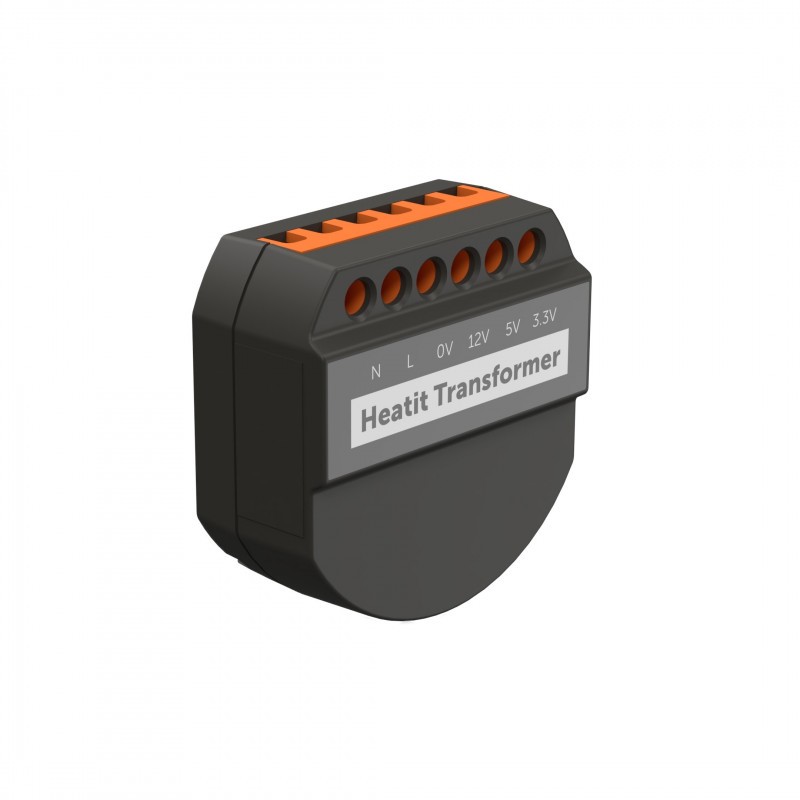

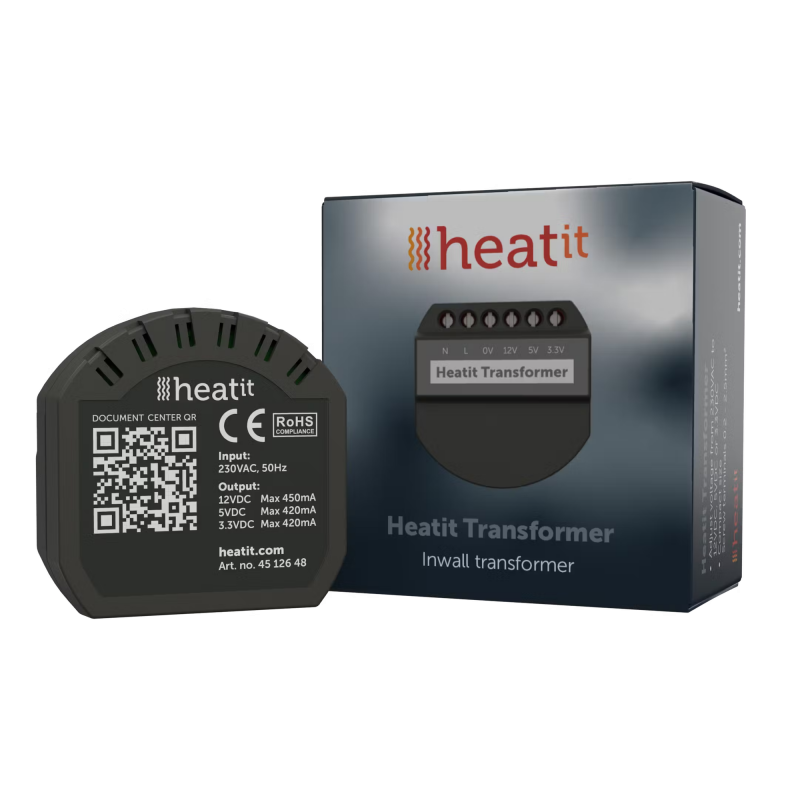

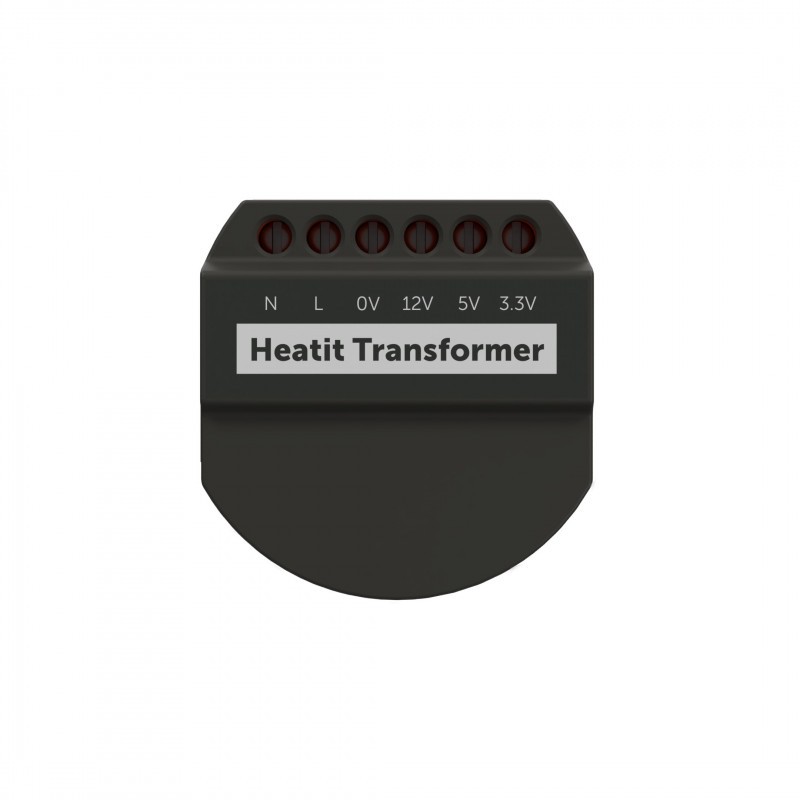

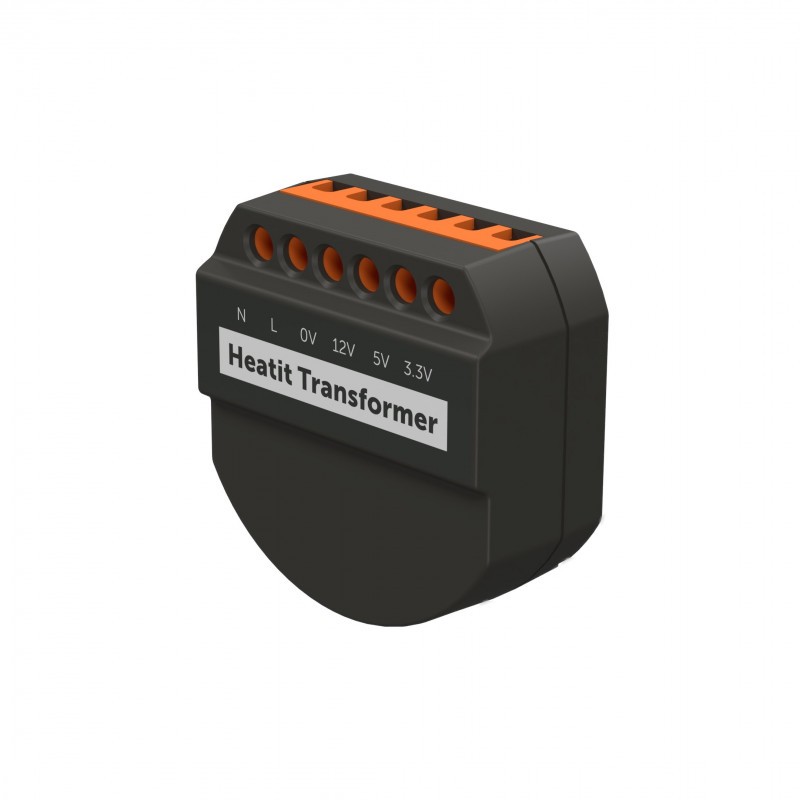

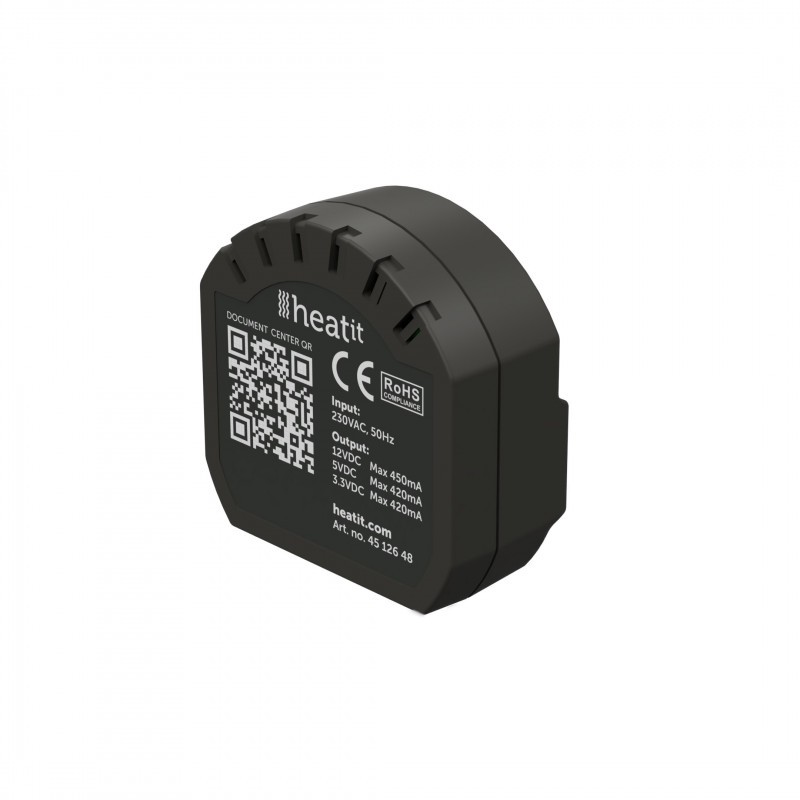

Heatit Transformer - Embedded power supply 230 VAC to 12 - 5 - 3.3 VDC

The Heatit transformer is a recessed transformer that fits into European wall mounted electrical boxes. It allows the user to connect low voltage appliances to the mains and change the voltage from 230 VAC to 12 VDC, 5 VDC or 3.3 VDC.

Combined with Heatit battery adapters, the Heatit transformer can run your battery powered appliances on the mains. All battery powered devices with a power consumption of up to 450 mA at 12 VDC or 420 mA at 5 VDC and 3.3 VDC can be connected to the transformer.

FUNCTIONS:
Adjusts voltage from 230 VAC to 12 VDC, 5 VDC, or 3.3 VDC
Compact size - fits easily into a European electrical wall box
easy to install

TECHNICAL SPECIFICATIONS :

Rated voltage: 230 VAC 50 Hz
Exit:
12VDC max. 450mA
5 Vdc max. 420mA
3.3 Vdc max. 420mA
Ambient temperature: from 5°C to 40°C
Humidity: 10% to 85% RH
mounting depth: 19mm
Product dimensions (WxHxD): 45 x 46 x 19 mm
IP code: IP 21
Approvals: CE

Voltage:230VAC, 230V 50Hz

Degree of protection (IP):IP20

Ambient humidity (RH without condensation %):10-85

Ambient temperature range in storage (°C): -30-70

Declarations: CE, CE declaration

Depth in mounting box (mm):19

Maximum connection dimension (mm²):2.5mm²

Mounting / installation location: European junction box

Product height (mm):19

Product length (mm):45

Product weight (gram):40

Product width (mm):46
