View larger

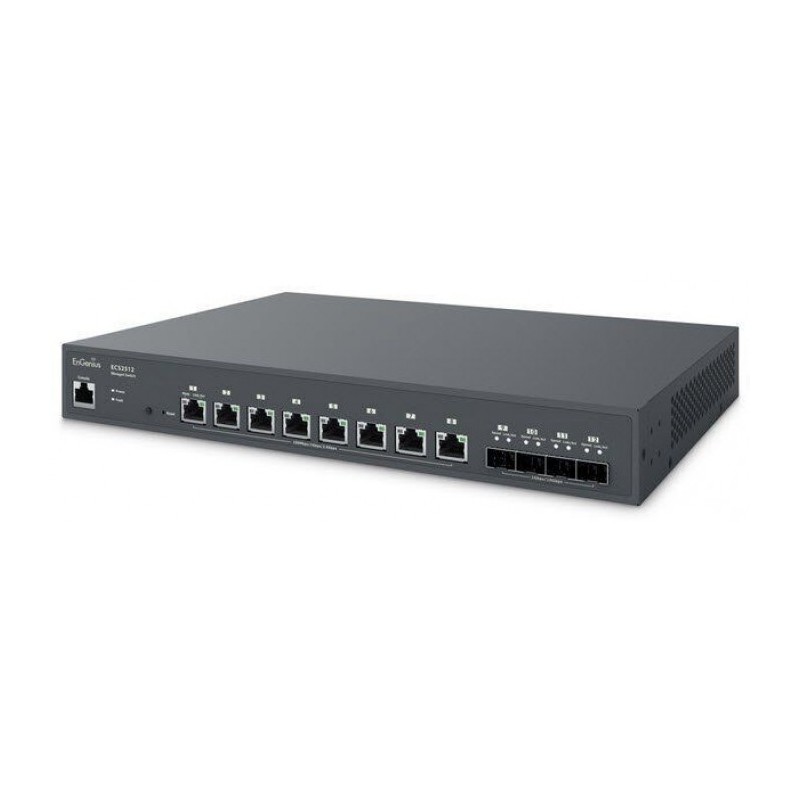

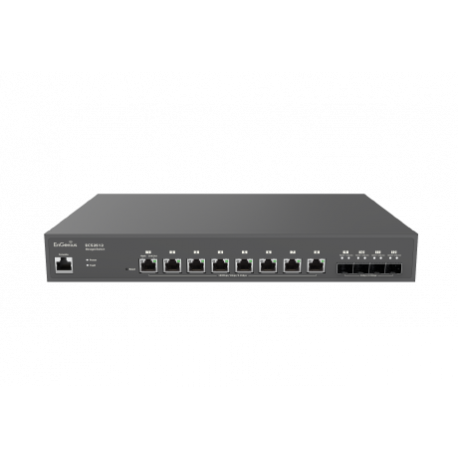

EnGenius ECS2512 8-port 2.5 Gigabit Switch with 4 SFP+ 10 GB slot. Manageable Layer 2 and Control in CLOUD
ECS2512
New
EnGenius Cloud AI Managed Gigabit POE Switch
8 LAN ports 10/100/1000/2500Mbps
4 SFP+ slots 10GB
Format 13, includes 19 Rack mounting kit
Manageable Layer 2 supporting IGMP and MLD snooping, 802.3ad Link Aggregation, QoS and Voice VLAN
In Stock
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
The ECS2512 8-port cloud-managed switch or switch features simplified network management, monitoring, and configuration options along with an easy-to-use web interface.
- Managed by EnSky On-Premises or EnGenius Cloud
- 8 100/1000/2500 Mbps Gigabit Ethernet ports
- 4 SFP+ ports 1000/10000
- Rackmount model supports full-featured Layer 2+ switching
- FORMAT Rack 13
- SNMP MANAGEMENT
- ETHERNET SPEED GIGABIT / 2500Mbps
- ETHERNET PORTS 8
- WARRANTY 2 year warranty
- FIBER SPEED SFP/SFP+ 1.25/10 Gb
Technical specifications
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x full-duplex flow control
network ports
8 ports of 100/1000/2500/5000/10000 Mbps
switching capacity
120Gbps
SDRAM
512MB
Flash memory
128MB
Power supply
100 ~ 240VAC, 50/60Hz
physical interface
LED indicators
Power LED
fault LED
PoE Max LED
LAN mode LEDs
PoE mode LED
LED Ports
Link / Activity / Speed (per Ethernet port)
Link / Activity / Speed (per SFP slot)
L2 functions
Network administration
EnGenius Cloud Local Web GUI
ezMaster
MAC address table
32K
Jumbo-Frame
9K
multicast group
Max 256 groups
MLD Snooping
MLD Inquiry: v1
QoS-number of priority queues supported
Up to 8 Tails
trust mode
Cos / 802.1p
DSCP
CoS / 802.1p-DSCP
programming mechanism
Strict / WRR / Strict + WRR
Bandwidth Control
Port-based bandwidth control (in/out)
Port Security
Max. 256 entries
Access Control List (ACL)
ACL based on MAC ACL based on
IPv4 / IPv6
ACLs
ACL binding time base
Web graphical user interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL certificate
Certificate/key import
SNMP
SNMP v1/v2c/v3 support
RMON
RMON 1,2,3,9
system time
Time setting / daylight saving time
Common features of L2
802.1d spanning tree
loop detection
return multicast filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tag
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCPRelay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check
inspection of
ARP Packet Validation (Additional Validation Checks)
Voice VLAN VLAN
port-based VLAN-based
protocol
CoS Mapping
802. 1X Radio Authentication Protocol
IEEE802.
3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI)
SSH Server Server
telnet
Update/backup TFTP client configuration
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning Tree
L3 functions
Multiple IP interface
20 IPv6 address
ARP table
Max. 192 ARP entries
static ARP
192 static ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 tickets
environmental and physical
Temperature range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (non-condensing)5% - 95%
Dimensions and weight
Weight: 2.6kg
Width: 230mm
Length: 330mm
Height: 44mm
Package Contents
1x ECS Managed Gigabit Switch
1x quick installation guide
1x power cord
1x RJ45 console cable
1x rack mount kit
Warranty
2 years
