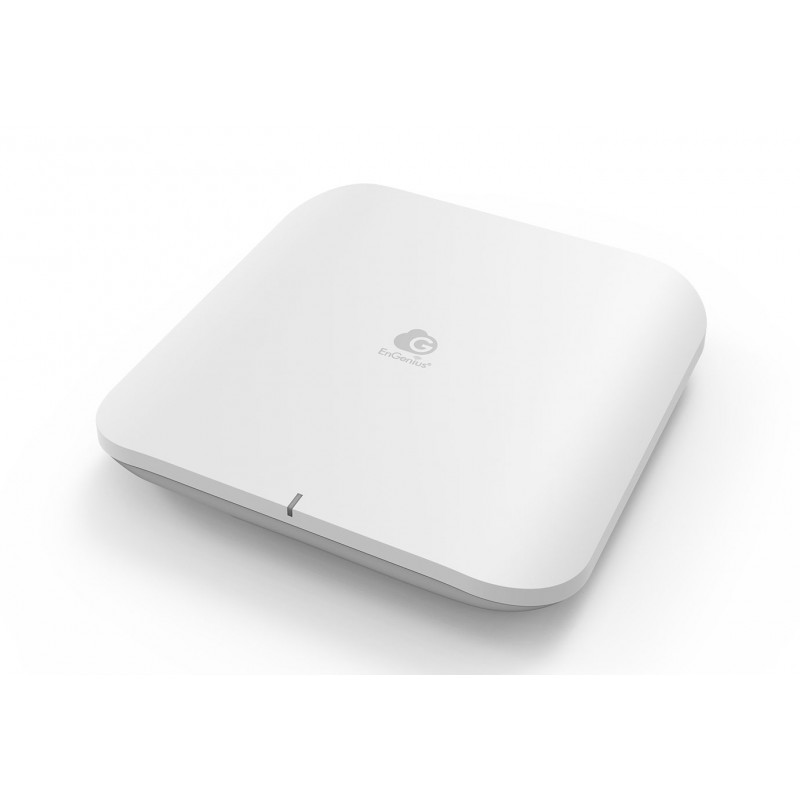

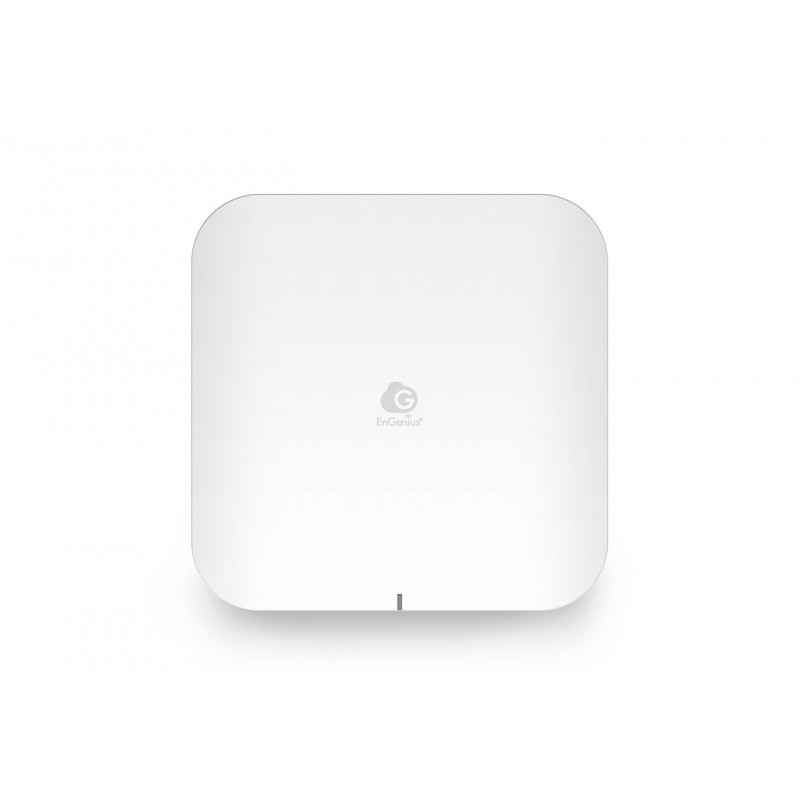

EnGenius ECW536 AP Cloud Managed Wi-Fi 7 4×4x4 Indoor Access Point

Reference ECW536

Condition: New

Wi-Fi 7 Tri-band access point reaches up-to 18.7 Gbps speeds using 2.4 GHz, 5 GHz, and the newly released 6 GHz

More details

Out of stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Technical characteristics

PoE	Si (Power Over Ethernet)

More info

EnGenius Cloud Managed ECW536 is a sleekly designed Wi-Fi 7 tri-band 4x4x4 access point that supports up to 11,529 Mbps on 6GHz, 5,764 Mbps on 5GHz, and 1,376 Mbps on 2.4GHz. The new Wi-Fi 7 standard supports ultra-wide 320 MHz channels and Multi-Link Operation (MLO) that deliver extreme throughput, greater network capacity, and more reliability. This enterprise-level AP also takes advantage of 4-MU-MIMO, 4096-QAM, and Multi-RU puncturing to increase performance, avoid interference, and reduce latency. The ECW536 has two 10 GbE ports, primary port supporting PoE++ for easy AP placement and 2nd port providing gigabit speed to another device.

Product Highlight

EnGenius Cloud Managed Wi-Fi 7 4x4x4 Access Point ECW536 supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz), and up to 1,400 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Tri- concurrent 802.11be Wi-Fi 7 architecture & backward-compatible
Supercharged speeds up to 11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz) & up to1,400 Mbps (2.4 GHz)
10 GbE realizes greater throughput and supports 802.3bt and 60W PoE injector input for flexible installation over 100 meters (328 feet)
WPA3 & WPA2-AES authentication support
Cloud Managed with AP & Mesh mode
Quick-scan device register & configuration and remote monitoring & troubleshooting
Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax

Antenna

4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
4 x 6 GHz: 5 dBi(Integrated Omni-Directional)

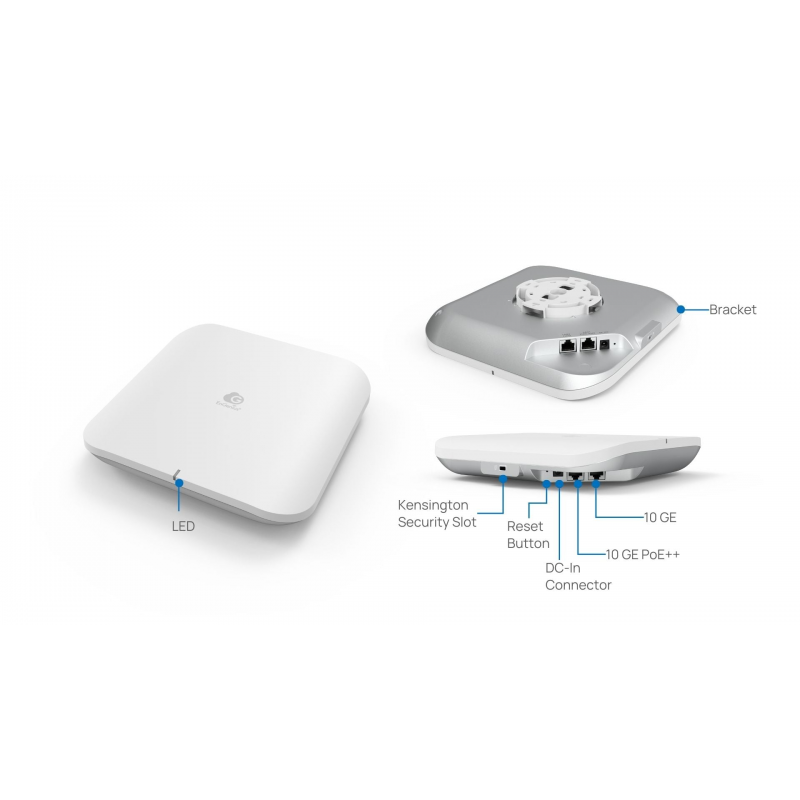

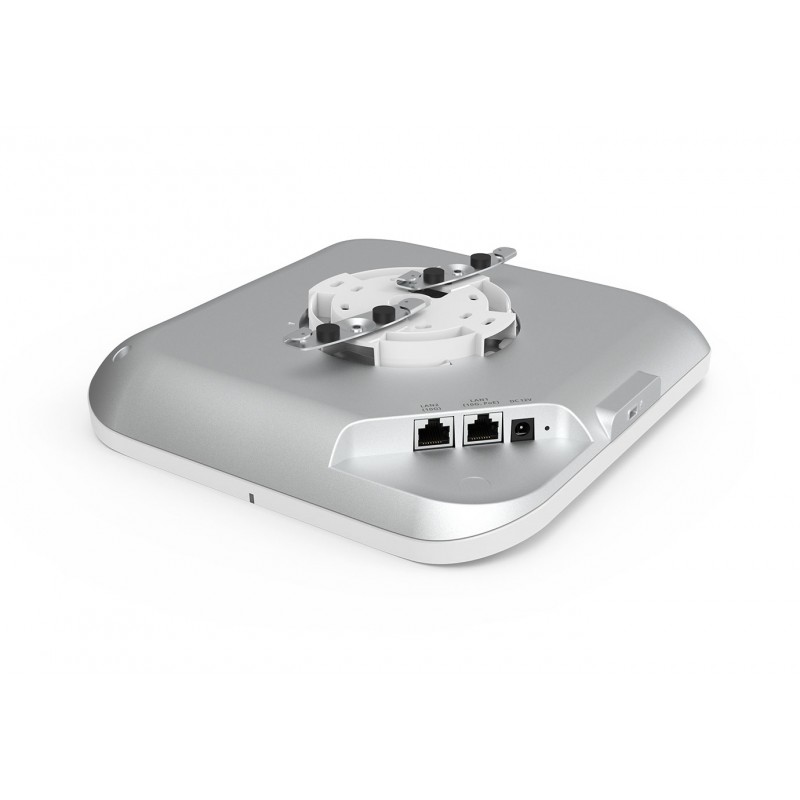

Physical Interface

1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3bt Input
12VDC /3A Power Adapter

Maximum Power Consumption

38W

Wireless & Radio Specifications

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6GHz: 5925-7125MHz

Transmit Power

Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains

4 × 4:4

SU-MIMO Capability

Four(4) spatial stream Single User (SU) MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 58,00 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio.

MU-MIMO Capability

Four(4) spatial stream MU-MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 1,400 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
