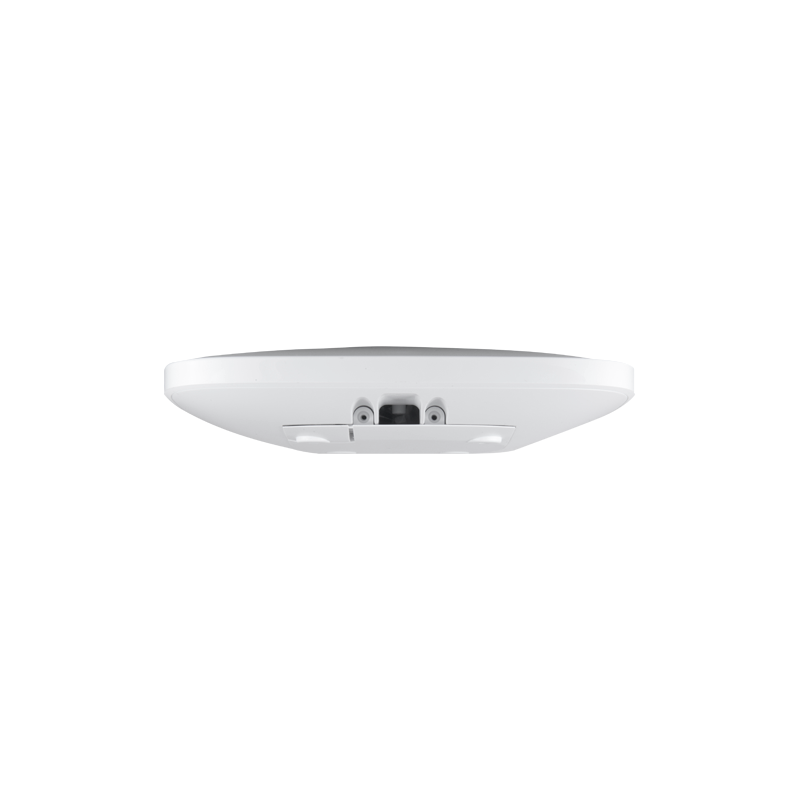

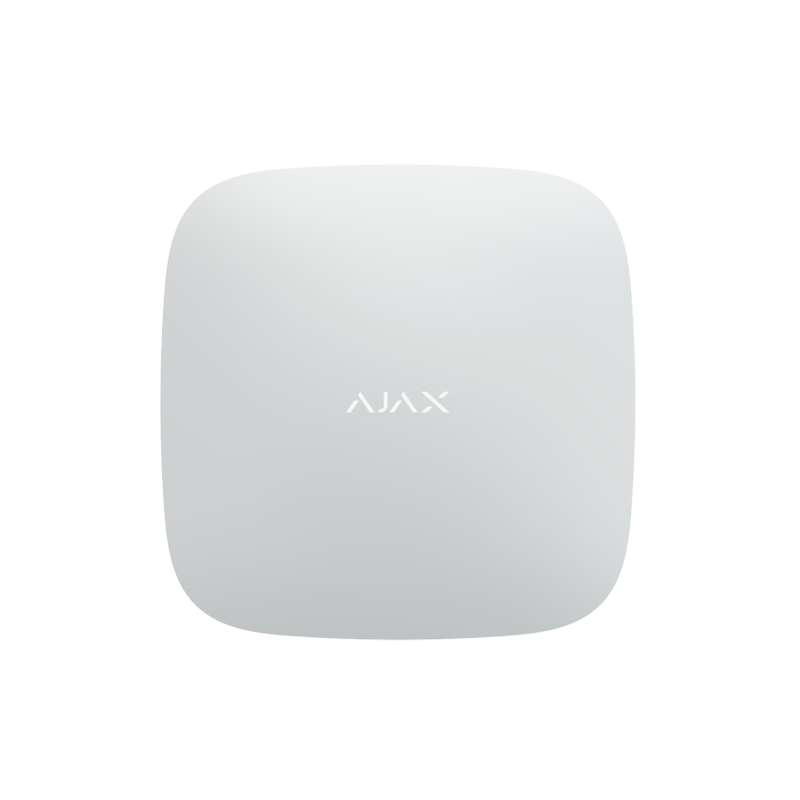

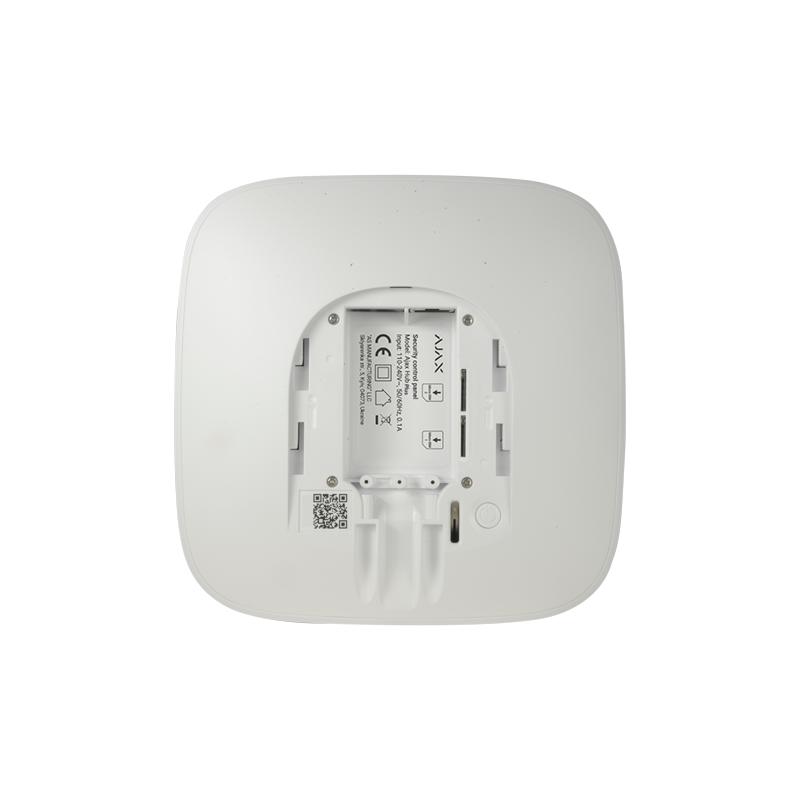

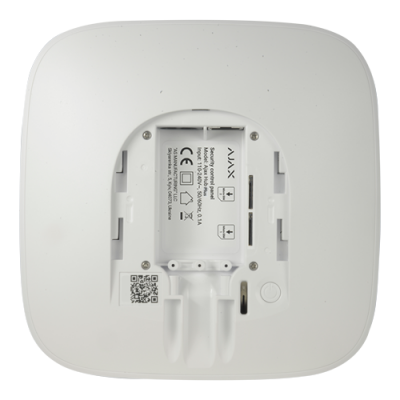

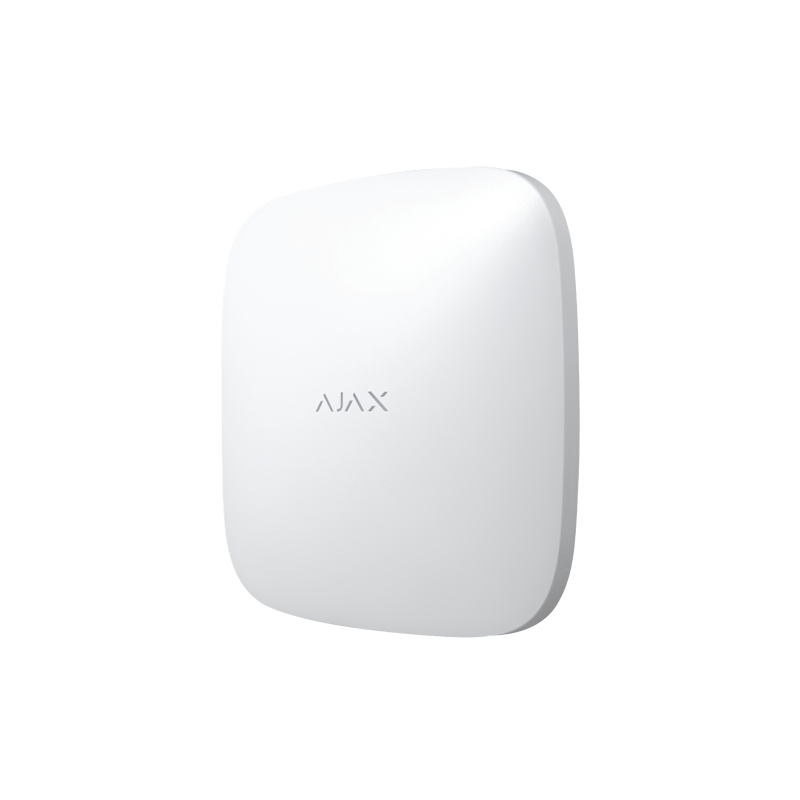

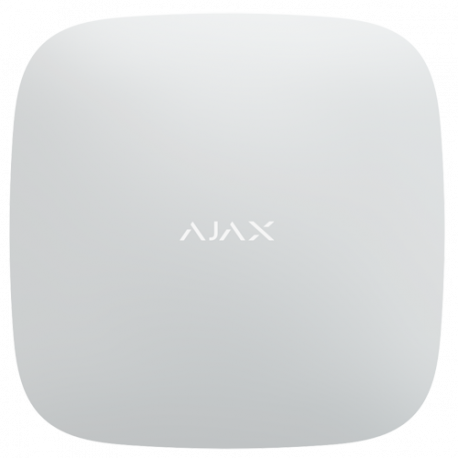

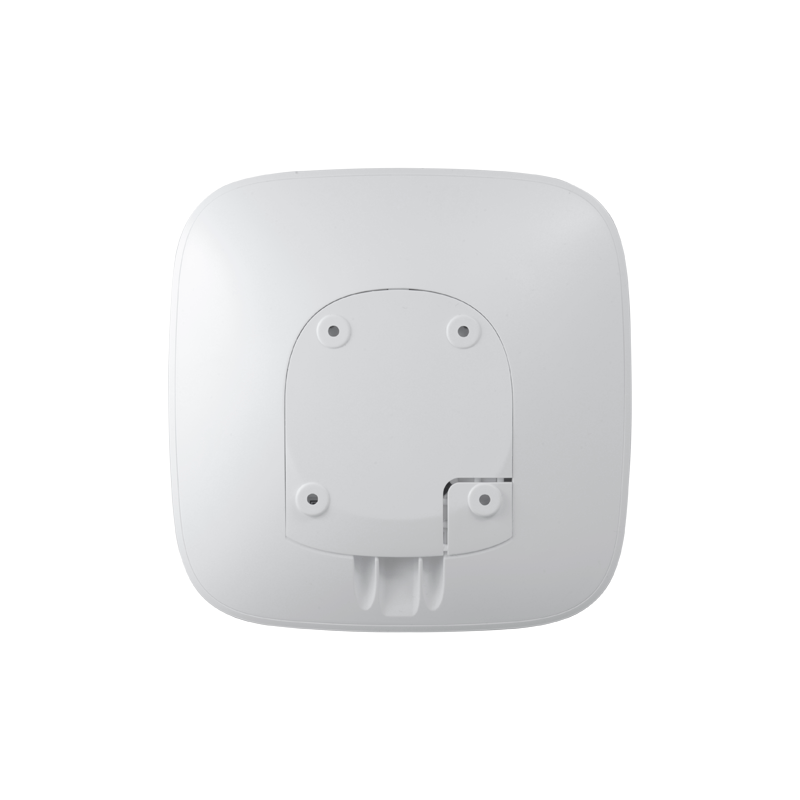

Ajax Hub2-DC6V - Standalone alarm panel 6V DC Ethernet and dual SIM GPRS

Wireless alarm center for professional installations without the need for mains power, ensuring autonomous operation powered at 6 V DC. Communication is done via Ethernet and / or GPRS with Dual SIM. The supervised bidirectional link of the detectors and accessories is carried out by radio frequency following its own protocol, Jeweler, in the 868 MHz band, obtaining Grade 2 certification.

The wireless link achieves high reliability thanks to its advanced Jeweler protocol with high security AES encryption. The exclusive instantaneous and intelligent supervision system detects the inhibition of the signal identifying a certain time of inactivity and at the same time allows to reduce the maintenance costs since it manages to considerably extend the life of the batteries of the detectors without compromising safety. The wireless signal is capable of covering distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the intelligent bracket (Smart-Bracket) or the simple linking of the detectors to the alarm system.

It allows up to 100 wireless zones, allowing the possibility of grouping these devices into up to 9 different groups, on which the different actions of arming, partial arming, and disarming can be carried out. These Ajax wireless devices have different possible configurations such as 24 hour zone, zone with entry or exit delay ...

The AJ-HUB2-DC6V-W panel has a 6 V DC power input and also a rechargeable backup battery with a duration of up to 16 hours.

It is an ideal autonomous Ajax alarm system for boats, rulots, caravans, second homes, country houses, and any other property where there are electrical power problems or where we can have solar power.

The triple Ethernet and dual SIM GPRS communication is its main advantage for remote access, both for the user and for the installer, since it allows its connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms and modify their configurations. The use of the cloud supports dynamic IP without the need to open ports.

The Ajax user will enjoy multiple benefits, as they will be able to receive reliable and instant notifications in both desktop software and mobile applications.

As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile application in order to verify the video stream live.
