OWON - Single-Phase / Three-Phase Zigbee Electricity Consumption Meter (from 80A to 300A) - Works with Home Assistant

However, the use of this device with the Deconz plugin will depend on the integration of the team creating the key. You can follow the progress of their integration here.

To know more, read our guide: "How to choose the right Zigbee device for Jeedom".

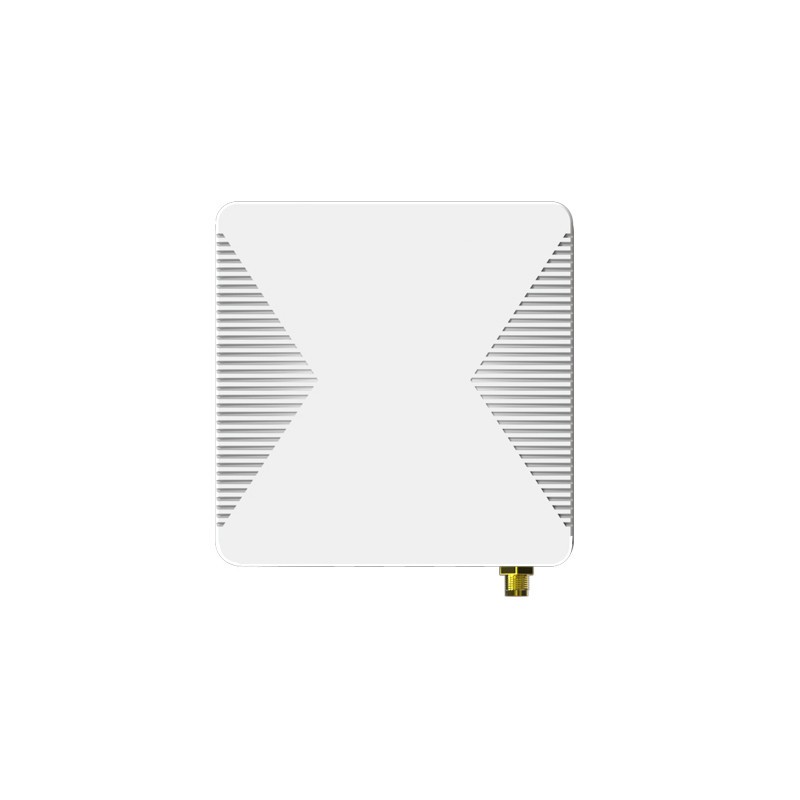

OWON Power Consumption Meter helps you monitor the amount of electricity consumed in your environment by connecting each current clamp to each power cord. You can also measure voltage, current, power factor, active power.

FUNCTIONS:

ZigBee HA 1.2 compliant.
Compatible with single-phase/three-phase electricity.
Choice of three current transformers for single phase applications: 80A, 120A, 200A, 300A (NOT INCLUDED, SOLD SEPARATELY).
Measure total energy consumption in real time.
Suitable for residential and commercial applications.
Optional antenna to improve signal strength.
Light and easy to install.
TECHNICAL SPECIFICATIONS :

Wireless connectivity: ZigBee 2.4GHz IEEE 802.15.4
ZigBee Profile: Zigbee HA 1.2
Outdoor / indoor range: 100m / 30m
Operating voltage: 100-240 Vac 50/60 Hz
Measured electrical parameters: Irms, Vrms, Active power and energy, Reactive power and energy
Calibrated measurement accuracy: <1% reading measurement error
Output power: up to +20dBm
Power cord length: approx. 90cm
Dimensions: 86 (L) x 86 (W) x 37 (H)mm
Weight: 415g

ATTENTION, THIS PRODUCT IS SOLD WITHOUT CURRENT CLAMPS. CHOOSE THE CLAMPS, BETWEEN 3 OPTIONS, SOLD SEPARATELY: 80A, 120A, 200A OR 300A

Note to JEEDOM: This device is compatible with the official Zigbee plugin from JEEDOM team (which can work with any compatible Zigbee USB dongle such as: Zigate and Conbee2).
