Akuvox

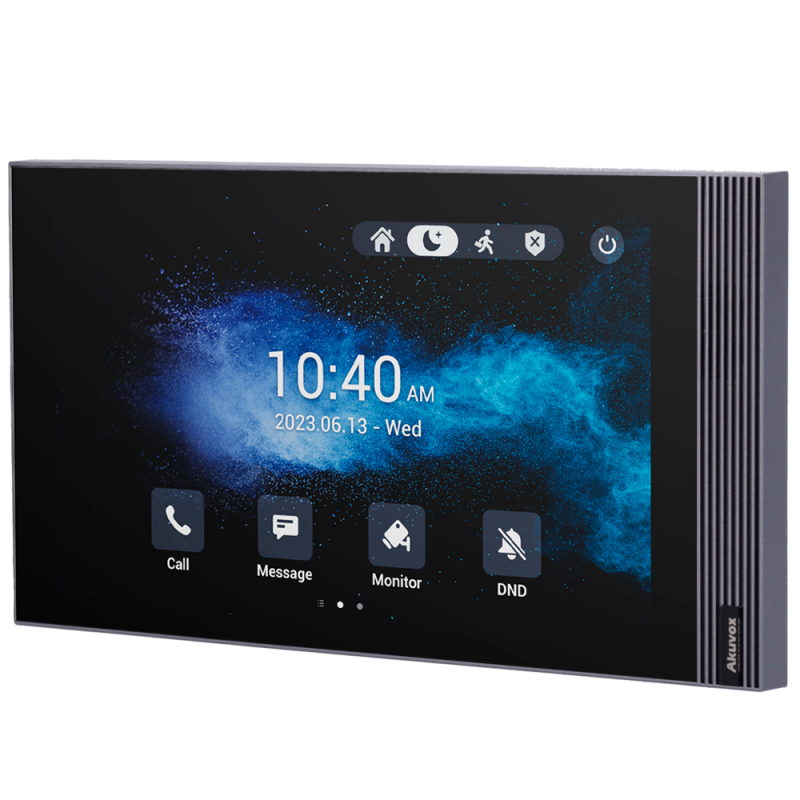

Akuvox AK-S562 7'' Linux Monitor for video intercom
Akuvox AK-S562 7'' Linux Monitor for video intercom
AK-S562
New
- Linux monitor for video intercom
- 7" TFT screen
- Crystal Clear Two-Way Audio | Easy UI
- TCP/IP, PoE, SIP standard
- Maintenance through Cloud
- Connection of monitor and plates through Cloud
Out of stock
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
- Akuvox
- Linux TFT screen for 7" video intercom
- Easy UI user interface
- Integrated microphone and speaker
- Two-way audio with Crystal Clear technology
- 1 doorbell input and 8 alarm inputs
- 1 relay output
- Recording and capturing images
- Multiple screen extension
- TCP/IP
- 1 IEEE802.3af PoE port
- Standard SIP for easy integration

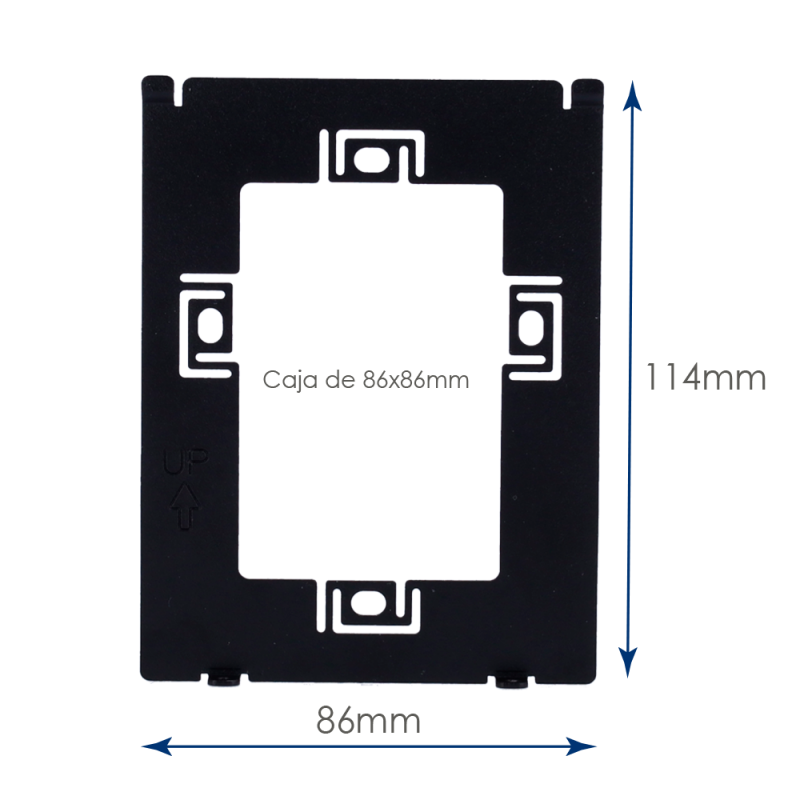

- surface mount
- Complete configuration via web browser
- Push notifications and calls between devices through the SmartPlus App
- 4 free users included in the App
- Call and user directory
- Firmware updates via cloud with installer control
- Viewing cameras via RTSP and ONVIF

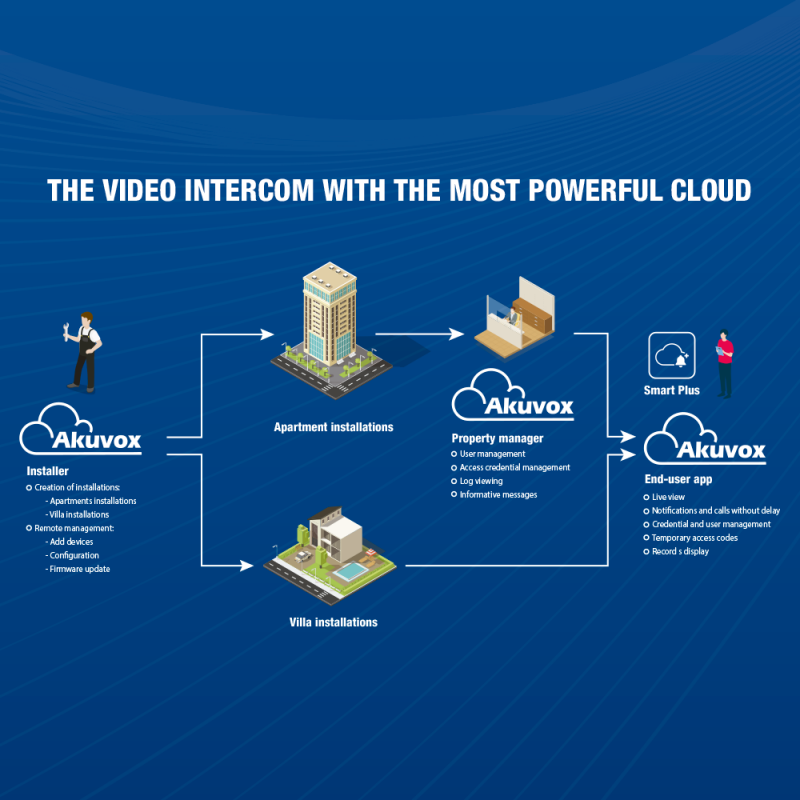

- Connection between boards and monitors through the cloud on different networks
| Brand | Akuvox |
| Model | S562 |
| OS | LINUX OS |
| Hardware | RAM: 128MB | ROM: 128MB |
| LCD | 7" TFT 1024 x 600 |

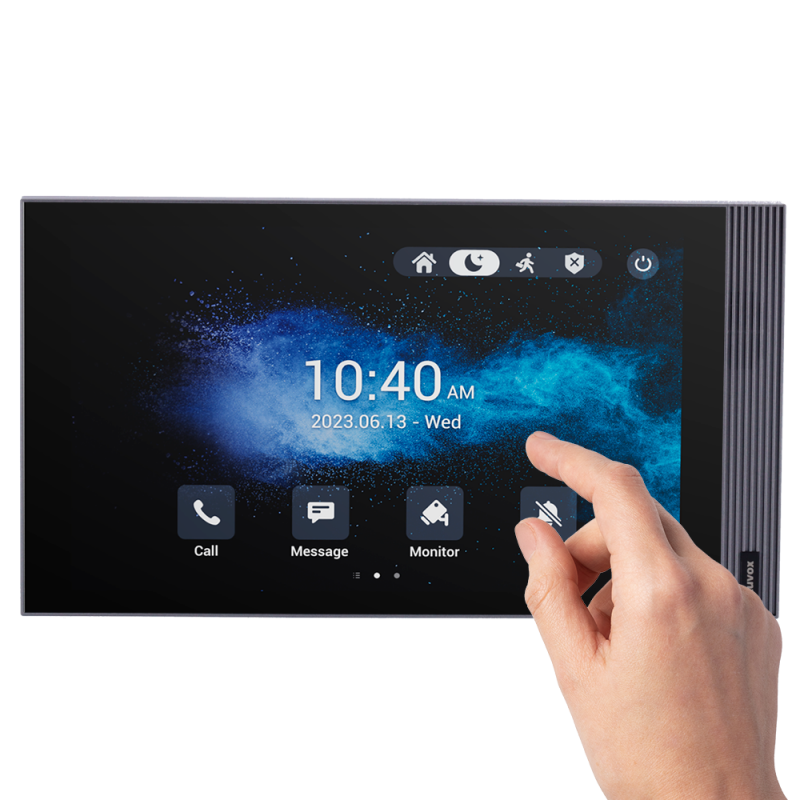

| Operation mode | Capacitive touch panel |
| Tickets | 8 x configurable alarm, 1 x doorbell and 1 x RS485 |
| Departures | 1 x relay |
| Audio | Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722 DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: yes available |
| Operating mode | Local network and/or through the cloud on different networks |
| Firmware updates | Remotely with the cloud through an installer account or through a local web browser |
| Network interface | Ethernet 10/100 BaseT RTSP/ONVIF |
| Feeding | DC 12 V / 600 mA max. Standard PoE (IEEE802.3af) |
| Temp. functioning | -10º C ~ +45º C |
| Dimensions | 216 (W) x 119 (H) x 22 (D) mm |
| Weight | 600g |
