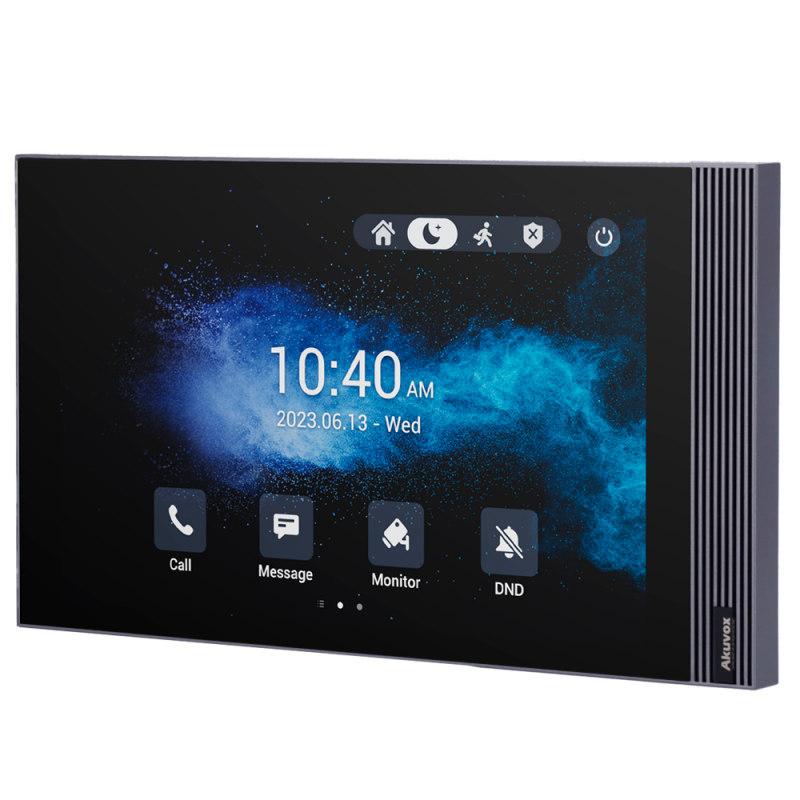

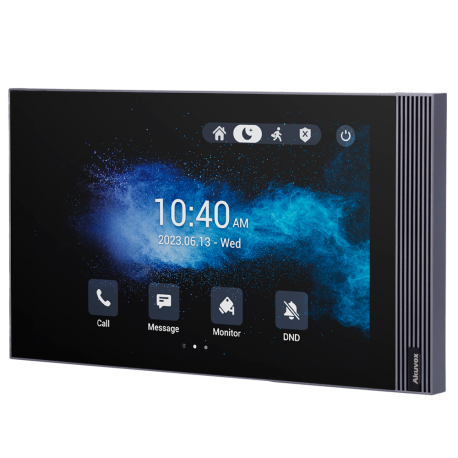

Akuvox AK-S563 Monitor 8'' Android 12.0 for video intercom

AK-S563

New

  • Android 12.0 monitor for video intercom
  • 8" IPS screen | Third party applications
  • Crystal Clear Two-Way Audio | Easy UI
  • TCP/IP, PoE, SIP standard
  • Maintenance through Cloud
  • Connection of monitor and plates through Cloud

More details

In Stock

218,53 €

-30%

312,18 €

More info

  • Akuvox
  • Android 12.0 IPS screen for 8" video intercom
  • Easy UI user interface
  • Integrated microphone and speaker
  • Two-way audio powered by Crystal Clear technology with automatic gain control
  • Automatic voice detection
  • 1 doorbell input and 8 alarm inputs
  • 1 relay output
  • Recording and capturing images
  • Multiple screen extension
  • TCP/IP
  • 1 IEEE802.3af PoE port
  • Standard SIP for easy integration
  • surface mount
  • Complete configuration via web browser
  • Push notifications and calls between devices through the SmartPlus App
  • 4 free users included in the App
  • Call and user directory
  • Firmware updates via cloud with installer control
  • Viewing cameras via RTSP and ONVIF

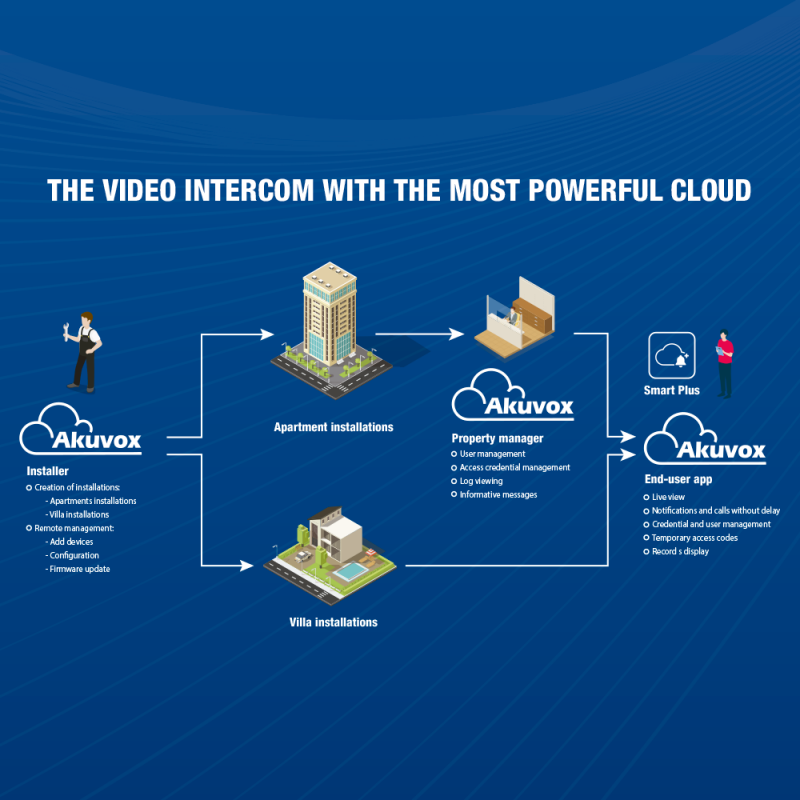

  • Connection between boards and monitors through the cloud on different networks
  • Installing third-party applications with Google Services
  • Remote configuration access for installation

Brand Akuvox
Model S563
OS Android 12.0
Hardware RAM: 2GB | ROM: 8GB
LCD 8" IPS 1280 x 800
Operation mode Capacitive touch panel
Tickets 8 x configurable alarm, 1 x doorbell and 1 x RS485
Departures 1 x relay
Audio Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology
Audio Format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722
DTMF (RFC2833), SIP Info
Remote access SmartPlus mobile phone application or configuration via WEB browser
Remote access via Cloud: yes available
Operating mode Local network and/or through the cloud on different networks
Firmware updates Remotely with the cloud through an installer account or through a local web browser
Network interface Ethernet 10/100 BaseT
RTSP/ONVIF
Feeding DC 12 V / 600 mA max.
Standard PoE (IEEE802.3af)
Temp. functioning -10º C ~ +45º C
Dimensions 216 (W) x 124 (H) x 22 (D) mm
Weight 600g
