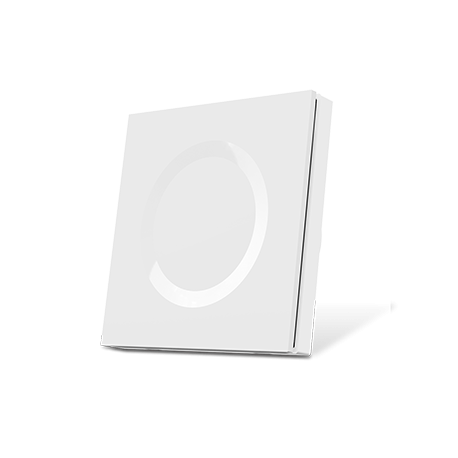

MCO Home OS12 (Wall Mount)  Radar Based Z-Wave Occupancy Sensor

MCO Home OS12 is a Z-Wave occupancy sensor based on 24GHz millimeter wave Doppler technology, it can accurately detect and distinguish movement, minor movement and even breathing signals to interact with lights, blinds, fans, air conditioning and various electrical appliances, as well as security alarm, people monitoring, etc. Suitable for home, hotel, office and other places, not affected by temperature, humidity, noise, air flow, dust, light and other factors. The sensor can be added to any Z-Wave network, and is compatible with any other Z-Wave certified device.

Specifications

• Power supply: AC90-250V (DC12V optional)
• 5A dry contact output
• Ultra-low RF power output, harmless to human health
• Maximum transmission power +13dbm
• Visual LED indicator to pair network or detect motion, minor movement, breathing
• Operating temperature: -10 -50
• Operating humidity: 20%-85% non-condensing
• Z-Wave 800 series, supports S2 encryption
• Z-Wave Frequency: Operating frequency range, defined by regulatory bodies (for Z-wave in Europe: 868.4 MHz, or other regions 908.4/916.0 MHz, 921.4 MHz).
• Shell: V0 flame retardant PC material
• Installation: On top/ceiling (model 0S11) or on the wall (model 0S12)

Detection range

3db horizontal beam angle up to 80°, vertical beam angle up to 85°, with high precision and wide detection range.

Maximum respiratory presence range: 2-3m diameter

Maximum range of minor presence 3-4m in diameter

Maximum range of motion presence 5-8m diameter

Switching time of absence or presence detection: within 0.5sec
