Philio Tech

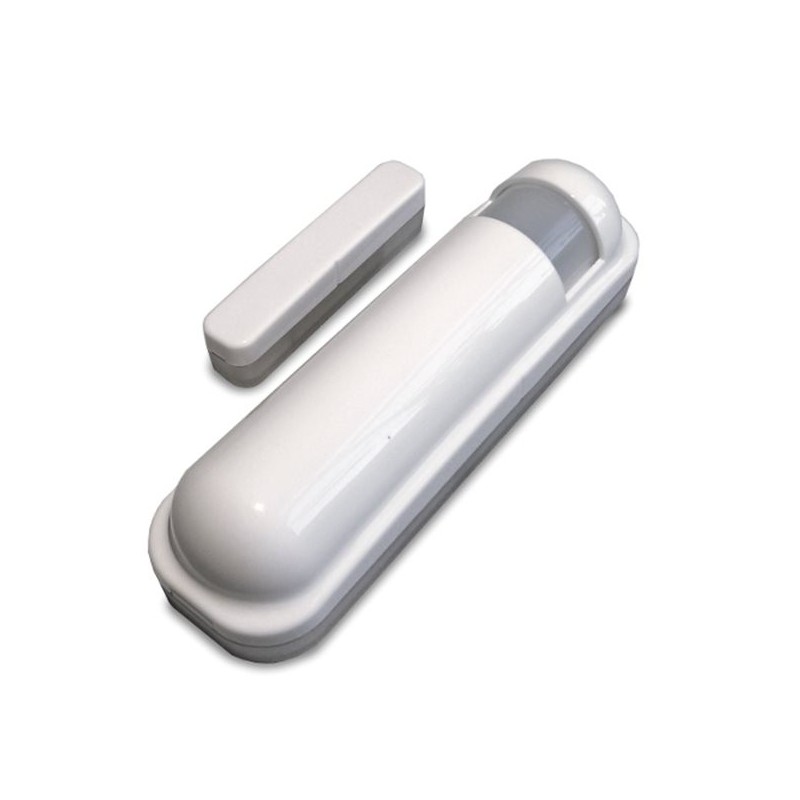

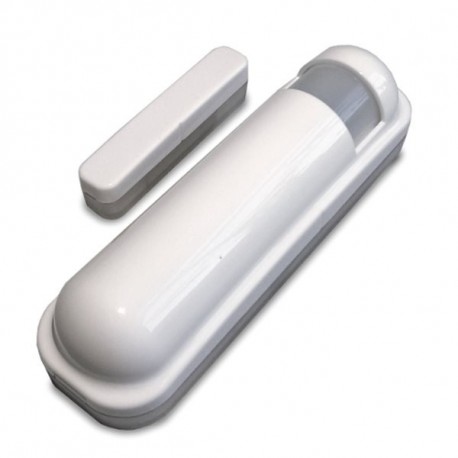

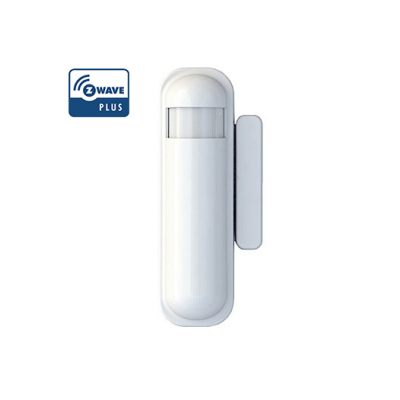

Philio PST02-1A - QUAD MODOLITE Z-Wave 4 in 1 multisensor (aperture, movement, luminosity, temperature)
Reduced price!
View larger
View larger
Philio PST02-1A - QUAD MODOLITE Z-Wave 4 in 1 multisensor (aperture, movement, luminosity, temperature)
PHI_PST02-1A
New
multi-sensor with 4 functions integrated in a single Z-Wave device: motion sensor, door/window opening sensor, temperature sensor and brightness sensor
In Stock
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Technical characteristics
| Home Automation Technology | Z-Wave Plus |
More info
This interesting multi-sensor from Philio is a Z-Wave device to detect door/window opening, to detect movement, brightness and temperature in a single element. Thanks to this device (PST02-1A) it can be used for security functions and other home automation tasks, e.g. e.g. send an alarm when presence/movement is detected, turn on the light automatically through home automation scenes or because it gets dark or to adjust the air conditioning temperature.
The product consists of 2 parts: - the detector and the magnet. The magnet is usually placed on the moving part of the door or window that we want to control. The other part is placed in the frame.
When included in a security environment, the device accepts security commands and sends security commands to other devices as well as parameters that can be grouped and associated.
Extended Z-Wave info
Name: Slim Multisensor
Manufacturer:Philio
Identifier:PST02-1A
Z-Wave Certification Number:ZC10-16030003
Hardware Plattform:SD3502
FLiRS:NO
Role Type:Reporting Sleeping Slave
Short Description:Slim Multisensor 4 in 1 (PIR, Door/Window, Temperature and Illumination)
Description:The slim multisensor PST02 has PIR, door/window, temperature and illumination, 4 sensors function in one,based on Z-Wave technology.
Manual download HERE.
Group
Max Nodes
Description
1
8
Z-Wave Plus Lifeline. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc.
2
8
Using the "Basic Set" for lighting control.
Number
Size (Bytes)
Default Value
Name
Description
10
1
12
Auto Report Battery Time
The interval time for auto report the battery level.
0 means turn off auto report battery.
The default value is 12. The tick time can setting by the configuration No.20.
11
1
12
Auto Report Door/Window State Time
The interval time for auto report the door/window state.
0 means turn off auto report door/window state.
The default value is 12. The tick time can setting by the configuration No.20.
12
1
12
Auto Report Illumination Time
The interval time for auto report the illumination.
0 means turn off auto report illumination.
The default value is 12. The tick time can setting by the configuration No.20.
13
1
12
Auto Report Temperature Time
The interval time for auto report the temperature.
0 means turn off auto report temperature.
The default value is 12. The tick time can setting by the configuration No.20.
2
1
255
Basic Set Level
Setting the BASIC command value to turn on the light. The 0xFF(-1) means turn on the light. For dimmer equipment 1 to 100 means the light strength.
0 means turn off the light.
Caution: The value is unsigned byte, the range is from 0x00 ~0xFF.
20
1
30
Auto Report Tick Interval
The interval time for auto report each tick. Setting this configuration will effect configuration No.10, No.11, No.12 and No.13.
The unit is 1 minute.
Caution1: Setting to 0 means turn off all auto report function.
Caution2: The value is unsigned byte, the range is from 0x00 ~0xFF.
21
1
1
Temperature Differential Report
The temperature differential to report.
0 means turn off this function.
The unit is Fahrenheit.
Enable this function the device will detect every minutes.
And when the temperature is over 140 degree Fahrenheit, it will continue report.
Enable this functionality will cause some issue please see the detail in the “Temperature Report” section.
22
1
0
Illumination Differential Report
The illumination differential to report.
0 means turn off this function.
The unit is percentage.
Enable this function the device will detect every minutes.
Enable this functionality will cause some issue please see the detail in the “Illumination Report” section.
3
1
80
PIR Sensitivity
PIR sensitivity settings.
0 means disable the PIR motion.
1 means the lowest sensitivity,
99 means the highest sensitivity.
High sensitivity means can detected long distance, but if there is more noise signal in the environment, it will re-trigger too frequency.
4
1
99
Light Threshold
Setting the illumination threshold to turn on the light. When the event triggered and the environment illumination lower then the threshold, the device will turn on the light.
0 means turn off illumination detected function. And never turn on the light.
1 means darkest.
99 means brightest.
100 means turn off illumination detected function. And always turn on the light.
Notice: In none test mode, only the value in 1 to 99 will enable the illumination detected function and update the illumination value.
5
1
0
Operation Mode
Operation mode. Using bit to control.
Caution: The value is unsigned byte, the range is from 0x00 ~0xFF.
Bit0: Reserve.
Bit1: 1 means test mode,
0 means normal mode.
Notice:
This bit only effect by the DIP Switch setting to “customer mode”, otherwise it decides by DIP Switch setting to Test or Normal Mode.
Bit2: Disable the door/window function. (1:Disable, 0:Enable)
Bit3: Setting the temperature scale.
0: Fahrenheit, 1:Celsius
Bit4: Disable the illumination report after event triggered. (1:Disable, 0:Enable)
Bit5: Disable the temperature report after event triggered. (1:Disable, 0:Enable)
Bit6: Reserve.
Bit7: Disable the back key release into test mode. (1:Disable, 0:Enable)
Notice: The reserve bit is allowed any value, but no effect.
6
1
4
Mult-Sensor Function Switch
Multisensor function switch. Using bit to control.
Caution: The value is unsigned byte, the range is from 0x00 ~0xFF.
Bit0: Disable magnetic integrate illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable)
Bit1: Disable PIR integrate Illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable)
Bit2: Disable magnetic integrate PIR to turn ON the lighting nodes in the association group 2. (Default is Disable) (1:Disable, 0:Enable)
Bit3: When Bit2 is 0 (Enable), Are the device and the lighting in the same room?
0: In the same room(Default),
1: In the different room.
Notice: If this bit is 1, it is recommended also set the Bit1 to 1, cause the PIR triggered, doesn't mean the people in that room.
Bit4: Disable delay 5 seconds to turn off the light, when door/window closed. (1:Disable, 0:Enable)
Bit5: Disable auto turn off the light, after door/window opened to turn on the light. (1:Disable, 0:Enable)
Notice: If bit2 is zero, this setting is useless.
Notice: If the configuration No.9 is zero, this setting is useless.
Bit6: Reserve.
Bit7: Reserve.
Notice: The reserve bit is allowed any value, but no effect.
7
1
4
Customer Function
Customer function switch, using bit control.
Caution: The value is unsigned byte, the range is from 0x00 ~0xFF.
Bit0: Reserve.
Bit1: Enable sending motion OFF report. (0:Disable, 1:Enable)
Note: Depends on the Bit4,
0: Report Notification CC,
Type: 0x07, Event: 0xFE
1: Sensor Binary Report,
Type: 0x0C, Value: 0x00
Bit2: Enable PIR super sensitivity mode. (0:Disable, 1:Enable)
Bit3: Disable send out BASIC OFF after door closed. (1:Disable, 0:Enable)
Bit4: Notification Type,
0: Using Notification Report.
1: Using Sensor Binary Report.
Bit5: Disable Multi CC in auto report. (1:Disable, 0:Enable)
Bit6: Disable to report battery state when the device triggered. (1:Disable, 0:Enable)
Bit7: Reserve.
Notice: The reserve bit is allowed any value, but no effect.
8
1
3
PIR Re-Detect Interval Time
In the normal mode, after the PIR motion detected, setting the re-detect time. 8 seconds per tick, default tick is 3 (24 seconds).
Setting the suitable value to prevent received the trigger signal too frequently. Also can save the battery energy.
Notice: If this value bigger than the configuration setting NO. 9. There is a period after the light turned off and the PIR not start detecting.
9
1
4
Turn Off Light Time
After turn on the lighting, setting the delay time to turn off the lighting when the PIR motion is not detected. 8 seconds per tick, default tick is 4 (32 seconds).
0 means never send turn off light command.
Basic
COMMAND_CLASS_BASIC
Exclusion
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To remove the device from a Z-Wave network:
1. Have Z-Wave Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
Node ID has been excluded.
To remove the device from a Z-Wave network:
1. Have Z-Wave Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
Node ID has been excluded.
Inclusion
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To add into a Z-Wave network:
1. Have Z-Wave Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave Controller about 20 seconds.
To add into a Z-Wave network:
1. Have Z-Wave Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave Controller about 20 seconds.
Device Wake-Up
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
Press any key once, the device will awake 10 seconds.
Press any key once, the device will awake 10 seconds.
Factory Reset
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To reset the device:
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default.
To reset the device:
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default.
