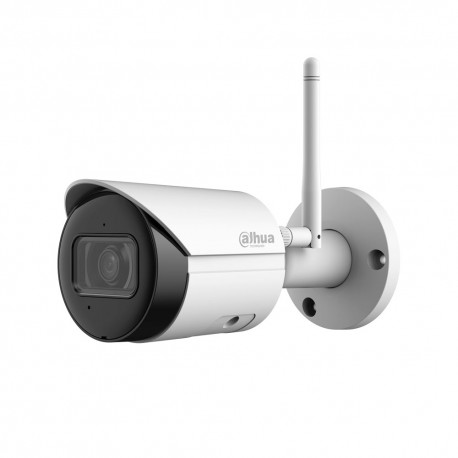

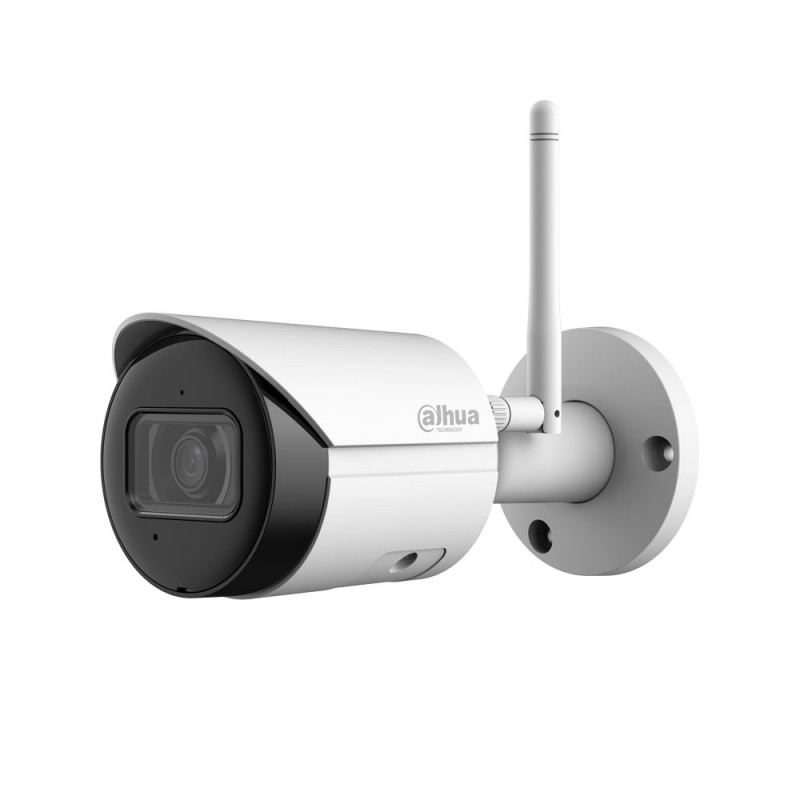

Dahua IPC-HFW1230DS-SAW Outdoor Wifi IP Camera bullet type 2MP IR

Camera

image sensor

1/3" CMOS

Max. resolution

1920(H)×1080(V)

ROMs

16MB

RAM

64MB

scanning system

progressive

Electronic Shutter Speed

Auto/Manual 1/3 s 1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Colour, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

30m (98.43ft) (IR LED)

Illuminator On/Off Control

Car; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° 360°
Tilt: 0° 90°
Rotation: 0° 360°

Lenses

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8mm; 3.6mm

Max. opening

F2.0

Field of View

2.8mm:
Horizontal: 100°; Upright: 53°; Diagonal: 120°
3.6mm:
Horizontal: 86°; Upright: 43°; Diagonal: 102°

Iris Control

fixed

Close Focus Distance

2.8mm: 0.6m (1.97ft)
3.6mm: 1.0m (3.28ft)

DORI Distance

Lenses

detect

I watched

Recognize

identify

2.8mm

46.9 m (153.87 ft)

18.8m (61.68ft)

9.4m

(30.84ft)

4.7m

(15.42ft)

3.6mm

58.8 m (192.91 ft)

23.5m (77.10ft)

11.8m (38.71ft)

5.9m

(19.36ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Mainstream:
1920×1080 (1 25/30fps)
substream:
704×576 (125fps)
704×480 (130fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24kbps 4096kbps
H265: 9kbps 4096kbps

Day/Night

Auto(ICR)/Colour/B/W

BLC

Forks

WDR

DWDR

white balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

noise reduction

3D NR

motion detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Forks

Picture Rotation

0°/180°

Mirror

Forks

Audio

Built-in MIC

Forks

alarm

alarm-event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change; SMD (human)

networks

Network Port

RJ-45 (10/100Base-T)

Wifi

IEEE802.11b/g/n 2.4 2.4835GHz

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDKs and APIs

Forks

cyber security

video encryption; configuration encryption; Digest; WSSE; account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

network protocol

IPv4; http; TCP; PDU; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile G); CGI; P2P

User/Host

6 (Total bandwidth: 36M)

Storage

Micro SD card (support max. 256 GB, sold separately)

browser

IE
Chrome
Firefox

Management Software

SmartPSS; DSS; dmss

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

power

power supply

12VDC

power consumption

Basic: 2 W (12 VDC)
Max. (H.265+IR intensity): 4.1 W (12 VDC)

environment

operating temperature

40 °C to +60 °C ( 40 °F to +140 °F)

operating humidity

d95%

storage temperature

30 °C to +70 °C ( 22 °F to +158 °F)

Protection

IP67

structure

Casing

Metal

Product Dimensions

166.2mm × 70.0mm × 128.6mm (6.53" × 2.76" × 5.06")

Net Weight

477.9g (1.05lbs)

Gross Weight

696.5g (1.50lbs)
