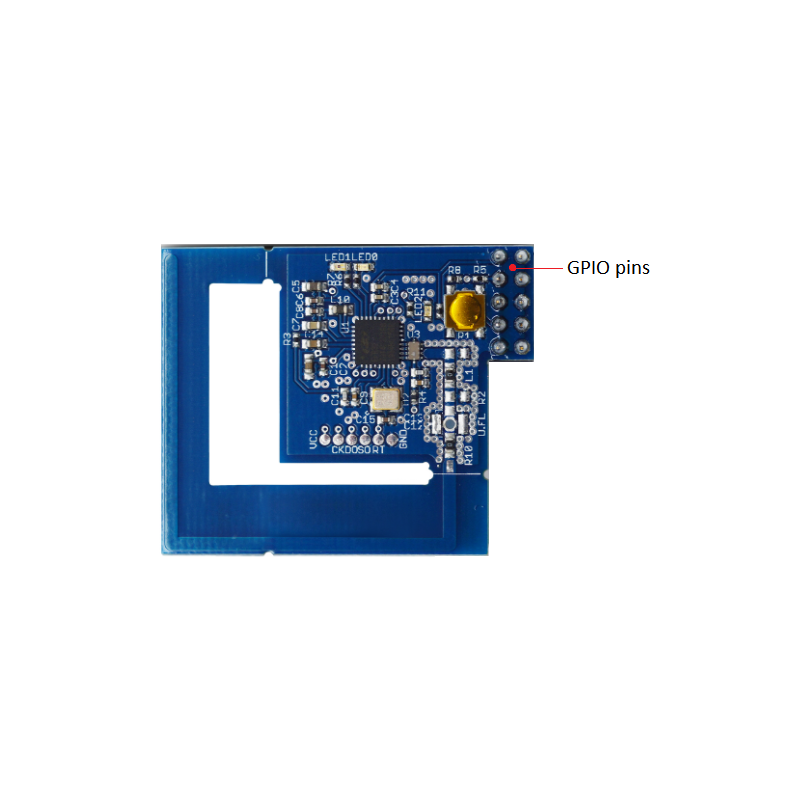

Aeotec Z-Pi 7 - GPIO Z-Wave Plus2 (700 Series) adapter for development boards

Reference AEOEZWA025

Condition: New

The HAT Z-Pi type unit turns each Raspberry Pi or Orange Pi into a gateway or control unit for home automation with Z-Wave Plus2 technology (700 Series). Z-Pi is a GPIO adapter for this type of mini computers or development boards. Get into Z-Wave home automation with Z-Pi.

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Technical characteristics

Home Automation Technology	Z-Wave 700 Series

More info

Designed in Germany to help you get to market quickly and with quality, the Aeotec Z-Pi 7 Development Kit allows you to adapt existing hardware to work with Z-Wave. The Z-Pi 7 turns every Raspberry Pi or Orange Pi into a Z-Wave 700 series Smart Home gateway. The Z-Pi 7 connects to the host's GPIOs, like a Raspberry Pi, as its main Z-Wave controller. It can then be used with any automation software if it supports the Z-Wave Serial Bridge API.

Dimensions (Width x Depth x Height)	42 x 35 x 10 mm
Dimensions (Width x Depth x Height)	62 x 70 x 20 mm
Weight without box	0.005 Kg
Weight with box	0.020 Kg
Z-Wave S2
WEEE
EC
IP-Rating	IP10

Extended Z-Wave info

Name: Z-PI7 EU

Manufacturer:Aeotec

Identifier:ZWA025

Z-Wave Certification Number:ZC12-20080100

Hardware Plattform:EFR32Z

FLiRS:NO

Role Type:Hardware Device

Short Description:The Z-PI7 turns every Raspberry PI or Orange Pi into an Z-Wave 700 series based Smart Home Gateway.

Description:The Z-PI7 turns every Raspberry PI or Orange Pi into an Z-Wave 700 series based Smart Home Gateway. The Z-Pi 7 is attached to the GPIOs of the host, such as a PC,as your primary Z-Wave controller. Then it can be used with your any automation software as long as it supports the Z-Wave Serial Bridge API.

Manual download HERE.

Group

Max Nodes

Description

Number

Size (Bytes)

Default Value

Name

Description

Factory Reset Procedure

To reset your Z-PI7 please refer to the automation software of your host PC.

Note: If you reset your Z-PI7, it will disconnect from all your Z-Wave nodes.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Communications Protocol

For external interfaces, choose the communications protocol used.

Controller Supports Multiple Z-Wave Interfaces

Indicates support for multiple Z-Wave interfaces managed by a single host controller system. Allows for Z-Wave signals to be sent from multiple controllers in the same network or to manage several Z-Wave networks.

Color

If the product is only available in one color, pick the color from the list.
