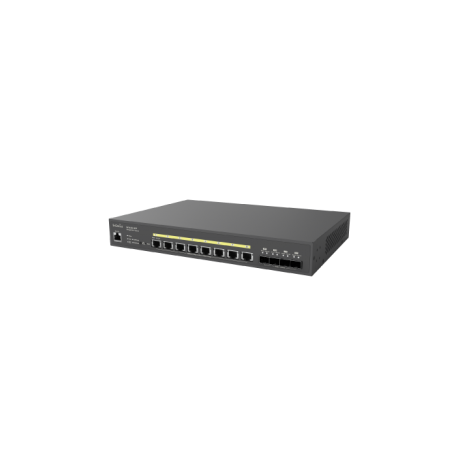

EnGenius ECS5512FP 8-port 10 Gigabit Switch, 8 PoE++ 240 W with 4 SFP+ 10 GB slot. Manageable Layer 2 and Control in CLOUD

The EnGenius ECS5512FP 8-port 10Gb Cloud Managed Switch/Switch features simplified network management, monitoring, and configuration options along with an easy-to-use web interface.

• Managed by EnSky On-Premises or EnGenius Cloud
• 8 x 100/1000/2500/5000/10000 Mbps Gigabit Ethernet ports
• 4 SFP+ ports 1000/10000
• Rackmount model supports full-featured Layer 2+ switching

Technical specifications

802.3 10Base-T Ethernet

802.3u 100Base-TX Ethernet

802.3ab 1000Base-T Ethernet

802.3x full-duplex flow control

network ports

8 ports of 100/1000/2500/5000/10000 Mbps

switching capacity

240Gbps

SDRAM

512MB

Flash memory

128MB

Power supply

100 ~ 240VAC, 50/60Hz

physical interface

LED indicators

Power LED

fault LED

PoE Max LED

LAN mode LEDs

PoE mode LED

LED Ports

Link / Activity / Speed (per Ethernet port)

Link / Activity / Speed (per SFP slot)

L2 functions

Network administration

EnGenius Cloud Local Web GUI

ezMaster

MAC address table

32K

Jumbo-Frame

9K

multicast group

Max 256 groups

MLD Snooping

MLD Inquiry: v1

QoS-number of priority queues supported

Up to 8 Tails

trust mode

Cos / 802.1p

DSCP

CoS / 802.1p-DSCP

programming mechanism

Strict / WRR / Strict + WRR

Bandwidth Control

Port-based bandwidth control (in/out)

Port Security

Max. 256 entries

Access Control List (ACL)

ACL based on MAC ACL based on

IPv4 / IPv6

ACLs

ACL binding time base

Web graphical user interface (GUI)

HTTP IPv4 / IPv6

HTTPS IPv4 / IPv6

SSL Certificate

Certificate/key import

SNMP

SNMP v1/v2c/v3 support

RMON

RMON 1,2,3,9

system time

Time setting / daylight saving time

Common features of L2

802.1d spanning tree

loop detection

return multicast filtering

IGMP Multicast Forwarding

IGMP Snooping

MLD Multicast Forwarding

802.1Q VLAN tag

802.3x flow control

802.3ad Link Aggregation

IPv4 DHCPRelay

IPv4 DHCP Snooping

IPv4 DHCP Snooping Source MAC Address Check

inspection of

ARP Packet Validation (Additional Validation Checks)

Voice VLAN VLAN

port-based VLAN-based

protocol

CoS Mapping

802. 1X Radio Authentication Protocol

IEEE802.

3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI)

SSH Server Server

telnet

Update/backup TFTP client configuration

Simple Network Time Protocol (SNTP)

SYSLOG

802.1d Spanning Tree

L3 functions

Multiple IP interface

20 IPv6 address

ARP table

Max. 192 ARP entries

static ARP

192 static ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

environmental and physical

Temperature range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (non-condensing)5% - 95%

Dimensions and weight

Weight: 3.1kg

Width: 230mm

Length: 330mm

Height: 44mm

Package Contents

1x ECS Managed Gigabit Switch

1x quick installation guide

1x power cord

1x RJ45 console cable

1x rack mount kit

Warranty

2 years
