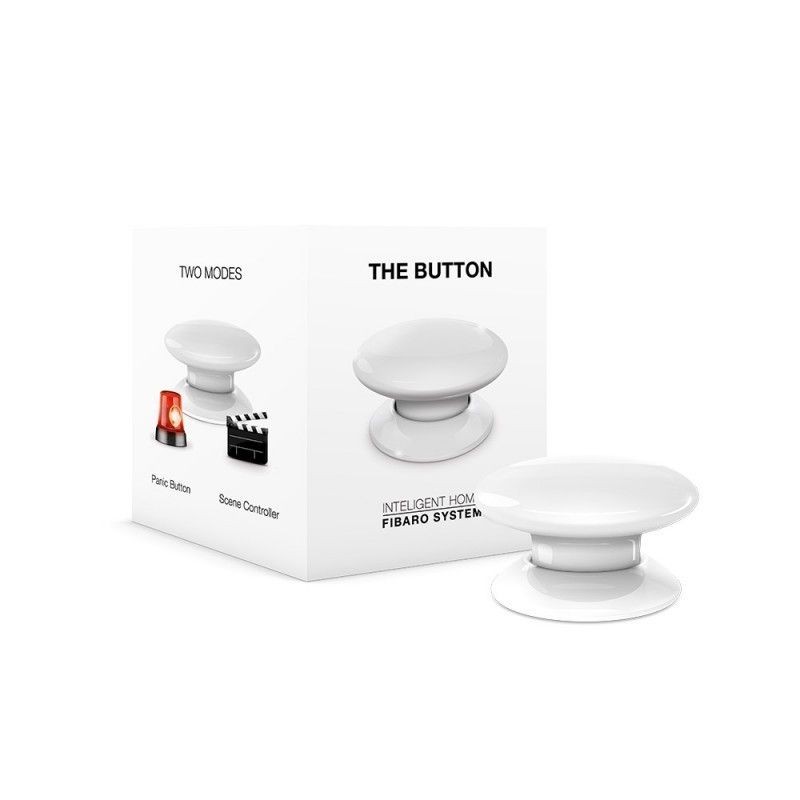

FIBARO The button - Z-Wave + Button from Fibaro WHITE

Technical characteristics

Home Automation Technology	Z-Wave Plus

More info

The Fibaro button is a compact button, compatible with the Z-Wave Plus standard. It allows you to control the devices of the Z-Wave network and perform various scenes that take place in the Fibaro system.
Different actions can be activated by one to five clicks or by holding down the Fibaro button. In panic mode, each press of the button will trigger the defined emergency scene.
With its small size and thanks to wireless communication, the Fibaro button can be easily placed on any surface and in any position or location in the home or office, for example, next to the bed or under the desk.

Simplicity with multiple uses

The button allows you to turn on and off any electrical device at a time of your choice and actions within the Fibaro system manually. Simple things like turning on a light bulb within complex sequences.

Choose the most suitable color for your installation

Available in several different colors, the button can enhance and adapt to the ambience of any room.

Compact with full mobility

The button can be placed almost anywhere. Put it in a fixed place and only move it to another place if necessary.

Engineered with precision and powered by your battery

The highest production standards ensure that the device is robust and works perfectly. Powered by battery, the button is completely wireless.

The click of joy

The button not only offers you an endless variety of uses. It is also fun to use every day.

Always close, visible or hidden

Using the Fibaro buttons anywhere in your home has never made so much sense. The button is there for you when and where you need it. Depending on your needs, you can keep the button visible or to make it more discreet, hide it.

Take care of your family

Very suitable for young children, the elderly and those who are sick.

For the entire family

Assign the button color to each family member or allow your children to turn them into little works of art.

Click sequences and even more features

The button recognizes up to 6 different actions. One click can turn off the light, two clicks can activate the air conditioning, and by holding down the button, a custom scene can be triggered.

Launching Advanced Scenes Is Easy!

The "scenes" synchronize the actions involving more devices. With the button, you can run scenes with a single press, for example "movie night".

Always in the right place

Place the button anywhere you want to use an additional or supplemental switch.

The click of success

Activate your imagination and find creative uses for this innovative Z-Wave wireless button.

Feel its power in the office and at home

Many features designed for the Fibaro button can also be used to work!

Easy to sync with your Fibaro system

Adding the button to your Fibaro system is very easy and simple.

Being late: never

Launch your "I'm leaving" scene, which closes the blinds, turns off electrical appliances, and sets off the alarm with a single touch.

Good evening

Press the button and the system can turn off the lights, close the doors and activate the partial alarm, all in one action ... In the morning, one touch can make your home shine again.

This is just the beginning

Once synced with the Fibaro system, the button is ready. With other modules and functionalities of the system, the button offers users a great opportunity

Note : It uses a battery type ER14250, which is difficult to find in local shops. Get yours.

Advantages of the Fibaro button:

wireless control button
compatible Z-Wave Plus
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
Completely wireless with battery power and Z-Wave communication
low battery detection
Very small, compact in size
Can be installed anywhere in your home

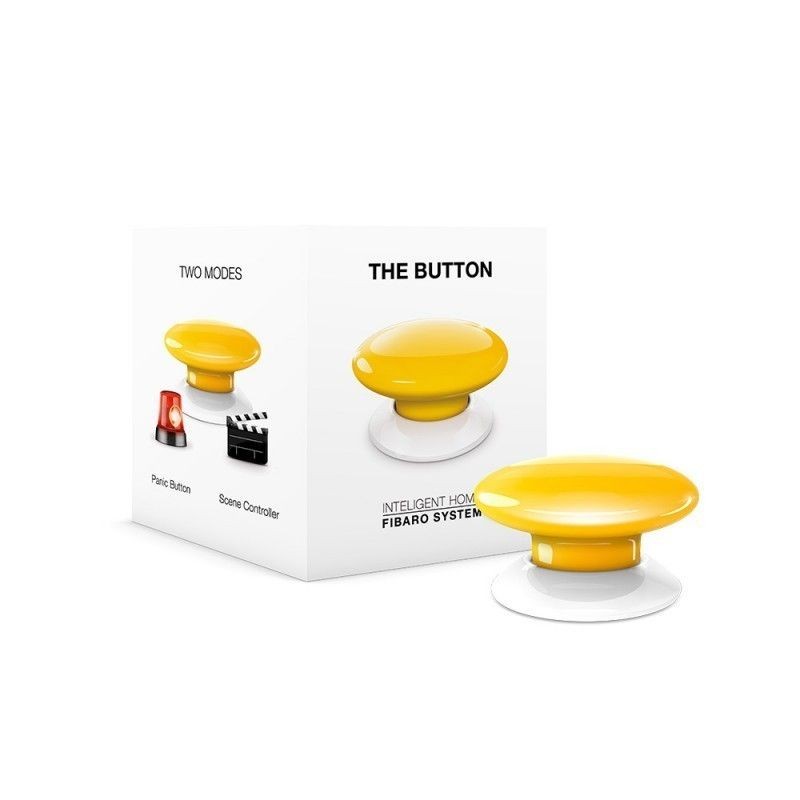

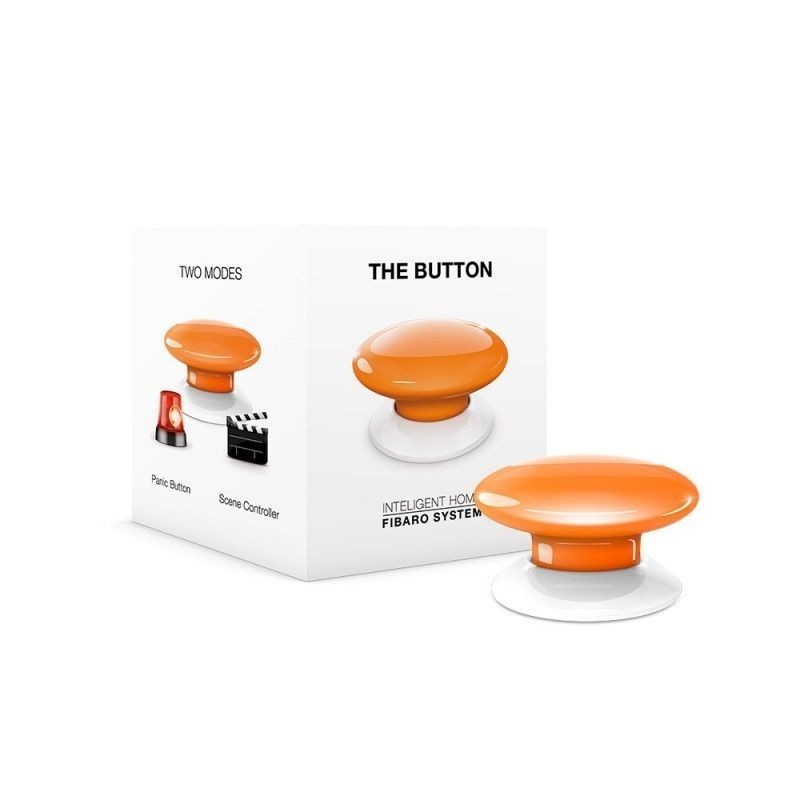

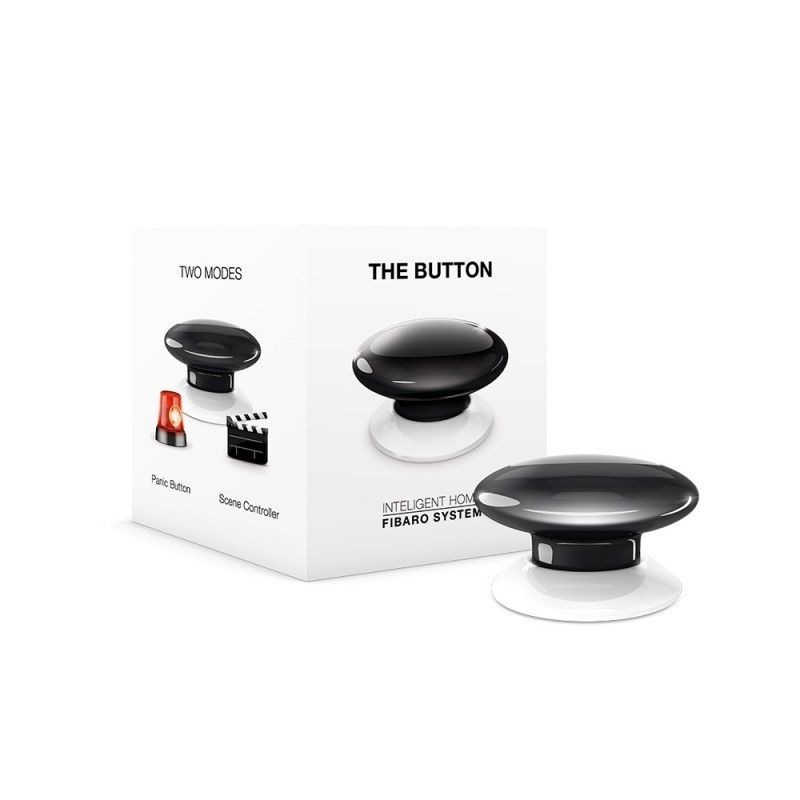

More colors available: white, black, red, yellow, green, blue, brown and orange
Ease of use and installation

TECHNICAL CHARACTERISTICS:

Module Type: Z-Wave Transmitter
Power: ER14250 (1/2 AA) 3.6V battery
Battery life: 2 years (with the default configuration and supporting 10 beats per day)
Frequency: 868.42 MHz
Transmission distance: free field 50m, 40m indoors
Dimensions: 46 x 34 mm (W x L)
Operating temperature: 0-40 ° C
certifications:
EMC 2014/30 / EU
RED 2014/53 / EU
RoHS 2011/65 / EU
LVD 2014/35 / EU

Extended Z-Wave info

Name: FIBARO Button

Manufacturer:FIBARO

Identifier:FGPB-101

Z-Wave Certification Number:ZC10-16105252

Hardware Plattform:ZM5101

FLiRS:NO

Role Type:Portable Slave

Short Description:FIBARO Button is a compact, battery-powered, Z-Wave scene controller.

Description:FIBARO Button is a compact, battery-powered, Z-Wave Plus compatible device. It allows you to control devices through the Z-Wave network and run various scenes defined in FIBARO System. Different actions may be triggered with one to five clicks or by holding the button down. In Panic Button mode, each press of the button results in triggering the Fibaro Alarm. With its small design and wireless communication, the FIBARO Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.

Manual download HERE.

Group

Max Nodes

Description

1

Lifeline reports the device status and allows for assigning single device only (main controller by default).

2

5

On/Off is assigned to clicking the button and is used to turn on/off associated devices.

3

5

Dimmer is assigned to holding the button and is used to change level of associated devices.

4

5

Alarm is assigned to clicking and/or holding the button (triggers are defined in parameter 30) and is used to send alarm frames to associated devices.

Number

Size (Bytes)

Default Value

Name

Description

1

127

Scenes sent to the controller

This parameter determines which actions result in sending scene IDs and attributes assigned to them. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Pressed 4 times 16 - Key Pressed 5 times 32 - Key Held Down 64 - Key Released NOTE Values of parameter 1 may be combined, e.g. 1+2=3 means that scenes will be sent after pressing the button once or twice.

10

1

3

Key Pressed 1 time – command sent to 2nd association group

This parameter defines commands sent to devices associated in 2nd association group after a single click. 0 - no action 1 - SWITCH ON 2 - SWITCH OFF 3 - SWITCH ON/OFF – alternately

11

2

255

Key Pressed 1 time – value of SWITCH ON command sent to 2nd association group

This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a single click. 1-255- sent value NOTE Setting parameters 11, 13, 15, 21, 23 and 25 to appropriate value will result in: 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on

12

1

Key Pressed 2 times – command sent to 2nd association group

This parameter defines commands sent to devices associated in 2nd association group after a double click. 0- no action 1- SWITCH ON 2- SWITCH OFF 3- SWITCH ON/OFF – alternately

13

2

99

Key Pressed 2 times – value of SWITCH ON command sent to 2nd association group

This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a double click. 1-255 - sent value

14

1

0

Key Pressed 3 times – command sent to 2nd association group

This parameter defines commands sent to devices associated in 2nd association group after a triple click. 0- no action 1- SWITCH ON 2- SWITCH OFF 3- SWITCH ON/OFF – alternately

15

2

255

Key Pressed 3 times – value of SWITCH ON command sent to 2nd association group

This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a triple click. 1-255 - sent value

20

1

3

Key Pressed 1 time – command sent to 3rd association group

This parameter defines commands sent to devices associated in 3rd association group after a single click. 0- no action 1- SWITCH ON 2- SWITCH OFF 3- SWITCH ON/OFF – alternately

21

2

255

Key Pressed 1 time – value of SWITCH ON command sent to 3rd association group

This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a single click. 1-255 - sent value

22

1

Key Pressed 2 times – command sent to 3rd association group

This parameter defines commands sent to devices associated in 3rd association group after a double click. 0 - no action 1- SWITCH ON 2- SWITCH OFF 3- SWITCH ON/OFF – alternately

23

2

99

Key Pressed 2 times – value of SWITCH ON command sent to 3rd association group

This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a double click. 1-255 - sent value

24

1

0

Key Pressed 3 times – command sent to 3rd association group

This parameter defines commands sent to devices associated in 3rd association group after a triple click. 0 - no action 1- SWITCH ON 2- SWITCH OFF 3 - SWITCH ON/OFF – alternately

25

2

255

Key Pressed 3 times – value of SWITCH ON command sent to 3rd association group

This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a triple click. 1-255 - sent value

29

1

3

Key Held Down – command sent to 3rd association group

This parameter defines commands sent to devices associated in 3rd association group after holding the button down. 0- no action 1- START LEVEL CHANGE UP (brightening) 2- START LEVEL CHANGE DOWN (dimming) 3- START LEVEL CHANGE UP/DOWN (brightening/dimming) – alternately

3

1

7

Associations in Z-Wave network security mode

This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st „Lifeline” group. 1 - 2nd group sent as secure 2 - 3rd group sent as secure 4 - 4th group sent as secure NOTE Values of parameter 3 may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure.

30

1

127

Alarm frame triggers

Parameter determines which actions result in sending alarm frames to 4th association group. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Pressed 4 times 16 - Key Pressed 5 times 32 - Key Held Down 64 - Key Released NOTE Values of parameter 30 may be combined, e.g. 1+2=3 means that alarm frames will be sent after pressing the button once or twice.

Basic

COMMAND_CLASS_BASIC

Switch Multilevel V3

COMMAND_CLASS_SWITCH_MULTILEVEL_V3

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Central Scene V3

COMMAND_CLASS_CENTRAL_SCENE_V3

Configuration

COMMAND_CLASS_CONFIGURATION

CRC16 Encapsulation

COMMAND_CLASS_CRC_16_ENCAP

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V3

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V5

COMMAND_CLASS_NOTIFICATION_V5

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Sensor Alarm

COMMAND_CLASS_SENSOR_ALARM

Version V2

COMMAND_CLASS_VERSION_V2

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Device Wake-Up

The Button needs to be woken up to receive information about the new configuration from the controller, like parameters and associations.

1) Click the Button 4 times to wake it up

Inclusion

1) Place the Button within the direct range of your Z-Wave controller.

2) Set the main controller in (security/non-security) add mode (see the controller’s manual).

3) Click the Button at least six times.

4) Wait for the adding process to end.

5) Successful adding will be confirmed by the Z-Wave controller’s message.

Exclusion

1) Place the Button within the direct range of your Z-Wave controller.

2) Set the main controller in remove mode (see the controller’s manual).

3) Click the Button at least six times.

4) Wait for the removing process to end.

5) Successful removing will be confirmed by the Z-Wave controller’s message.

Factory Reset

Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device:

1) Click the Button exactly five times.

2) Press and hold the Button for at least 5 seconds.

Please use this procedure only when the network primary controller is missing or otherwise inoperable

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Z-Wave Scene Type

Indicates which of the two types of Z-Wave scene command classes are supported. Scenes or Central Scene
