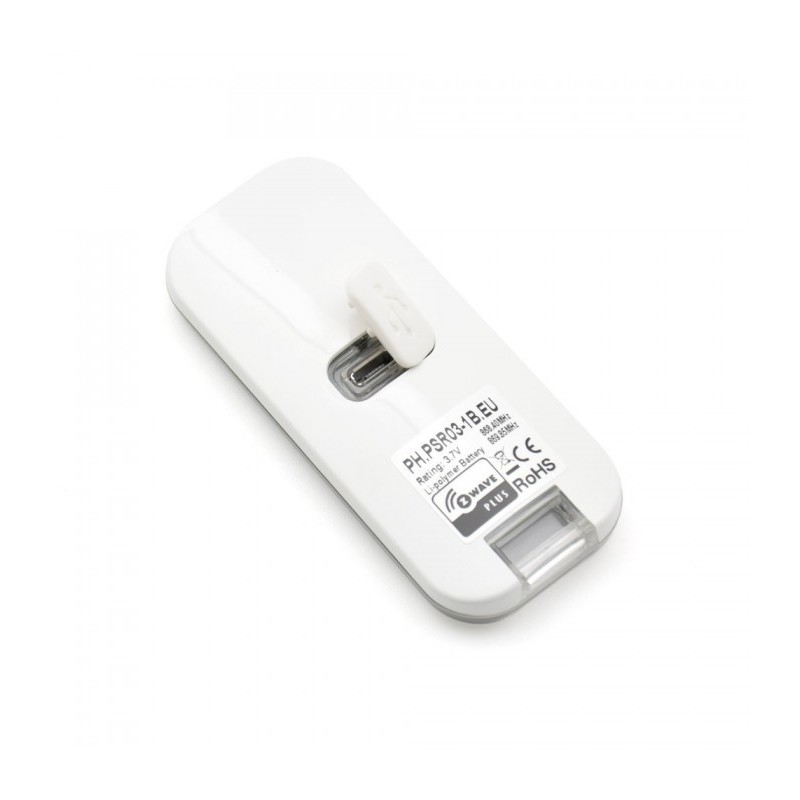

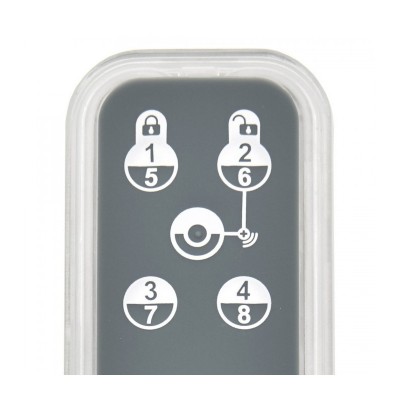

PHILIO - PSR03 5 Button Z-Wave Plus Remote Control

Technical characteristics

Home Automation Technology	Z-Wave Plus

More info

The PHILIO remote control with 5 buttons allows you to control up to 8 devices, lights or groups on your Z-Wave network. It is equipped with the latest Z-Wave Plus 500 series chipset and therefore benefits from all the latest features provided by this Z-Wave version.

It is also possible via a Z-Wave/IR gateway to control multimedia devices, for example.

A Z-Wave controller (remote control, dongle, home automation controller,...) is necessary to integrate this detector into your network if you already have an existing network.

FUNCTIONS:

Control via basic ON/OFF command
Control AV equipment via a Z-Wave/IR converter
500 series Z-Wave chip for multi-channel operation and higher data rates (9.6/40/100kbps)
Rechargeable lithium battery in micro USB port
OTA Firmware Update
raincoat

TECHNICAL CHARACTERISTICS:

Module Type: Z-Wave Plus Transmitter (868.42 MHz)
Power supply: rechargeable lithium battery
Operating voltage: 3.7V
Operating current: 40mA
Operating temperature: -10°C - 40°C
Transmission distance: 30m indoors
Dimensions: 35 x 80 x 7mm
Weight: 28g
Standards: EMC 2004/108/EC, R&TTE 1995/5/EC, LVD 2006/95/EC, FCC Part 15

Extended Z-Wave info

Name: Keyfob 5 Remote, Z-Wave

Manufacturer:Zipato

Identifier:ph-psr03.eu

Z-Wave Certification Number:ZC10-17065643

Hardware Plattform:SD3502

FLiRS:NO

Role Type:Portable Slave

Short Description:Zipato Z-Wave Remote is a simple controller for controlling AV device through Z-Wave-to-IR extender, and it can also control 8 ON/OFF lighting groups via basic set, based on Z-Wave technology.

Description:Zipato Z-Wave Remote is a simple controller for controlling AV device through Z-Wave-to-IR extender, and it can also control 8 ON/OFF lighting groups via basic set, based on Z-Wave technology. It is the Z-Wave plus product, it support the security, OTA... all the newest features of the Z-Wave technology.

Manual download HERE.

Group

Max Nodes

Description

1

4

Z-Wave Plus Lifeline

2

4

Lighting group control

3

4

Lighting group control

4

Lighting group control

5

4

Lighting group control

6

4

Lighting group control

7

4

Lighting group control

8

4

Lighting group control

9

4

Lighting group control

Number

Size (Bytes)

Default Value

Name

Description

10

1

12

Auto Report Battery Time

The interval time for auto report the battery level.

2

1

-1

Basic Set Level

Setting the BASIC command value to turn on the light. The xFF(-1) means turn on the light. For dimmer equipment 1 to 100 means the light strength. 0 means turn off the light.

7

1

0

Customer Function

Customer function switch, using bit control.

82

1

0

Association Group 2 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 2.

83

1

0

Association Group 3 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 3.

84

1

0

Association Group 4 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 4.

85

1

0

Association Group 5 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 5.

86

1

0

Association Group 6 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 6.

87

1

0

Association Group 7 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 7.

88

1

0

Association Group 8 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 8.

89

1

0

Association Group 9 Basic Set Level

Setting the BASIC command value to turn on the light in the association group 9.

Basic

COMMAND_CLASS_BASIC

Simple AV Control

COMMAND_CLASS_SIMPLE_AV_CONTROL

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Configuration

COMMAND_CLASS_CONFIGURATION

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Notification V4

COMMAND_CLASS_NOTIFICATION_V4

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Version V2

COMMAND_CLASS_VERSION_V2

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Device Wake-Up

After the device is added to the network, it will wake-up once per

day in default. When it wakes up it will broadcast the “Wake Up

Notification” message to the network, and wake-up 10 seconds to

receive the setting commands. To wake-up the device immediately,

please hold down the central key, then press the top-right key once

within. The device will wake-up for 10 seconds.

Controller Exclusion

Put the Z-Wave Controller in exclusion mode. Hold down the central key, then press the top-right key 3 times within 1.5 seconds to enter exclusion mode. Node ID has been excluded.

Controller Inclusion

Put the Z-Wave Controller in inclusion mode. Hold down the central key, then press the top-right key 3 times within 1.5 seconds to enter inclusion mode. After successful inclusion, the device will wake to receive the setting command from Z-Wave Controller in about 20 seconds.

Factory Reset

Use this procedure only in the event that the primary controller is lost or otherwise inoperable.

Hold down the central key, then press the top-right key 4 times

within 1.5 seconds and during 4th press, hold the key until LED

lights up.

After 3 seconds the LED will turn OFF, and after next 2 seconds,

release the tamper key. If successful, the LED will light ON for

second. Otherwise, the LED will flash once. IDs are excluded and all settings will reset to factory default.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Supported Notification Types

Select the Notification Types that the product handles (controllers), or sends (slaves).
