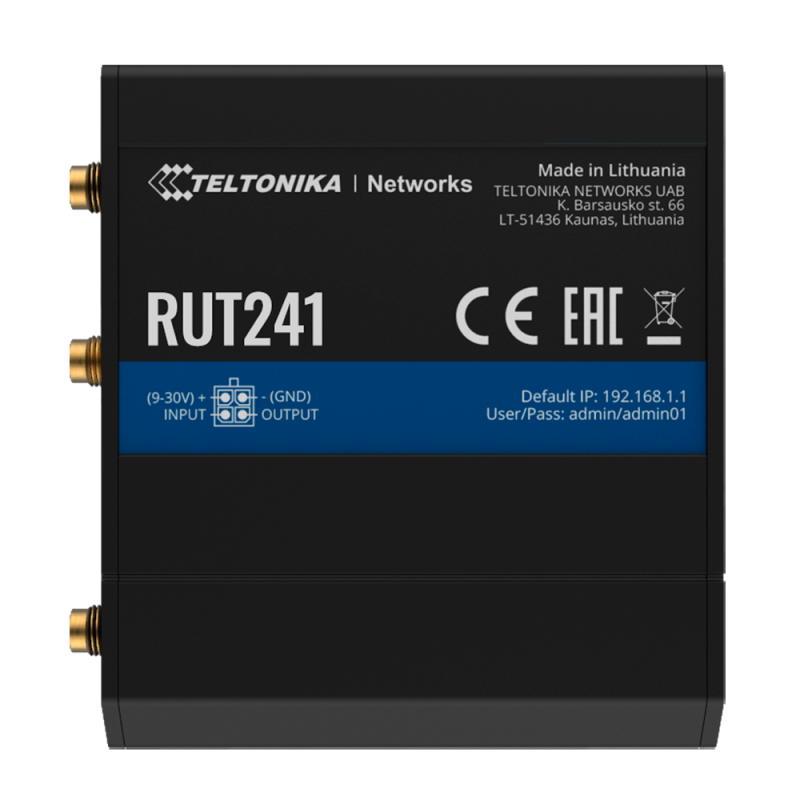

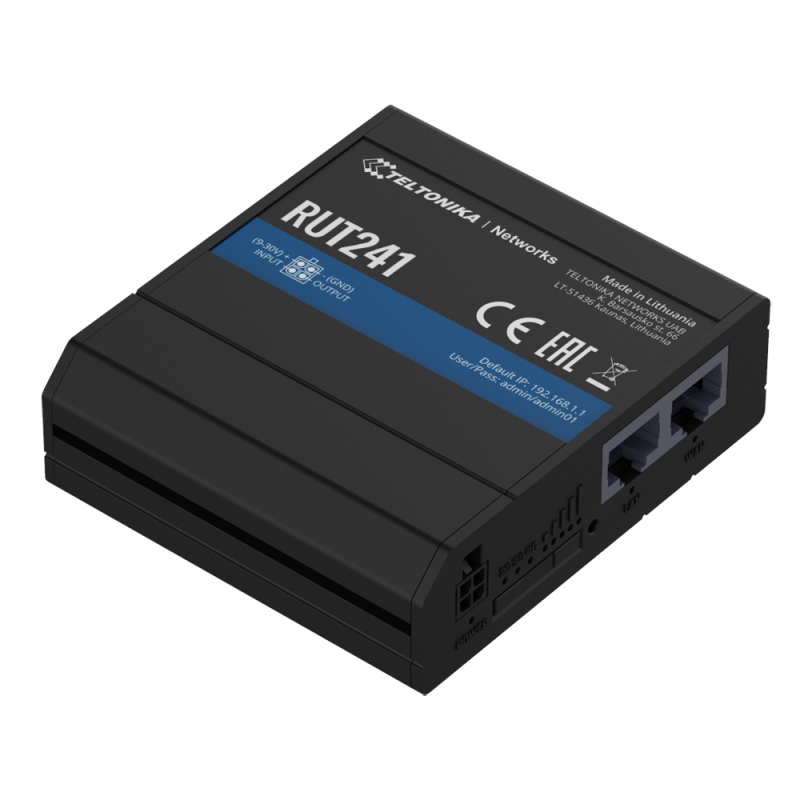

Teltonika RUT241 Router 4G Industrial

Teltonika
4G Industrial Router
4G Cat4 / 3G / 2G
1 SIM slot

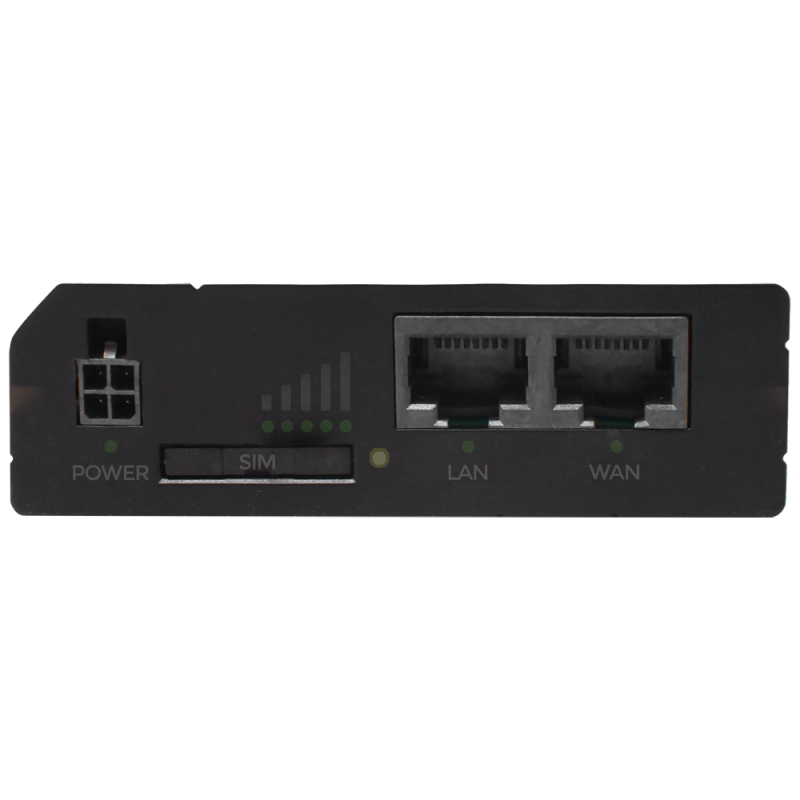

2 Ethernet RJ45 Fast Ethernet ports
Wi-Fi 802.11b/g/n 2.4GHz
1x Digital Input/Output
2x SMA for LTE antenna and 1x RP-SMA for Wi-Fi antenna
128MB RAM and 580MHz CPU
Industrial 4-pin DC power connector
DC power supply 9 to 30V Power supply included
Status LEDs
Brand

Teltonika
4G Industrial Router Device
Ethernet 2 RJ45 10/100Mbps Ethernet ports (1 WAN + 1 LAN)
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128MB DDR2
Flash 16MB
Features Wi-Fi 802.11b/g/n 2.4GHz (AP Mode and STA Mode)
Type 4G Cat 4 up to 150Mbps
Maximum Number of Wi-Fi Clients 50 (Depending on generated traffic)
Operating System RutOS (Based on OpenWRT)
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
VPN Protocols OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
Monitoring and Management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Solutions
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
Inputs and Outputs 1 x Digital Input, 0 - 5 V detected as low level, 8 - 30 V detected as high level
1 x Digital Output, Open collector input, max. output 30 V, 300 mA
Power supply Industrial 4-pin DC connector 9~30V Power Supply included
Material Aluminium
Operating temp. -40° C ~ +75° C
Operating Humidity 10 ~ 90 % (non-condensing)
Optional Mounting Kit (Not included) Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit
Dimensions 25 (H) x 83 (W) × 74 (D) mm
Weight 125 g

Package Contents

4G Industrial Router
AC Power Supply 9W
Ethernet cable 1.5m
Instructions for use
2x LTE Antenna
1x Wi-Fi Antenna
1x SIM Adapter
