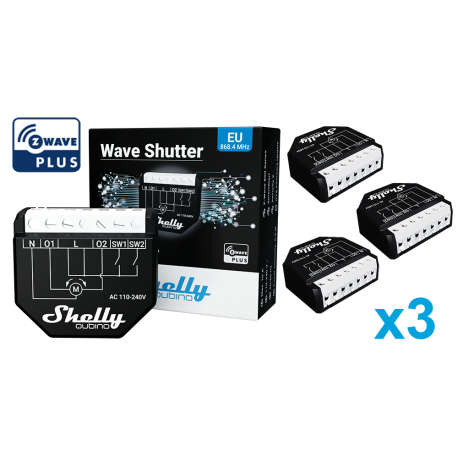

Pack 3 x Shelly - Qubino Wave Shutter

This Z-Wave technology micromodule from the European manufacturer Shelly-Qubino is a device used to raise or lower motorized blinds or awnings, curtains, venetian blinds, etc...

It works and integrates seamlessly with robust and reliable Z-Wave wireless mesh home automation systems, which is not the same as WiFi.

This pack allows you to undertake, with a notable discount, the undertaking of motorization projects for blinds, blinds, awnings and other automation and home automation systems based on the operation of motors or two-way maneuvers.

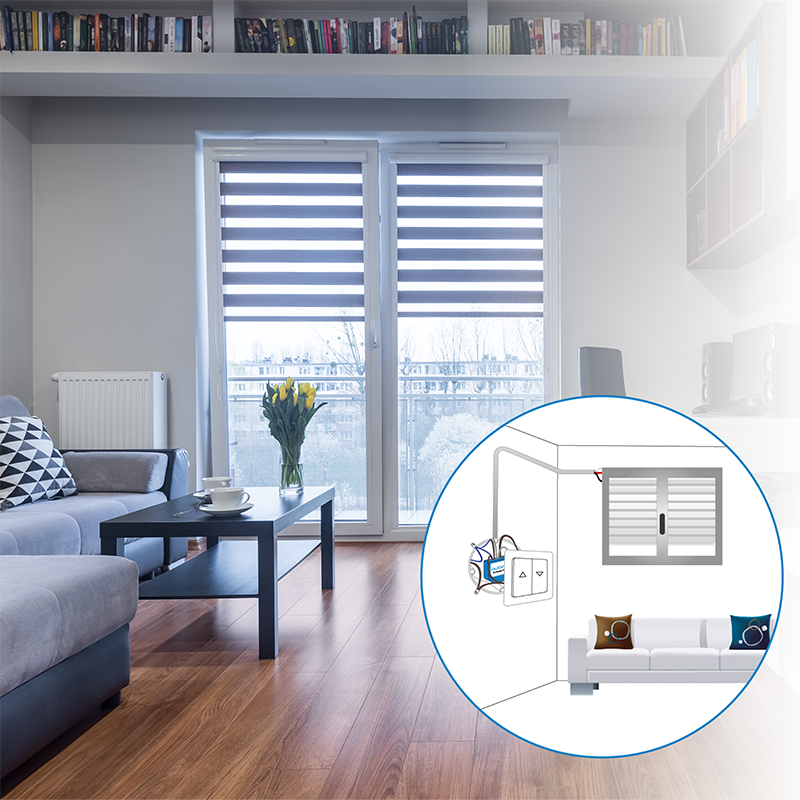

In many cases it can be installed behind the push-button mechanism or in a register box next to the window or blind. Sometimes it is even placed on the roller shutter itself where it does not hinder or interfere with the movement of the motor.

This Z-Wave micromodule, possibly the best technology known for wireless home automation, will always be in charge of controlling the motor and will be the one who actually makes it go up or down. This micromodule can have its route determined by Z-Wave radio from the home automation controller or a Z-Wave remote control, or from a conventional button or switch.

It will be through Z-Wave parameters that we will make you learn the limit switches of the motors, if you have connected non-locking pushbuttons, switches and a long list of supported parameters.

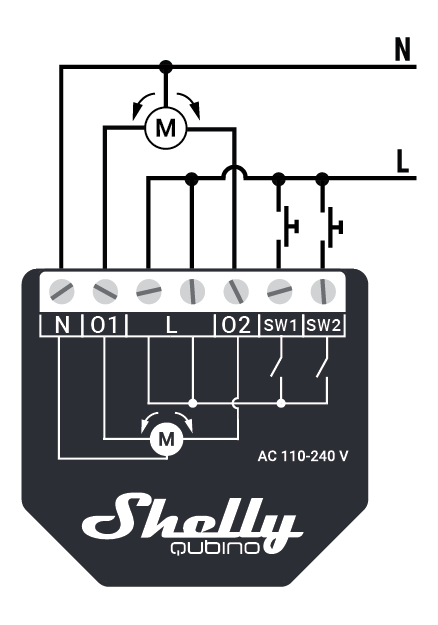

Technical specifications and electrical diagrams:

TECHNICAL SPECIFICATIONS

Size (H x W x D):	37mm x 42mm x 16mm ±0.5mm / 1.46in x 1.65in x 0.63in ±0.02in
Weight	29g/1.02oz.
Mounting	Mechanism box or register box
Max tightening torque screw terminals	0.4 Nm / 3.5 lbin
Driver section	0.5 to 1.5 mm² / 20 to 16 AWG
Driver stripped length	5 to 6 mm / 0.20 to 0.24 in
Housing material	Plastic
Color	Black
Room temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.
Feeding	110 240 V AC ±10%
Electrical consumption	<0.3W
power meter	YEAH
Max Voltage of the relay in AC	240V
Max current of the relay in AC	10 A per channel
Z-Wave frequencies band(s)	868.4MHz; 865.2MHz; 869.0MHz; 921.4MHz; 908.4MHz; 916MHz; 919.8MHz; 922.5MHz; 919.7-921.7-923.7MHz; 868.1MHz; 920.9MHz
Z-Wave repeater	Yeah
Z-Wave Scope	Up to 40 m inside (131 ft.) (depends on local conditions)
Maximum radio frequency power transmitted in frequency band(s)	<25mW
CPU	Z-Wave S800
Overcurrent Protection	Yeah
Overheat protection	Yeah

	Shelly Qubino offers 3 years factory warranty.
	Shelly Qubino designs in Europe under the strictest European quality standards and regulations.
	We always send Shelly Qubino Z-Wave technology devices with the latest known firmware revision, so that compatibility and operation are perfect with your home automation center.
