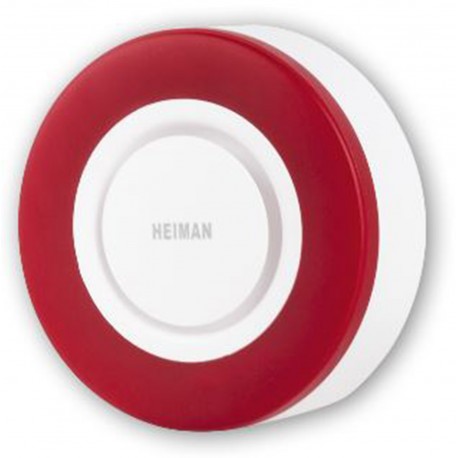

Zipato HS2WD Plug-in Siren Z-Wave Plus

Reference HS2WD-Z

Condition: New

Wireless siren with Z-Wave technology for easy connection in an electrical outlet

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Technical characteristics

Home Automation Technology	Z-Wave Plus

More info

If one of your Z-Wave safety sensors sends an alarm, you should hear this loud and clear. Now it's possible thanks to the Zipato / OEM indoor siren, which can be easily connected to a power outlet.

The intelligent siren Zipato / OEM emits the alarm with a volume of 95dB and with a red LED flashing. A special safety feature is the integrated backup battery. With this battery, the siren remains active, even in the event of an electrical failure or when a thief removes the siren from the socket.

Due to its easy installation of Plug & Play, you can adapt your security system in the blink of an eye.

characteristics:

Indoor Siren of plug Type F for usual sockets in Spain
Compact and modern design.
Max. loudness: 95 dB
Backup battery, up to 1 hour of operation.
Easy installation
Wireless technology: Z-Wave

Extended Z-Wave info

Name: Smart Siren

Manufacturer:HEIMAN

Identifier:HS2WD-Z

Z-Wave Certification Number:ZC10-18066158

Hardware Plattform:ZM5202

FLiRS:NO

Role Type:Always On Slave

Short Description:The Smart Siren is designed to issue alarms to scare off intruder.

Description:The Smart Siren is designed to issue alarms to scare off intruder. This Smart Siren adopts z-wave technology, if a z-wave network is built in the user' home,office, warehouse or other places, when an alarm in the z-wave network is triggered, this Smart Siren will issue high decibel sound and light alarms, and alarm information will also be sent to the user's phone App.

Manual download HERE.

Group

Max Nodes

Description

Association group 1: Lifeline association group Include command classes: Switch Binary report ,Battery and Device Reset Locally notification.

Number

Size (Bytes)

Default Value

Name

Description

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Battery

COMMAND_CLASS_BATTERY

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Switch Binary

COMMAND_CLASS_SWITCH_BINARY

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Factory Reset

-Long press Net_Button at least 10 seconds in the product.

Inclusion

Click [Add] icon in Z-Wave Controller.

- Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 .5second.

- If add Process is successful, Green LED will turn off.

Exclusion

- Click [Remove] icon in Z-Wave Controller.

- Press the Net_Button 3 times within 1.5second.

- If remove Process is successful, Green LED is Blinking 6 times, then turn off.

S2 Unauthenticated

S2_UNAUTHENTICATED

Switch Load Capacity Watts

The amount of switch load energy the product is rated for in Watts

Switch Load Capacity Current

The amount of switch load energy the product is rated for in Amps

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Switch Load Capacity Volt-Ampere

The amount of switch load energy the product is rated for in VA (Volt-Amperes)

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
