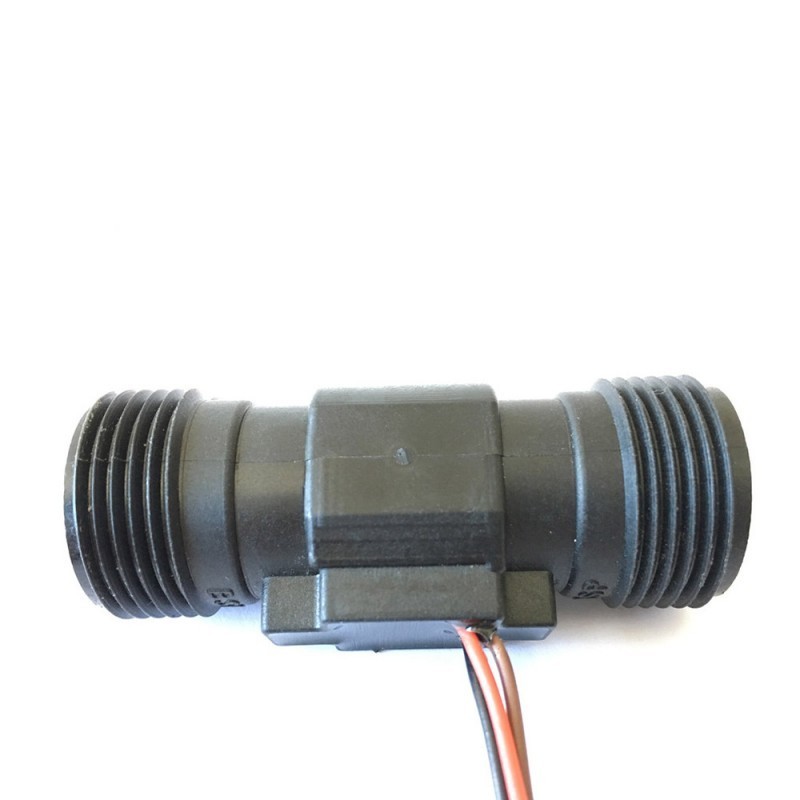

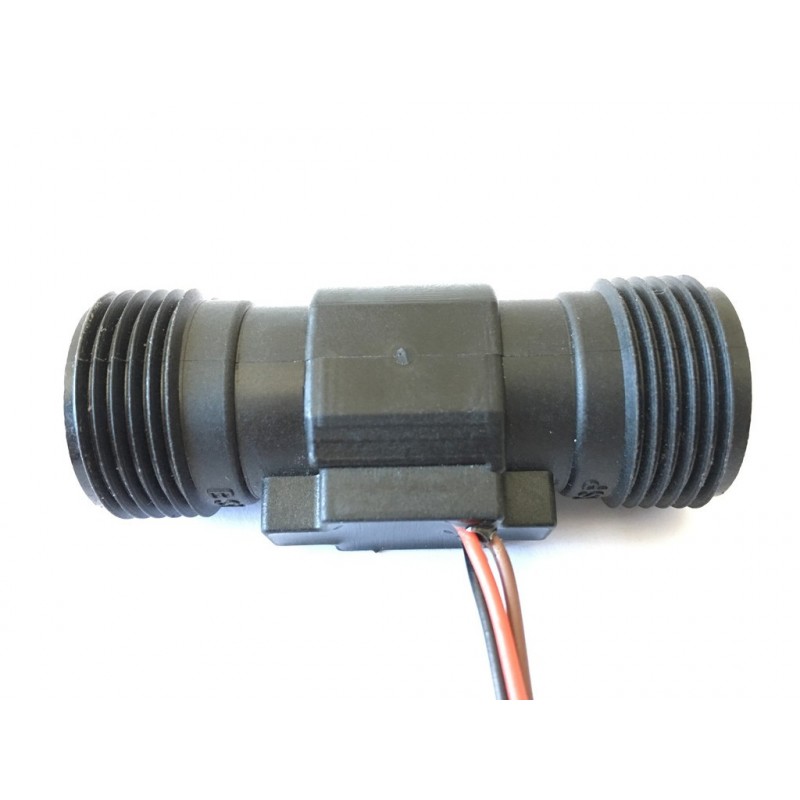

GreenIQ flow meter for 3/4 inch pipe

A flow meter or flow meter for the GreenIQ smart irrigation programmer is crucial to make your garden even smarter. Before you have a sensor in the tube, you do not really know how much water you use - and maybe you're losing water. A leak can waste many liters of water without anyone noticing. With the flow control, we will know that the pipes do not flow as fast as usual therefore there could be some leakage or breakage.
The GreenIQ flow meter keeps a watch on your irrigation habits and detects potential problems in irrigation. Returns the data to the GreenIQ smart irrigation console that also controls the irrigation circuits in your garden.

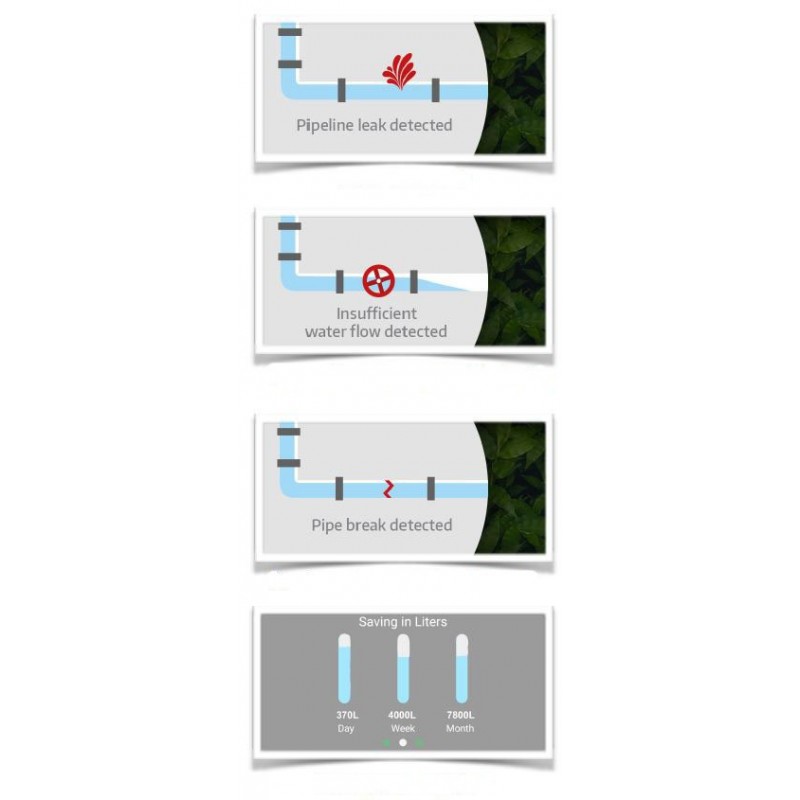

The meter reports the number of liters of water used in the console, so the data is available in the GreenIQ application. The meter also allows you to maintain control for leaks, broken pipes and slow water flows that alert through the application.

Compatible with GreenIQ garden consoles, versions GEN2 and GEN3

CHARACTERISTICS:
Flowmeter for irrigation duct
very compact dimensions
Easy connection, 3/4 "BSP
For vertical or horizontal installation
Wide voltage range: 2.4 to 26VDC
Hall sensor, digital output
High reliability and durability
Use the GreenIQ sprinkler controller
water consumption report

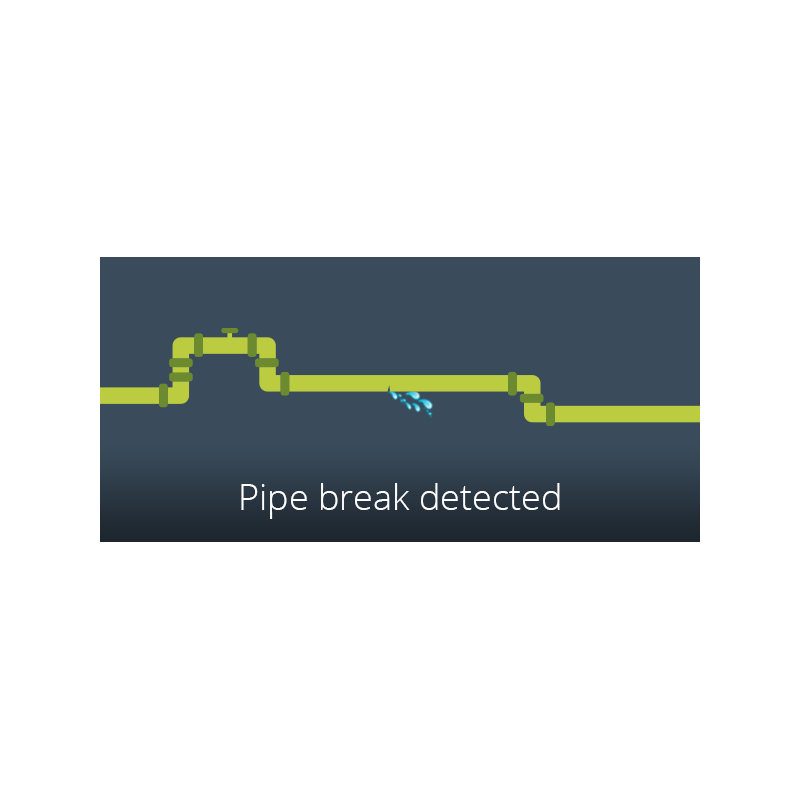

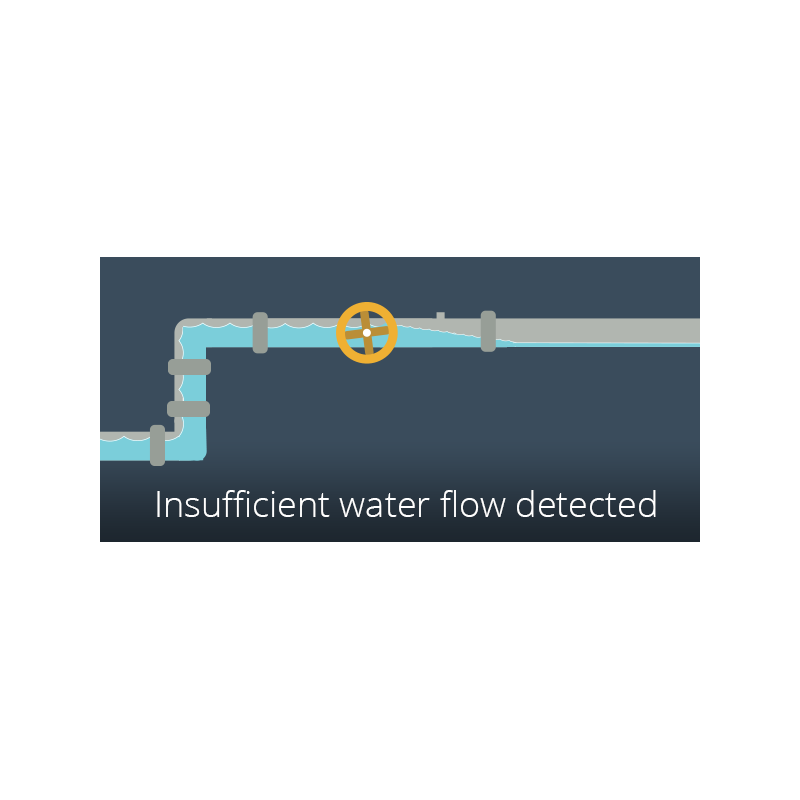

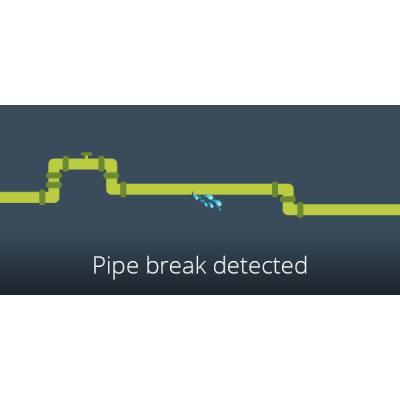

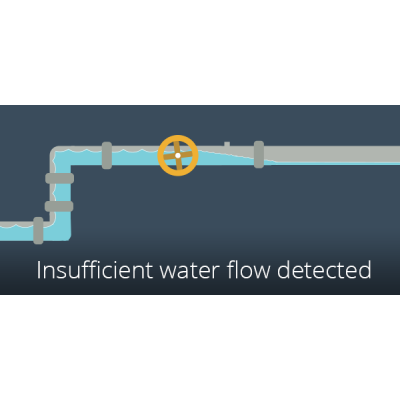

Warning of water leaks, pipe ruptures and insufficient flow

TECHNICAL CHARACTERISTICS :

Power: 2,4 - 26VDC
current:
Typical: 2.8mA
Maximum: 8 mA
Open collector output mode
The rise time of output:
Typical: 1¼s
Maximum: 10 S
The output drop time:
Typical: 0.3¼s
Maximum: 1.5¼s

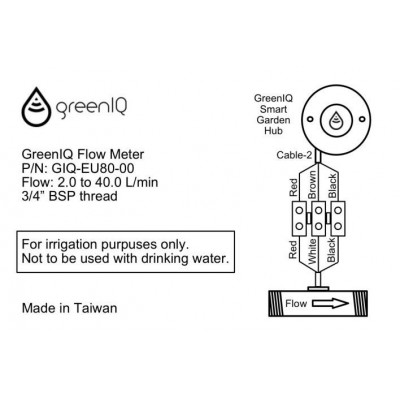

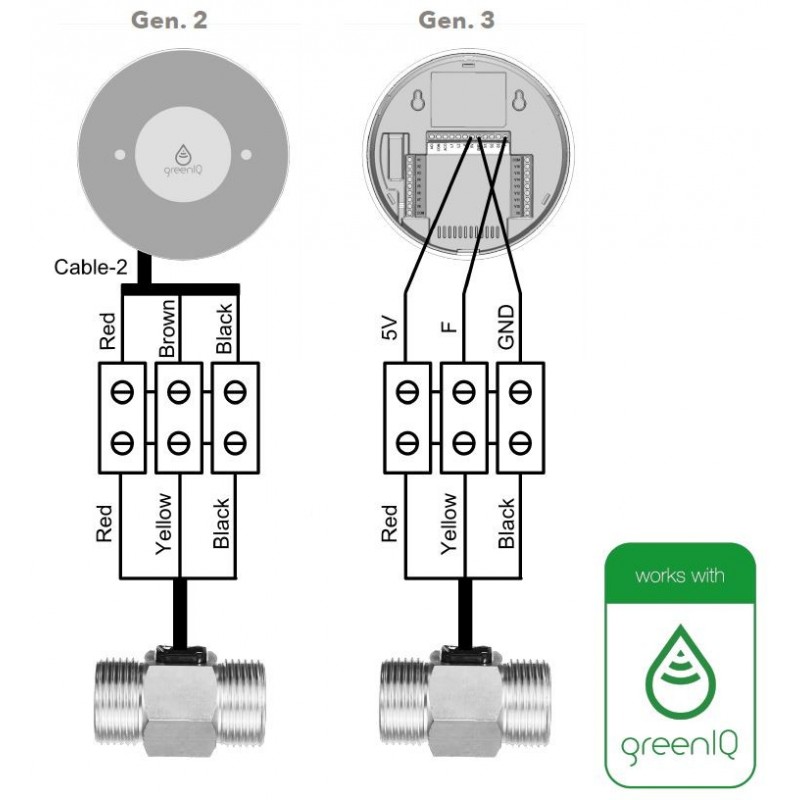

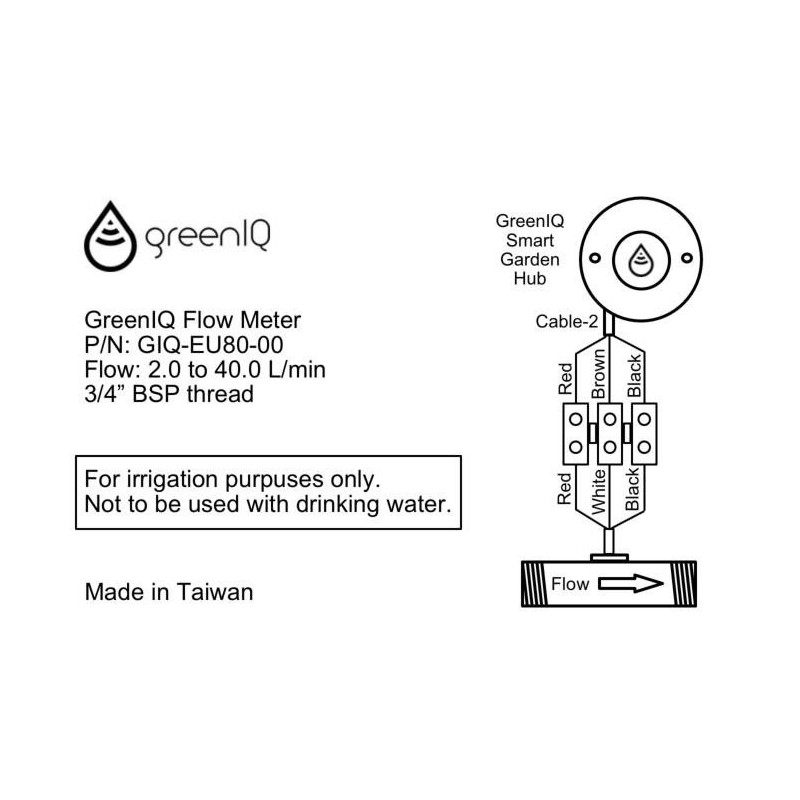

log in:
1 connector (red) Vdd
Connector 2 (Brown): Vout
Connector 3 (Black) GND
Cable length: 1m
Measuring range: 2-60 l / min
Accuracy: +/- 10%
Maximum operating pressure: 1 MPa
Fluid: Hot and cold water
Fluid temperature: 0-80 ° C
Ambient temperature: -20 to 80 ° C
Material: nylon with 30% fiberglass
Turbine: Plastic magnet
Turbine shaft: ceramic or stainless steel (default)

Cable length: 1m
