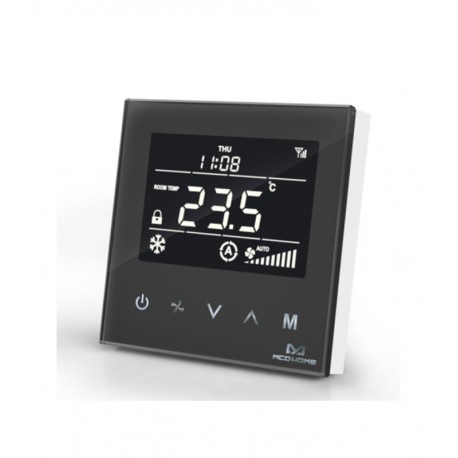

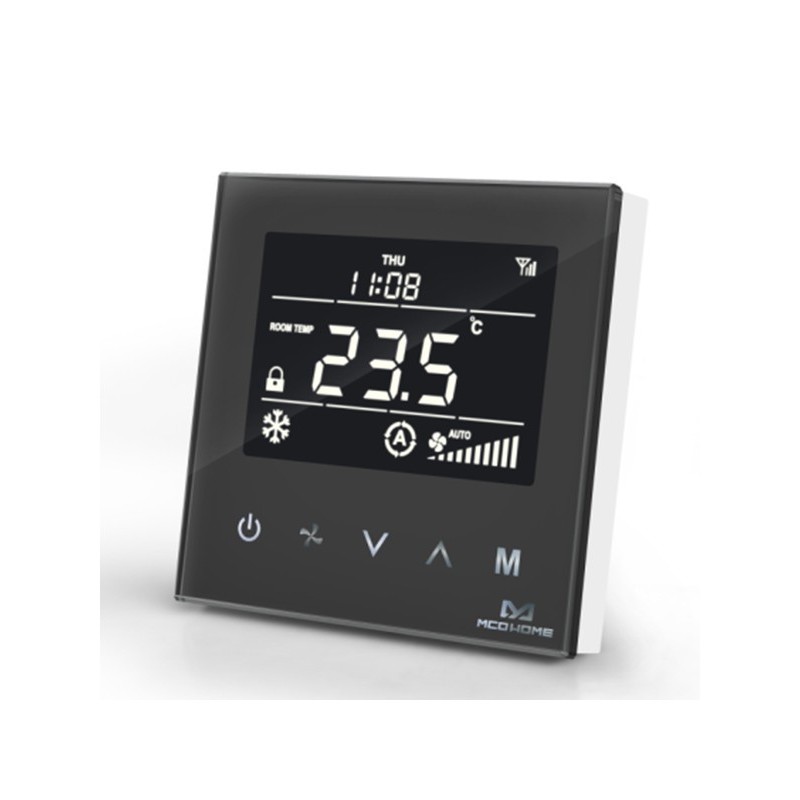

MCO HOME - Z-Wave + Fan-Coil 2-tube thermostat

The MCOHome 2-tube fan coil thermostat is a Z-Wave enabled device to control the indoor temperature. It is mainly used with a 2-tube system in ventilator-convector units. It has Cold / Heat mode.

The room temperature is measured and offers local time, so you can automatically control the fan speed based on the temperature difference. This thermostat can be included and is used in a Z-Wave network with other Z-Wave certified devices from any other manufacturer.

Each module works as a wireless repeater with other modules to ensure complete coverage of your home or office.

If you want to know more, you can check the analysis we have done in our MCO Home Thermostat test here

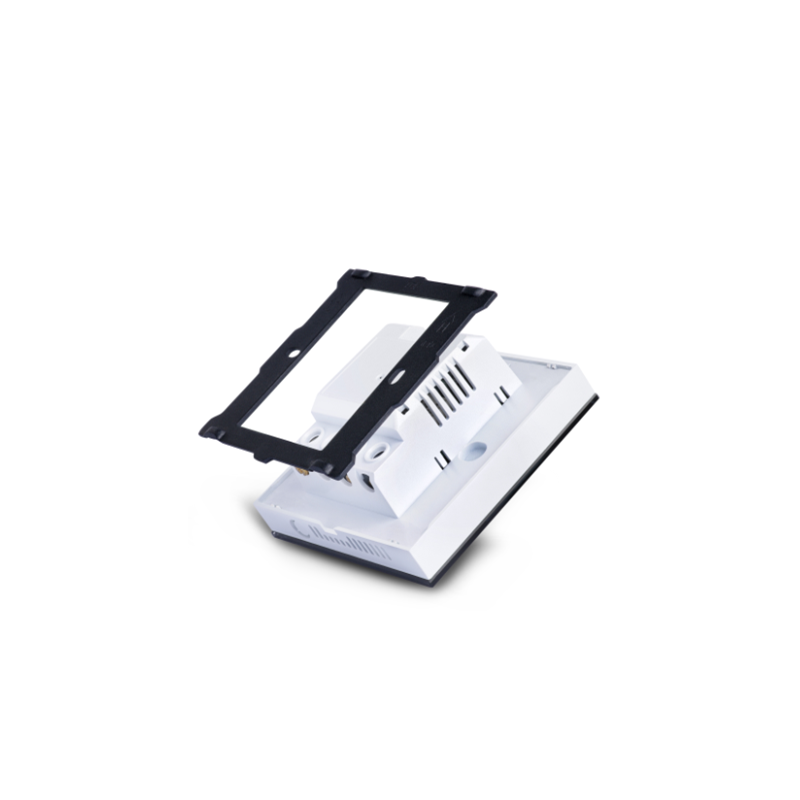

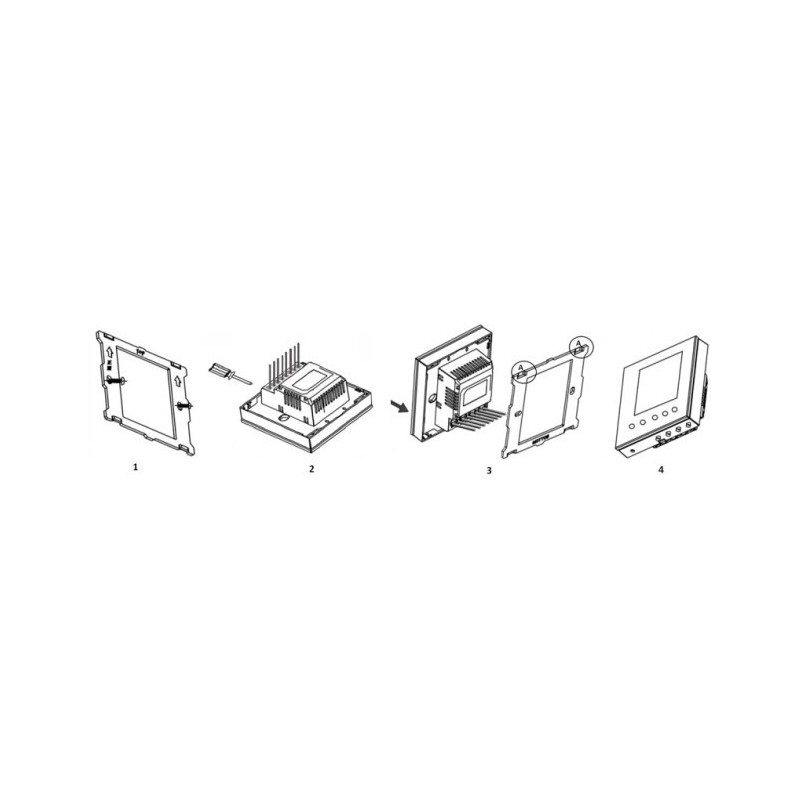

Installation:

Function display:

FEATURES :

2-tube fancoil thermostat
ON / OFF control of an intelligent 3-speed fan or electric valve
fan mode, heating, cooling
LCD screen
Time and temperature display
temperature calibration
Non-volatile memory to store the operating state after a power failure
Z-Wave compatible More
glazed, modern design
capacitive touch buttons


TECHNICAL CHARACTERISTICS:

Module Type: Z-Wave Receiver
Material: tempered glass and plastic (PC alloy)
Power supply: 230 V AC, 50 / 60Hz
Maximum load: 3A
Power Consumption: <1W
Frequency: 868.42 MHz
Range: up to 30 meters
Temperature sensor: NTC 15K
Readability: 0.1 ° C
Operating temperature: 0-55 ° C
Temperature setting: 5-35 ° C
Dimensions: 86 x 86 x 42 mm
Installation: Wall (vertical) lowered square box 86 x 86 mm
