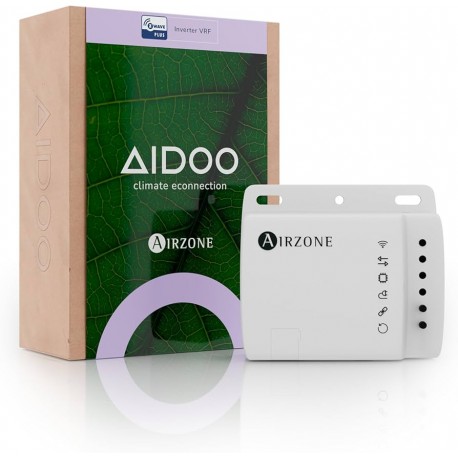

Airzone Aidoo Z Wave Plus - Bidirectional Z-Wave Thermostat

Reference

Condition: New

Z-Wave thermostat for the control of hot / cold air conditioning equipment that transforms an Inverter/VRF equipment into a Z Wave device

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

186,34 €

Quantity

For indoor unit:

Technical characteristics

Home Automation Technology	Z-Wave Plus

More info

Control the parameters of the air conditioning equipment

Make your climate installation compatible with more than 3000 Z Wave products

Controls the parameters of the air conditioning equipment: room temperature, setpoint temperature, ventilation mode, heat mode, cold mode, etc.

Detect communication errors if they occur

It allows the programming of the mode and the setpoint temperature, as well as the reaction to certain circumstances defined in your home automation scenes.

Acts as an independent repeater to improve the reliability of the Z-Wave network

Airzone Aidoo Z-Wave Plus is a device for remote management and integration of equipment. Wireless network connection via Z-Wave Plus. The Airzone Aidoo Z-Wave Plus works on any Z-Wave network with other certified Z-Wave/Z-Wave Plus devices and controllers from any other manufacturer. As a constantly powered node, it will act as a repeater regardless of the provider in order to increase the reliability of the network.

Main features of Aidoo Z Wave

Two-way communication with the air conditioning unit: ducted, split, cassette...
Aidoo Z-Wave Compatibility Options: Daikin, Mitsubishi, LG, Fujitsu, Hitachi, Panasonic.
Compatible with all Z Wave and Z Wave Plus certified controllers
Standard & Smart Start Association
Uses standard Thermostat-like command classes defined by the Z Wave protocol
It has a port for Modbus integrations
Power supply from the air conditioning unit

Extended Z-Wave info

Name: Aidoo Control Z-Wave™ HVAC unit

Manufacturer:AIRZONE

Identifier:AZAI6ZWExxx

Z-Wave Certification Number:ZC14-22030073

Hardware Plattform:ZGM130S037HGN2 / ZGM130S037HGN1

FLiRS:NO

Role Type:Always On Slave

Short Description:Device to manage and to integrate HVAC Inverter/VRF units in Z-Wave™ control systems used in Europe (CEPT)

Description:

HVAC manufacturers' Certified communication protocols.
2-way communication with the HVAC equipment.
Control of the main parameters of the unit (Status, Operation mode, Fan speed, Set point).
Device powered by the indoor unit.
Modbus port for hard-wire integration

Group

Max Nodes

Description

Number

Size (Bytes)

Default Value

Name

Description

Association Group Information (AGI) V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multilevel Sensor

COMMAND_CLASS_SENSOR_MULTILEVEL

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security 0

COMMAND_CLASS_SECURITY

Security 2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Fan Mode V2

COMMAND_CLASS_THERMOSTAT_FAN_MODE_V2

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Setpoint

COMMAND_CLASS_THERMOSTAT_SETPOINT

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

The SmartStart QR and the full DSK string code can be found on the front side of the Aidoo Z-Wave Plus. The PIN is the first group of 5 underlined digits of the DSK identified as DSK in the left side of the sticker. If you plan to use the DSK, it is important that you take a picture of the label and keep it in a safe place.

Classic Inclusion

The Aidoo Z-Wave Plus is compatible with all Z-Wave/Z-Wave Plus certified controllers. The device supports both the Network Smartstart inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Standard Inclusion.

By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds.

If the Aidoo Z-Wave Plus has not been included yet into the Z-Wave network, the Wi-Fi sign LED will remain off. The procedure of inclusion is activated by pressing the Association Button (5) . As soon as the inclusion procedure initiates, the communication LED remains steady red until the device is included in the network.

Classic Exclusion

Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learning Mode.

If the Aidoo Z-Wave Plus is already included into the Z-Wave network, the Wi-Fi sign LED will remain steady blue. The procedure of exclusion is activated by pressing the Association Button (5). As soon as the exclusion procedure initiates, the communication LED remains steady red until the device is excluded of the network.

Factory Reset Procedure

The Aidoo Z-Wave Plus can be reset to the original factory settings by long pressing over the Factoy Reset button (6) until all of the front side LEDs light up for a second.

Note: If the reset is performed while the device is still part of a network, it notifies the other devices in the lifeline group that it has been removed.

Other Special Features

The Aidoo Z-Wave Plus supports over-the-air firmware updates that do not require the device to be removed from its location. The firmware update can be activated from all certified controllers supporting version 5 of the Firmware Update function.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Color

If the product is only available in one color, pick the color from the list.

Communications Connections

Connectivity for communications with a host control computer or system.

Communications Protocol

For external interfaces, choose the communications protocol used.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
