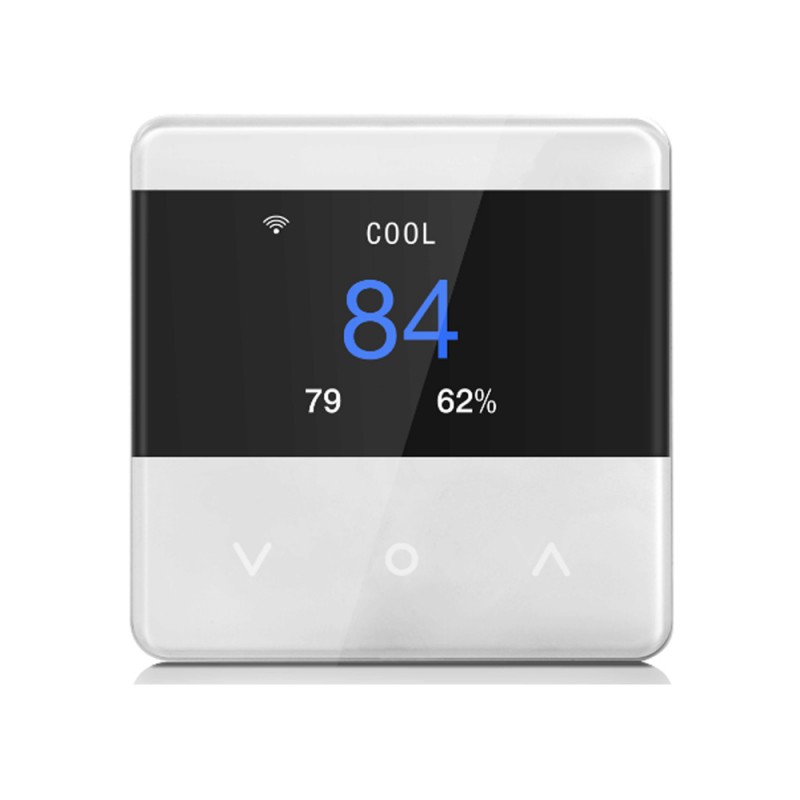

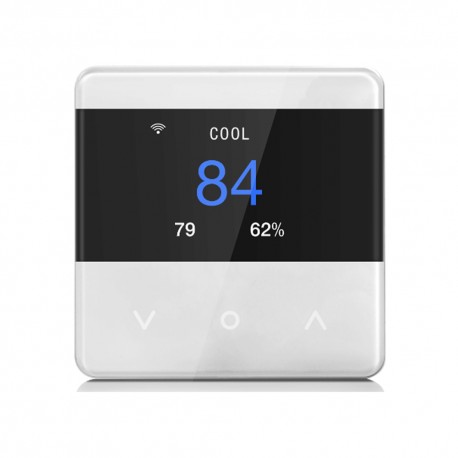

MCO Home MH-3928 - Heat Pump / Regular AC Thermostat

It is with tempered touch capacitive button, quick connecting terminals to save installer’s time.

Support S2 function.

Maximum transmitting power: +3dBm

Over current protection: Required external 10A circuit breaker

Z-Wave frequency: 868.42MHz(EU)/ 908.4MHz(US), 921.4MHz(AU) or other customized frequency

Features

Application range: gas/fuel boiler, electric heating, water heating, heat pump etc. 8 types control systems.

Touch button operation interaction.

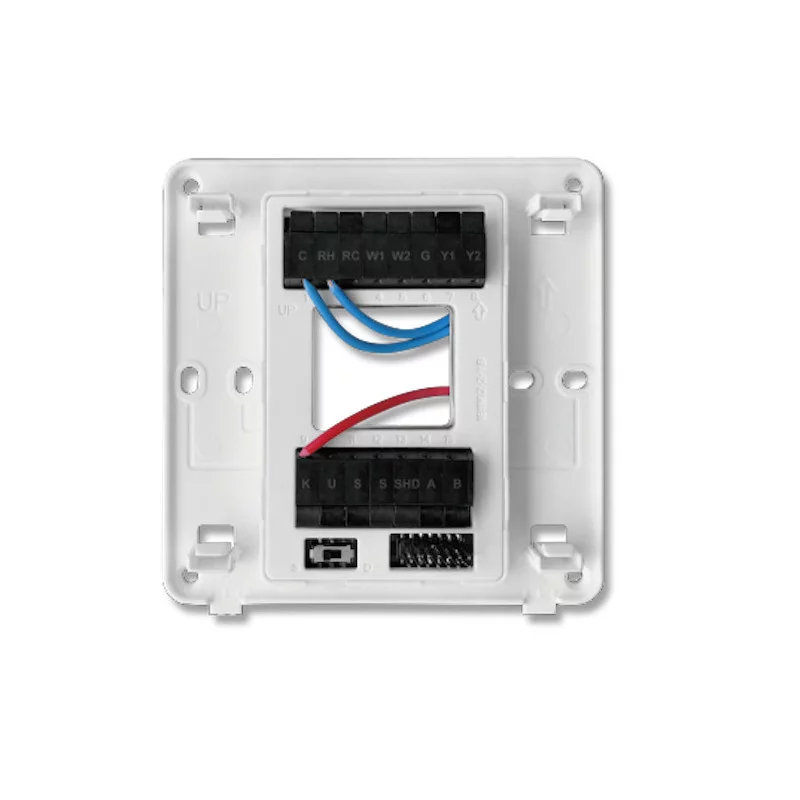

Simpler way to connect wires without screw driver.

Product Parameters

 Power supply: AC24V

   Resistive load:＜1A

   Self-consumption: <2w

   Thermistor: NTC thermistor

   Temp. Setting range：5~37℃ (41~98℉)

   Precision：0.1℃(1℉)

   Outcase：Tempered glass + PC

   Dimension：104*104*20mm

   Installation：60.3mm hole pitch

   Active element: Relay switch
