MCO MH5-WH Warm-Control Thermostat - Z-Wave Plus Thermostat (700 Series)

The MCO Home MH5-WH thermostat is a Z-Wave (700 series) enabled device for indoor temperature control.

The MCO Home MH5-WH thermostat is a Z-Wave (700 series) device for indoor temperature control. It is mainly applied to control water heating valves, heating actuators, etc. This product can be included and work on any of the Fibaro-Nice and third-party hubs equipped with Z-Wave radio: Yubii Home, Yubii Home Pro or FIBARO Home Center 3 Lite and Home Center 3.

The device is of high reliability and practicality. This product can be included and operated on any Z-Wave network with other Z-Wave certified devices from any other manufacturer.

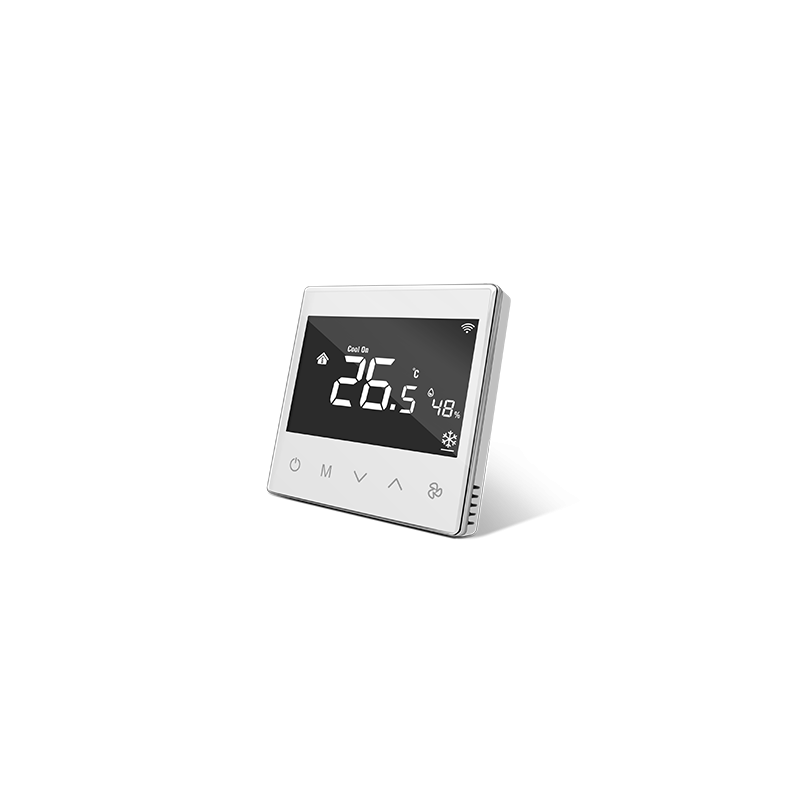

MCO Home MH5-WH Thermostat

The MCO Home MH5-WH thermostat is the ideal solution for controlling a water heating valve, using innovative room temperature sensing technology. Working with the Z-Wave ecosystem, it becomes an indispensable zone thermostat that adjusts the heating to your own needs and habits. It has a clear screen and intuitive touch buttons, which makes operating the device really simple and comfortable. The thermostat also has a standalone function, meaning it can operate independently, providing constant control over the temperature of your home. Powered by a standard 230 VAC voltage, the thermostat is ready to work immediately.

MCO Home MH5-WH has been designed to add well-being to the home: it is a Z-Wave wireless technology thermostat, valid for managing the on and off of the hot water heating valve, with intelligent technology that detects the room temperature and regulates the operation of the water heating valve based on the favorite time and temperature determined in the home's Z-Wave home automation control according to zone or room.

Main features:

"Capacitive touch buttons.

"Tempered glass panel, PC alloy case.

"Accurate temperature calibration function.

"Non-volatile memory, operating status saved even in case of power failure.

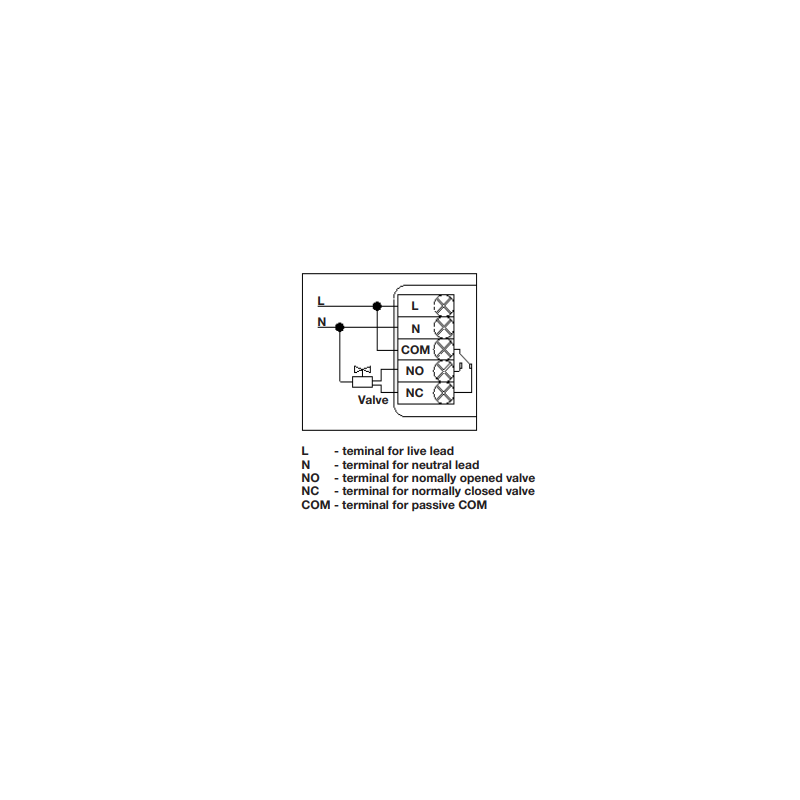

" Electric valve (ball) or air valve with intelligent on/off control.

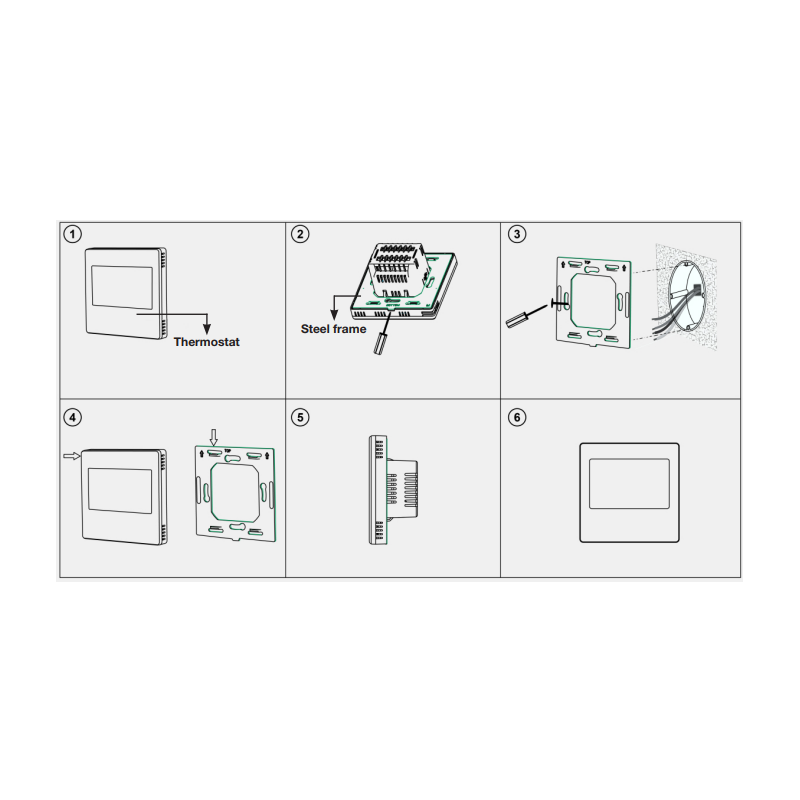

"Simple installation of the rear plate of the steel frame.

TECHNICAL CHARACTERISTICS MCO MH5 Thermostat

Thermostat for controlling hot water heating valves / gas or diesel boilers.

Thermostat to control water heating valves.

WARM-CONTROL code

Power AC85 260V

Rated load current (A) <= 5

Resistive compatible load type Self-consumption (W) <= 1

Overcurrent protection 10 A external circuit breaker required

Service temperature (°C Min./Max.) 0 ÷ 55

Temp adjustment range (°C Min./Max.) 5 ÷ 37

NTC 10K Temperature Sensor

Operating humidity (RH) < 95% (non-condensing)

Z-Wave radio protocol (700 series)

Radio frequency (MHz) Z-Wave EU

Hole width (mm) 60-65 (standard junction box 60 or 86)

Dimensions (mm) 86 x 86 x 14 h
