MCO Home MH5-2A Fan2-Control Thermostat - Thermostat for Fan Coil (2 Pipes) Z-Wave Plus (700 Series)

The MCO Home MH5-Fan2-Control thermostat is a Z-Wave (700 series) enabled device for indoor temperature control.

The MCO Home MH5-Fan2-Control thermostat is a Z-Wave device (700 series) for indoor temperature control. It is mainly applied to a 2-pipe Fan coil system. It can read the room temperature and automatically control the fan speed based on the temperature difference. This product can be included and work on any of the Fibaro-Nice and third-party hubs equipped with Z-Wave radio: Yubii Home, Yubii Home Pro or FIBARO Home Center 3 Lite and Home Center 3, etc.

The device is of high reliability and practicality. This product can be included and operated on any Z-Wave network with other Z-Wave certified devices from any other manufacturer.

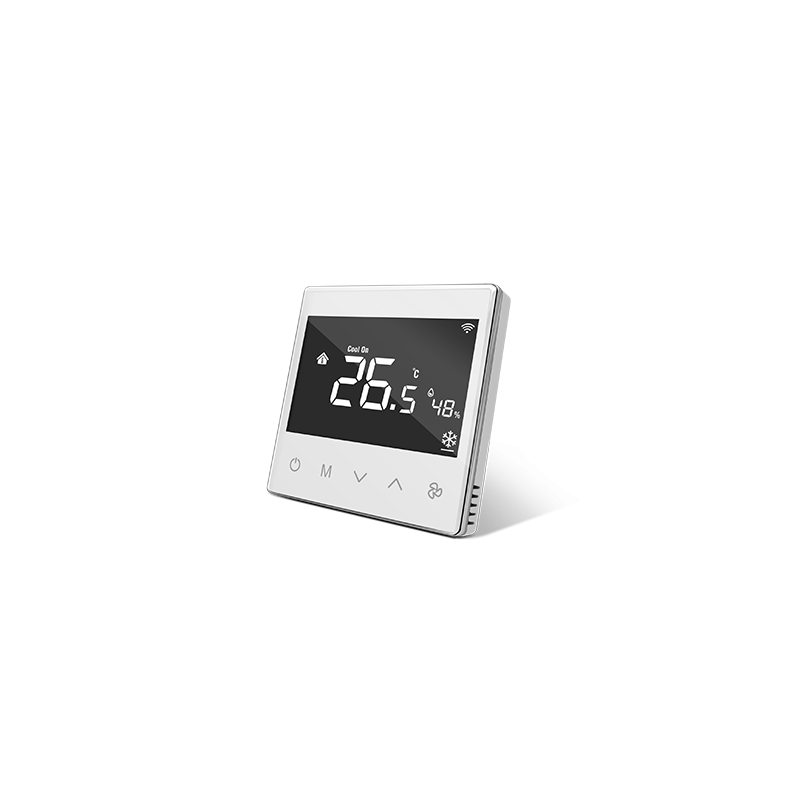

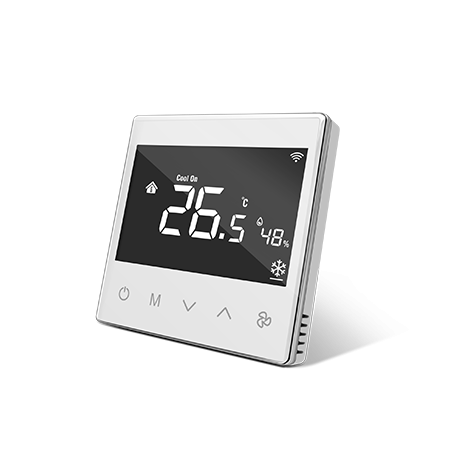

MCO Home MH5-Fan2-Control Thermostat

MCO Home MH5-Fan2-Control thermostat for accurate temperature measurement

The innovative thermostat is designed for precise temperature measurement and control in buildings using 2-pipe fan convection units. Automatically adjusts fan speed to maintain desired temperature (both during cooling and heating). It also has an autonomous operation function. Fan2-Control is a device compatible with Z-Wave technology (700 series). It can read the room temperature and automatically control the fan speed based on the temperature difference.

The device should be installed in a closed room, at a height of approximately 1.5 m above the floor where the average room temperature can be correctly measured. To avoid incorrect measurements, it should be kept away from direct sunlight, cover or any other hot sources.

MCO Home MH5-Fan2-Control is an innovative thermostat designed to measure and manage the internal temperature of convectors for the office or holiday home, as it automatically adjusts the fan speed based on manual temperature differences.
MCO Home MH5-Fan2-Control is available in two versions, created for the most common fan coil installations:

MCO Home MH5- Fan2-Control and MCO Home MH5- Fan4-Control for 2 and 4-pipe convectors.

Main features:

• Capacitive touch buttons.
• Tempered glass panel, PC alloy casing.
• Accurate temperature calibration function.
• Non-volatile memory, working status saved even in case of power failure.

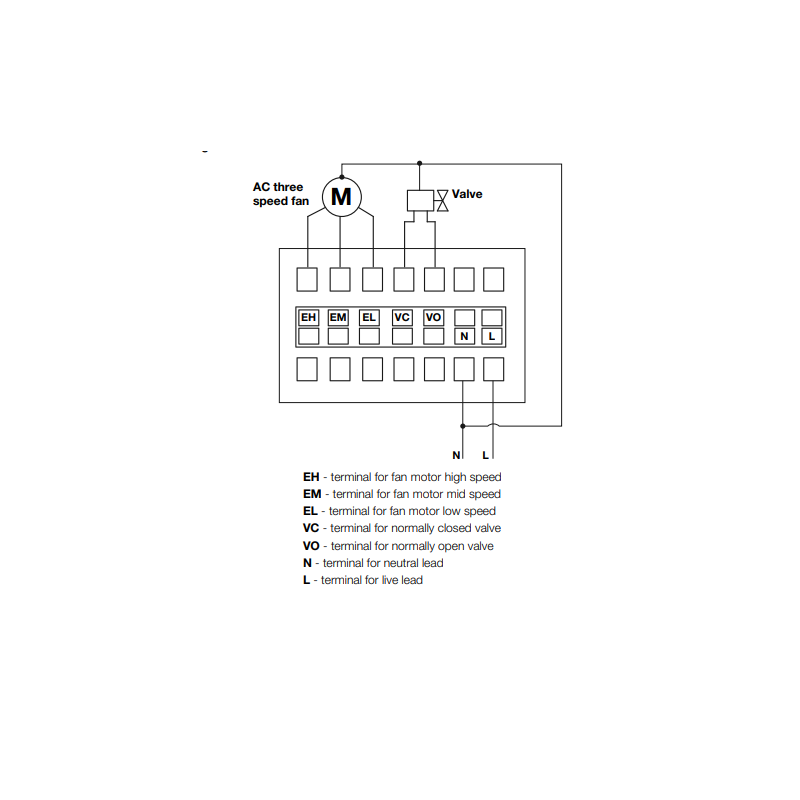

• Electric valve (ball) or air valve with intelligent on/off control.

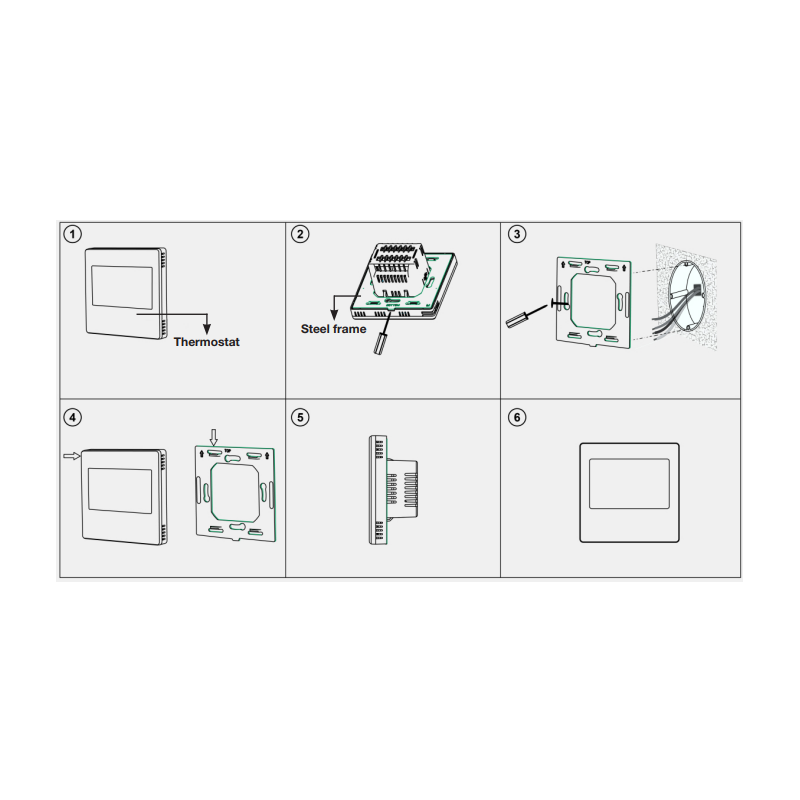

• Simple installation of the steel back plate.

Main features:

"Capacitive touch buttons.

"Tempered glass panel, PC alloy case.

"Accurate temperature calibration function.

"Non-volatile memory, operating status saved even in case of power failure.

" Electric valve (ball) or air valve with intelligent on/off control.

"Simple installation of the rear plate of the steel frame.

TECHNICAL CHARACTERISTICS

Thermostat for temperature control of three-speed radiators (2 tubes) 1 FAN4-CONTROL Thermostat for temperature control of three-speed radiators (4 tubes)

FAN-CONTROL range code

Power AC85 260V

Rated load current (A) <= 3

Resistive compatible load type Self-consumption (W) <= 1

Overcurrent protection 10 A external circuit breaker required

Service temperature (°C Min./Max.) 0 ÷ 55

Temp adjustment range (°C Min./Max.) 5 ÷ 37

NTC 10K Temperature Sensor

Operating humidity (RH) < 95% (non-condensing)

Z-Wave radio protocol (700 series)

Radio frequency (MHz) Z-Wave EU

Hole width (mm) 60-65 (standard junction box 60 or 86)

Dimensions (mm) 86 x 86 x 14 h
