Heatit Z-Temp3 - Termostato Z-Wave a pilas para empotrar

View larger

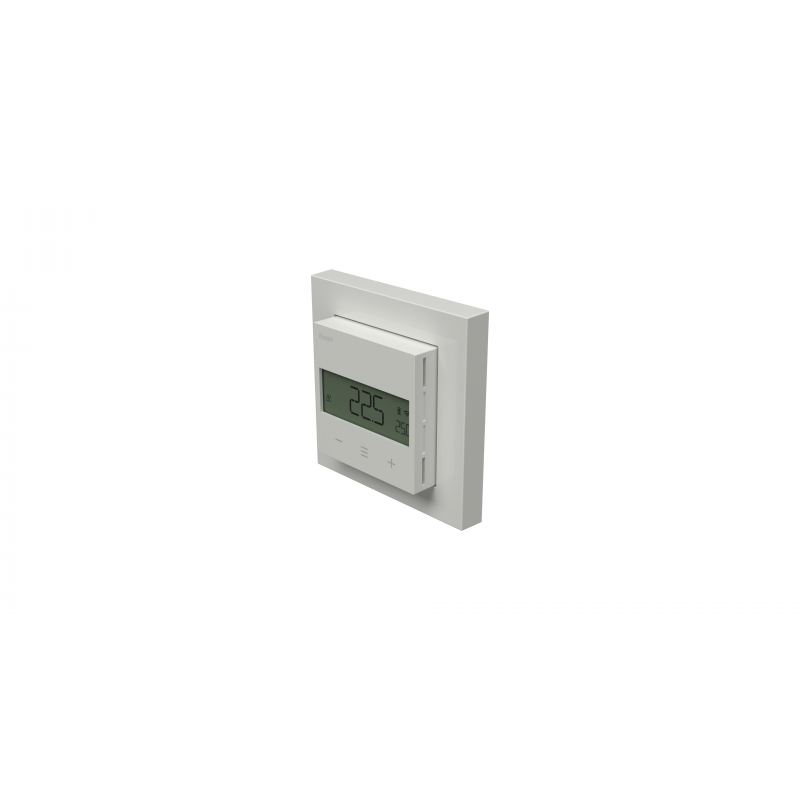

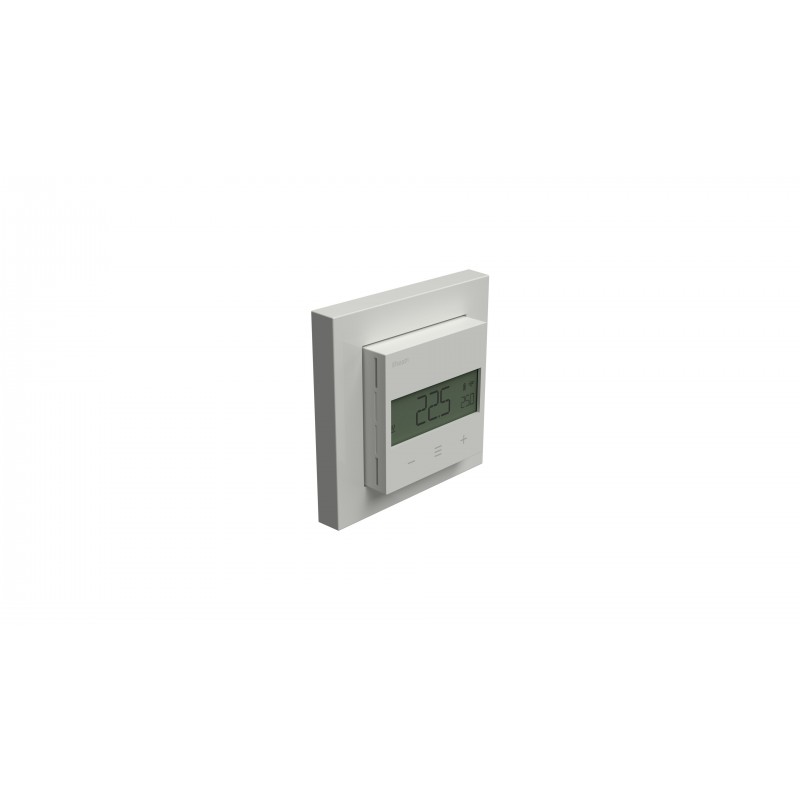

Battery-operated Z-Wave thermostat for surface mounting

Reference

Condition: New

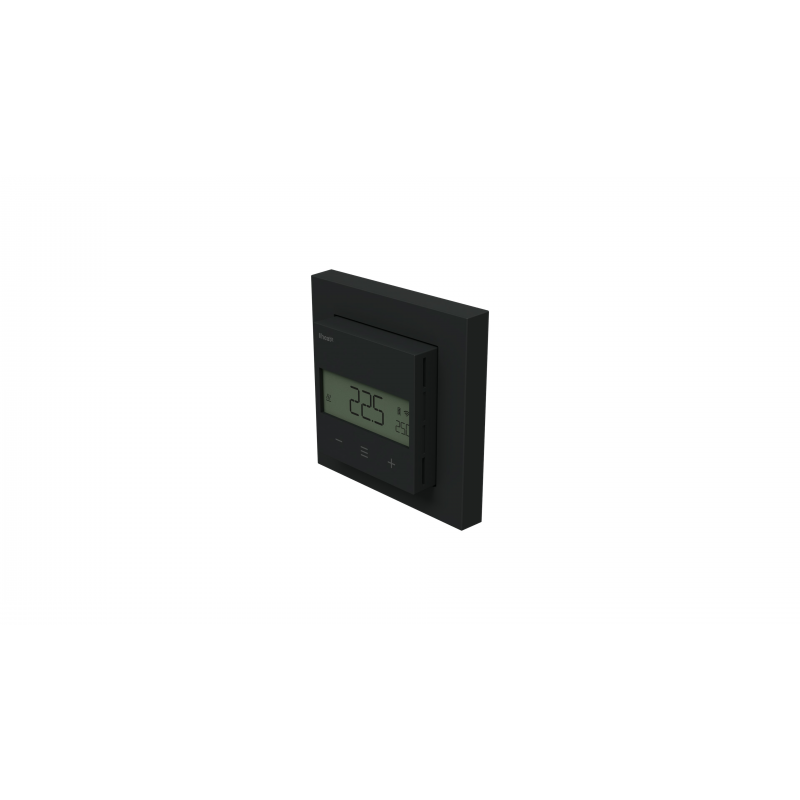

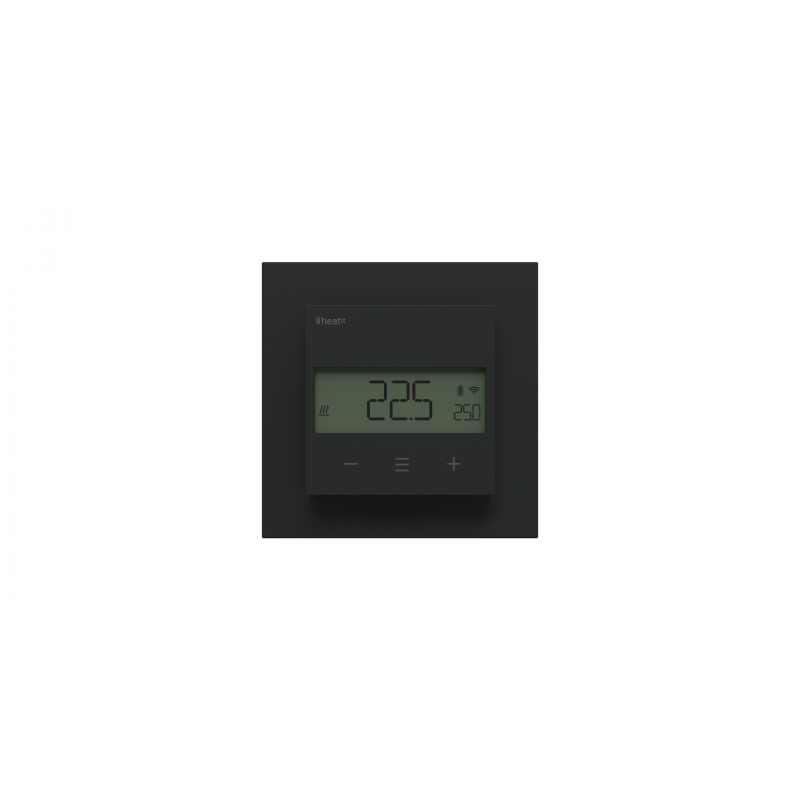

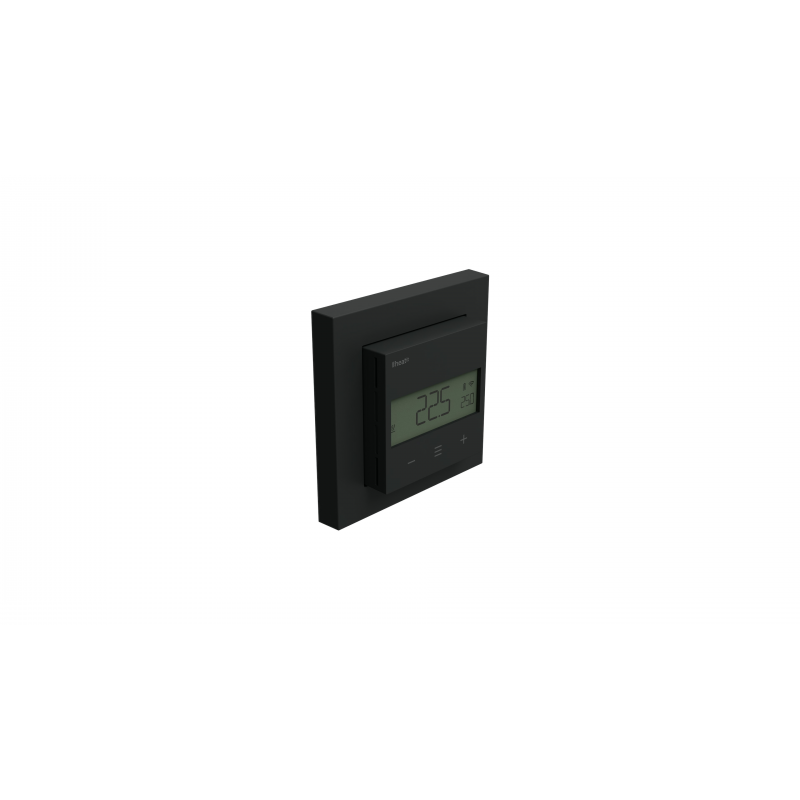

Battery-operated thermostat designed to control climate systems. It does not have an internal relay, so its usual use is in direct Z-Wave association with an auxiliary relay (not included) to control pumps, underfloor heating solenoid valves or directly the start/stop manoeuvre of a gas or oil boiler, etc. Z-Wave wireless home automation technology. Available in black or white.

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

85,91 €

Quantity

Color

Technical characteristics

Home Automation Technology	Z-Wave Serie 800

More info

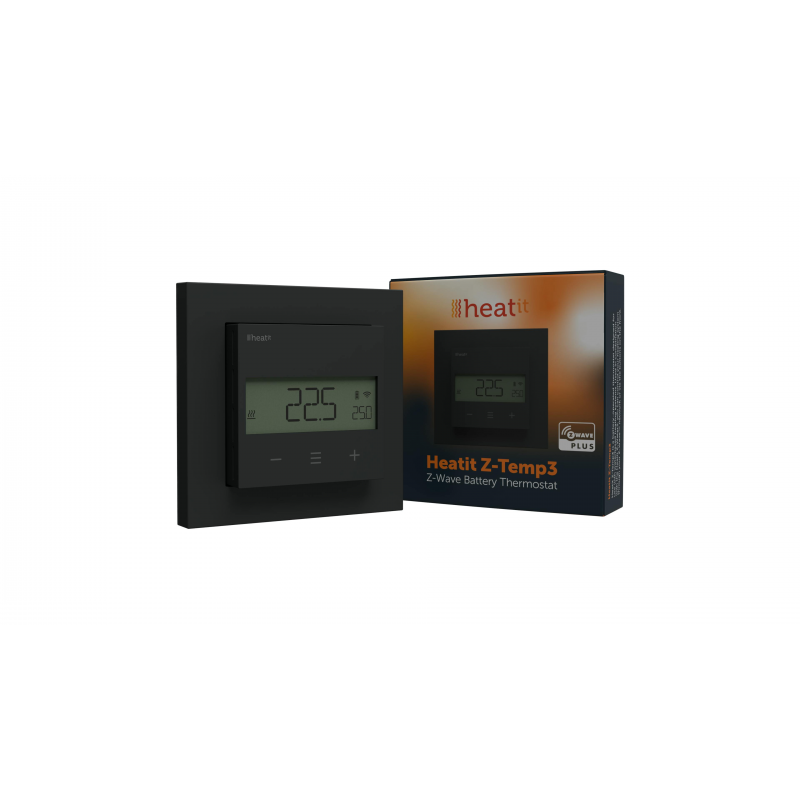

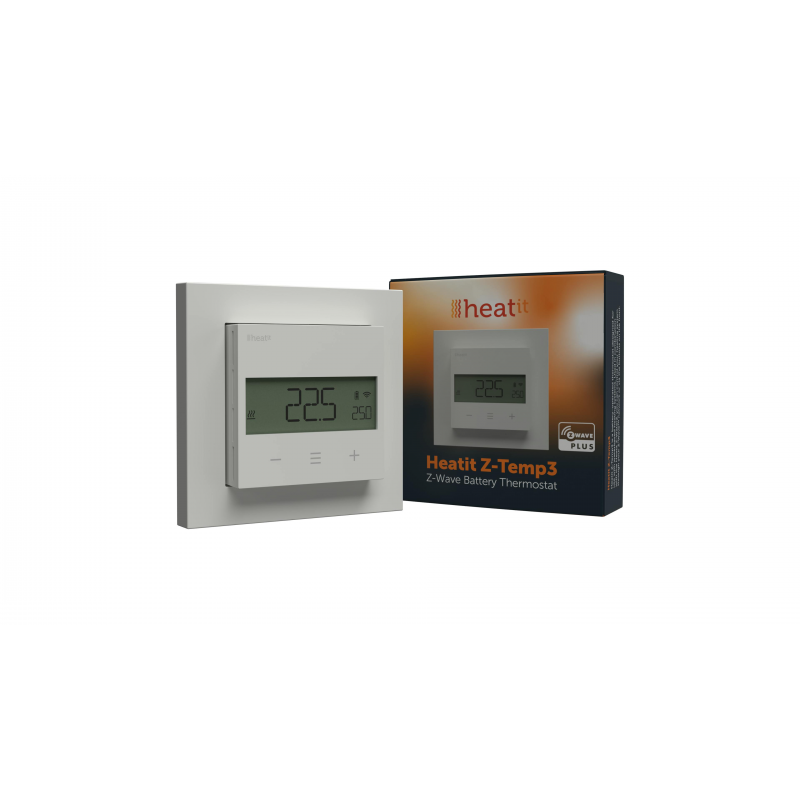

Heatit Z-Temp3

• Z-Wave 800 series • Open Window Detection • Internal temperature sensor • 10 associations per group • Humidity sensor • LCD display with backlight • Master thermostat • Lock mode/child lock • Hysteresis - PWM • Firmware update (OTA) • 3 modes: Heat - Cool - Eco • SmartStart • Battery-operated thermostat for controlling relays and thermostats • Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

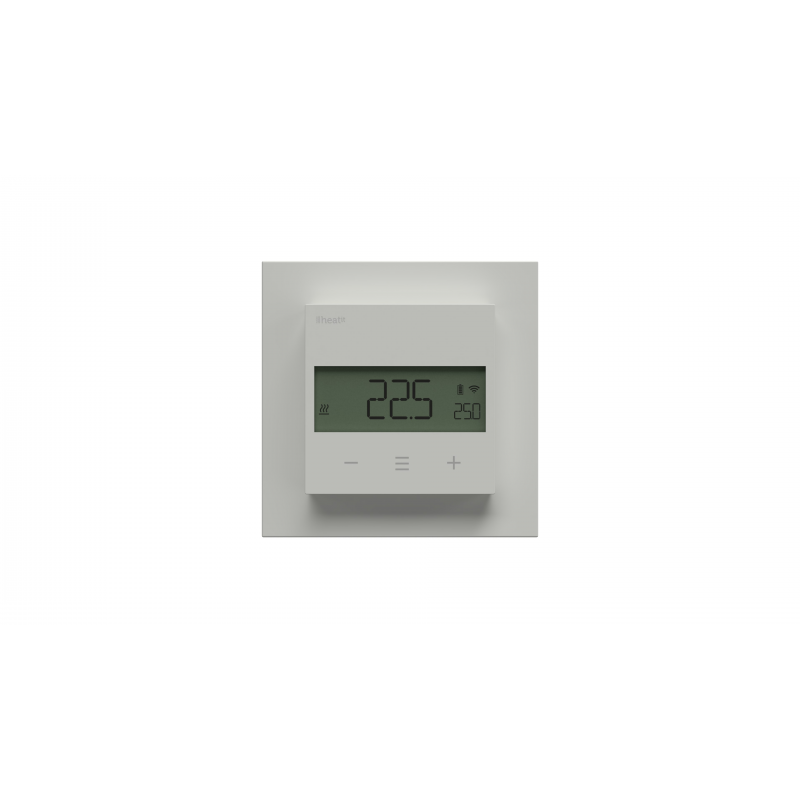

Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface.

Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.

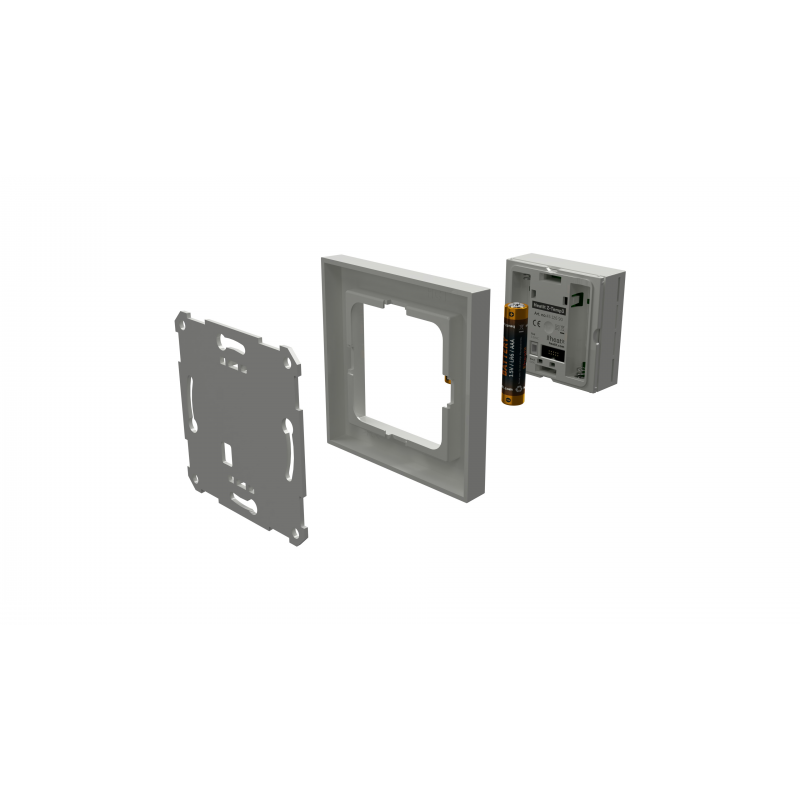

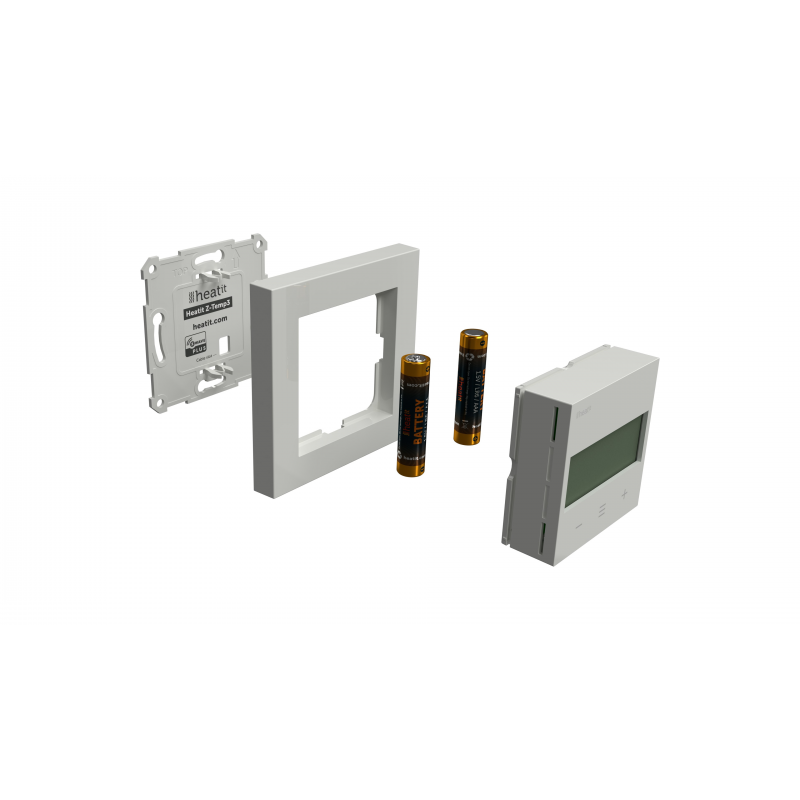

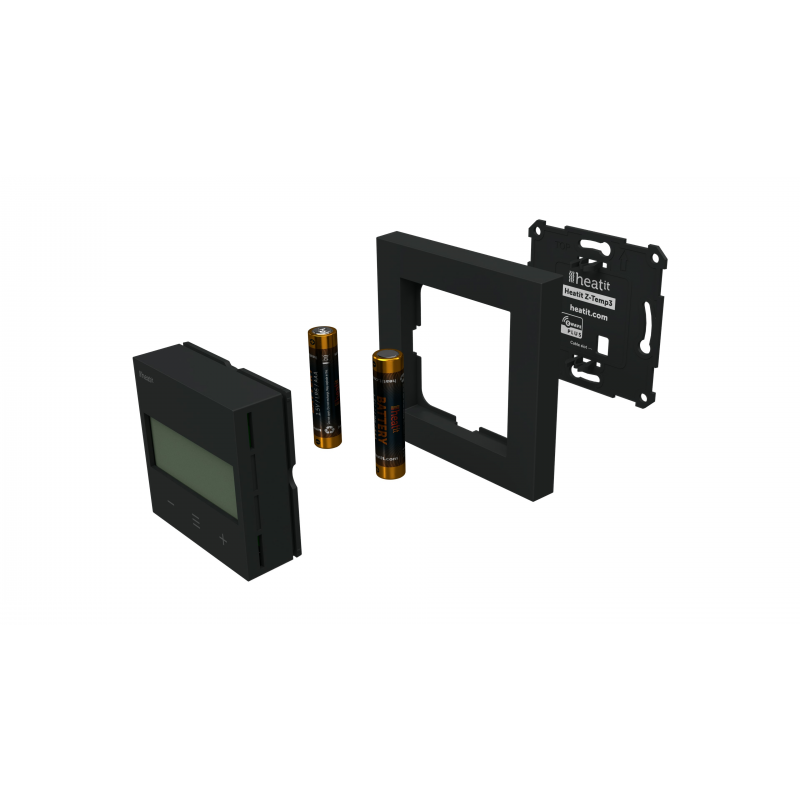

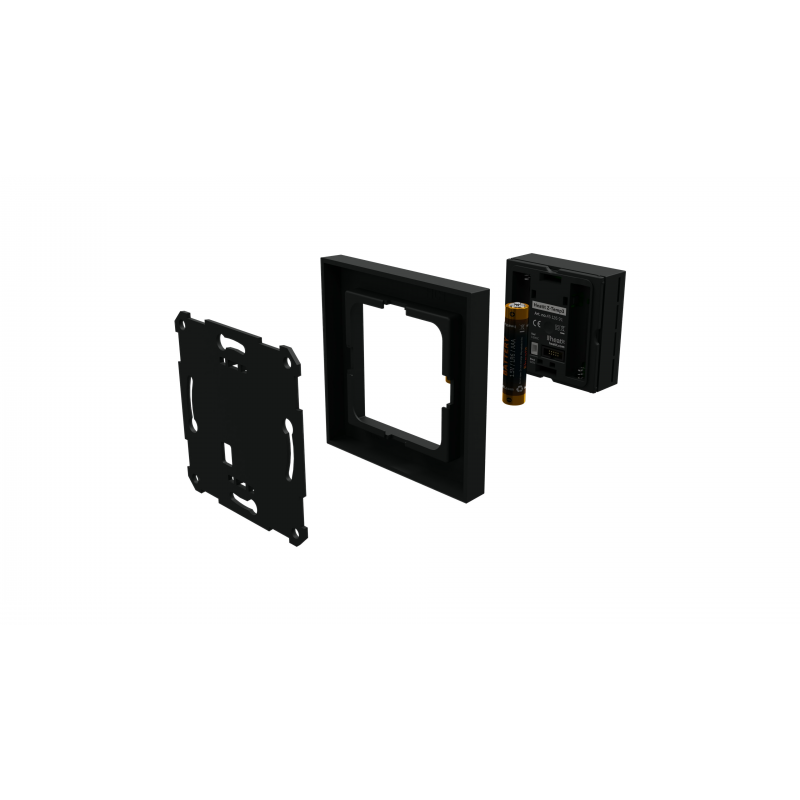

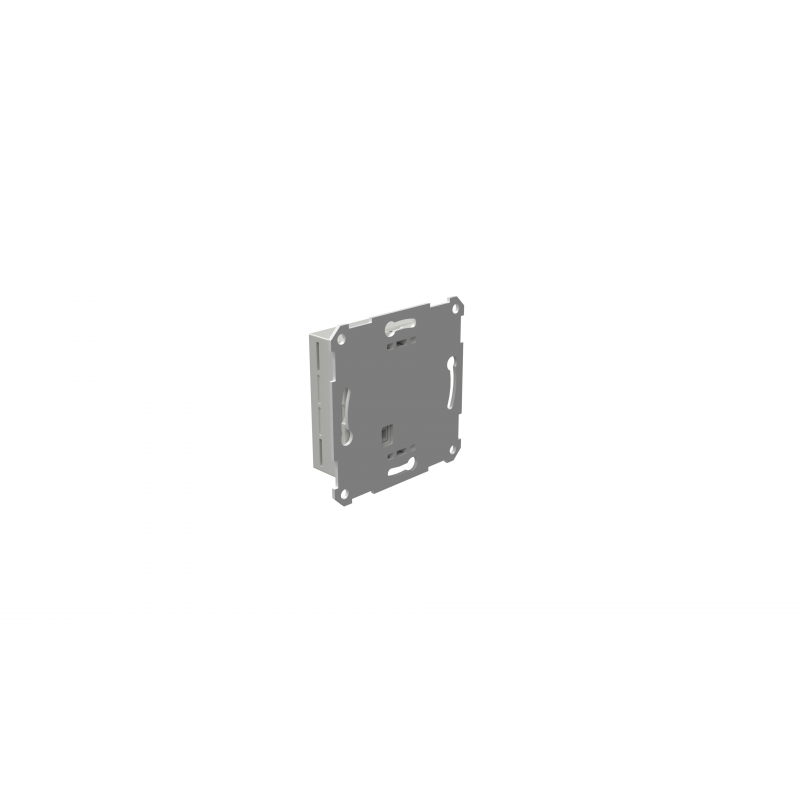

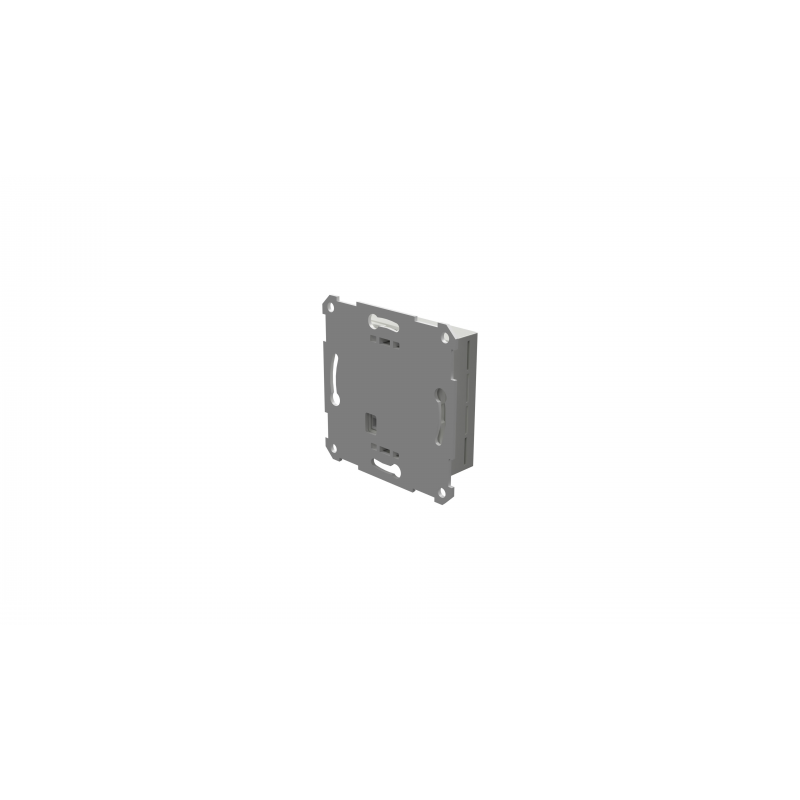

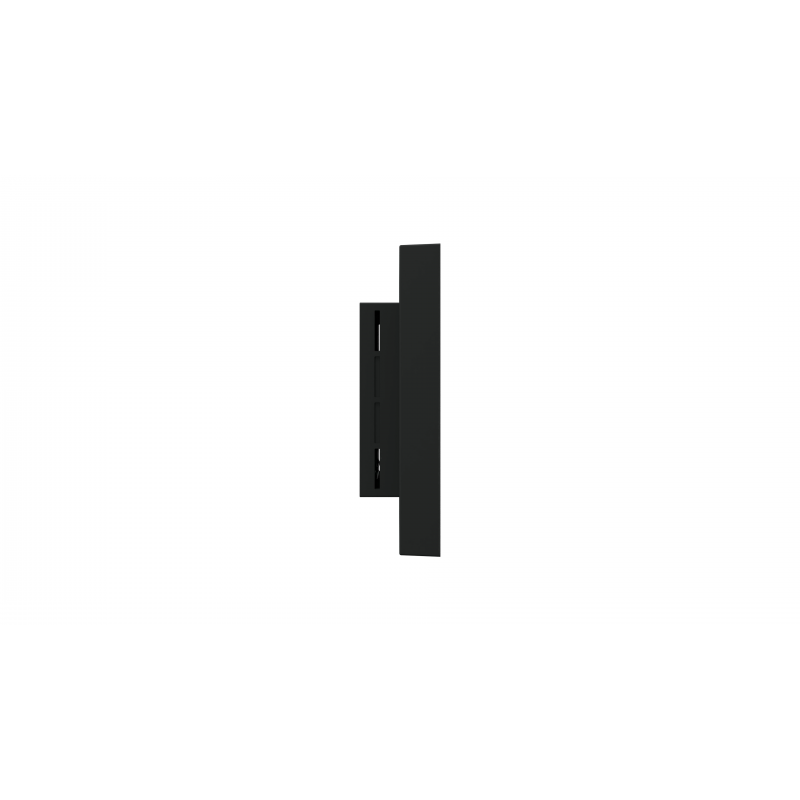

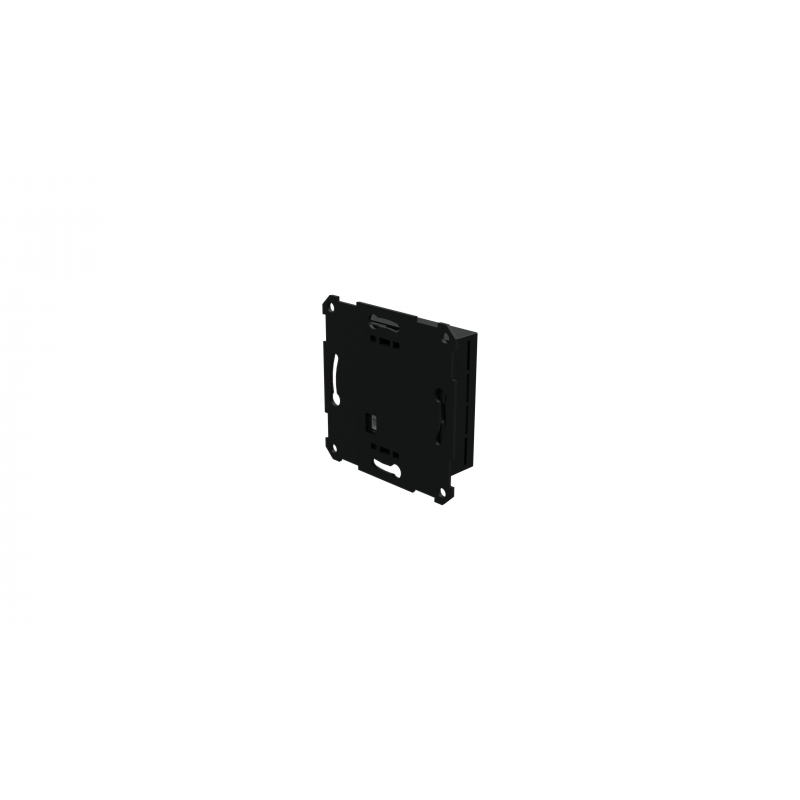

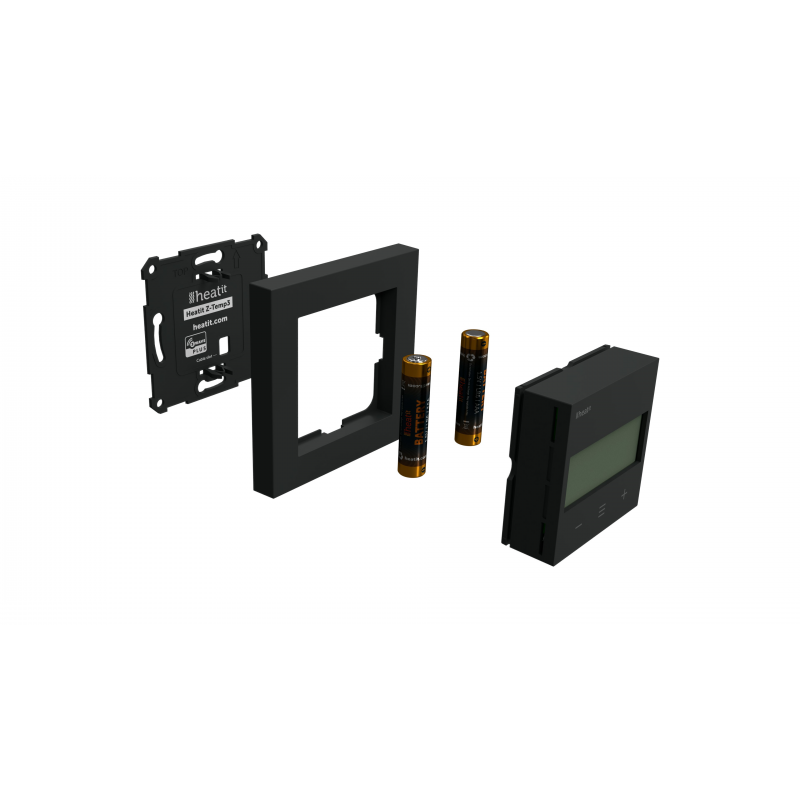

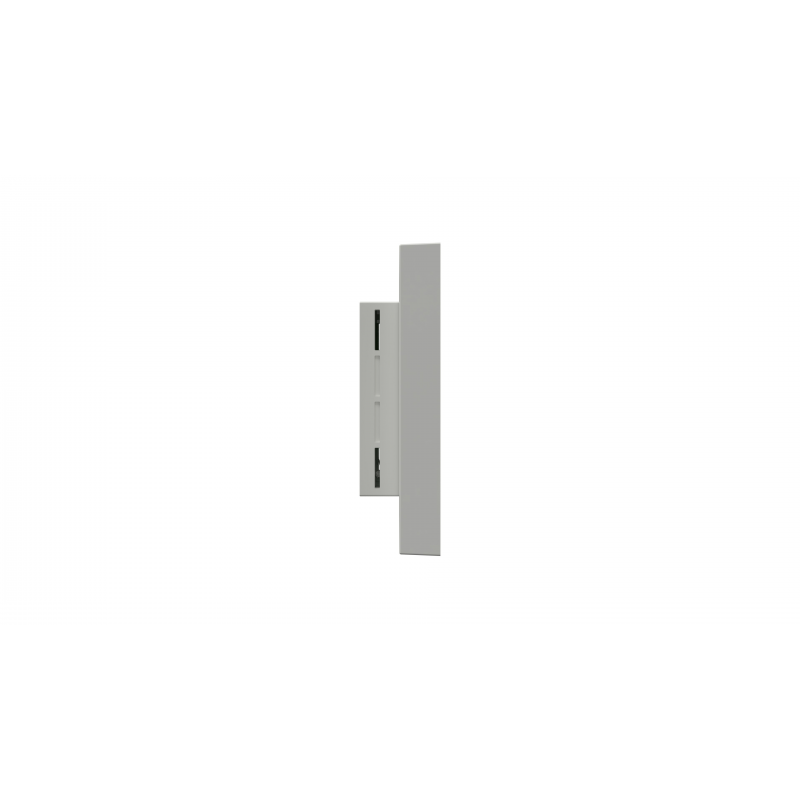

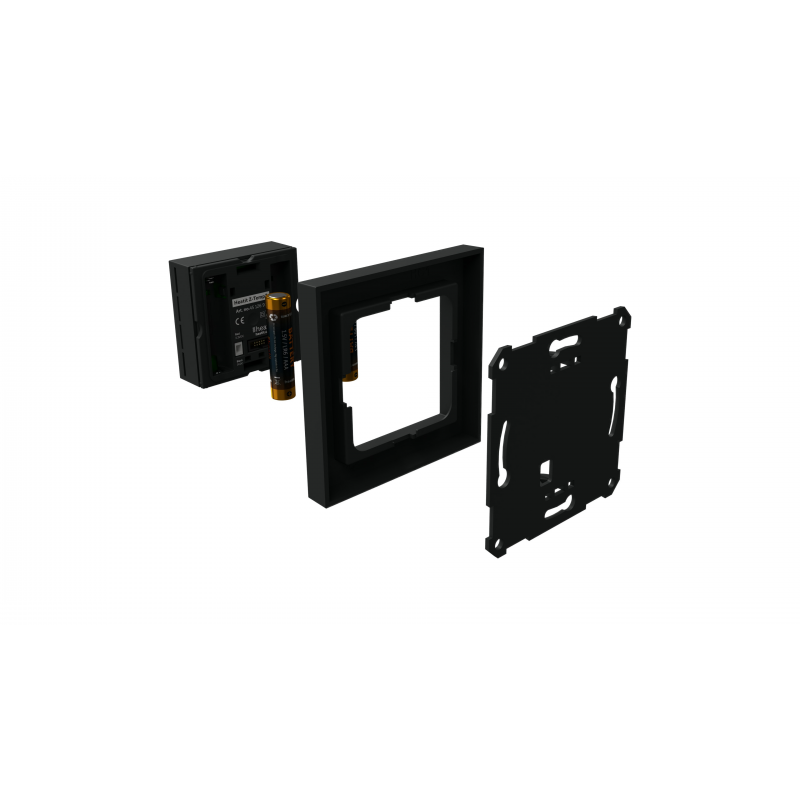

The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.

Heatit Z-Temp3 can be set as a master thermostat. This means that you can set the setpoint and mode on one unit, and it will automatically send the setpoint and mode to other connected units.

All communication between Heatit Z-Temp3 and the controlled device is 100% wireless.

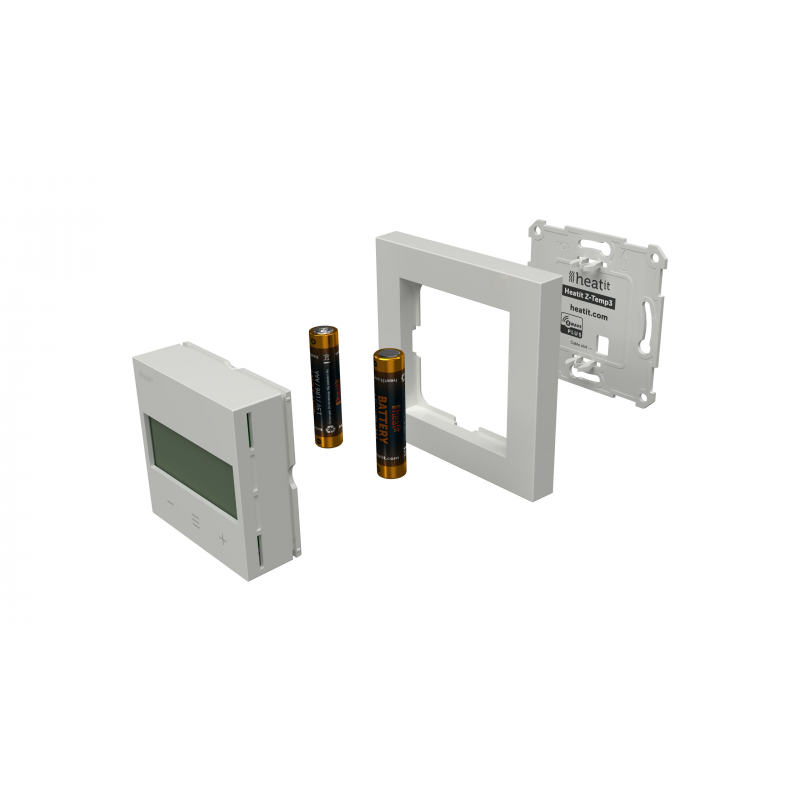

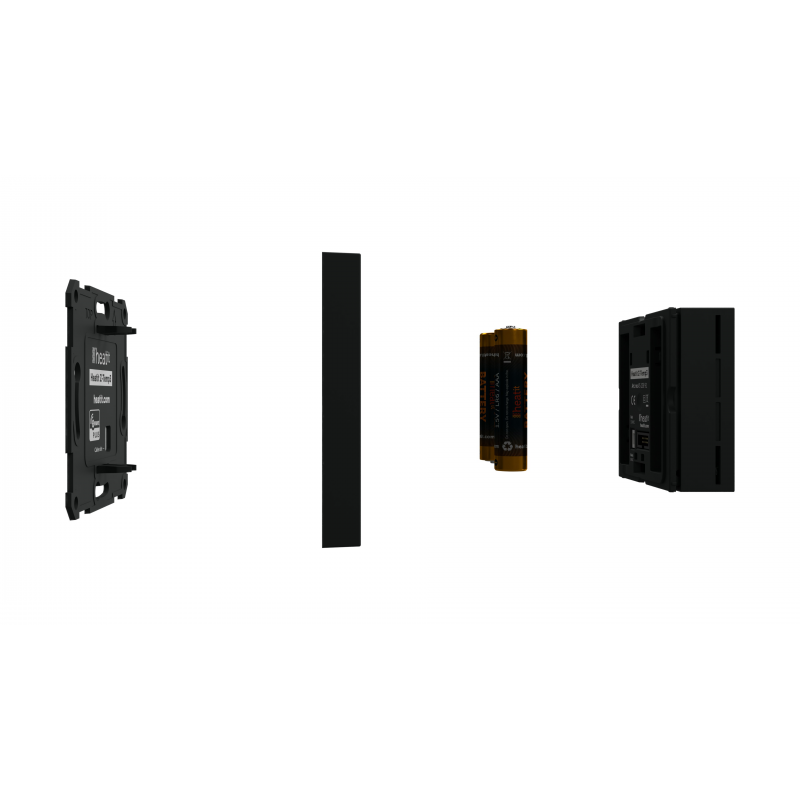

Heatit Z-Temp3 uses 2x AAA batteries, but you can also connect the device to an external power source. The Heatit Transformer 230VAC (45 126 48) is recommended for this purpose.

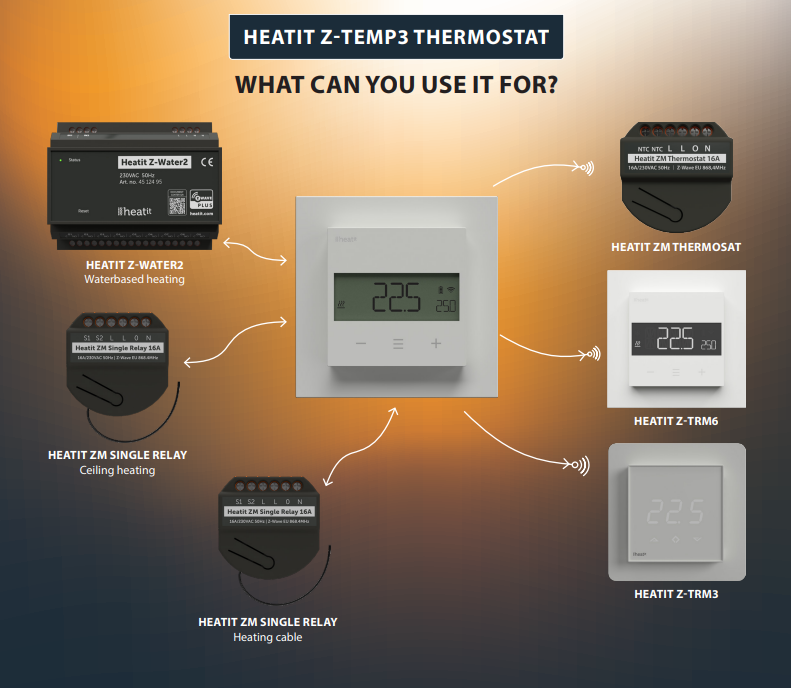

Heatit Z-Temp3 can be associated with Heatit ZM Single Relay, other Z-Wave relays, Heatit ZM Thermostat, Heatit Z-TRM6 Thermostat and other Z-Wave devices to control other types of heating solutions.

Heatit Z-Temp3 is a great choice for the restoration or renovation of existing buildings, as it is easy to install without the need for wiring. We recommend using multiple 230VAC devices to create a mesh network.

Heatit Z-Temp 3 usos

Features

Z-Wave 800 series
Battery-operated thermostat for controlling relays and thermostats
Internal temperature sensor
Humidity sensor
Master thermostat
Hysteresis - PWM
3 modes: Heat - Cool - Eco
Open Window Detection
10 associations per group
LCD display with backlight
Lock mode/child lock
Firmware update (OTA)
SmartStart
Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical data

IOT Protocol:Z-Wave - 868.4 MHz (EU)
Voltage:3.3 VDC
Hysteresis:0,3 to 3,0 (default hysteresis 0,5)
Protection grade (IP):IP21
Ambient humidity (RH non-condensing %):10-85
Ambient temperature range in storage (°C):-30-70
Declarations:RoHS, Reach, RED
International standard:CE, Z-Wave Plus
Signal range radio frequency (max no. meters):40
SDK:7.18.3
IOT Chip type:Z-Wave 800 chip
Push buttons:3
Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class

Extended Z-Wave info

Name: Heatit Z-Temp3

Manufacturer:Heatit

Identifier:Z-Temp3

Z-Wave Certification Number:ZC14-24070458

Hardware Plattform:EFR32ZG23A

FLiRS:NO

Role Type:Listening Sleeping End Node

Short Description:Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface. Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco. The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.

Description:Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface. Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco. The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.

Group

Max Nodes

Description

Number

Size (Bytes)

Default Value

Name

Description

Disable buttons

Disable or enable local control

990

Temperature report interval

Set temperature report interval

Temperature report hysteresis

Set temperature report hysteresis in °C

990

Humidity report interval

Set humidity report interval

Humidity report hysteresis

Set humidity report hysteresis in %

210

Heating setpoint

Set the setpoint for heating mode

250

Cooling setpoint

Set the setpoint for Cooling mode

180

ECO setpoint

Set the setpoint for ECO mode

Operating mode (OPER)

Changes operating mode

Open window detection

Enable or disable OWD

Minimum temperature limit (ALO)

Set minimum temperature limit

400

Maximum temperature limit (AHI)

Set maximum temperature limit

Calibration (CAR)

Manually calibrate the sensor

Regulation mode (REG)

Select regulation mode

3600

Thermostat state update interval

Set thermostat state update interval

Temperature control hysteresis (HYST)

Select degrees for regulation hysteresis

Temperature display

Decide what is shown during standby

Active display brightness (BR1)

Set brightness during active state

Association Group Information (AGI) V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Battery

COMMAND_CLASS_BATTERY

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multilevel Sensor V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Powerlevel

COMMAND_CLASS_POWERLEVEL

Protection

COMMAND_CLASS_PROTECTION

Security 0

COMMAND_CLASS_SECURITY

Security 2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V3

COMMAND_CLASS_THERMOSTAT_SETPOINT_V3

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;

• On the product.

• In the Quick Guide.

• On the packaging box/gift box.

Classic Inclusion

Add

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.

Adding the device within a 2 meter range from the gateway can minimize faults during the Interview process.

Note: The Heatit Z-Temp3 does not stay in Learn mode until it is included.

Standard (Manual)

Add mode is indicated on the device by rotating LCD segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been added to the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the ”+” button once to see “CON” in the display.

3. Start the add device process in your primary controller.

4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.

The device is now ready for use with default settings.

If inclusion fails, please perform a ”remove device” process and try again. If inclusion fails again, please see Chapter “Factory reset”.

Classic Exclusion

Remove

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.

When the device is removed from the network, it will NOT revert to factory settings.

Standard (Manual)

Remove mode is indicated on the device by rotating LCD segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been removed from the network. Configuration mode can also be cancelled by performing the same procedure used for starting Configuration mode.

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the ”+” button once to see “CON” in the display.

3. Start the remove device process in your primary controller.

4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.

NB! When the device is removed from the gateway, the parameters are not reset. To reset the parameters, see Chapter ”Factory reset”.

Factory Reset Procedure

Enter the menu by holding the Center button for about 5 seconds, navigate in the menu with the ”+” button til you see FACT. Press the Center button until you see “-- --” blinking in the display, then hold for about 5 seconds to perform a reset. You may also initiate a reset by holding the Right and Center buttons for 55 seconds.

When either of these procedures has been performed, the thermostat will perform a complete factory reset. The device will display “RES” for 5 seconds while performing a factory reset. When “RES” is no longer displayed, the thermostat has been reset.

Please use this procedure only when the primary controller is missing or otherwise inoperable.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

IP (Ingress Protection) Rated

Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.

Thermostat HVAC Systems Supported

Indicate which HVAC system or systems are supported by the thermostat.
