MCO HOME - Z-Wave+ thermostat for 4-pipe fan coils

The MCOHome fan coil thermostat is a Z-Wave enabled device for controlling the internal temperature. It is mainly used with a system of 4 tubes in fan-convector units.

It measures the ambient temperature and offers the local time, so it can automatically control the fan speed depending on the temperature difference. This thermostat can be included and used in a Z-Wave network with other devices certified by Z-Wave of any other manufacturer.

Each module works like a wireless repeater with other modules to ensure complete coverage of your home or office.

Blog article: We tested the Z-Wave thermostat for Fancoils MCOHome MH8-FC

CHARACTERISTICS:

Thermostat for tube fancoil 4
ON / OFF control of a smart 3-speed fan or electric valve
fan mode, heating, cooling
LCD screen
Time and temperature display
temperature calibration
Non-volatile memory to store the operating state after a power failure
Compatible Z-Wave More
glaze, modern design
capacitive touch buttons


TECHNICAL CHARACTERISTICS :

Module type: the Z-Wave receiver
Material: tempered glass and plastic (alloy PC)
Power supply: 230 V AC, 50 / 60Hz
Maximum load: 3A
Power consumption: <1W
Frequency: 868.42 MHz
Scope: up to 30 meters
Temperature sensor: NTC 15K
Readability: 0.1 ° C
Operating temperature: 0-55 ° C
Temperature adjustment: 5-35 ° C
Dimensions: 86 x 86 x 42 mm

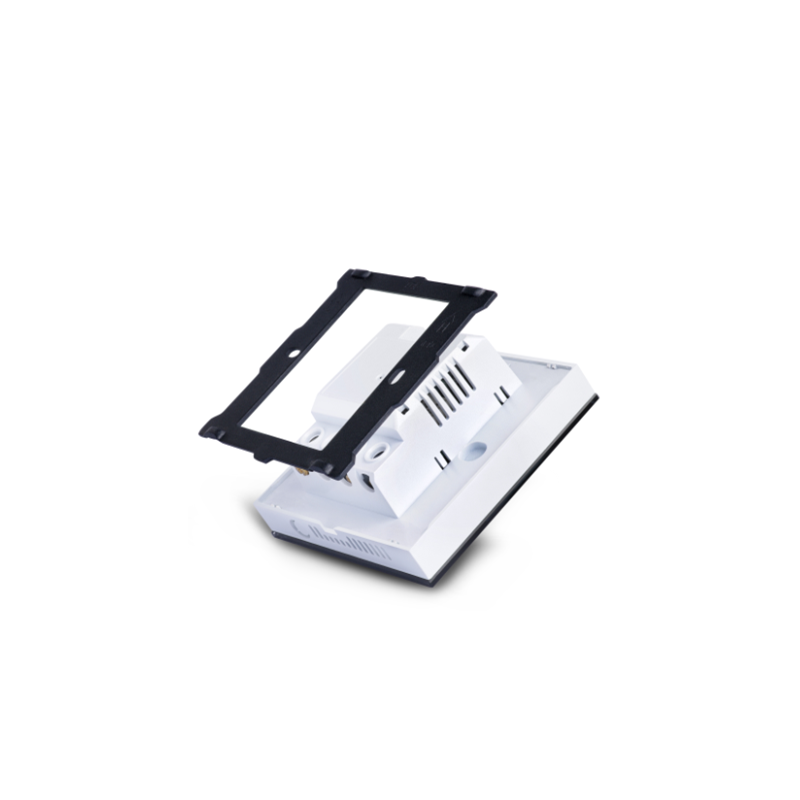

Installation: Wall (vertical) recessed square box 86 x 86 mm
