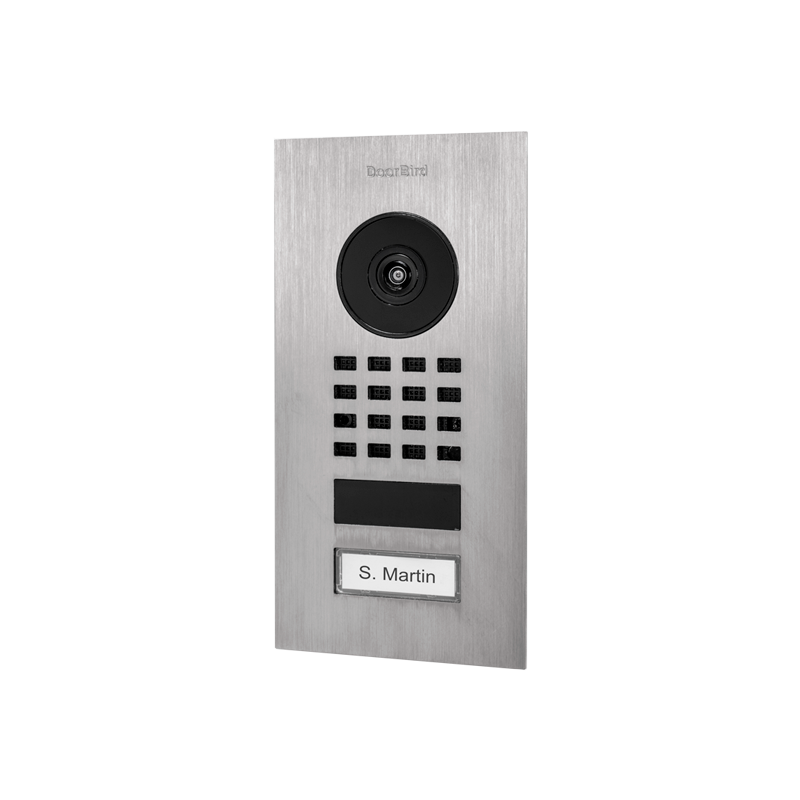

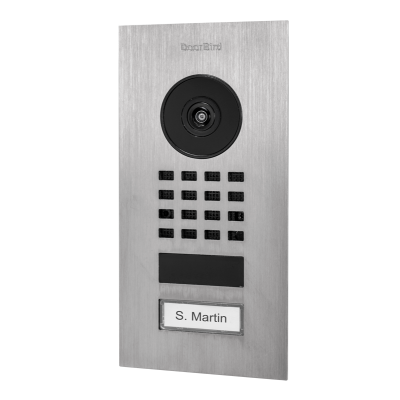

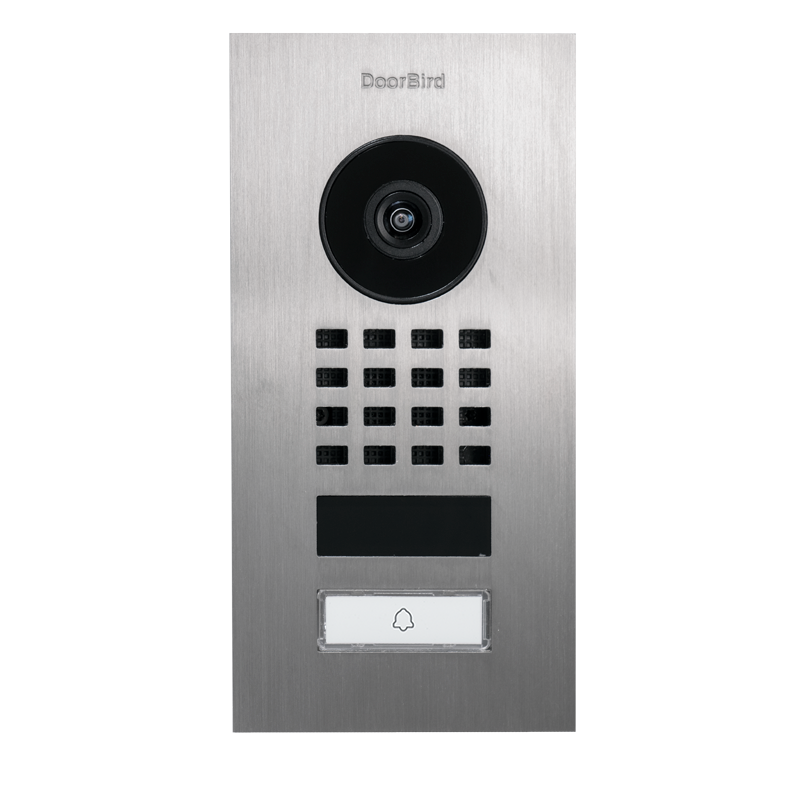

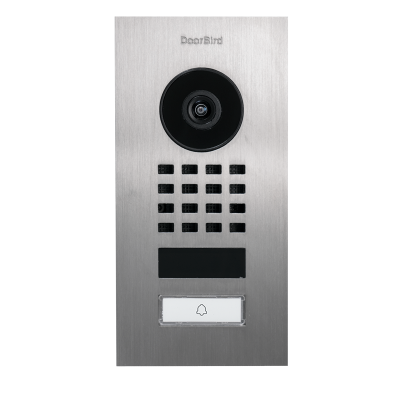

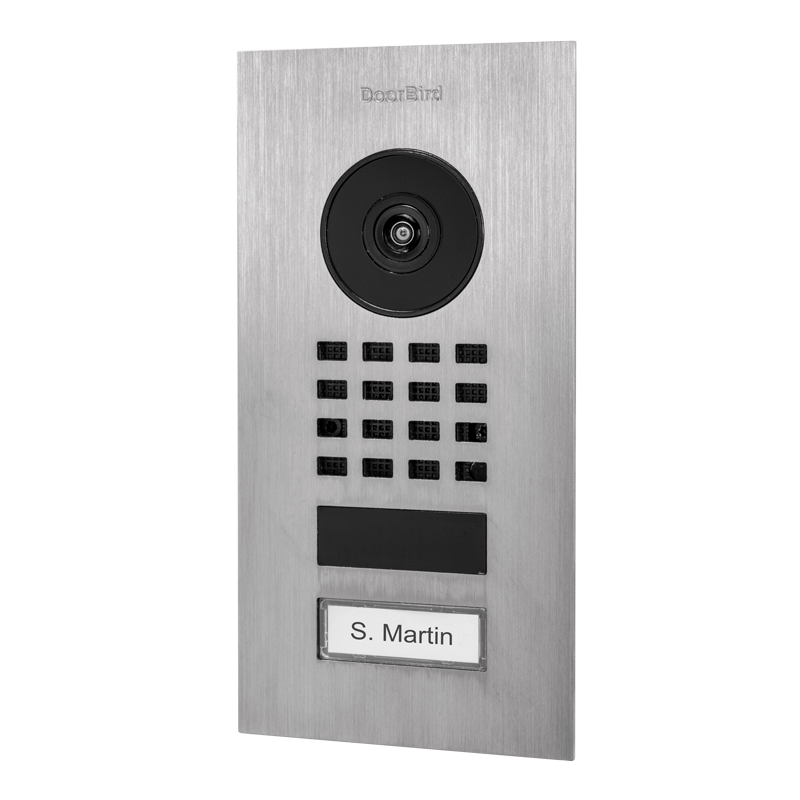

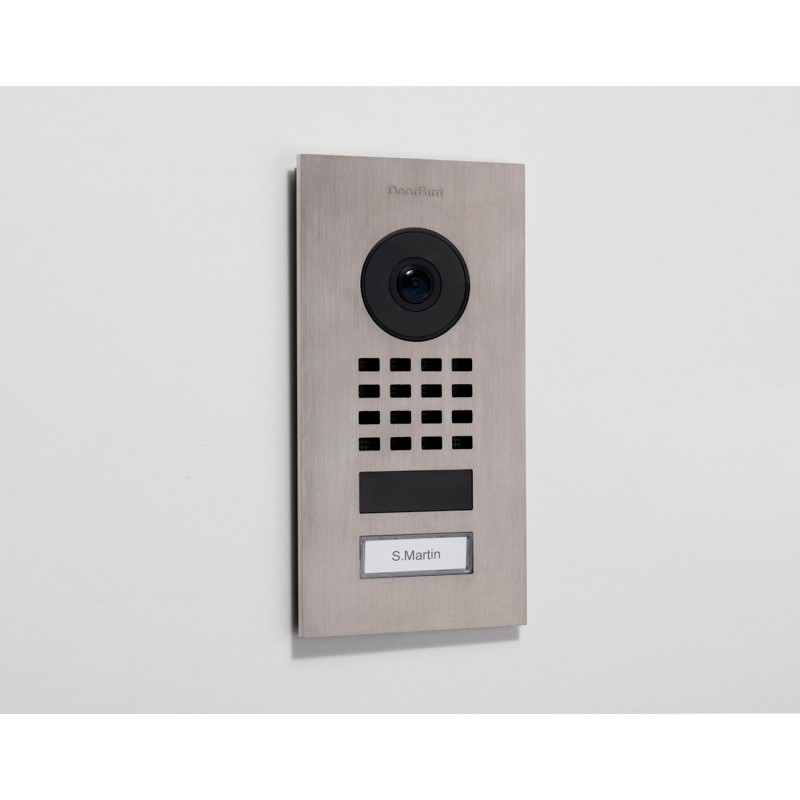

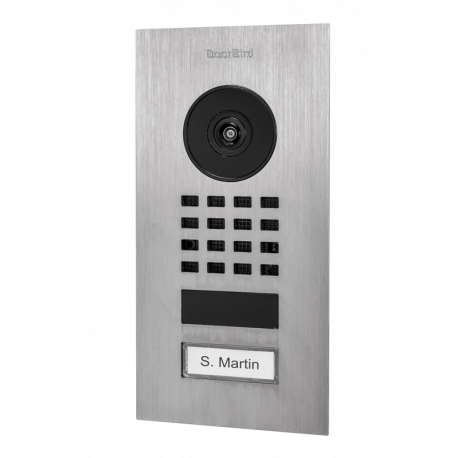

DOORBIRD - D1101V Built-in IP video intercom

HOW DOES IT WORK?

Imagine, you are not at home and your children have
they locked themselves outside or the courier wants to deliver
a package. With DoorBird this is no longer a problem.

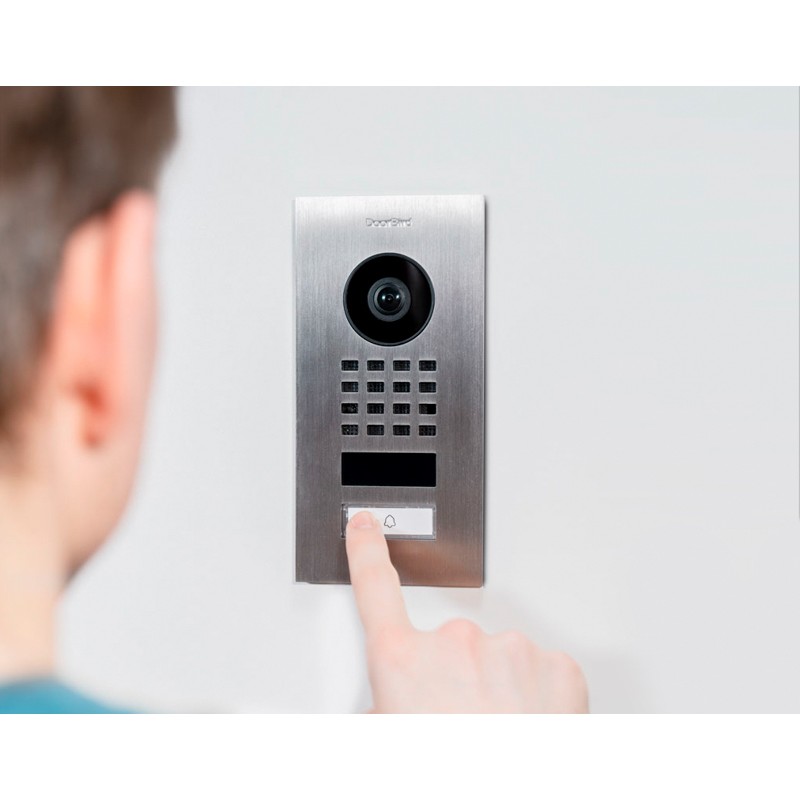

Every time someone rings the doorbell, you get a
...and the push notification on your smartphone or tablet. Through the
The DoorBird application is not only capable of talking to the visitor
but also see them live in HD quality. you will never get lost
a visitor again. With DoorBird you are on the move and
still at home, even if a thief knocks on the door to check if
Someone is at home.

THE SMART HOME STARTS AT THE FRONT DOOR

DoorBird is the smart solution for your home entrance.
Simply connect your DoorBird IP video intercom to
your smartphone and talk to your visitor - anywhere you
are. The IP video intercom can be used as a stand-alone unit or can be integrated into a Smart
The platform of the house. Even existing classical installations such as
a doorbell or an electric door opener can still be used
and controlled through the DoorBird app.

GERMAN QUALITY

All DoorBird products are designed, developed and produced by Bird Home Automation GmbH in Berlin, Germany. We manufacture all products with the utmost care and precision, and deliver them to our customers around the world.

WHY DOORBIRD?

• Open API "Local interface for integration with SIP or other systems
• Video and audio call
• - On smartphones and
• tablets (iOS, Android) or
• landlines (SIP)
• smart transmission
• Mode (STM)
• - Audio and video in real time
• communication, optimized
• for mobile devices via
• WiFi, 3G, 4G, 5G
• Compatible with Smart Home and NVR
• - Control4, Loxone, Crestron,
• Synology, AVM FRITZ!Fon, URC,
• QNAP, RTI, ELAN, Fibaro,
• Bang & Olufsen and others
• Individual action programs,
• For example:
• - Bluetooth access
• on Wednesday of
• From 9 to 11 in the morning.
• - 4D motion sensor switches
• in the external lamp between
• 9 pm and 6 am
• Automatic door opener "For use in offices or others
• Free cloud registration " Optionally activated for visitor registration
• Geofencing "Automatic opening of the door or gate when returning home
• Receive packages at any time "Send the carrier to the neighbor or open the garage door with your smartphone
• Easy self-installation "Quick installation via QR code scanning
• Night vision "With 12 infrared LEDs
• Light Sensor " For night vision mode
• Motion sensor with 4D technology " Distance up to 6 m (19.7 f) adjustable via App (interval: 1 m / 3.3 f)
• HDTV Video "Ultra wide angle, Hemispherical lens, 200°
• Echo and noise reduction (AEC, ANR)
• Bluetooth Low Energy (BLE) " For access control, compatible with external sensors and smart locks
• Configurable call button " With backlit name plate
• Easy connection to the network " Connection via network cable (PoE, network data) or bell cable via a 2-wire transformer
• A freely configurable bistable switching relay "Control a door or gate via App" Configurable status via App: temporary or permanent circuit
• WiFi enabled "Works within a WiFi network, no LAN cable needed

Download Datasheet

Download installation manual

Technical information

GENERAL INFORMATION

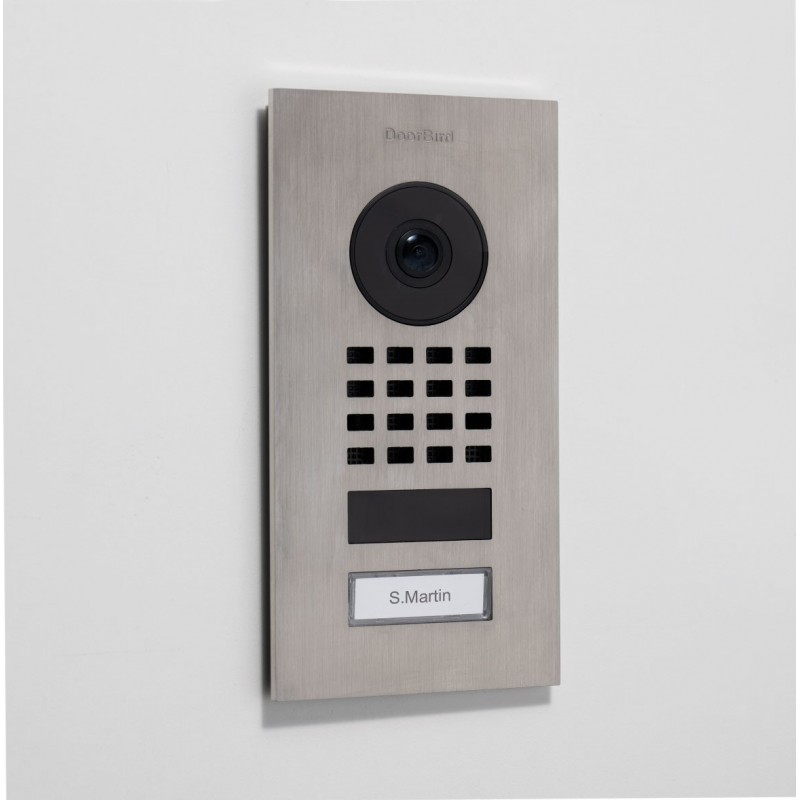

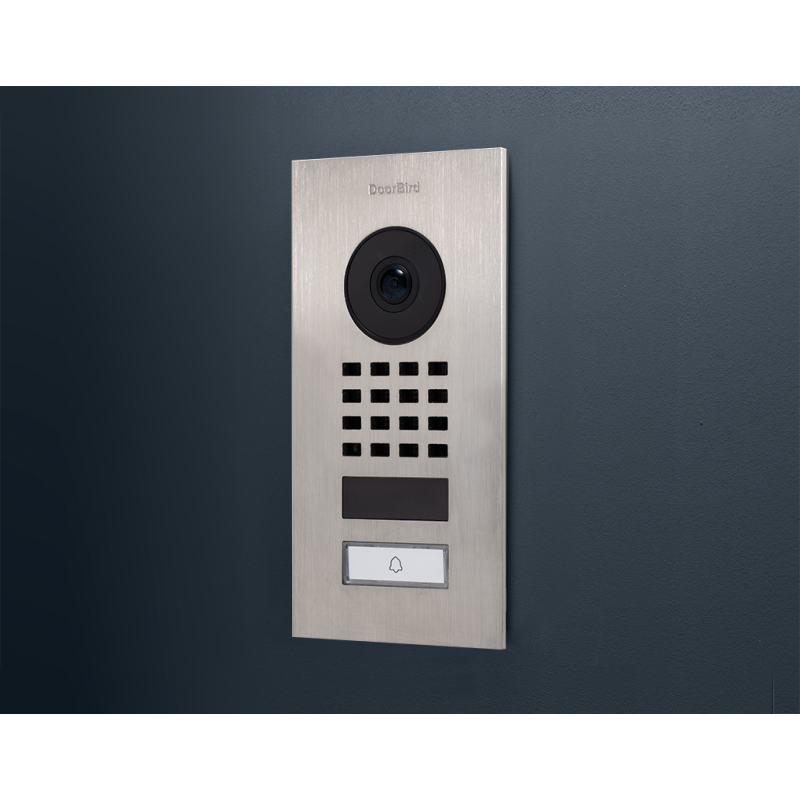

Faceplate 3 mm (0.12 in), Available in V2A / V4A stainless steel, brushed and bronze finish

Rear mounting box: Stainless steel

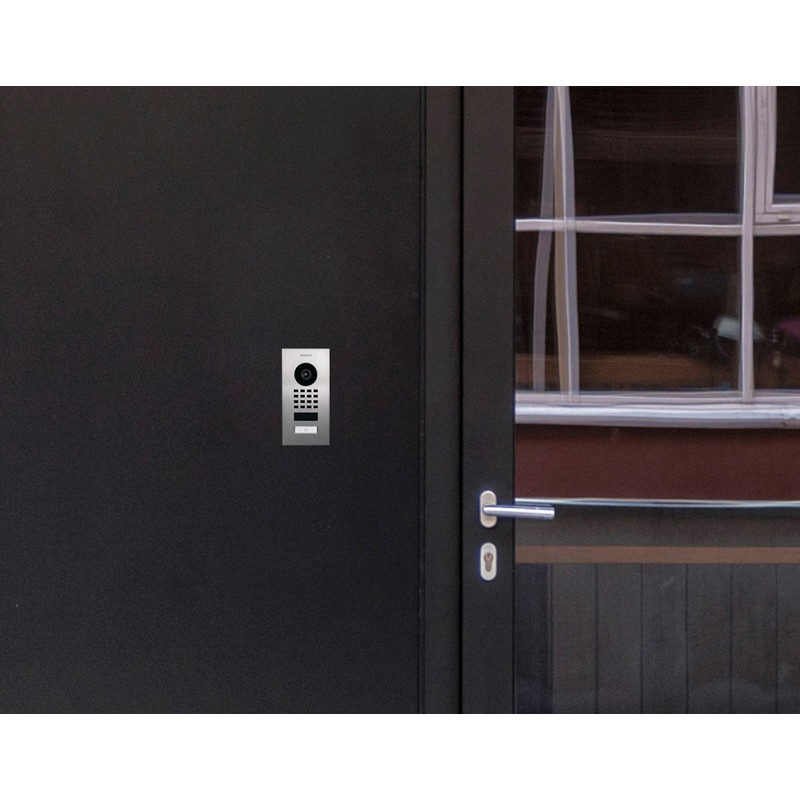

Mounting Type: Flush Mount, Surface Mount Housing Sold Separately

Call button: Plastic

Illuminated identification plate

Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)

Weight 471g

Connections

" LAN/PoE (T+, T-, R+, R-)

" Bistable latching relay (potential free), max. 1-24 V DC/AC, 1 A, e.g. for electric door openers

" Switching relay, max. 24 V DC / AC, 1 A, e.g. for conventional doorbells

"External input for external lock releases

" 15 V DC input (+, -), max. 15 W Climate protection Yes, IP65 Compliance IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi CERTIFIED" Dimensions 151 .9 x 65 x 32 mm (W x H x D) 5.98 x 2.56 x 1.26 in (W x H x D) Service Conditions -25°C to +55°C / -13°F to 131°F Humidity relative air from 10% to 85% (does not condense)

Scope of delivery

1 x Electric main unit

1 x Faceplate 1 x Flush Mount Housing

1 x Quick guide with digital passport

1 x Installation Manual

1 x Screwdriver

1 x Small Parts

TECHNICAL SPECIFICATIONS SYSTEM REQUIREMENTS

System Requirements

Mobile device: latest iOS version on iPhone/iPad, latest Android version on smartphone/tablet

Internet: Internet connection via high-speed broadband landline telephone network, DSL, cable or fiber optics, without Socks or Proxy servers

Network: Ethernet network, with DHCP Recommended mounting height The camera lens should be at a minimum height of 145 cm (57 in). Please check the optimal mounting height for your site before beginning installation.

VIDEO

HDTV camera 1080p, dynamic (VGA HDTV)

Objective Hemispherical wide-angle lens 200° (D), 150° (H), 90° (V), rectified, infrared viewing mode

Night vision Yes, light sensor, automatic infrared filter, 12 infrared LEDs (850 nm)

AUDIO Audio components Speaker and microphone, noise and echo reduction (AEC, ANR) Audio transmission Bidirectional NETWORK Ethernet PoE 802.3af Mode-A, 10/100 Base-T WiFi 2.4 GHz b/g/n

Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM

MOTION SENSOR

Active Type Coverage angle 80° (H), 50° (V) Range 1 - 6 m (3.3 - 19.7 ft), depending on environment, configurable in sections of 1 m (3.3 ft).

4D technology. Based on various sensors and built-in algorithms, e.g. e.g. radio frequency energy (ERF)

Configuration Via app, e.g. e.g. " Range of application (1 - 6 m / 3.3 - 19.7 ft) " Direction of movement (approaching, moving away, in both directions at the same time) " Individual events (e.g.: switching of a relay automatic notification, SIP call [ audio/video], HTTP notification (s), "Individual time slots

INTEGRATED WIRELESS MODULES WiFi 2.4 GHz Bluetooth Bluetooth Low Energy (BLE) Sensor 24 GHz, can be disabled

THIRD PARTY INTEGRATION (DOORBIRD INTEGRATION) Integration of our partners See www.doorbird.com/es/connect

API See www.doorbird.com/es/api Simultaneous video transmission One, for event recording

ADDITIONAL ACCESSORIES Available separately
