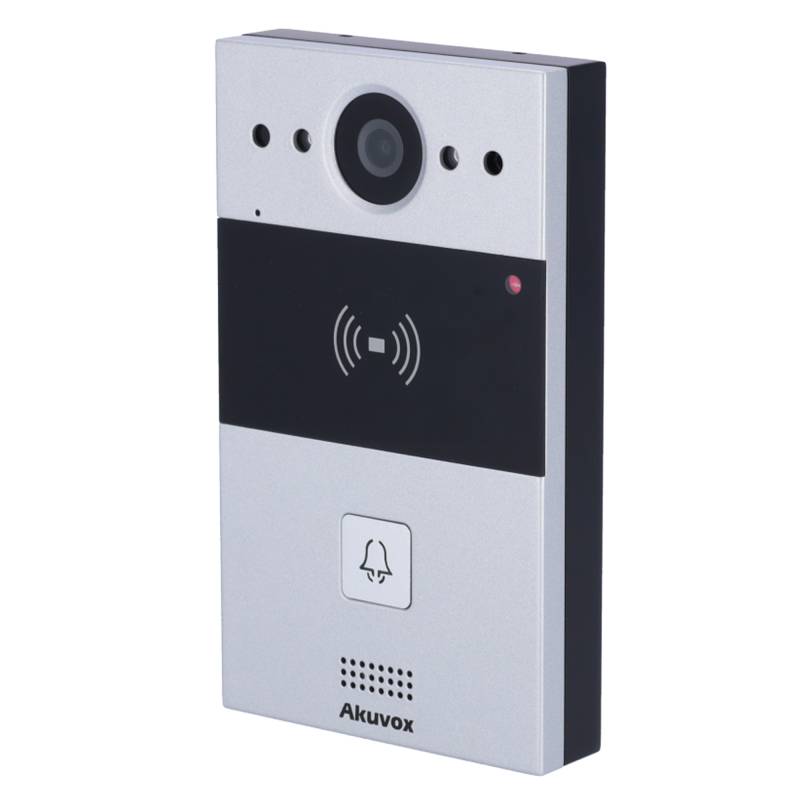

AK-R20A
New
In Stock
Brand | Akuvox |
Model | R20A |

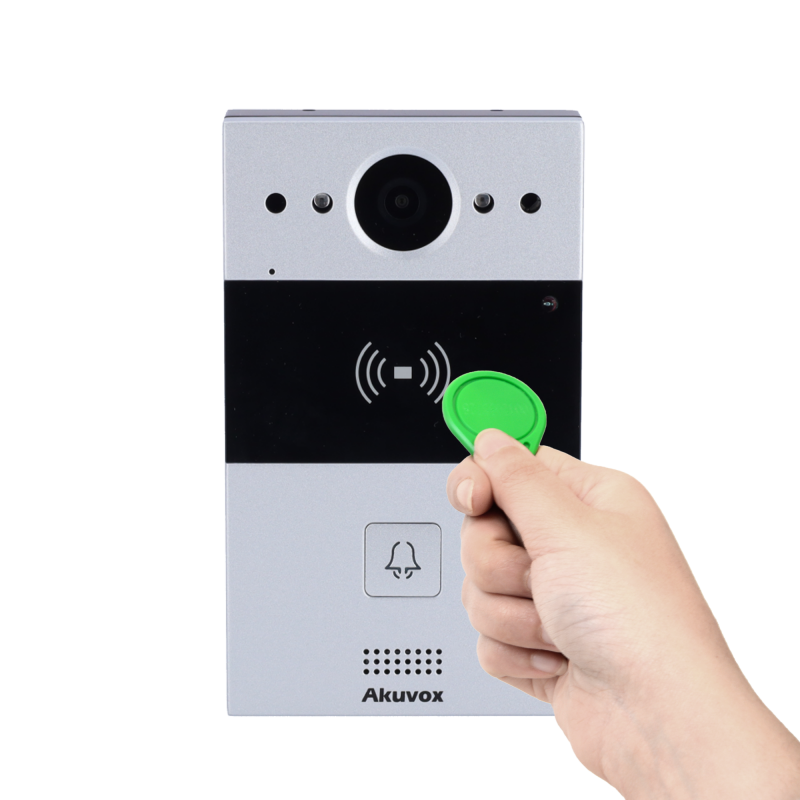

Access control | Door opening with RFID EM 125 kHz and MF 13.56 MHz and NFC card, with registrations |
RFID user capacity | 5,000 cards |
Keyboard | Mechanical call button with configurable LED lighting |

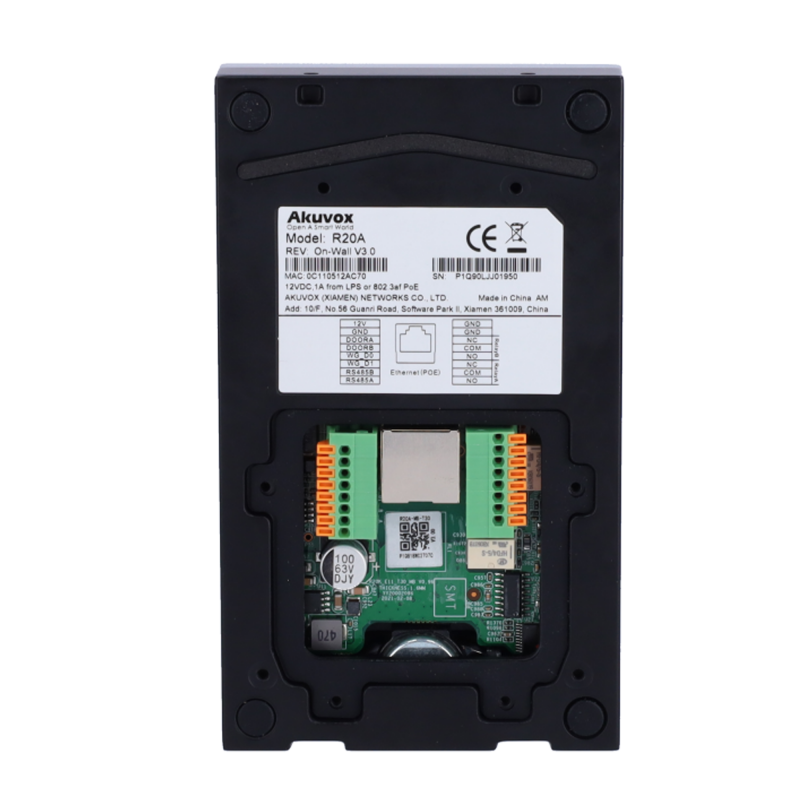

Departures | 2 relays for main locks (12V/500mA), Wiegand OUT and RS485 |
Tickets | 2 push button inputs and Wiegand IN |

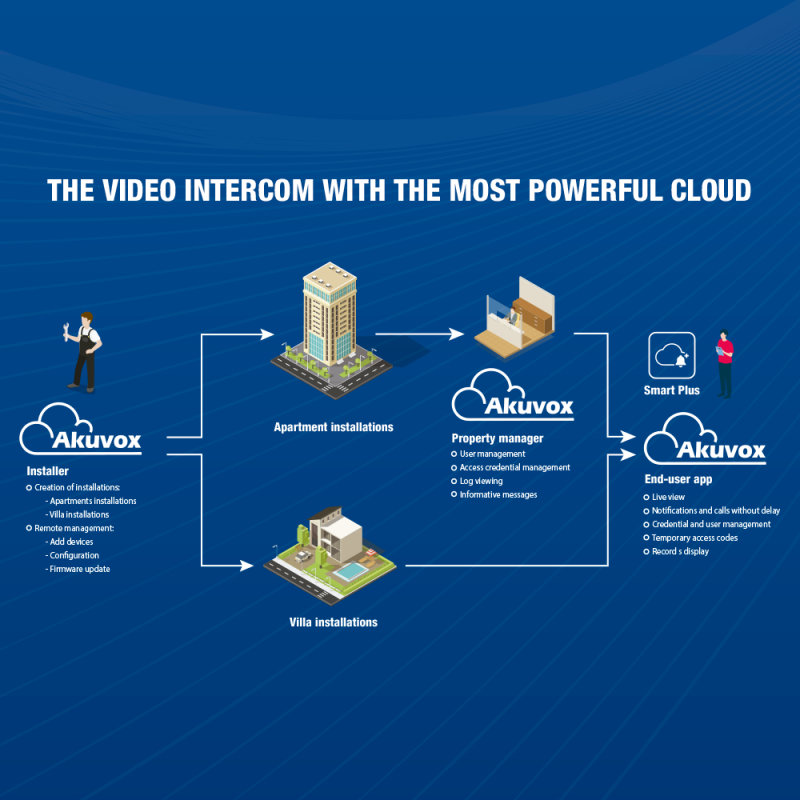

Remote access | SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: yes available |
Image sensor | 1/2.7" 2 Megapixel CMOS with infrared and light sensor |
Vision angle | 110° (H) / 58° (V) |
Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
Video encoding | H.264 and H.265 |
Audio | Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology |
Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722 DTMF (RFC2833), SIP Info |
Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
Operating mode | Local network and/or through the cloud on different networks |
Firmware updates | Remotely with the cloud through an installer account or through a local web browser |
Material | Aluminium alloy |
Degree of protection | IP65 |
Temp. functioning | -40º C ~ +65º C |

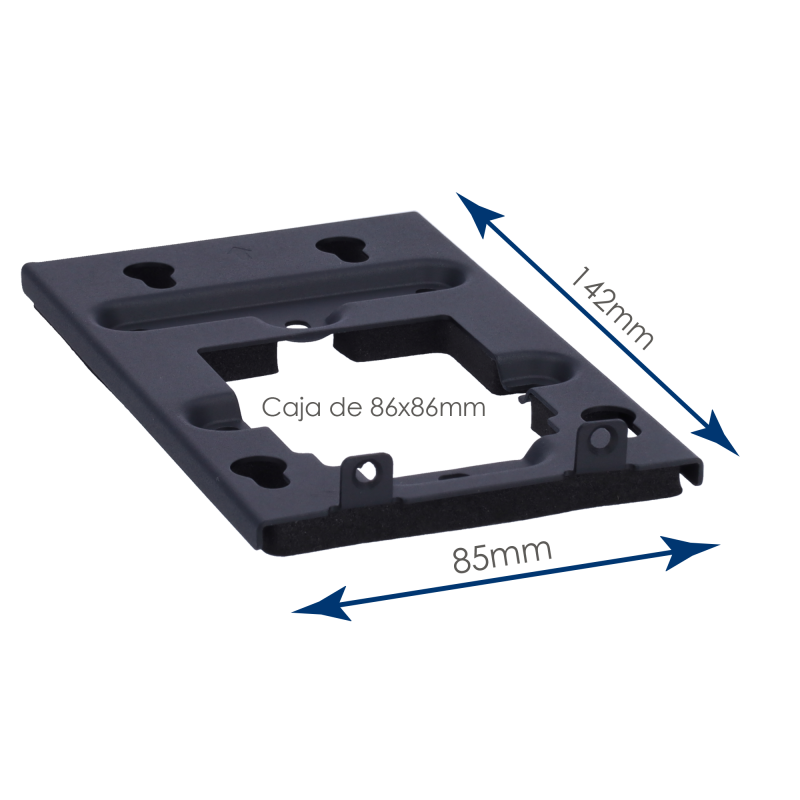

Dimensions | 145 (H) x 85 (W) x 27.5 (D) mm |
Feeding | DC 12 V / 1000 mA max. /PoE IEEE802.3af |
Weight | 800g |
