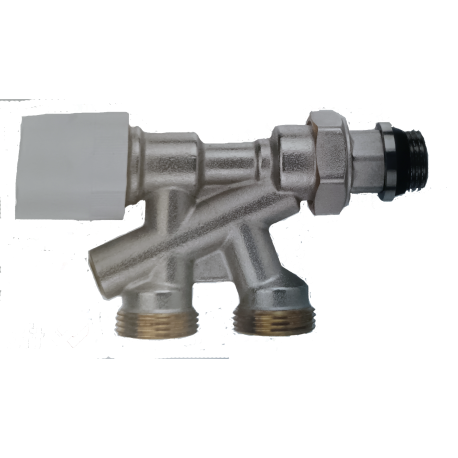

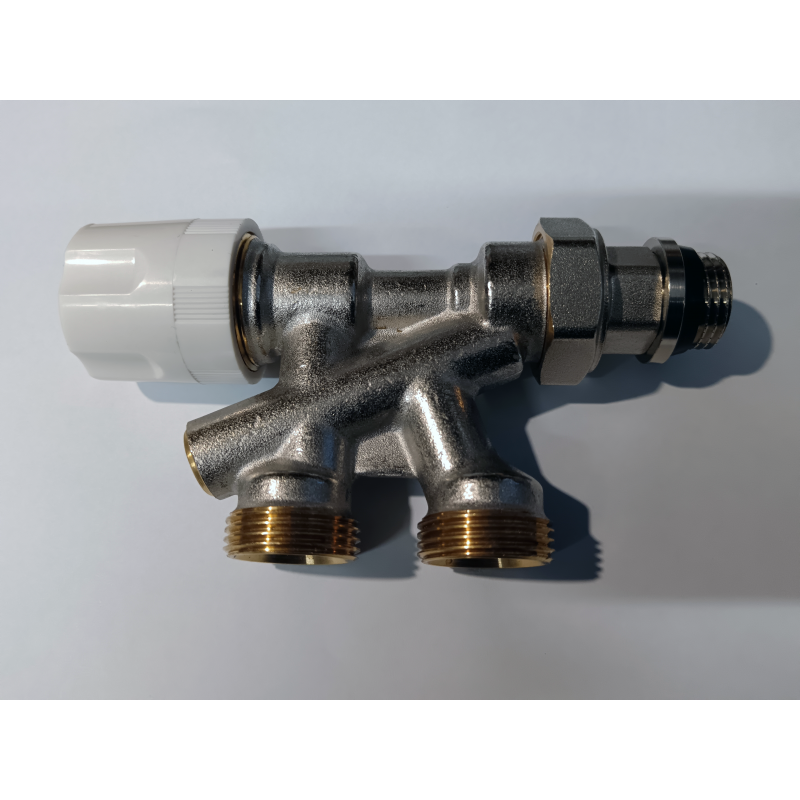

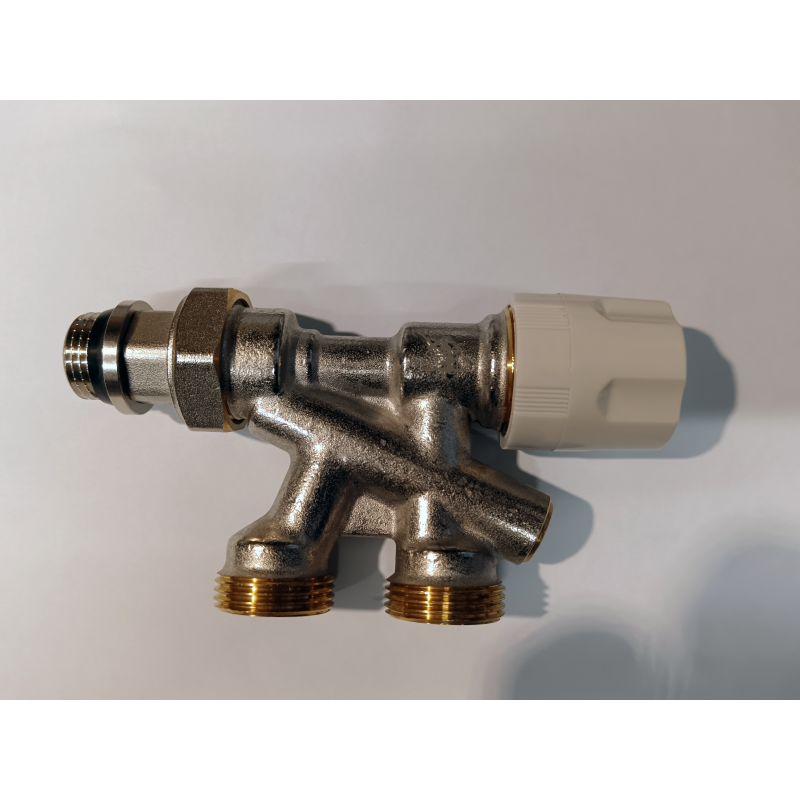

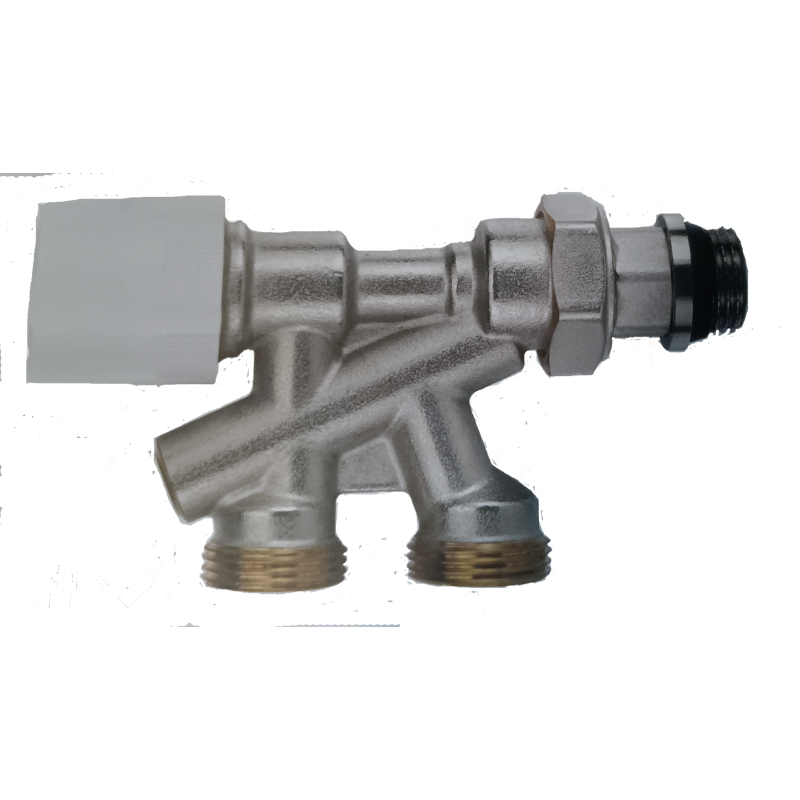

1/2″ COMPACT MONOTUBE thermostatic valve.

- The 4-way monotube tap, for installation in monotubular radiator systems, is manufactured in high quality nickel-plated brass, according to UNE EN 12.165 and UNE EN 12.164 standards.

- Male 3/4’ thread termination for connection by means of a fitting to copper, cross-linked polyethylene or multilayer pipes.

- Thermostatic version suitable for installation with thermostatic head, and manual version with simple adjustment.

- Brass probe included.

- 1/2‘ radiator connection thread and possibility of adaptor for connection to 3/4’ radiator.

- Maximum working pressure: 10 bar.

- Maximum working temperature: 100°C.

**NOTE: BICONOS available (consult us) (not included).

-Probe included.

Single-pipe thermostatic valve, double adjustment, with connection for copper or multilayer pipe adapter.
Temperature range 5 ÷ 110 °C.
Maximum working pressure 10 bar.

Notes
R437X032 includes 450mm plastic probe.
R437X042 includes 125mm plastic probe.
For pipe connection use adapters R178, R179 or R179AM.

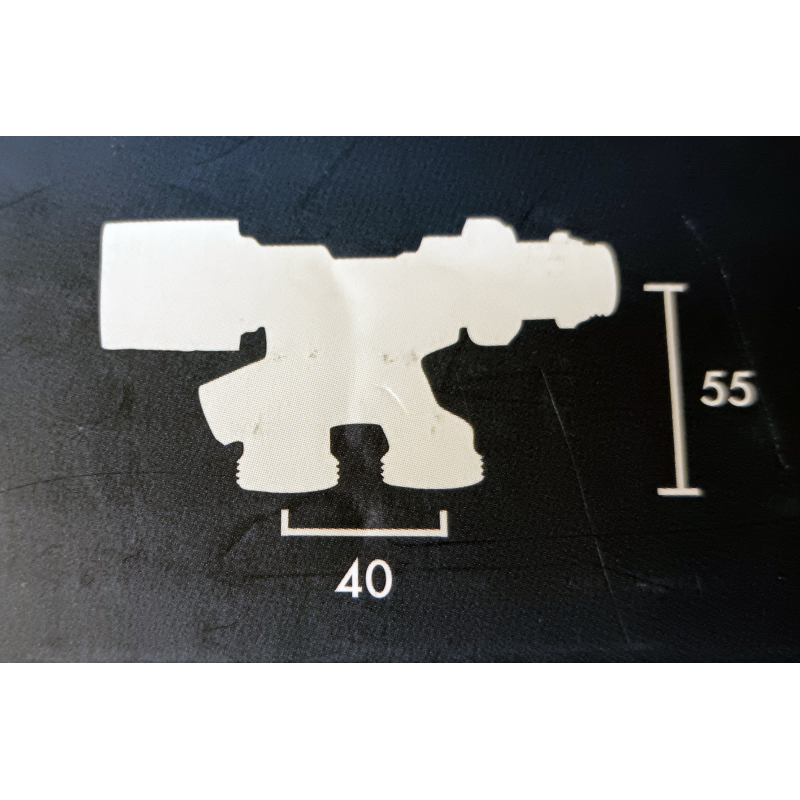

Shaft spacing: 40mm

No flow direction
