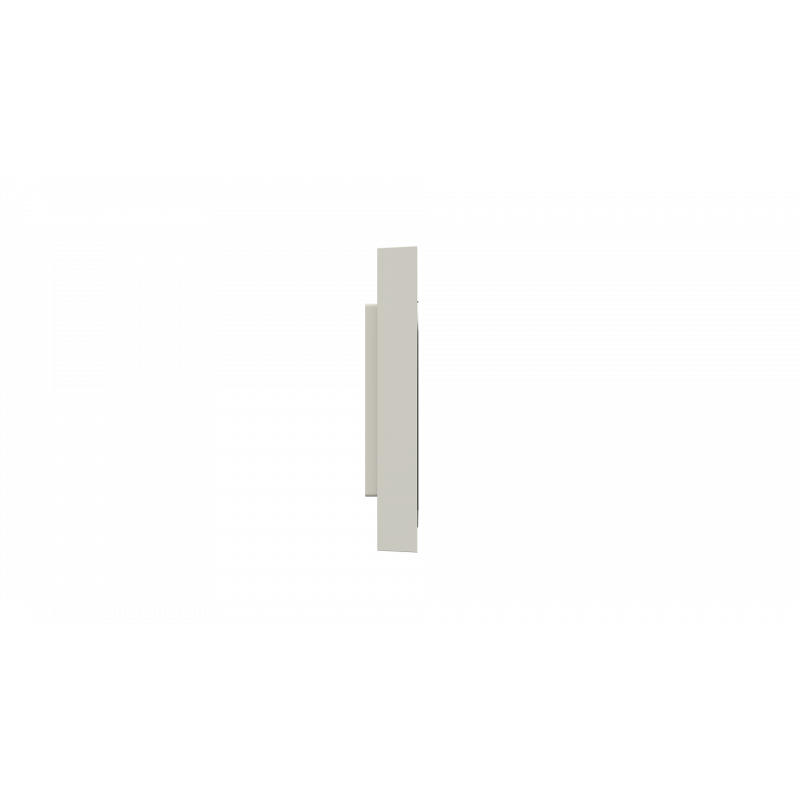

Heatit Z-Push Wall Controller - Recessed Z-Wave Push Button

Technical characteristics

Home Automation Technology	Z-Wave 700 Series

More info

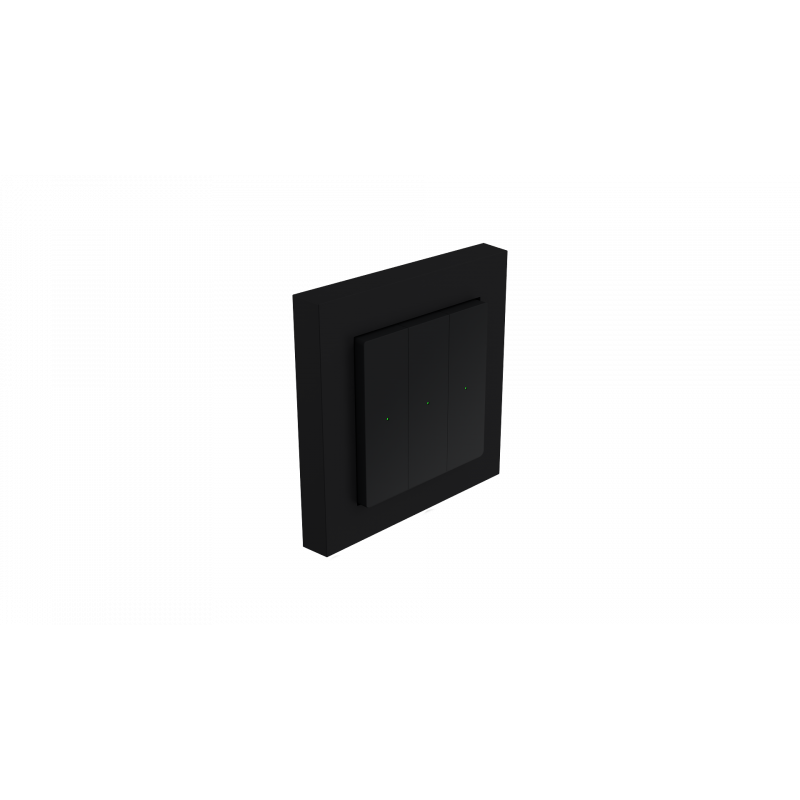

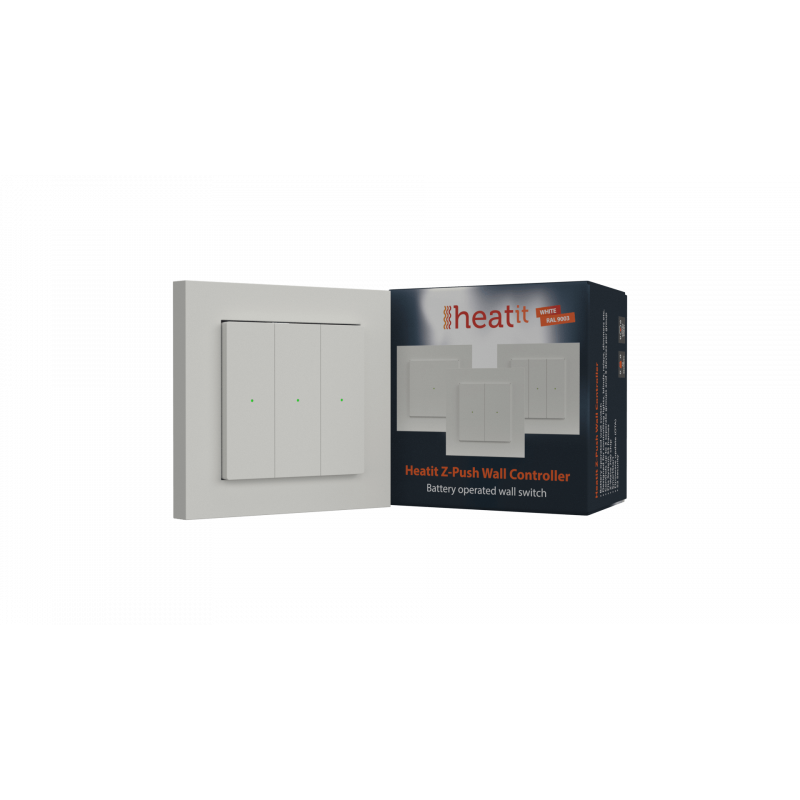

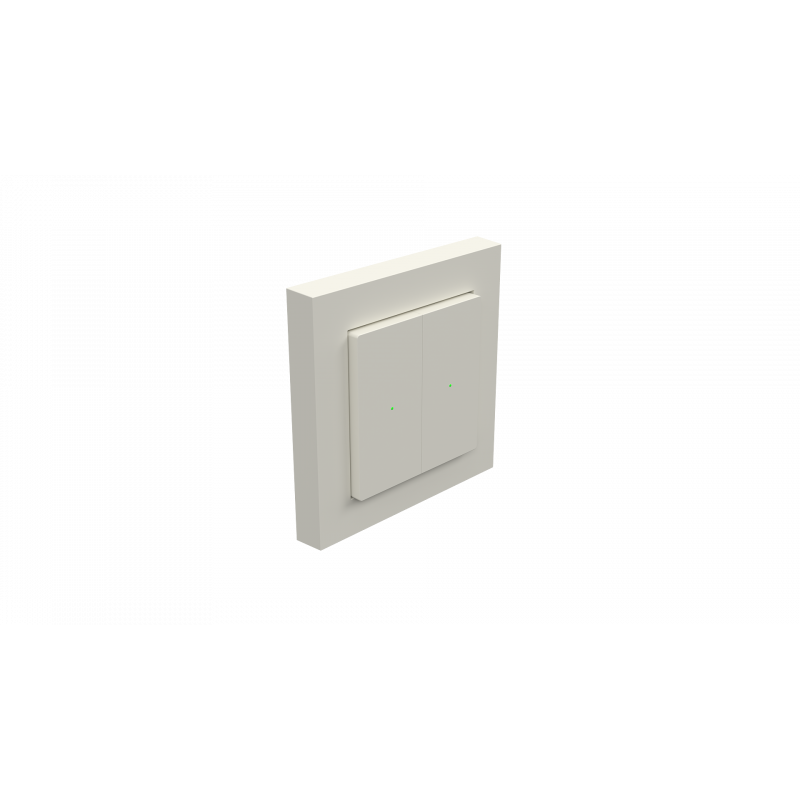

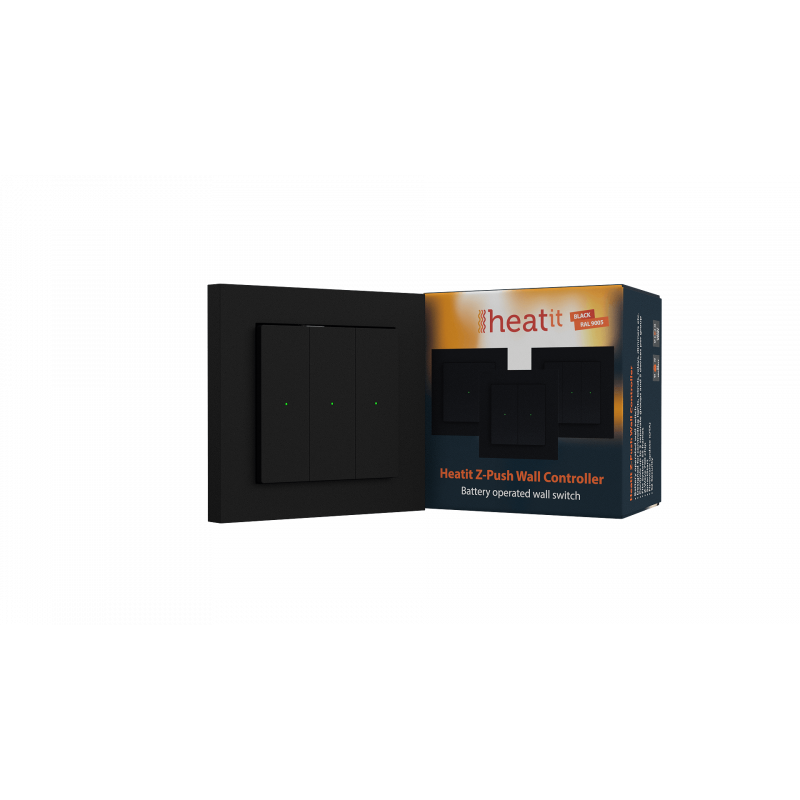

Heatit Z-Push Wall Controller is a Z-Wave switch for wall mounting. It comes with three fronts or keys, so you can choose from 1, 2, or 3 toggle switches. This makes it easy and convenient to manage your Z-Wave products. The switch can be configured to control scenarios or work with other Z-Wave products. Each toggle switch has a two-color LED to indicate actions. This Heatit Z-Push wall controller comes with all three rocker switch fronts.

The Heatit Z-Push wall controller is powered by a button-type battery.
The product is primarily intended for use in homes, but can be used in other, more commercial settings.

Heatit's Z-Push wall controller features SmartStart. This feature allows the user to include all devices with SmartStart by scanning the QR codes of the devices. Upon startup, all devices are automatically included in the home automation controller (requires SmartStart support).

The product is delivered in a matte version.
Fits System-55 frames.

Main Features of Z-Push

Battery Operated Wireless Wall Switch
Designed to control lights, blinds, relays, dimmers, etc.
Fits System 55 frames
Smartstart
Control up to 3 separate groups and 5 devices per group
10 scene shots per seesaw
Easy to put on
Firmware update (OTA)
Supports S0, S2 Class Authenticated, S2 Class Unauthenticated encryption modes

Z-Push technical data

IOT Protocol: Z-Wave - 868.4 MHz (EU)

Voltage: 1 x CR2450 Battery

Degree of protection (IP): IP 20

Certifications: Z-Wave Plus

Ambient storage temperature range (° C): - 40

Dimensions (LxHxH): 55x55x13

International standard: CE, RoHS 2002/95 / CE, 2002/96 / CE (WEEE), 1999/5 / CE (RTTE)

Radio frequency signal range (maximum number of meters): 40

Maximum ambient humidity (% RH): 95% RFA meters): 40

Maximum ambient humidity (% RH): 95% RF

Fastening / mounting: Double-sided adhesive tape

Product height (mm): 14

Product Length (mm): 55

Product Weight (gram): 140

Product Width (mm): 55

Chip Type: Z-Wave 700 Chip

Z-Wave encryption mode: S2 Unauthenticated Class, S2 Authenticated Class, S0

Extended Z-Wave info

Name: Heatit Z-Push Wall Controller

Manufacturer:Heatit controls

Identifier:Z-Push Wall Controller

Z-Wave Certification Number:ZC12-21030196

Hardware Plattform:ZGM130

FLiRS:NO

Role Type:Reporting Sleeping Slave

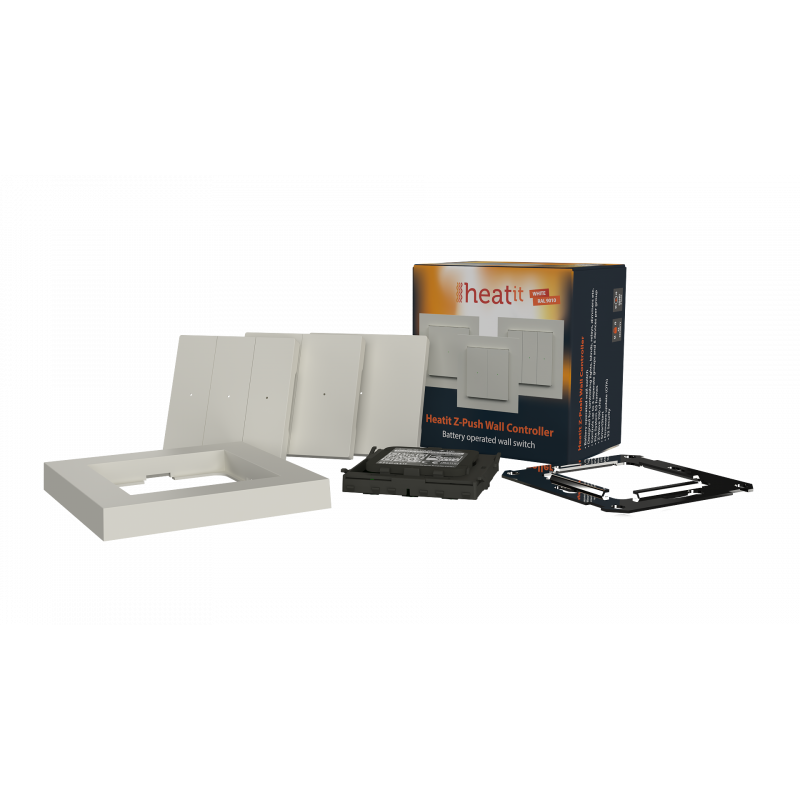

Short Description:The Heatit Z-Push Wall Controller is a wireless wall mounted Z-Wave Controller. It has mounting options for 1, 2 or 3 rockers, allowing for easy and practical management of your Z-Wave products. The Heatit Z-Push Wall Controller is supplied with all three sets of rockers in the box.

Description:The Heatit Z-Push Wall Controller is a wireless wall mounted Z-Wave Controller. It has mounting options for 1, 2 or 3 rockers, allowing for easy and practical management of your Z-Wave products. The switch can be set up to control scenarios or work in association with other Z-Wave products. Each rocker switch has a dual color LED to indicate button actions. The Heatit Z-Push Wall Controller is supplied with all three sets of rockers in the box. The Wall Controller is coin cell battery powered. The product is intended primarily for residential applications. The Heatit Z-Wall Wall Controller has a fine, matt finish. The switch fits into System 55 frames.

Manual download HERE.

Group

Max Nodes

Description

1

5

Lifeline (Normally used by the Z-Wave Controller) - Battery notification (sent when the battery runs low). - Device reset locally (sent if the device is reset). - Central scene notification.

2

5

- Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF (0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

3

5

- Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF(0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

4

5

-Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF (0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

Number

Size (Bytes)

Default Value

Name

Description

1

2

Select Button reports

Configure reports sent when pressing buttons: 0 - Send Central Scene Command only 1 - Send Group Association Command only 2 - Send Central Scene and Group Association Commands

2

1

Enable LED

0 disable,1 enable

3

1

3

Active Button rockers

If there is issue where, single button accidently presses other buttons, customer can turn of different button groups. Not needed if plasic design already prevents this. 1 = Buttongroup 3 is used (when sigle rocker is used) 2 = Buttongroup 2 & 4 is used (when double rocker is used) 3 = Buttongroup 2, 3 & 4 is used (when triple rocker is used)

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Central Scene V3

COMMAND_CLASS_CENTRAL_SCENE_V3

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

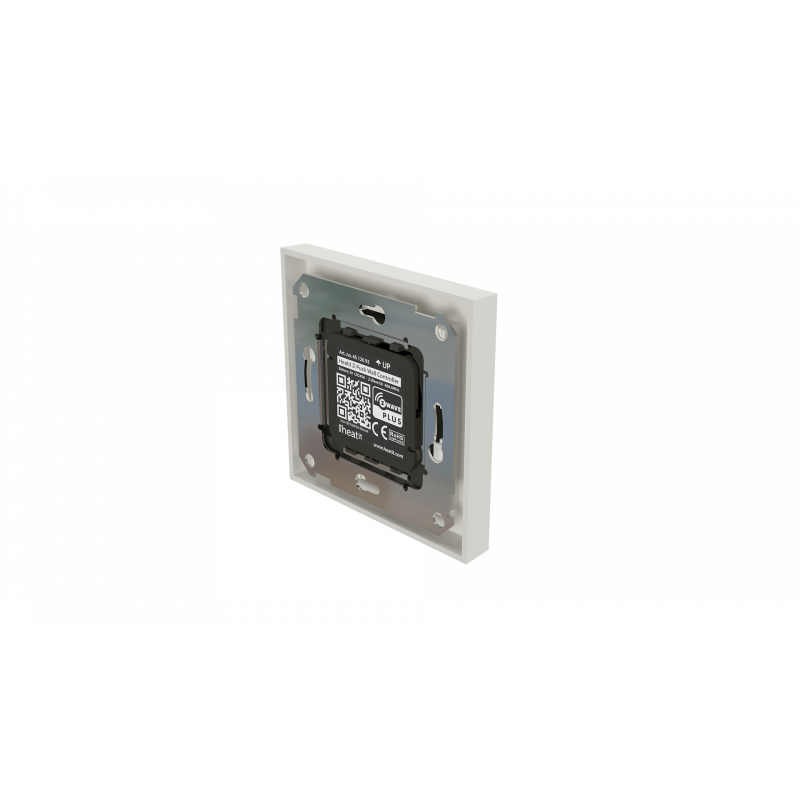

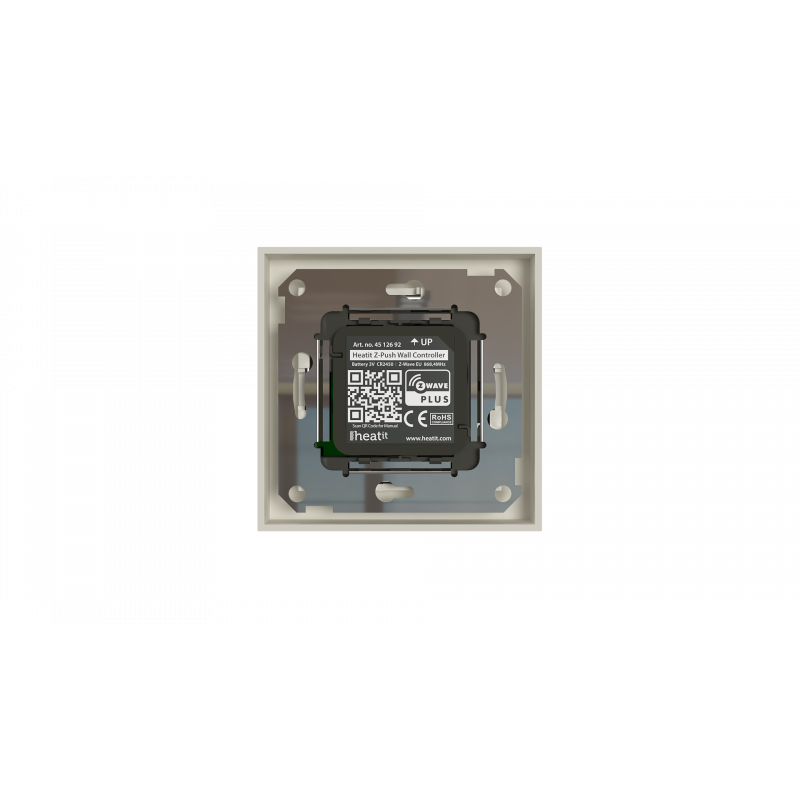

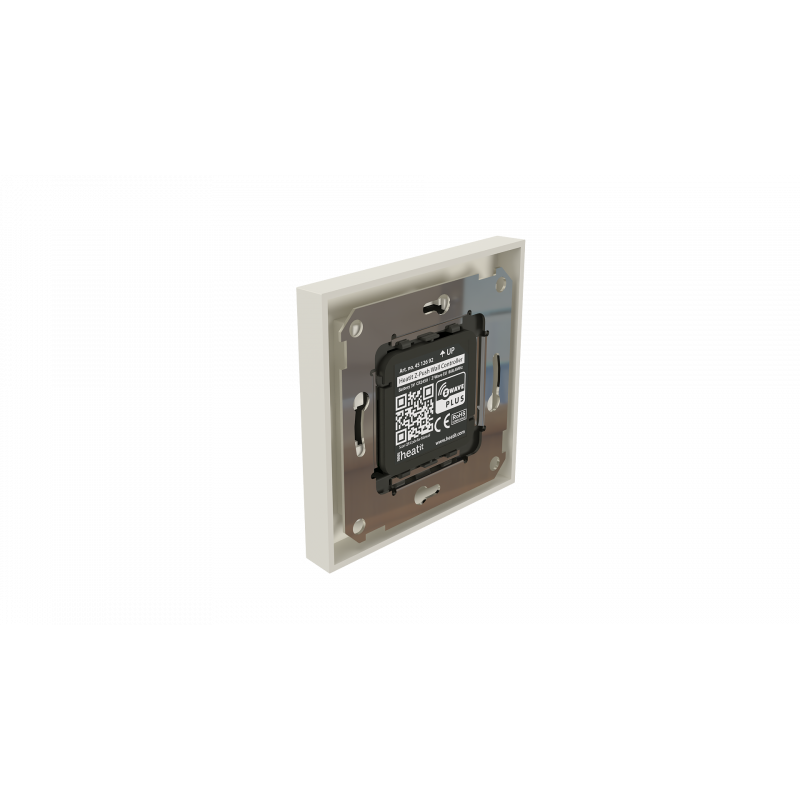

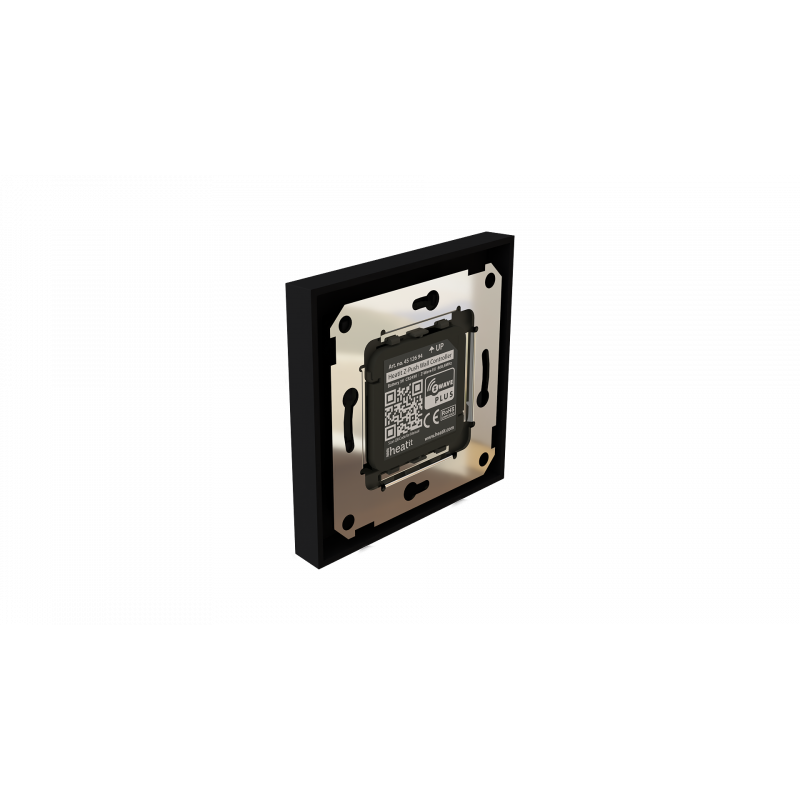

Where to find S2 DSK on product

The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;

1. On the product.

2. On the Quick Guide manual.

3. On the product box.

Classic Inclusion

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.

There are two ways to add the device to a Z-Wave network.

Method 1: Standard (Manual)

Initiate the learning mode in the controller.

Press any UP button 6 times within 3 seconds.

When the add mode has started, the LED corresponding to the button you pressed will blink green. The device will indicate ”Success” by emitting a green light for 3 seconds.

Method 2: SmartStart (Automatic)

SmartStart-enabled products may be added to a Z-Wave network by scanning the Z-Wave QR-Code on the product if your primary controller supports SmartStart inclusion. No further action is required and the SmartStart product will be added automatically after being powered on within range of the primary controller.

Classic Exclusion

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.

When the device is removed from the network, it will NOT revert to factory settings.

Wake-Up Procedure

To manually wake up the device, please press any down button 6 times. The device will light up in green until wake up is no longer active. The default wake up interval in seconds: 604 800 (1 week).

Factory Reset Procedure

To factory reset the device, remove the battery from the device. Press and hold any button on the device and repower the device. The LEDs will start blinking 3 times before lighting up in green. When the green LED is on, you can release the button. The device will issue a Device Reset Locally Notification Command to notify that the device will be reset to default. When preforming a factory reset the device will lose its Node ID from the gateway and reset its Home ID.

Other Special Features

Paragraph 5 Choosing the correct front/assembly

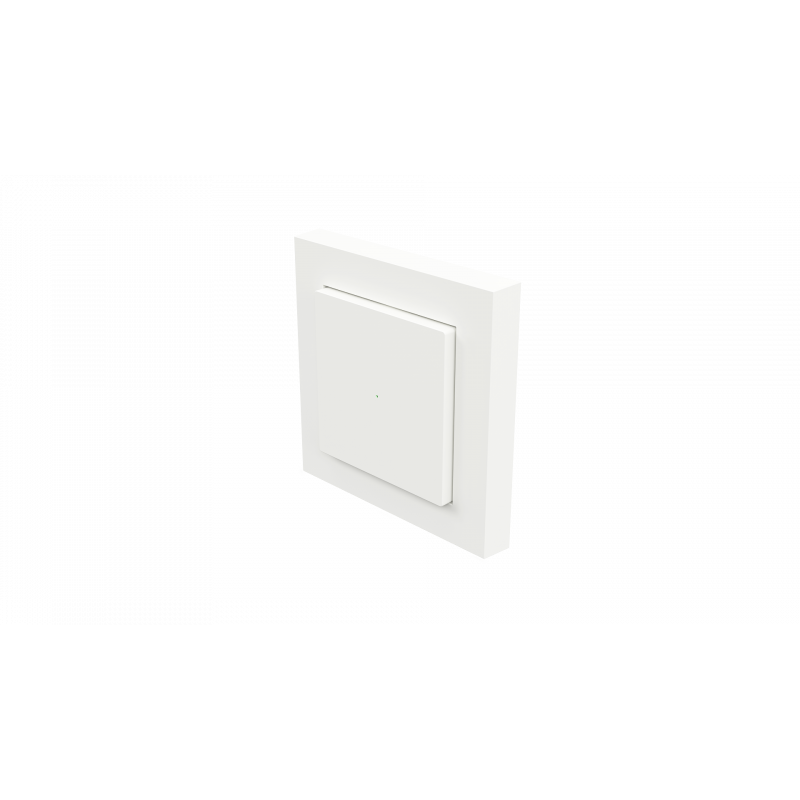

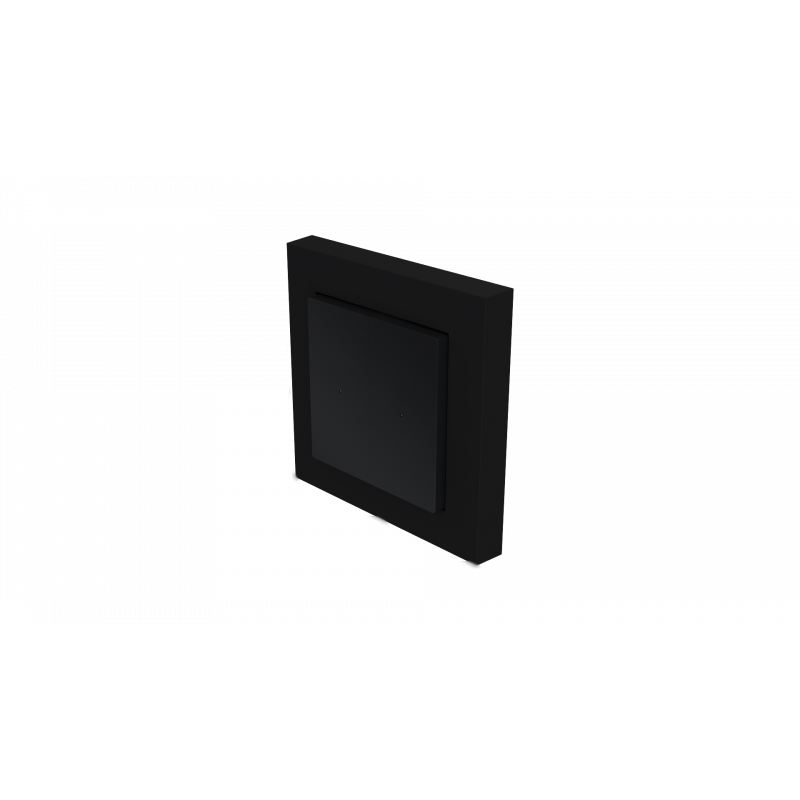

5.1 Single rocker configuation When the device is in single rocker configuration, it uses associations group 3. Change Parameter 3 to 1 when using a single rocker.

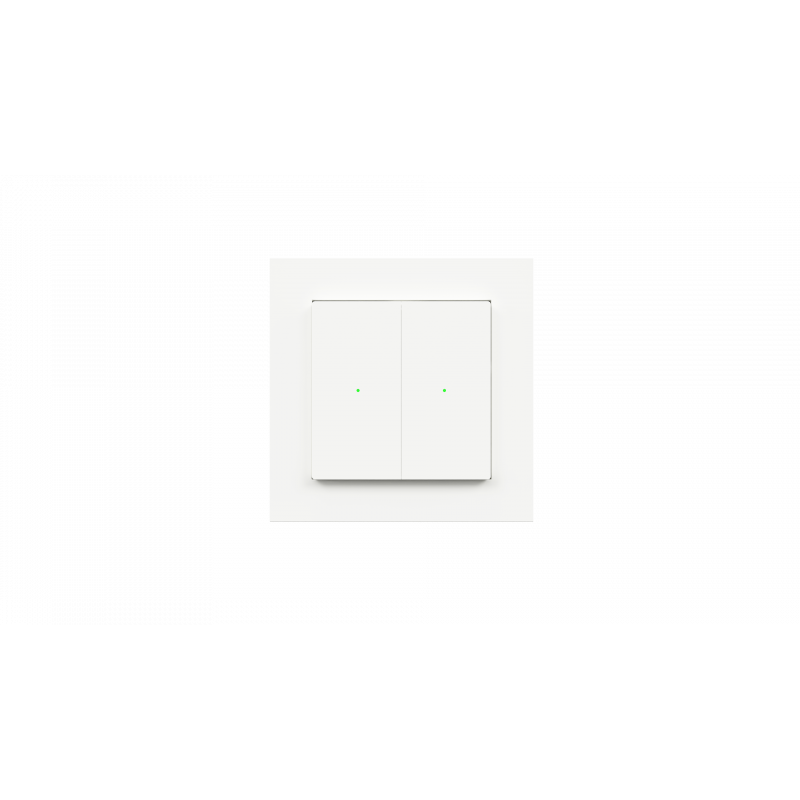

5.2 Dual rocker configuration

When the device is in dual rocker configuration, it uses associations group 2 for the first button and 4 for the second button.

Change Parameter 3 to 2 when using dual rockers.

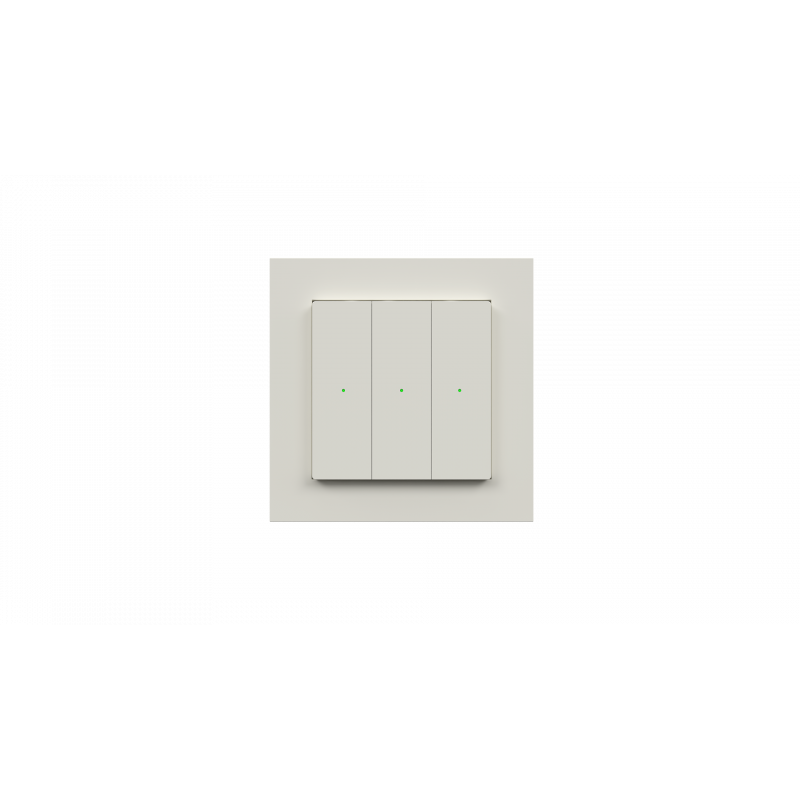

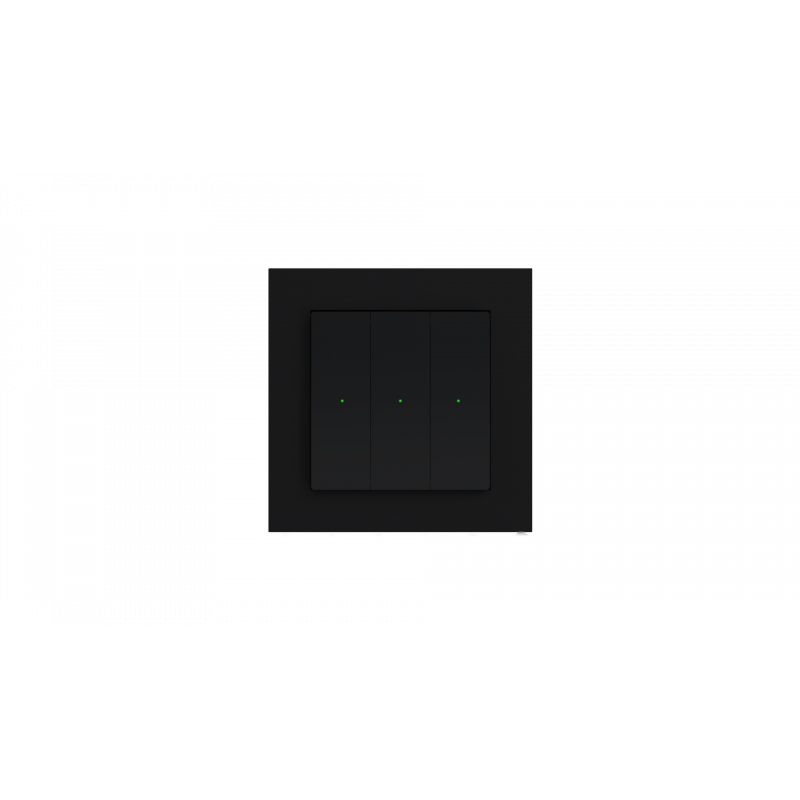

5.3 Triple rocker configuration

When the device is in triple rocker configuration, it uses associations group 2 for the first button, 3 for the

second and 4 for the third button.

Change Parameter 3 to 3 when using dual rockers.
