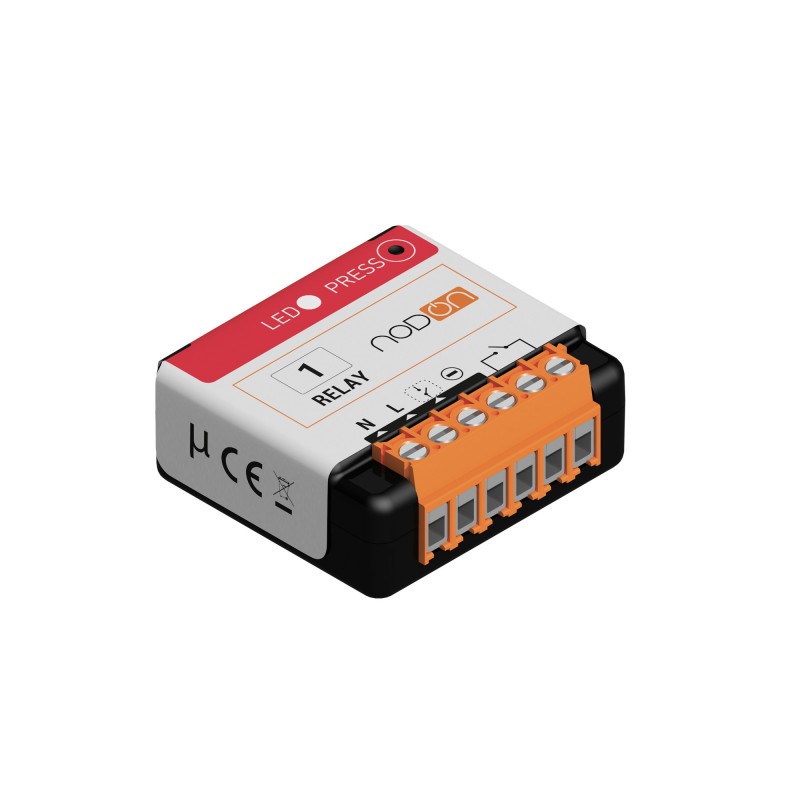

NODON - Zigbee 3.0 Multifunction Module

In essence, the NodOn Zigbee Multifunction Module is a Zigbee dry contact relay that allows you to control a garage door, a gate, a radiator, a plug, a boiler...

It quickly installs into existing equipment to be connected and remotely controllable with a smartphone, by voice or automatically. (requires a compatible home automation center with Zigbee technology)

HIGH SWITCHING CAPACITY

3680W, to control individual or collective appliances (water heater, boiler...)

POTENTIAL FREE OUTPUT

The module has a dry contact output

ULTRA COMPACT PROFILE

Installation in flush-mounted boxes from 30 mm

INSTALLATION IN THE ELECTRICAL PANEL

Requires DIN rail box (optional)

OVER THE AIR (OTA) UPGRADE

The module is quickly updated thanks to the OTA function. Updates can be done through a compatible home automation system

COMPATIBLE WITH ALL ZIGBEE SYSTEMS
Zigbee 3.0, this module is 100% Zigbee interoperable

FUNCTIONS:

Control a light/appliance remotely
Installs behind existing switches
ON/OFF function
Free potential production
Small, discreet and aesthetic
Easy to use and install
Compatible with all Zigbee 3.0 gateways
Over-the-air (OTA) update
TECHNICAL CHARACTERISTICS:

Power supply: 230V AC ~ 50Hz
Switching capacity: 230V AC - 16A
Power consumption: < 1W
Maximum power : 3680W 3680W - Integrated zero crossing
Radio protocol: Zigbee 3.0
Radio frequency band used: 2.4 GHz
Maximum radio power: +10dBm
Radio range: up to 40m indoors
Operating temperature : -20°C to 60°C
Protection class: IP20
Device ID Type: Output On/Off (0x0002)
Trade warranty: 2 years
