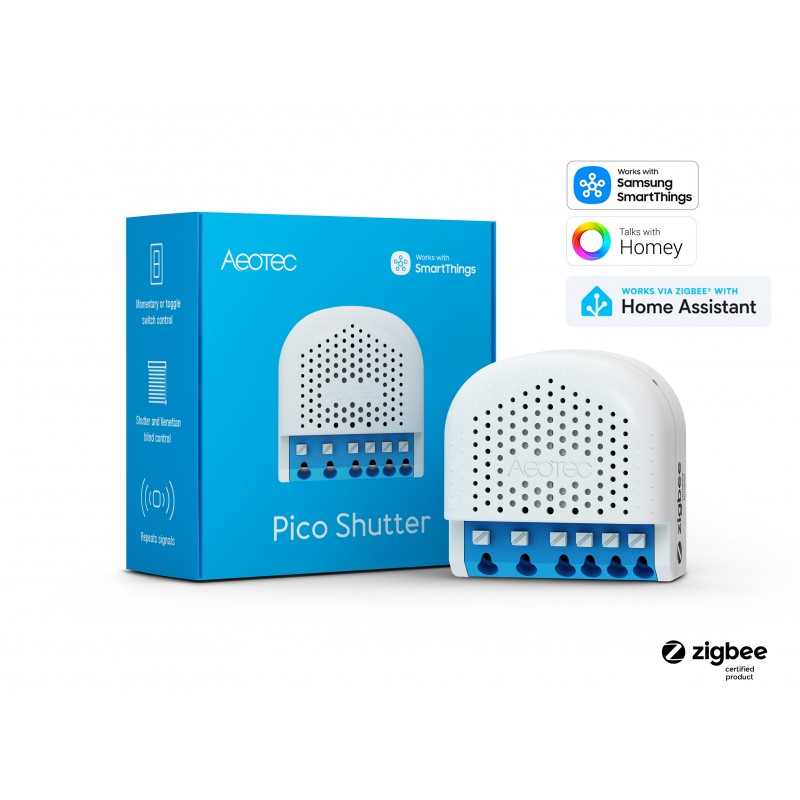

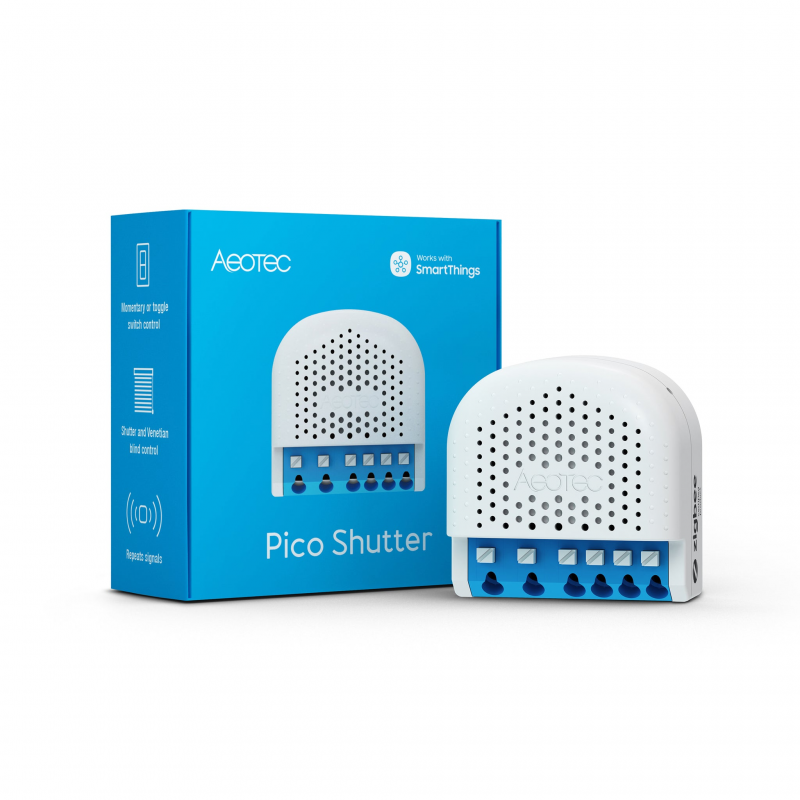

Aeotec Pico Shutter (Zigbee) - Blinds and awnings control micro-module

Introducing the Aeotec Pico Shutter Zigbee integrated with SmartThings Shutter Series, revolutionizing your home into a cutting-edge, intelligent haven. Say goodbye to antiquated switches and embrace a new era of comfort, convenience, and control. Moreover, the Pico Series, powered by Zigbee and Matter technology, offers retrofittable in-wall switches for monitoring and managing socket or light energy consumption, seamlessly integrated with SmartThings for your Smart Home experience.

Venetian blind control.
Control not just the Open/Close position of your shading, but also the angle of your venetian blinds for the perfect room light.

Powerful scene controller.
Start scenes or routines in your Smart Home Hub by pressing the connected switch 1x, 2x or 3x.

Cooperation with different switch types.
Pico Shutter can be connected to momentary or toggle switches. The built in automatic switch recognition sets the Pico into the perfect state.

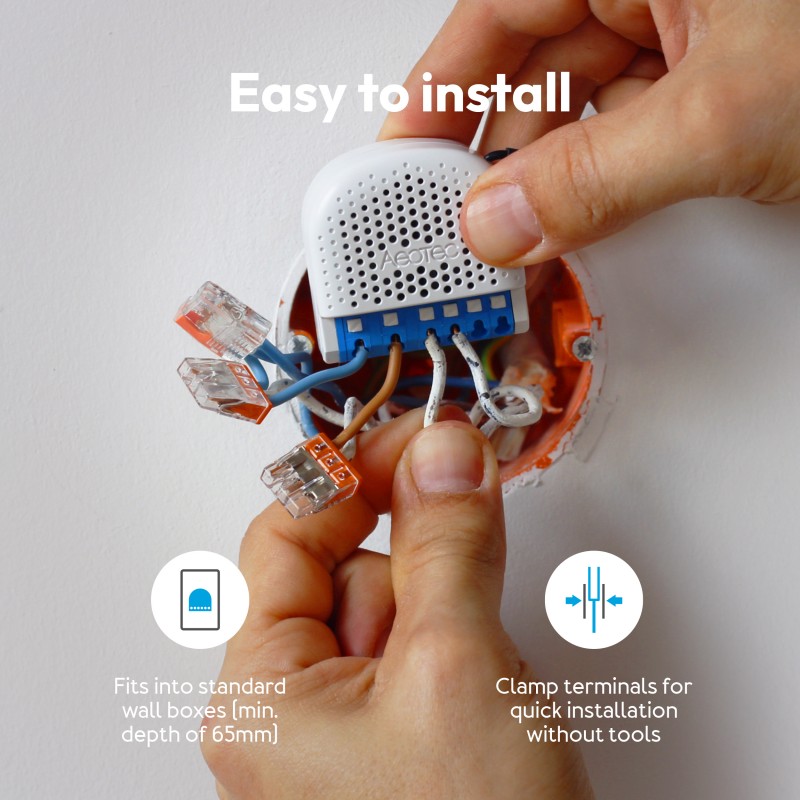

Easy & fast installation.
Additionally, installation is a breeze with the Pico Shutter, designed to fit seamlessly into any standard electrical box. There is no need for complex wiring or extensive technical knowledge. The Aeotec Pic’n Go design is equipped with standardized spring terminals, which are easy to install and reliable. Plus, with its durable construction and reliable performance, you can trust that the Smart Home Inwall Switch will stand the test of time.

Pico, the powerful...
Pico Shutter is packed with features, making it the ultimate smart shutter for your home. From scheduled shutter control to seamless integration with SmartThings, it offers a world of convenience and control. Additionally, with DIN certification and built-in safety measures, it is not just smart; it is also safe. Experience a smarter, more efficient lifestyle with Pico Shutter.

Features:

• Schedule your shades and shutters based on your habits.
• Compatible with leading platforms.
• Capability of controlling motorised gates and doors.
• Automatic switch recognition.

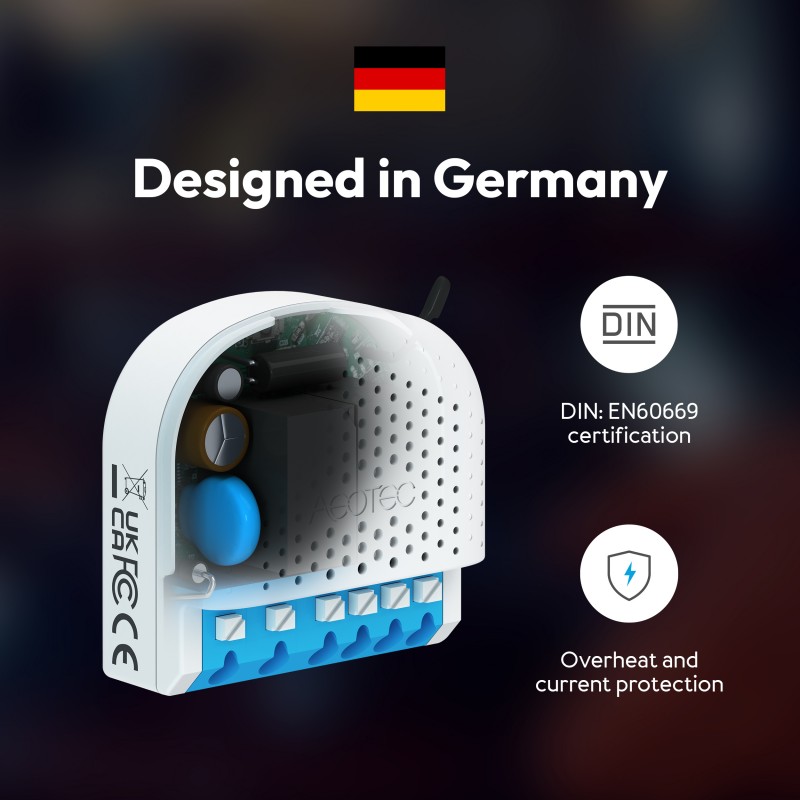

• DIN EN60669 certification.
• Edge driver based SmartThings integration.
• Automatic calibration
• Easy installation with no screw terminals.
• Over current and heat protection.
• Zigbee 3.0 and Touchlink function for direct pairing.

Technical Specs:

• Zigbee Hardware: EFR32MG21
• Zigbee 3.0 Repeater: Yes
• Zigbee Backward Compatibility: ZHA, ZLL
• Zigbee Profile: 0x0104 (Home Automation)
• Max Signal Strength: 17.02 dBm
• Device max. Power Consumption: 1 W Power Rating: 110-230V~, 50/60Hz
• Supported Switch Types: Momentary (NC/NO); 2-Way Switch; SPDT Switch
• Max Current: Resistive – 3,6A
• Built-in: Overheat protection, Surge Protection, Temperature Sensor
• Operating Temperature: 32°F to 104°F/0°C to 40°C.
• Relative Humidity: 8% to 80%.
• Operating Distance: More than 50 meters indoors. Up to 100 meters outdoors.
