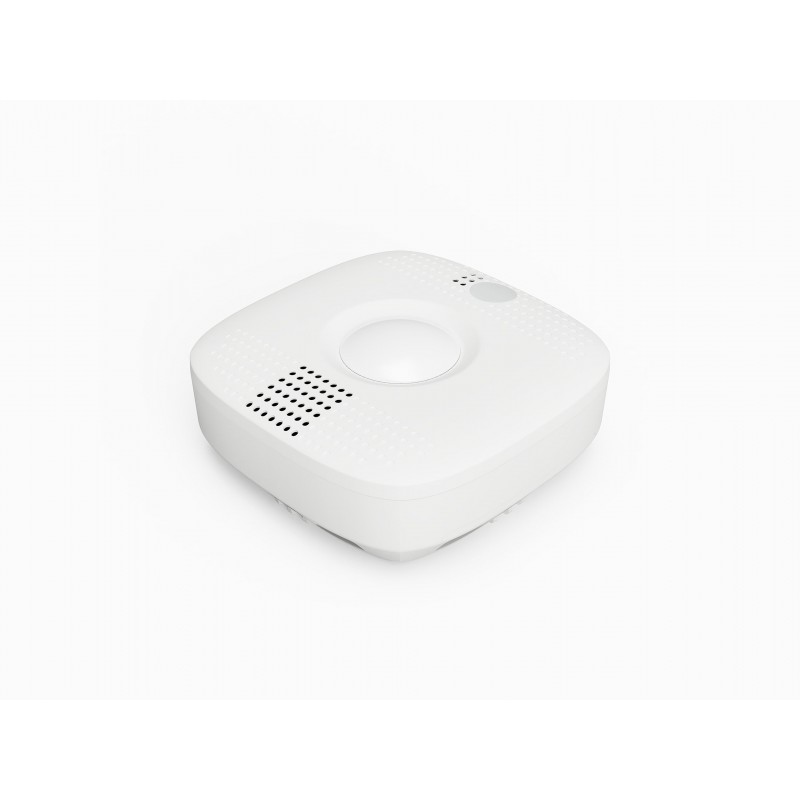

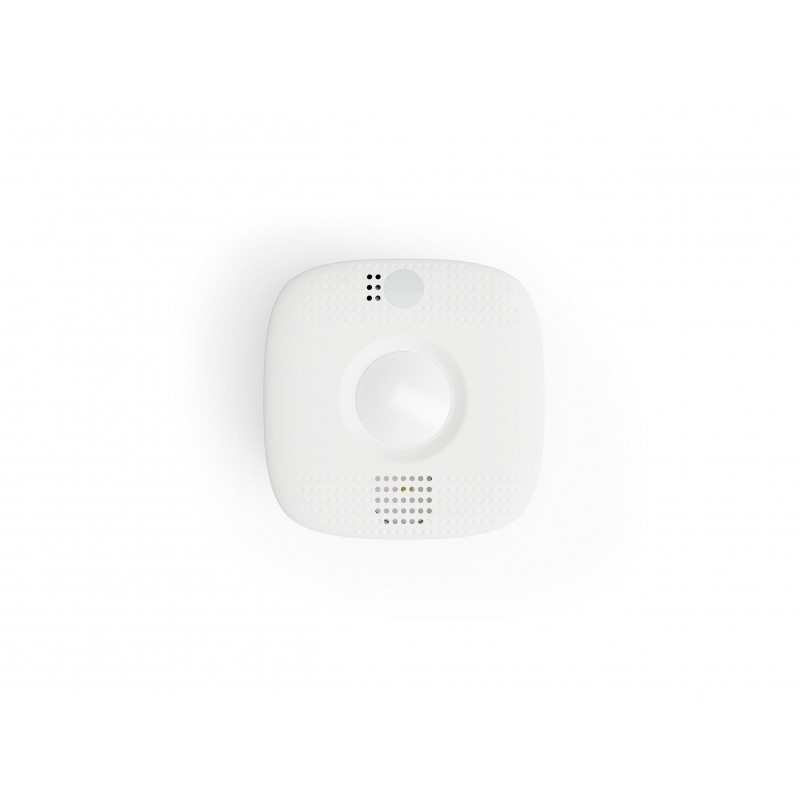

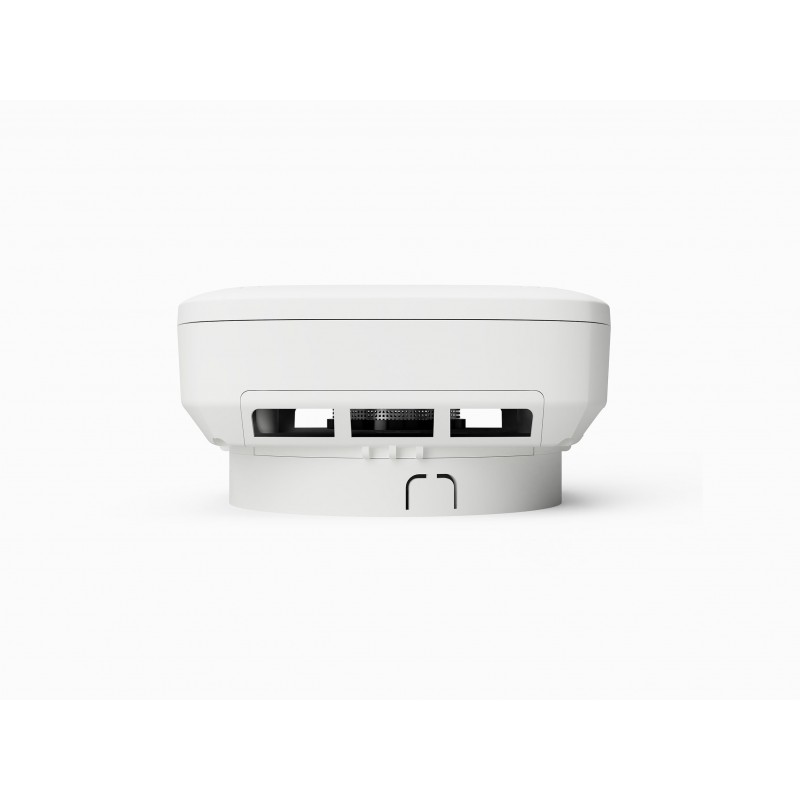

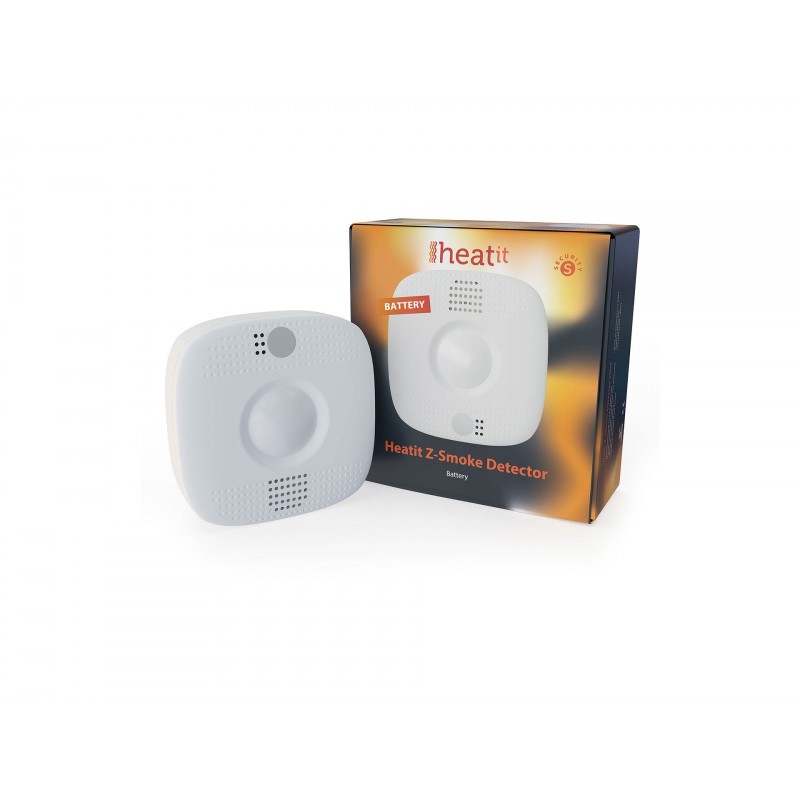

Heatit Z-Smoke Detector - sensor de humo Z-Wave a bateria

Ver más grande

Previo

Heatit Z-Smoke Detector - sensor de humo Z-Wave a bateria

Referencia HEATIT-4512688

Estado: Nuevo

El Heatit Z-Smoke es un sensor de humo inalámbrico multifuncional para sistemas domésticos inteligentes. Versión a pilas.

Más detalles

Sin Stock

Eliminar de mis favoritos
Agregar este producto a mis favoritos
Imprimir

Características técnicas

Tecnología Domótica	Z-Wave Plus

Descripción

El detector de humo Z-Smoke de Heatit es un sensor de humo multifuncional para sistemas domésticos inteligentes basados en Z-Wave. Con sus potentes características, el sensor está diseñado para proteger a la familia de posibles riesgos de incendio. Con su diseño compacto y aerodinámico, el detector de humo Heatit Z-Smoke se integra sin esfuerzo en la decoración de su hogar y le ofrece una seguridad adicional.

El detector de humo Heatit Z-Smoke está diseñado para dotar al sensor de más funciones y capacidades. Por lo tanto, puede utilizar características adicionales opcionales como un sensor de movimiento PIR incorporado y un sensor de temperatura. Heatit Z-Smoke Detector tiene un sensor de movimiento PIR incorporado. Puede optar por utilizarlo para crear escenas personalizadas para iluminar el pasillo en mitad de la noche o ayudar a los usuarios a ahorrar energía. La luz de emergencia incorporada le proporciona una alarma y alertas visuales.

El detector de humo Heatit Z-Smoke utiliza un sensor fotoeléctrico reflectante de última generación junto con un microprocesador avanzado para ofrecer un rendimiento óptimo al detectar los incendios en desarrollo y la generación de calor. Cuando se trata de seguridad, no hay lugar para el compromiso.

Información Ampliada Z-Wave (Inglés)

Nombre: Heatit Z-Smoke Battery

Fabricante:Heatit controls

Identificador:4512688

Número de Certificación Z-Wave:ZC10-20127003

Plataforma Hardware:ZM5202

FLiRS:SI

Tipo de Role:Listening Sleeping Slave

Descripción Corta:The Heatit Z-Smoke Detector is a multifunctional wireless smoke sensor for smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Detector blends effortlessly with your home decor and gives you extra security.

Descripción:The Heatit Z-Smoke Detector is a multifunctional wireless smoke sensor for smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Detector blends effortlessly with your home decor and gives you extra security. The Heatit Z-Smoke Detector is designed to provide the sensor with more features and capabilities. Therefore, you can use optional additional features such as a built-in PIR motion sensor, heat sensor and/or emergency lighting. Heatit Z-Smoke Detector has a built-in PIR motion sensor. You can choose to use it to create custom scenes to light up the hallway in the middle of the night or help users save energy. The built-in emergency light can also be set up to provide visual alarms and alerts. The Heatit Z-Smoke Detector uses a cutting-edge reflective photoelectric sensor in conjunction with an advanced microprocessor to deliver optimum performance by detecting developing fires and heat generation. When it comes to security, there is no room for compromise.

Descargue el manual desde aquí.

Grupo

Max Nodos

Descripción

(Lifeline) Battery CC (COMMAND_CLASS_BATTERY) Notification CC,V4 (COMMAND_CLASS_NOTIFICATION) SensorMutilevel CC, V4 (COMMAND_CLASS_SENSOR_MULTILEVEL) Device Reset Locally CC (COMMAND_CLASS_DEVICE_RESET_LOCALLY)

1.When the Smoke Detector is active, it will send Basic Set (0xFF) in Group 2. 2.When the Smoke Detector is restored, it will send Basic Set (0x00) in Group 2.

Número

Tamaño (Bytes)

Valor por Defecto

Nombre

Descripción

Basic V2

COMMAND_CLASS_BASIC_V2

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V11

COMMAND_CLASS_SENSOR_MULTILEVEL_V11

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Classic Inclusion

1. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual).

2. Within 1.5 seconds, press the Function button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process.

Classic Exclusion

1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual).

2. Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-Wave network.

Factory Reset Procedure

(Only use factory reset when network Control Panel/Gateway is missing or inoperable).

Press and hold the button of the smoke detector for 20 seconds. Release the button when you hear 3 beeps to perform factory reset.

Wake-Up Procedure

Role Type : Slave Sleeping Listening

S2 Unauthenticated

S2_UNAUTHENTICATED

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
