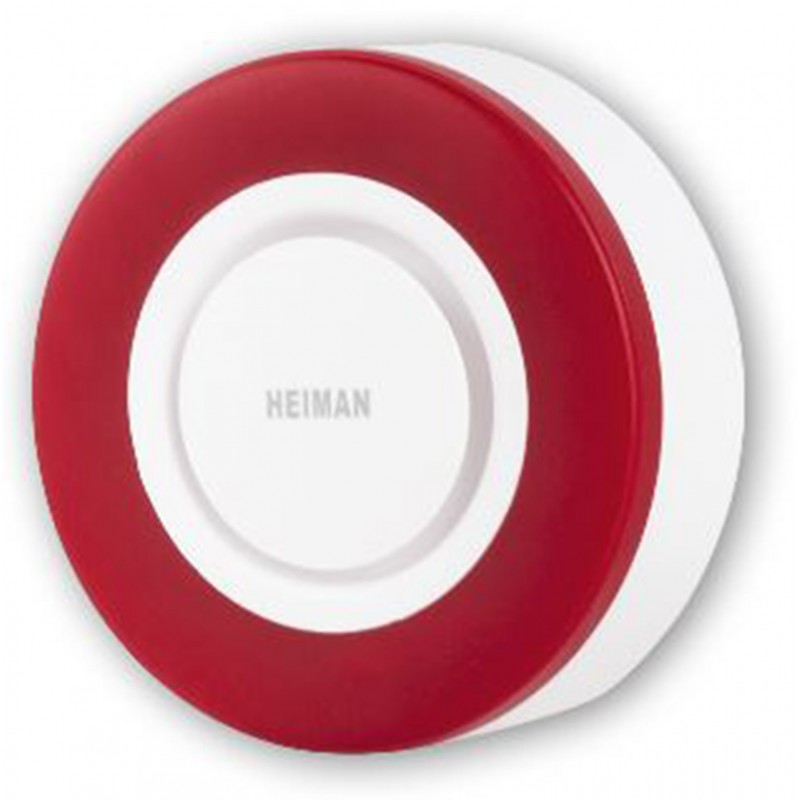

Nombre: Smart Siren
Fabricante:HEIMAN
Identificador:HS2WD-Z
Número de Certificación Z-Wave:ZC10-18066158
Plataforma Hardware:ZM5202
FLiRS:NO
Tipo de Role:Always On Slave
Descripción Corta:The Smart Siren is designed to issue alarms to scare off intruder.
Descripción:The Smart Siren is designed to issue alarms to scare off intruder. This Smart Siren adopts z-wave technology, if a z-wave network is built in the user' home,office, warehouse or other places, when an alarm in the z-wave network is triggered, this Smart Siren will issue high decibel sound and light alarms, and alarm information will also be sent to the user's phone App.
Descargue el manual desde aquí.
Grupo
Max Nodos
Descripción
1
5
Association group 1: Lifeline association group
Include command classes: Switch Binary report ,Battery and Device Reset Locally notification.
Número
Tamaño (Bytes)
Valor por Defecto
Nombre
Descripción
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic V2
COMMAND_CLASS_BASIC_V2
Battery
COMMAND_CLASS_BATTERY
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Security S2
COMMAND_CLASS_SECURITY_2
Supervision
COMMAND_CLASS_SUPERVISION
Switch Binary
COMMAND_CLASS_SWITCH_BINARY
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Factory Reset
-Long press Net_Button at least 10 seconds in the product.
Inclusion
Click [Add] icon in Z-Wave Controller.
- Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 .5second.
- If add Process is successful, Green LED will turn off.
Exclusion
- Click [Remove] icon in Z-Wave Controller.
- Press the Net_Button 3 times within 1.5second.
- If remove Process is successful, Green LED is Blinking 6 times, then turn off.
S2 Unauthenticated
S2_UNAUTHENTICATED
Switch Load Capacity Watts
The amount of switch load energy the product is rated for in Watts
Switch Load Capacity Current
The amount of switch load energy the product is rated for in Amps
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
Switch Load Capacity Volt-Ampere
The amount of switch load energy the product is rated for in VA (Volt-Amperes)
Battery Type
Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
Color
If the product is only available in one color, pick the color from the list.
Battery Quantity
Enter the number of batteries of the designated type that the product uses.
