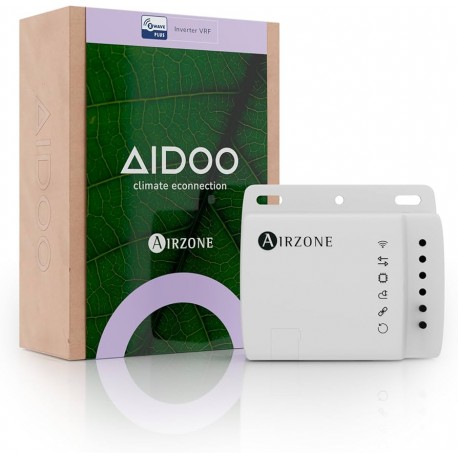

Airzone Aidoo Z‑Wave Plus - Termostato bidireccional Z-Wave

Referencia

Estado: Nuevo

Termostato Z-Wave para el control de equipos de aire acondicionado frío / calor que transforma un equipo Inverter/VRF en un dispositivo Z‑Wave

Más detalles

En Stock - Envío inmediato

Eliminar de mis favoritos
Agregar este producto a mis favoritos
Imprimir

186,34 €

Cantidad

Para unidad interior:

Características técnicas

Tecnología Domótica	Z-Wave Plus

Descripción

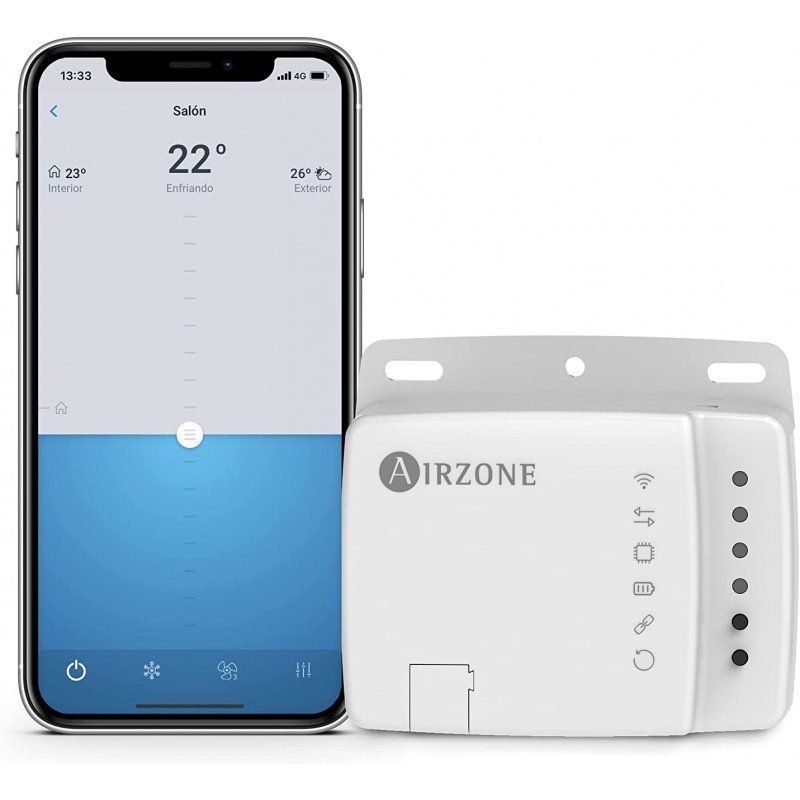

Controla los parámetros del equipo de climatización

Haz compatible tu instalación de clima con más de 3000 productos Z‑Wave

Controla los parámetros del equipo de climatización: temperatura de la estancia, temperatura de consigna, modo ventilación, modo calor, modo frio, etc.

Detecta los errores de comunicación si se producen

Permite la programación del modo y de la temperatura de consigna, así como la reacción ante determinadas circunstancias definidas en tus escenas domóticas.

Actúa como repetidor independiente para mejorar la fiabilidad de la red Z-Wave

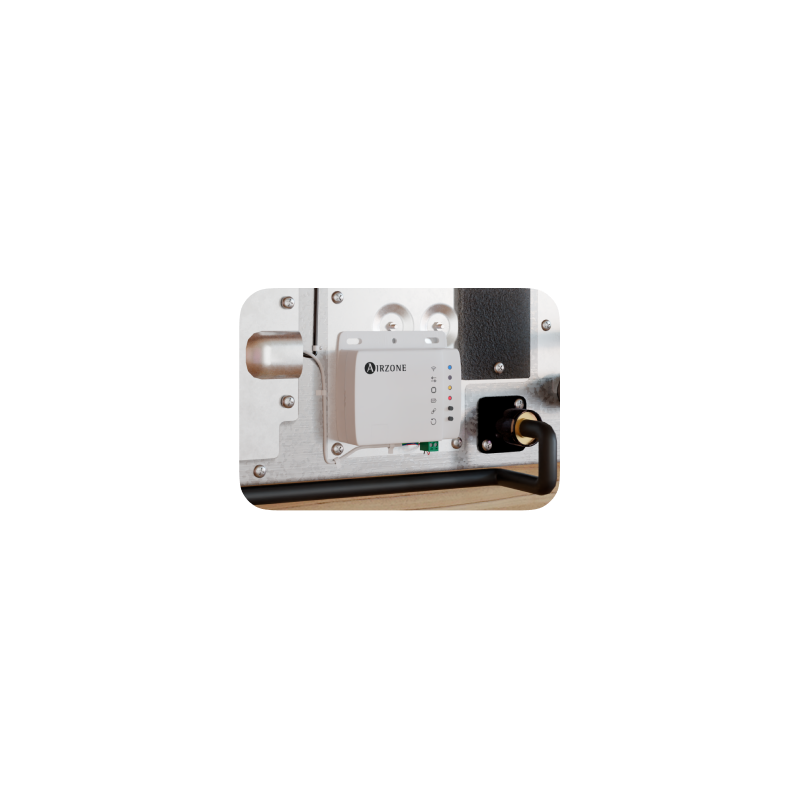

Airzone Aidoo Z-Wave Plus es un dispositivo para la gestión e integración de equipos de forma remota. Conexión inalámbrica a red mediante Z-Wave Plus. El Aidoo Z-Wave Plus de Airzone funciona en cualquier red Z-Wave con otros dispositivos y controladores certificados Z-Wave/Z-Wave Plus de cualquier otro fabricante. Como nodo alimentado constantemente, actuará como repetidor independientemente del proveedor con el fin de aumentar la fiabilidad de la red.

Principales características de Aidoo Z‑Wave

Comunicación bidireccional con el equipo de climatización: de conductos, split, casette...
Opciones de compatibilidad Aidoo Z-Wave: Daikin, Mitsubishi, LG, Fujitsu, Hitachi, Panasonic.
Compatible con todos los controladores con certificación Z‑Wave y Z‑Wave Plus
Asociación Standard & Smart Start
Utiliza clases de comandos estándar tipo Thermostat definidos por el protocolo Z‑Wave
Dispone de un puerto para integraciones Modbus
Alimentación desde el equipo de climatización

Declaración de conformidad
Certificados

Información Ampliada Z-Wave (Inglés)

Nombre: Aidoo Control Z-Wave™ HVAC unit

Fabricante:AIRZONE

Identificador:AZAI6ZWExxx

Número de Certificación Z-Wave:ZC14-22030073

Plataforma Hardware:ZGM130S037HGN2 / ZGM130S037HGN1

FLiRS:NO

Tipo de Role:Always On Slave

Descripción Corta:Device to manage and to integrate HVAC Inverter/VRF units in Z-Wave™ control systems used in Europe (CEPT)

Descripción:

HVAC manufacturers' Certified communication protocols.
2-way communication with the HVAC equipment.
Control of the main parameters of the unit (Status, Operation mode, Fan speed, Set point).
Device powered by the indoor unit.
Modbus port for hard-wire integration

Grupo

Max Nodos

Descripción

Número

Tamaño (Bytes)

Valor por Defecto

Nombre

Descripción

Association Group Information (AGI) V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multilevel Sensor

COMMAND_CLASS_SENSOR_MULTILEVEL

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security 0

COMMAND_CLASS_SECURITY

Security 2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Fan Mode V2

COMMAND_CLASS_THERMOSTAT_FAN_MODE_V2

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Setpoint

COMMAND_CLASS_THERMOSTAT_SETPOINT

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

The SmartStart QR and the full DSK string code can be found on the front side of the Aidoo Z-Wave Plus. The PIN is the first group of 5 underlined digits of the DSK identified as DSK in the left side of the sticker. If you plan to use the DSK, it is important that you take a picture of the label and keep it in a safe place.

Classic Inclusion

The Aidoo Z-Wave Plus is compatible with all Z-Wave/Z-Wave Plus certified controllers. The device supports both the Network Smartstart inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Standard Inclusion.

By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds.

If the Aidoo Z-Wave Plus has not been included yet into the Z-Wave network, the Wi-Fi sign LED will remain off. The procedure of inclusion is activated by pressing the Association Button (5) . As soon as the inclusion procedure initiates, the communication LED remains steady red until the device is included in the network.

Classic Exclusion

Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learning Mode.

If the Aidoo Z-Wave Plus is already included into the Z-Wave network, the Wi-Fi sign LED will remain steady blue. The procedure of exclusion is activated by pressing the Association Button (5). As soon as the exclusion procedure initiates, the communication LED remains steady red until the device is excluded of the network.

Factory Reset Procedure

The Aidoo Z-Wave Plus can be reset to the original factory settings by long pressing over the Factoy Reset button (6) until all of the front side LEDs light up for a second.

Note: If the reset is performed while the device is still part of a network, it notifies the other devices in the lifeline group that it has been removed.

Other Special Features

The Aidoo Z-Wave Plus supports over-the-air firmware updates that do not require the device to be removed from its location. The firmware update can be activated from all certified controllers supporting version 5 of the Firmware Update function.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED
