Philio Tech
Philio External Motion Sensor com moldura quadrada
View larger
View larger

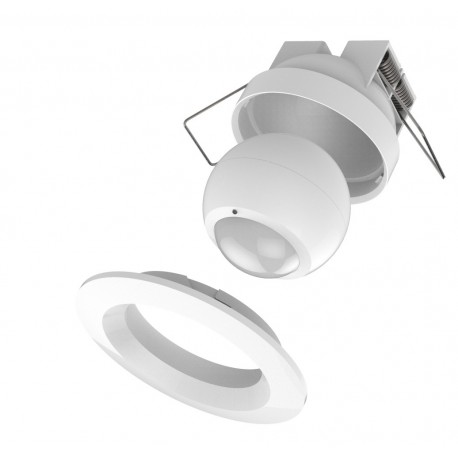

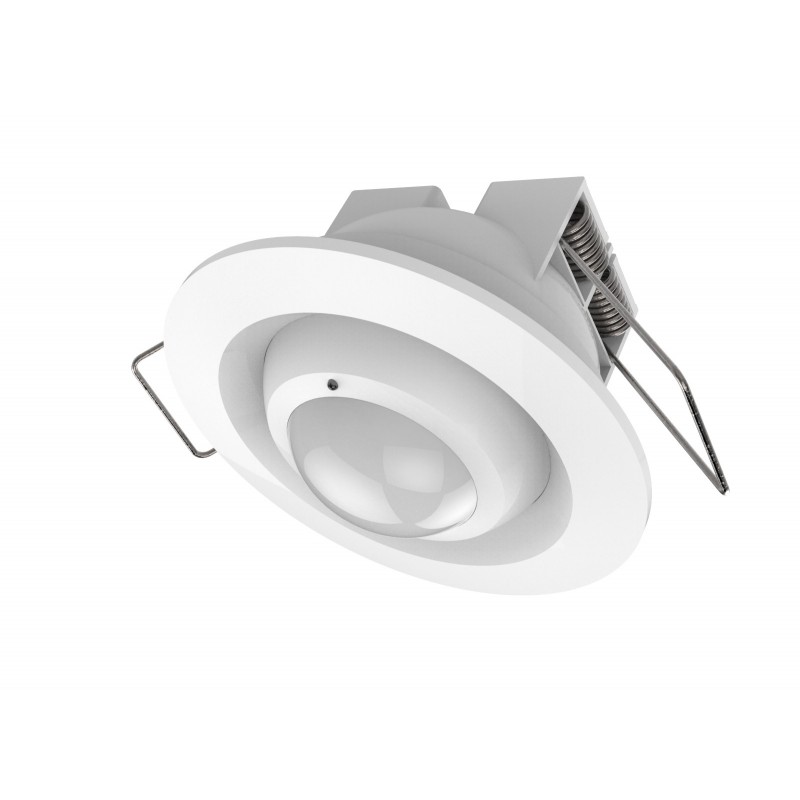

Philio External Motion Sensor com moldura quadrada
PHIEPSP05-C
Novo
Sensor de movimento externo Z-Wave com a peculiaridade de ser incorporado em uma moldura recuada redonda.
Em estoque
- Retirar este produto da minha lista de favoritos.
- Adicionar este produto à minha lista de favoritos.
Características tecnicas
| Tecnologia Domótica | Z-Wave Plus |
Mais Informação
O sensor de movimento Philio tem um design esférico compacto e detecta movimento a uma distância de até 10 metros. Pode ser instalado facilmente e individualmente em tetos ou paredes. Isso permite que você coloque o sensor discretamente em sua casa, por exemplo, mudando a luz automaticamente. Além disso, pode ser usado para cenas de alarme.
Além disso, o sensor operado por bateria é adequado para uso externo.
Características:
Sensor de movimento em execução esférica
Com teto e montagem na parede
360 área de monitoramento
Classe de proteção: IP43 (resistente às intempéries)
Âmbito de fornecimento: sensor de bateria, montagem na parede / teto
Fonte de alimentação: bateria CR123
Tecnologia sem fio: Z-Wave Plus
Dimensões: 85x79x45 mm
Informação alargada da Z-Wave (Inglês)
Nome: Single Function PIR Sensor
Fabricante:Philio
Identificador:PSP05
Número de Certificação Z-Wave :ZC10-16105258
Plataforma de Hardware :SD3502
FLiRS:Não
Tipo de Role :Reporting Sleeping Slave
Descrição breve :The PIR sensor PSP05 has PIR sensor function.
Descrição :The PIR sensor PSP05 has PIR sensor function,based on Z-Wave™ technology.
Descarregue o manual a partir de aqui.
Grupo
Nodos máximos
Descrição
1
8
Z-Wave Plus Lifeline
2
8
light control
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
10
1
12
Auto Report Battery Time
The Interval time for auto report the battery level.
0 means turn off auto report battery.
The default value is 12.The tick time can setting by the configuration NO.20.
2
1
-1
Basic Set Level
Setting the BASIC command value to turn on the light.
-1(0xFF) means turn on the light.
For dimmer equipment 1 to 100 means the light strength.
0 means turn off the light.
Caution: The range is from 0x00 to 0xFF using hexadecimal notation.
20
1
30
Auto Report Tick Interval
The interval time for auto report each tick.
Setting this configuration will effect configuration NO.10.
The unit is 1 minute.
Caution 1:Setting to 0 means turn off all auto report function.
Caution 2:The range is from 0x00 to 0xFF using hexadecimal notation.
3
1
80
PIR Sensitivity
PIR sensitivity setting.
0 means disable the PIR motion.
1 means the lowest sensitivity.
99 means the highest sensitivity.
High sensitivity means can detected long distance,but if there is more noise signal in the environment, it will re-trigger too frequency.
6
1
5
Multi-Sensor Function Switch
Multisensor function switch.Using bit to control.
7
1
4
Customer Function
8
1
3
PIR Re-Detect Interval Time
In the normal mode, after the PIR motion detected, setting the re-detect time.
8 seconds per tick,default tick is 3(24 seconds).
Setting the suitable value to prevent received the trigger signal too frequently. Also can save the battery energy.
9
1
4
Turn Off Light Time
After turn on the light,setting the delay time to turn off the lighting when the PIR motion to turn off the lighting when the PIR motion is not detected.8 seconds per tick,default tick is 4(32 seconds).
0 means never send turn off light command.
Basic
COMMAND_CLASS_BASIC
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Battery
COMMAND_CLASS_BATTERY
Configuration
COMMAND_CLASS_CONFIGURATION
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Multi-Command
COMMAND_CLASS_MULTI_CMD
Notification V4
COMMAND_CLASS_NOTIFICATION_V4
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Sensor Binary V2
COMMAND_CLASS_SENSOR_BINARY_V2
Version V2
COMMAND_CLASS_VERSION_V2
Wake Up V2
COMMAND_CLASS_WAKE_UP_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Factory Reset
There is a button on PSP05.
1. Pressing button for about 5 seconds.
2. IDs are excluded and all settings will reset to factory default.
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Pressing button for about 5 seconds.
2. IDs are excluded and all settings will reset to factory default.
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
Device Wake-Up
There is a button on PSP05.
Press the button once, the device will awake 10 seconds.
Press the button once, the device will awake 10 seconds.
Inclusion
There is a button on PSP05.
1. Have Z-Wave™ Controller entered inclusion mode.
2. Pressing button once to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds.
1. Have Z-Wave™ Controller entered inclusion mode.
2. Pressing button once to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds.
Exclusion
There is a button on PSP05.
1. Have Z-Wave™ Controller entered exclusion mode.
2. Pressing button once to enter the exclusion mode.
1. Have Z-Wave™ Controller entered exclusion mode.
2. Pressing button once to enter the exclusion mode.
