Fakro zws230. Motor para janela de teto tipo Velux. Automação

Características tecnicas

Tecnologia Domótica	Z-Wave (Comp. con Z-Wave)

Mais Informação

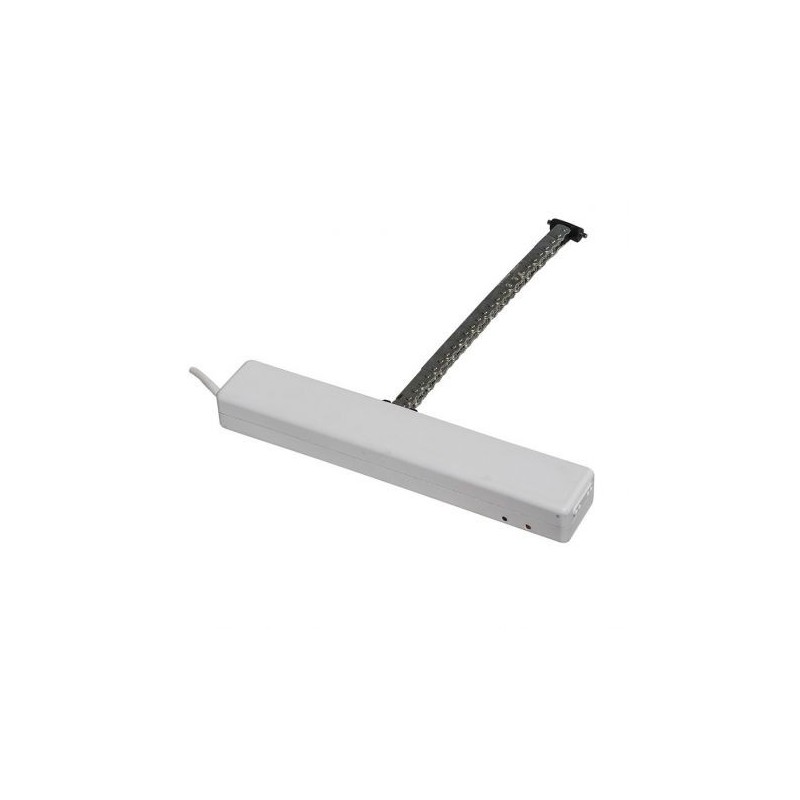

O kit Fakro ZWS12 é usado para controlar janelas de telhado com o sistema Z-Wave. Consiste em um cabo de 6 m, o
Motor de corrente 12VDC com abertura máxima de 25 cm e guarnição com quadro de comando manual. O conjunto está equipado com sistema de segurança anti-carga funcionando
como um detector do correto fechamento da janela. Acabamento em branco, disponível a pedido na cor
prata.

O motor de corrente ZWZ230 é, graças às suas dimensões reduzidas e à sua força de saída, um elemento ideal para a motorização de janelas giratórias, sendo totalmente compatível com o sistema de domótica Z-Wave. Este motor pode ser usado para atualizar / motorizar janelas de telhado (giratórias, pivotantes, etc.) de diferentes fabricantes.

O motor está equipado com uma proteção contra sobrecarga incorporada que atua como um sensor de que a janela está devidamente fechada.

Parâmetros técnicos:	Motor Fakro ZWS12
Alcance da corrente	240mm
Tensão elétrica	15 V DC
Corrente nominal	0,36
Potência de saída	9W
Força de ejeção da corrente	200N
Velocidade do curso da corrente	4,25 mm / s
Temperatura de operação	(-9 ° C) a (+ 50 ° C)
Cabo de alimentação	2x0,75mm2 (0,4mb)

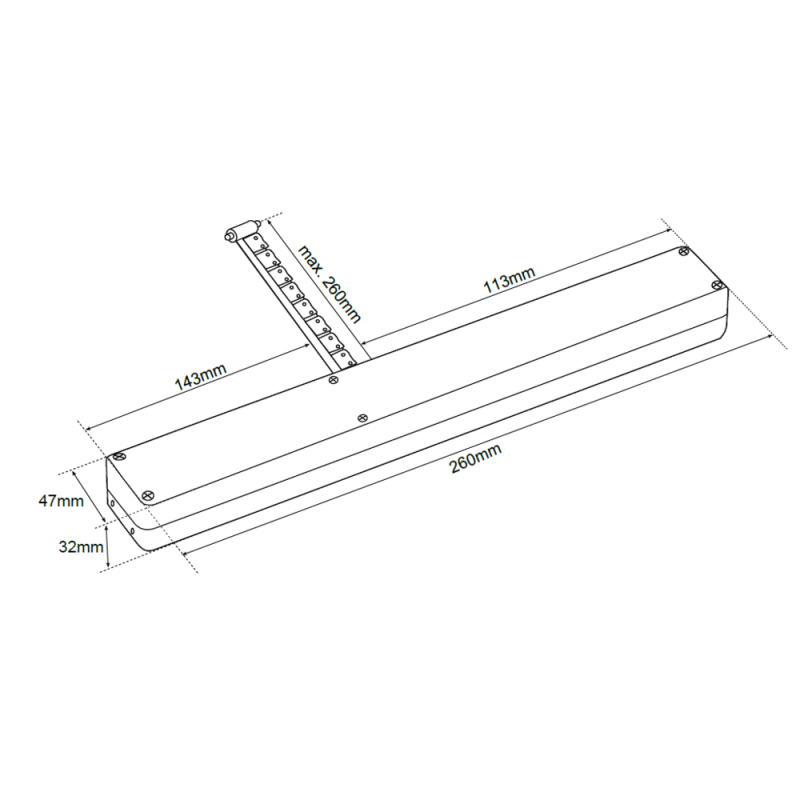

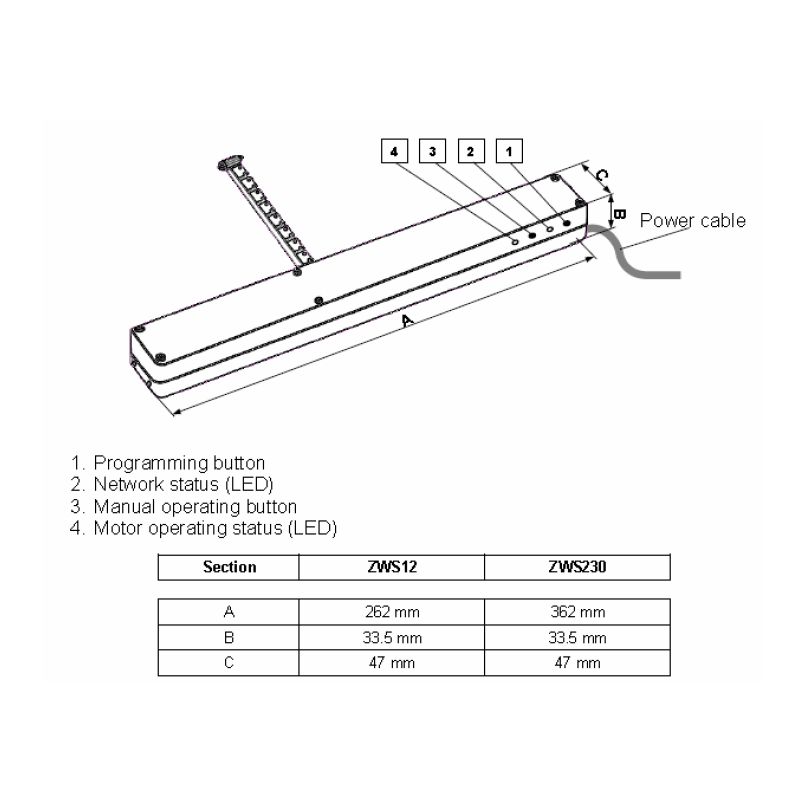

Dimensões	262x47x33,5

Download

ZWS12_Fakro.pdf

Download (810.38k)

Informação alargada da Z-Wave (Inglês)

Nome: Chain actuator - window opener

Fabricante:FAKRO

Identificador:ZWS12

Número de Certificação Z-Wave :ZC10-17075693

Plataforma de Hardware :ZM5202

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :FAKRO ZWS12 chain actuator is fully compatible white Z-Wave Plus protocol. Is dedicated for roof window operating. The maximum chain reach is 24cm. Motor is equipped with encoder and secure transmission.

Descrição :FAKRO ZWS12 chain motor thanks to their small dimensions and suitable force output are ideal for roof window operating, being fully compatible with the Z-Wave Plus system. The motors can be applied in both centre pivot and top hung and pivot roof windows as well as windows of non-standard dimensions. The chain has 2 output speed and reach 24cm. The ZWS12 motor is equipped with encoder and two limit switches: limit switch at maximum chain travel position, overload limit in both directions (used mainly when closing the window). This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. ZWS12 also can be controlled manually by button and closed by rain sensor and timer. There are four association groups in actuator ZWS12: Life Line – group for position reporting actuator after each a stoppage and alarm reporting Basic Repeat – group used to transfer the received basic commands to the devices included in this group. Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group. Basic Rain – group used to transfer the received commands from actuator & rain detector to the devices included in this group. Z-Wave Plus Secure Enabled Product This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. Technical Parameters: Chain reach: 240 mm Output power : 9 W Rated current: 0.72 A Standby current: 0.03 A Chain pushing force: 200 N Closing force: 200 N Current limit: YES Power voltage: 15V DC Power cable: 2 x 0.75 mm2 (0,4 m)

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

Life Line – group for position reporting actuator after each a stoppage and alarm reporting (overcurrent, damage encoders). This group can be a maximum 1 device.

2

5

Basic Repeat – group used to transfer the received basic commands to the devices included in this group. This group can be a maximum 5 devices.

3

5

Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group. This group can be a maximum 5 devices.

4

5

Basic Rain – group used to transfer the received commands from actuator & rain detector to the devices included in this group. This group can be a maximum 5 devices.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

12

1

Callibrate

This parameter on/off callibration function

13

1

Last saved position

This parameter set servomotor in previous position after using Basic Mode operation

15

1

0

Close after time

This parameter close servomotor after set time. The time is counting in minutes

7

1

2

Motor speed I

This parameter change motor speed

8

1

2

Motor speed II (rain sensor)

This parameter change motor speed when rain sensor turned on servomotor

Basic

COMMAND_CLASS_BASIC

Security S0

COMMAND_CLASS_SECURITY

Switch Multilevel V3

COMMAND_CLASS_SWITCH_MULTILEVEL_V3

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic

COMMAND_CLASS_BASIC

Configuration

COMMAND_CLASS_CONFIGURATION

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Node Naming

COMMAND_CLASS_NODE_NAMING

Notification V3

COMMAND_CLASS_NOTIFICATION_V3

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Switch All

COMMAND_CLASS_SWITCH_ALL

Switch Binary

COMMAND_CLASS_SWITCH_BINARY

Switch Multilevel V3

COMMAND_CLASS_SWITCH_MULTILEVEL_V3

Version V2

COMMAND_CLASS_VERSION_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Exclusion

Exclude - This function allow you to remove actuator from the network Z-Wave. Follow the procedure removing device from the network Z-Wave

according to user manual supplied with the product. Then, press the

programming button P on the actuator for 1 second. Function removes

information only about network Z-Wave.

Inclusion

Autoinclusion - This feature allow you to add hard to reach devices to Z-Wave network. 3-times ON and OFF the power actuator (OFF-ON-OFFON-OFF-ON) causes the introduction of actuator to Autoinclusion mode.

Please note that the procedure has been started the time between on and off can not exceed 20s. Autoinclusion mode is activated for a maximum of 10 minutes. During this time, we can add an actuator to any Z-Wave controller running in the Include procedure.

Include - This function allow you to add actuator to the network Z-Wave.

Follow the procedure adding device to the network Z-Wave according to user manual supplied with the product. Then, press the programming button P on the actuator for 1 second.

Factory Reset

Device Reset Locally – This function allows you to reset the Z-Wave

network without the use of Z-Wave controller. Press 5 times the

programming button P fast, the actuator was removed from the Z-Wave

network, restore the default parameters, name and locations.

Please use this procedure only when the network primary controller is missing or otherwise inoperable.

Additional Special Features

Autoinclusion - This feature allow you to add hard to reach devices to Z-Wave network. 3-times ON and OFF the power actuator (OFF-ON-OFFON-OFF-ON) causes the introduction of actuator to Autoinclusion mode. Please note that the procedure has been started the time between on and off can not exceed 20s. Autoinclusion mode is activated for a maximum of 10 minutes. During this time, we can add an actuator to any Z-Wave controller running in the Include procedure.
