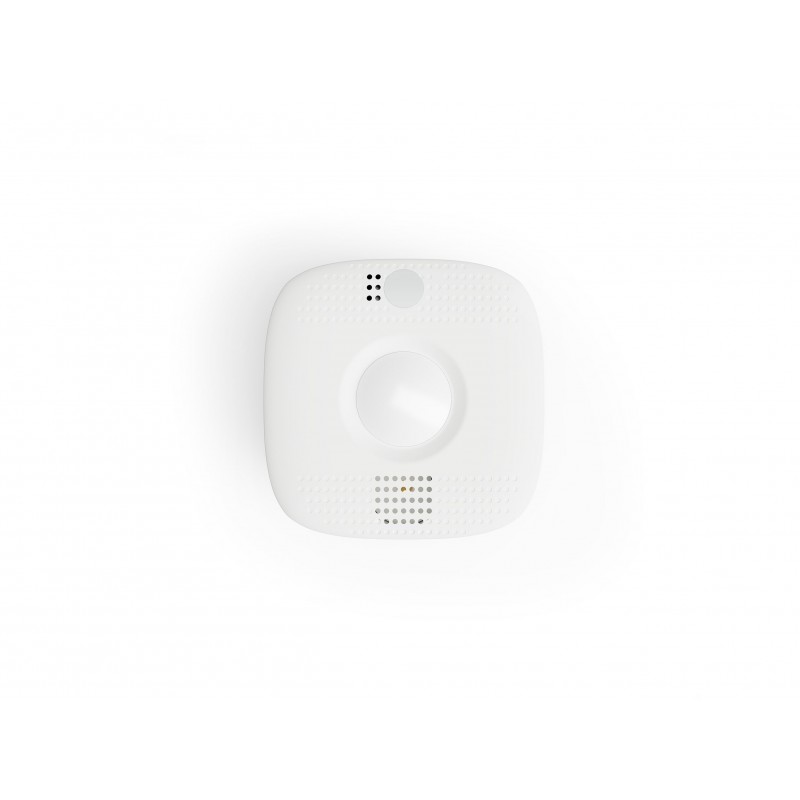

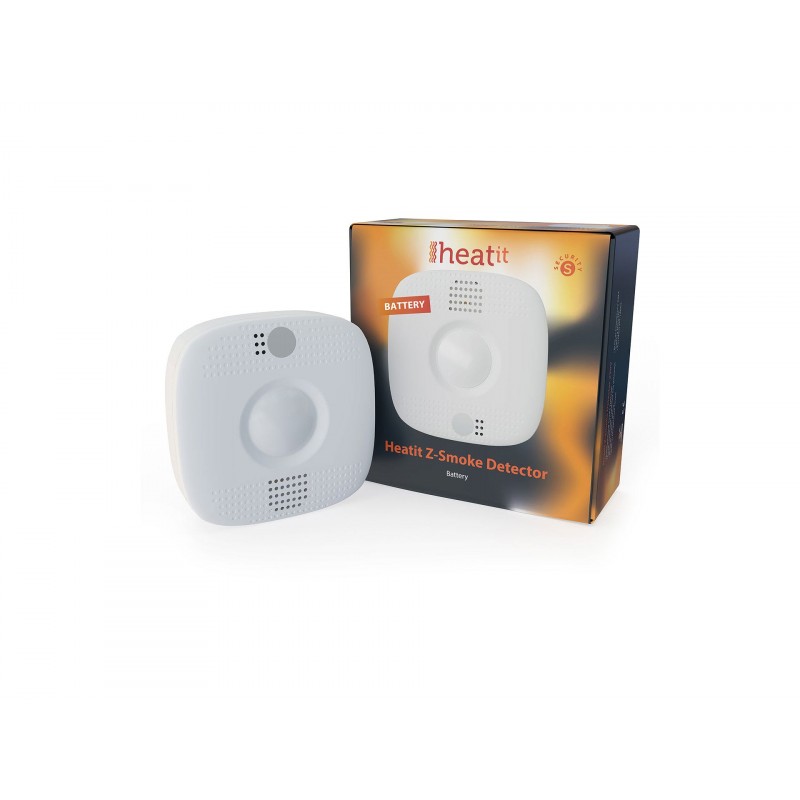

Nome: Heatit Z-Smoke Battery
Fabricante:Heatit controls
Identificador:4512688
Número de Certificação Z-Wave :ZC10-20127003
Plataforma de Hardware :ZM5202
FLiRS:Sim
Tipo de Role :Listening Sleeping Slave
Descrição breve :The Heatit Z-Smoke Detector is a multifunctional wireless smoke
sensor for smart home systems. With its powerful features, the
sensor is designed to protect the family from potential fire
hazards. With its compact and streamlined design, the Heatit
Z-Smoke Detector blends effortlessly with your home decor and
gives you extra security.
Descrição :The Heatit Z-Smoke Detector is a multifunctional wireless smoke
sensor for smart home systems. With its powerful features, the
sensor is designed to protect the family from potential fire
hazards. With its compact and streamlined design, the Heatit
Z-Smoke Detector blends effortlessly with your home decor and
gives you extra security.
The Heatit Z-Smoke Detector is designed to provide the
sensor with more features and capabilities. Therefore, you can
use optional additional features such as a built-in PIR motion
sensor, heat sensor and/or emergency lighting. Heatit Z-Smoke
Detector has a built-in PIR motion sensor. You can choose to use
it to create custom scenes to light up the hallway in the middle
of the night or help users save energy. The built-in emergency
light can also be set up to provide visual alarms and alerts.
The Heatit Z-Smoke Detector uses a cutting-edge reflective
photoelectric sensor in conjunction with an advanced
microprocessor to deliver optimum performance by detecting
developing fires and heat generation. When it comes to security,
there is no room for compromise.
Descarregue o manual a partir de aqui.
Grupo
Nodos máximos
Descrição
1
1
(Lifeline) Battery CC (COMMAND_CLASS_BATTERY)
Notification CC,V4 (COMMAND_CLASS_NOTIFICATION)
SensorMutilevel CC, V4 (COMMAND_CLASS_SENSOR_MULTILEVEL)
Device Reset Locally CC (COMMAND_CLASS_DEVICE_RESET_LOCALLY)
2
1
1.When the Smoke Detector is active, it will send Basic Set (0xFF) in Group 2.
2.When the Smoke Detector is restored, it will send Basic Set (0x00) in Group 2.
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
Basic V2
COMMAND_CLASS_BASIC_V2
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Battery
COMMAND_CLASS_BATTERY
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Notification V8
COMMAND_CLASS_NOTIFICATION_V8
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S2
COMMAND_CLASS_SECURITY_2
Sensor Multilevel V11
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
Supervision
COMMAND_CLASS_SUPERVISION
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Classic Inclusion
1. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual).
2. Within 1.5 seconds, press the Function button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process.
Classic Exclusion
1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual).
2. Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-Wave network.
Factory Reset Procedure
(Only use factory reset when network Control Panel/Gateway is missing or inoperable).
Press and hold the button of the smoke detector for 20 seconds. Release the button when you hear 3 beeps to perform factory reset.
Wake-Up Procedure
Role Type : Slave Sleeping Listening
S2 Unauthenticated
S2_UNAUTHENTICATED
Battery Quantity
Enter the number of batteries of the designated type that the product uses.
Battery Type
Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
